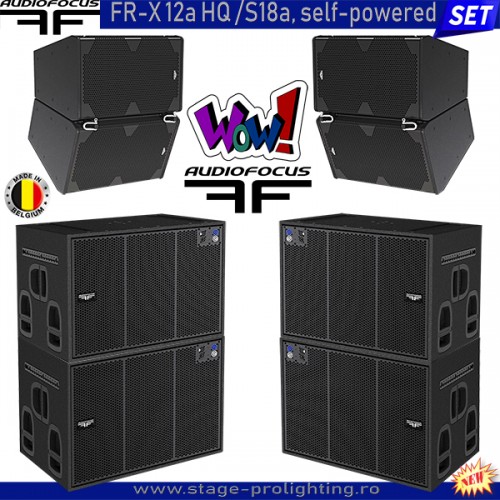

AudioFocus FR-X12aHQ-S18a, self-powered SET

AudioFocus FR-X12aHQ-S18a, self-powered SET

Producător: AudioFocus
Cod produs: AudioFocus FR-X12aHQ-S18a, self-powered SET
Disponibilitate: disponibil in 5 zile
0,00 RON TVA inclus
Pret: 0,00€
VAT Incl.

Descriere

AudioFocus FR-X12aHQ-S18a, self-powered SET, se compune din:

Component Nr Buc Descriere de baza
AudioFocus FR-X12a HQ    4
AudioFocus S18a    4 Self-powered subwoofer, 18",
Cover    8 Huse atat pentru top-uri, cat si pentru subwoofere

Sistemul prezentat este o solutie de sonorizare de top a producatorului Belgian AudioFocus, excelenta sub raportul calitate/pret, pentru sonorizari cu pana la 800 de persoane. Atat top-urile multifunctionale, cat si subwooferele sunt active (auto-amplificate) cu amplificatoare personalizate Powersoft de clasa D, avand preseturi predefinite DSP, ceea ce face ca sistemul sa fie perfect setat "din zbor", fara sa fie nevoie de alte ajustari, ceea ce ofera o mai mare usurinta in exploatare si rapiditate de instalare. Din toate punctele de vedere, acest sistem este o reusita: calitatea sunetului nu lasa loc niciunui compromis, astfel incat se aude ala fel atat de la 3m, cat si de la 30m, subwooferele avand atat forta, cat si "punch" (atac), iar top-urile o foarte buna dispersie, fiind de tipul point-source (deci si long-throw), iar pretul promotional le califica (desi fiind produse de top) in clasa "best money can buy", avand totodata si fiabilitate mare datorita driverelor Faithal PRO, extrem de rezistente si cu randament foarte bun, printre cele mai bune difuzoare ale momentului. Calitatea amplificatoarelor Powersoft este de asemenea bine stiuta, fiind o garantie in plus ca investitia dvs este una sigura si de termen lung, fara probleme. Toate produsele pot fi aduse in numai 5 zile prin intermediul nostru in calitate de unic distribuitor oficial in Romania. Conform politicii de marketing a producatorului Belgian, pretul se comunica numai telefonic si strict pentru clientii interesati care deschid comenzi, care apoi vor putea fi onorate prin intermediul magazinului nostru. Garantia oferita este de 3 ani, iar calitatea noastra de reprezentanta va va oferi ulterior un foarte bun suport tehnic si service. Toata gama de produse de la Audiofocus va putea fi testata si vazuta in show-room-ul nostru dedicat incepand cu jumatatea lunii Aprilie. Va invitam la probe.

Prezentare produse si detalii tehnice:

FR-X 12a HQ Key Features

  • Multi-functional FOH system
  • For audiances of 100-3000 people
  • Plug & Play system
  • Adaptive (rotable) AF horn 80x30°
  • X-comb technology inside
  • Optimised for medium throw applications
  • Active/Dante/Passive versions

(1) Peak SPL is calculated on built in amplifier's peak output voltage limit, perfectly matched with specific FR-X 12a driver.
(2) ''VERH-II'' system to change directivity in less than 1min without tools.
(3) RMS power is given by the RMS power handling of the specific FR-X 12a driver.

Description 2-way, vented self-powered FOH system
Usable bandwith (-6dB) 55 Hz - 20 kHz ([ Extended] preset)
Maximum SPL Peak / 1m 139.5 dB (1)
Coverage angle (-6dB) 80° x 30°, "VERH-II" rotating system (2)
Transducers LF: 1 x 12", neodymium, weather resistant,
HF: 1 x 1,4", ferrite, compression driver, AF versatile horn
Input impedance 10 kΩ balanced
RMS power handling 1700 W (3)
Connectors Balanced 1 x IN, 1x OUT Neutrik© XLR
1 x IN, 1 x OUT Neutrik© Powercon
Rigging components H coupling bars + standard cargo
Dimensions (H x W x D) 604 x 382 x 437 mm (incl. feet) / 22,5°
Weight 33 kg / 73 lb
Cabinet Baltic birch plywood
Finish High resistant Polyurea coating
Front Steel removable grill on magnets
Mounting accessories

d35 steel flange



Key Features S18a

  • Powerful bass-reflex T-lined design
  • Mobile and fixed installation
  • Pole mount socket
  • Passive/Active & Dante
  • Integrated rigging
  • Equipped with one powerful specific 18’’ Faitalpro neodymium driver with 4’’ voice coil powered by a built-in Powersoft amplifier with DSP on board.

    AUDIOFOCUS T-ligned + reflex design subwoofer delivers exceptional sensitivity and reaches 138 dB max SPL.

    Its compact size and integrated rigging makes it particularly well suited for flown coupled configurations. For easy wiring, the S18 provides additional connectors on the front grill for cardioid setup.

Spécification S18
Type Vented T-ligned - Passive/Active
Nominal Impedance Passive: 8Ω
Power handling RMS / Peak Passive: 900W RMS / 1800W Peak
Active: 1225W RMS / 2450W Peak
Frequency range @-3dBspl Passive: 45 Hz - 1,0 kHz
Active: 40 Hz - 100 Hz (extended preset)
Sensitivity spl 2πsr 102 dB
SPL@ Peak power Passive: 134,5 dB
Active: 136 dB / 138 dB
Components 18" LF Faitalpro Custom made, 4" Voice coil
Line Connectors Active: Balanced 1 x IN, 1 x OUT Neutrik© XLR
Front connection for Cardio Active: powerCON and XLR IN OUT
Passive: speakON 4 or speakON 8 IN OUT
HP Connectors Passive: 2x Neutrik© speakON linked
Construction Birch marine Plywood 15 & 24 mm
Finish High resistant Polyurea coating
Dimensions (h x w x d) 510 x 650 x 560 mm
20,07’’ x 25,59’’ x 22,04’’
Weight Passive: 39 kg / 86 lb
Active: 40 kg / 88 lb
Mounting accessoiries M20 screw & 35 mm compatible flange
