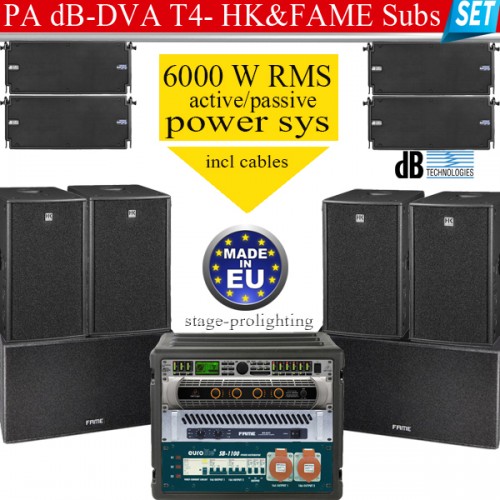

PA dB-DVA T4-HK&FAME Subwoofers SET

Producător: dB Technologies
Cod produs: PA dB-DVA T4-HK&FAME Subwoofers SET
Disponibilitate: disponibil in 8-10 zile
39.996,00 RON TVA inclus
Pret: 8.279,17€
VAT Incl.

Descriere

PA dB-DVA T4-HK&FAME Subwoofers SET se compune din:

Component Nr Buc Descriere de baza
Fame MT-218B   2 lacquered 2x18" Subwoofer

Direct 2 x 18" subwoofer with 1000 Watt/4Ohm. Very deep and precise bass playback,

  • 2000 Watt Peak
  • 4 Ohm
  • Sens. 101dB
  • max. SPL 134 dB
  • no X-Over
HK Audio PR:O 210 S Sub   4 HK Audio PR:O 210 S Sub Features: 2x 10" Subwoofer Belastbarkeit: 500 Watt RMS, 1000 Watt Programm, 1500 Watt Peak Impedanz: 4 Ohm Empfindlichkeit 1W/ 1m: 101 dB @ 1 W 1m Max. SPL: 127 dB Frequenzgang +/- 3 dB: 60 Hz - 150 Hz Frequenzgang -10 dB: 40 Hz - 150 Hz
Behringer - iNuke NU4-6000 amplifier   1 four channel amplifier 4 x 1500 Watts into 2 Ohms, 2 x 3000 Watts into 4 Ohms
Fame audio MS 12002 Power Amplifier   1
  • Class-H A
  • LED signa
  • mplifier
  • l indicators
  • Protective circuits such as Limiter, Soft Start
  • 2 HU
  • 2 XLR Combo sockets
  • 2 Cinch-Inputs
  • 2 XLR-Outputs for Parallel, Bridge or Stereo mode
  • Lo-cut @ 90Hz or 120Hz (or bypass)
  • Very robust housing
  • 2 x 1140 Watt @ 4 ohm
  • 2240 Watt @ 8 Ohm Bridge Mode
  • 2 x 720 Watt @ 8 Ohm Stereo

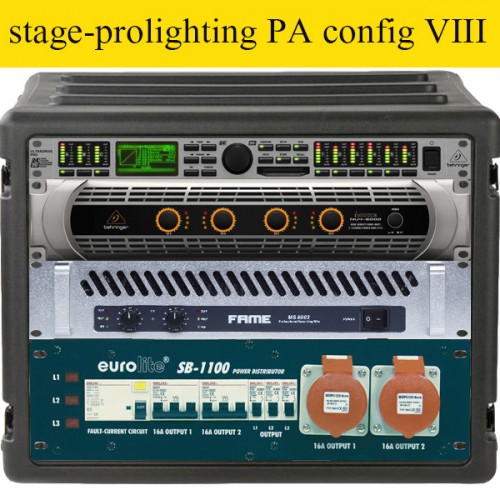

Behringer Ultradrive Pro DCX 2496   1 speaker management
Eurolite SB-1100   1 Practical 32 A distributor to 220V in 19" housing
dBTechnologies DVA T4 line-array active   4 8" Neodym-Woofer, 6,5" Neodym Mitteltöner, horngeladen 2x 1" Neodym Treiber mit 1,5" Titanmembran Class-T Digital Endstufe mit 420 Watt/RMSPFC - Schaltnetzteil integr. DSP mit 24-Bit und 96 KHz hochwertige 24-Bit Wandler Frequenzgang: 80 - 19.000 Hz SPL peak 128 dB Abstrahlwinkel 100°x15° bzw. abhängig von der Anzahl der Elemente 16 schaltbare Setups analoger Soft-Clip Limiter digitaler 3-Band Limiter
ROTO Rack & Cables set 6 x speakon-speakon 10m cables, 2 x XLR-XLR 10m cables, 6 x XLR-XLR pach cables 0,5m, ROTO Rack 8U

Sistemul prezentat este foarte bine echilibrat. In configurarea lui s-a tinut cont de mai multi factori, prioritari insa fiind raportul randament/pret si flexibilitatea. Cuplajul 2 x 18" (Fame) cu 2 x 10" la subwoofere (HK) asigura atat un foarte bun atac al joaselor, cat si o extinctie a mediilor joase, care pot fi eliberate in special in suburile HK din procesorul Behringer in care crossoverarea se poate face nu la 150Hz, ci deasupra (functie de natura salii si distanta optima la care acestea sa dea maximum de randament). Delay-ul per sistem se regleaza descrescator in trepte de la top-uri catre 18" pentru echilibrare, astfel incat atacul sa fie cat mai compact in varful triunghiului de optimizare, obtinandu-se astfel un sunet distinct si precis in toata banda de frecvente. Amplificatorul FAME va deservi suburile 2x18" cu crossoverarea 30-150Hz facuta din speaker management, iar amplficatorul Behringer va deservi cele patru suburi HK cu taierea superioara la 300-400 Hz. Line-array-urile dB T4 pot fi alimetate atat direct din mixerul detinut, cat si din procesorul de sistem pe output 5,6, in acest caz taierea inferioara facandu-se la 150-250 Hz pentru un cat mai bun randament al mediilor si inaltelor, descarcate prin low-cut. Pentru un sunet cat mai clar intr-o aplicatie LIVE, recomandam de asemenea compresii marite in special la subwoofere, iar atack-ul pe suburile de 10" sa fie cat mai mic, cu realise scazut, pentru o dinamica cat mai pronuntata a intregului sistem. @127dB (deci in fortaj) acest sistem in conditiile aratate are minim de distorsiuni, un sunet clar si placut.

Import Germania, fiecare produs in parte beneficiaza de 3 ani garantie!!!

Detalii tehnice:

Fame MT-218B lacquered 2x18" Subwoofer

Direct 2 x 18" subwoofer with 1000 Watt/4Ohm. Very deep and precise bass playback - the perfect expansion to every 12" or 15" top. Test it!!!

features:

  • set of wheels
  • included 2x 18" subwoofer
  • 1000 Watt RMS
  • 2000 Watt Peak
  • 4 Ohm
  • Sens. 101dB
  • max. SPL 134 dB
  • no X-Over
  • dimensions: 580 x 590 x 1160 mm
  • weight: 68 kg

Features:

  • Manufacturer: Fame audio
  • Typ: Sub
  • Signal Processing: Passive
  • Size of Woofer (Inches): 18
  • Power Output in W(RMS) @4Ohm: 1,000
  • Impedance (Ohm): 4
  • max. Peak SPL (dB): 134
  • Weight (kg): 68
  • Housing Material: Wood
  • Height (mm): 1,160
  • Width (mm): 590
  • Depth (mm): 580

HK Audio PR:O 210 S Sub

Der Premium PR:O 210 S liefert als passiver Subwoofer die ideale Ergänzung zu allen PR:O Topteilen. Die beiden 10" Speaker liefern im Bassreflexgehäuse eine beindruckende Basswiedergabe mit druckvollem Kick und gleichzeitig überraschendem Tiefgang. Äußerst moderate Maße und flexible Aufstellmöglichkeiten bei einem Gewicht unter 27 kg erleichtern die Kombination mit den PR:O Topteilen zu einem leistungsstarken System, dass nicht nur optisch unauffällig und platzsparend aufzustellen ist, sondern auch einfach zu bedienen, damit Sie möglichst schnell ihren persönlichen Sound erreichen.

HK Audio PR:O 210 S Sub Features: 2x 10" Subwoofer Belastbarkeit: 500 Watt RMS, 1000 Watt Programm, 1500 Watt Peak Impedanz: 4 Ohm Empfindlichkeit 1W/ 1m: 101 dB @ 1 W 1m Max. SPL: 127 dB Frequenzgang +/- 3 dB: 60 Hz - 150 Hz Frequenzgang -10 dB: 40 Hz - 150 Hz Eingebaute System-Frequenzweiche für den direkten Anschluss von Satelliten Anschlüsse: 2x Speakon Trennfrequenz Passivweiche: 150 Hz, 12 dB / oct. Hochständerflansch: 2x M20 2 Griffe Gehäuse: MDF Frontgitter: Metallgitter mit Akkustikschaum Oberfläche: Acryllack, schwarz Maße (BxHxT): 36 x 61 x 53 cm Gewicht: 25,9 kg / 52,3 lbs.

Features:



  • Manufacturer: HK Audio
  • Typ: Sub
  • Signal Processing: Passive
  • Size of Woofer (Inches): 10
  • Power Output in W(RMS) @4Ohm: 500
  • Impedance (Ohm): 4
  • max. Peak SPL (dB): 127
  • Weight (kg): 25.9
  • Housing Material: Wood
  • Flange: 35mm
  • Frequency Response from (Hz): 60
  • Frequency Response to (Hz): 150
  • Crossover Network: Yes
  • Input: Speakon
  • Height (mm): 610
  • Width (mm): 360
  • Depth (mm): 530

Behringer - iNuke NU4-6000 amplifier

The powerful iNUKE NU4-6000 packs four 1500-Watt amplifiers into the space of one. Now you can run your stereo full range mains plus two separate monitor mixes with this one exceptionally lightweight, rack-mountable powerhouse. Or, you may want to operate your subwoofers in bridge mode (3000 W) and run you mid/high packs in mono biamp mode (2 x 1500 W). The highly versatile iNUKE NU4-6000 gives you options, and lots of them. Our revolutionary high-density Class-D technology combined with ultra-efficient switch-mode power supplies ensures these feather-light power amps will drive your rig effortlessly for many years to come.

Features: Delivers 4 x 1500 Watts into 2 Ohms, 2 x 3000 Watts into 4 Ohms and weighs less than 12 lbs / 5.5 kg Ultimate reliability through revolutionary cool-running High-Density Class-D technology with "near-zero" thermal buildup Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption "Zero-Attack" limiters offer maximum output level with reliable overload protection Built-in Subwoofer/Satellite crossover for perfect subwoofer operation Detented and illuminated gain controls for precise level setting Precise 4-segment Signal and Limit LEDs to monitor performance XLR and 1/4'' TRS combination input connectors for compatibility with any source Professional twist-lock speaker connectors for ultimate reliability Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show "Back-to-front" ventilation system prevents thermal buildup for reliable operation High-quality components and exceptionally rugged construction ensure long life Conceived and designed by BEHRINGER Germany

Features:

  • Manufacturer: Behringer
  • Number of Channels: 4
  • Weight (kg): 5.5
  • Cooling: Air Cooled
  • Outputs: Speakon
  • Inputs: Combo Socket
  • Limiter: Yes
  • Crossover Network: Yes
  • 2ohms steady: Yes
  • Amplifier Class: Class D
  • Installation Height (HE): 2
  • Installation Depth (cm): 31

Fame audio MS 12002 Power Amplifier 2x 1120W / 4 Ohm

FAME MS Series

Whoever wants to get their hands on a true all-rounder can not go wrong with the MS amplifiers. The predecessor models impressed with their longevity, efficiency and above all reliability, helping to make them true classics. The completely redeveloped bestseller power amplifier series consists of the MS 5002, 8002 and 12002.

The Front

Starting with the front, this Class-AB amplifier with its simple design makes the most important information clearly available. On the left side are knobs to adjust the volume for every channel while 3 LEDs indicate the status of the output stage.

  • Clip LED: The Clip LED illuminates when the signal level is too high and is overloaded.
  • Protect LED: The Protection Mode indicates if a protection circuit is active (e.g. Limiter).
  • BR/PAR: This shows if the amplifier is operating in Bridge Mode or in Parallel.

On the right side you will find the On/Off switch. The series also offers circuits and mechanisms such as Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse and Thermal Cut. Sufficient, together with the 2-phase fans, to make a safe and continuous operation in any location possible

In comparison with its predecessor, it is clear to see that the housing design was reduced to 2HU and thereby makes more space for additional equipment.

Settings

A Lo-Cut Filter is equipped and can be set to 120Hz or 90Hz – naturally it can also be bypassed. The middle switch allows you to select the Mode; Parallel, Stereo pr Bridge mode. While the last switch controls the sensitivity of the signal.

Power Output of the Series

The output of all three models is impressive, even the “smallest” amp delivers 2x520 Watt @4 Ohm or double output with 8 Ohm in Bridge mode. However, if you need even more power, the 8002 version delivers 2x820 Watt while the 12002 provides 1140 watt per channel – or double the power in bridge mode.

More info

Even if this series isn’t the lightest on the market, it is still very portable and easy to install, so fixed installation isn’t necessary a requirement. The weight of individual power amps of each model are 13.8kg, 16.6kg and 19.1kg respectively.

  • Class-H A
  • LED signa
  • mplifier
  • l indicators
  • Protective circuits such as Limiter, Soft Start
  • 2 HU
  • 2 XLR Combo sockets
  • 2 Cinch-Inputs
  • 2 XLR-Outputs for Parallel, Bridge or Stereo mode
  • Lo-cut @ 90Hz or 120Hz (or bypass)
  • Very robust housing
  • 2 x 1140 Watt @ 4 ohm
  • 2240 Watt @ 8 Ohm Bridge Mode
  • 2 x 720 Watt @ 8 Ohm Stereo
  • 19.1 kg

Features:

  • Manufacturer: Fame audio
  • Number of Channels: 2
  • Weight (kg): 19.1
  • Cooling: Air Cooled
  • Outputs: Speakon/Screw Connection
  • Inputs: Combo/Cinch
  • Limiter: Yes
  • Crossover Network: Yes
  • Amplifier Class: Class H
  • Installation Height (HE): 2

DVA T4

Die Line-Array-Technologie, die vertikale Anordnung mehrerer Lautsprecher mit horizontal breitem Abstrahlwinkel, hat die Beschallungstechnik in den letzten Jahren revolutioniert. dB Technologies hat diesen innovativen Ansatz kombiniert mit modernster Technologie und bietet mit DVA ein System für kleine bis mittlere Venues das sich neben hervorragenden Audioeigenschaften durch einfachste Handhabung, hohe Flexibiltät und einem einzigartigen Kosten-/Nutzenfaktor auszeichnet.

Features: 8" Neodym-Woofer, 6,5" Neodym Mitteltöner, horngeladen 2x 1" Neodym Treiber mit 1,5" Titanmembran Class-T Digital Endstufe mit 420 Watt/RMSPFC - Schaltnetzteil integr. DSP mit 24-Bit und 96 KHz hochwertige 24-Bit Wandler Frequenzgang: 80 - 19.000 Hz SPL peak 128 dB Abstrahlwinkel 100°x15° bzw. abhängig von der Anzahl der Elemente 16 schaltbare Setups analoger Soft-Clip Limiter digitaler 3-Band Limiter inkl. Flyware Farbe: schwarz Maße: 580 x 240 x 327mm Gewicht: 14 kg

Features:

  • Manufacturer: dB Technologies
  • Typ: Head
  • Signal Processing: Active
  • Size of Woofer (Inches): 8
  • Size of Tweeter (Inches): 1
  • max. Peak SPL (dB): 128
  • Weight (kg): 14
  • Airworthy: Yes
  • Beam angle: 100°
  • Frequency Response from (Hz): 80
  • Frequency Response to (Hz): 19,000
  • Input: XLR
  • Height (mm): 240
  • Width (mm): 580
  • Depth (mm): 327

Behringer Ultradrive Pro DCX 2496

Ultra-High Precision Digital 24-Bit/96 kHz Loudspeaker Management System

The ULTRADRIVE PRO DCX2496 is the ultimate digital loudspeaker management system with an unheard-of audio quality and feature list. It is an indispensable tool for the precise set-up of multiple loudspeaker systems or arrays. Installation contractors, live-sound engineers, as well as cinema, discotheque and concert hall operators will quickly learn to love this model’s rich features. Signals can be split in various ways to assure precise sound by using the optimal frequency range of each loudspeaker.

Features:

  • 3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility
  • High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB)
  • Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz
  • Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs
  • Several types of EQs (LP/BP/HP) for each input and output
  • "Zero"-attack Limiters on all output channels for optimal speaker protection
  • Four different mono and stereo output operating modes
  • Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
  • Adjustable Delays for all inputs and outputs—allow manual or automatic correction for room temperature, phase and arrival time differences
  • Additional Sum signal derived from the A/B/C inputs offers a fourth internal input signal
  • Free ULTRADRIVE PRO software enables total control via PC through RS-232 and RS-485 interfaces
  • Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs
  • 60 user-defined internal presets storable
  • Servo-balanced, gold-plated XLR connectors for all inputs and outputs
  • Internal switch-mode power supply for maximum flexibility (100
  • - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
  • 3-Year Warranty Program*
  • Conceived and designed by BEHRINGER Germany

Features:

  • Manufacturer: Behringer
  • 19"-capable: Yes, rack brackets available
  • Installation Height (HE): 1
  • Digital: Yes
  • Microphone Input: Yes
  • Number of Channels: 9
  • Frequency Response from (Hz): 10
  • Frequency Response to (Hz): 35,000
  • Sensitivity (dB): 109
  • EQ: Yes
  • Expander: Yes
  • Limiter: Yes
  • Gain: Yes
  • Attack / Release adjustable: Yes
  • active / passive: Active
  • Inputs: XLR
  • Outputs: XLR
  • Phantom Power: Yes
  • Clip LED: Yes
  • Power Adapter: Internal

Eurolite SB-1100

Practical 32 A distributor in 19" housing

features: Specially designed for larger distribution needs 3 U necessary for installation 32 A three phase current input via 1.5 meter long 5 x 6 mm² power cable and plug 32 A three phase current output via mounted plug secured on the back panel by a fault current circuit breaker The entire distributor is secured via 30 mA fault current circuit breaker 2 mounted CEKON sockets with 16 A on the front panel, secured via 3 x 16 A fuse blocks Control lamps indicate each phase 6 safety sockets on the housing back (2 per phase) Each pair of safety sockets feature fuse protection via 16 A automatic circuit breakers With earthing screw in order to ground a rigg if necessary

Features:

  • Manufacturer: Eurolite
  • Input: CEE 32A
  • Output: Schuko
  • Output 2: CEE 16A
  • Output 3: CEE 32A
  • Number output 1: 6
  • Number output 2: 2
  • Number output 3: 1
  • Cable Length (m): 1.5
  • Number of Fuses: 9
  • max. Load / Channel (Amps): 16
  • Automatic Cicuit Breaker: Yes
  • Cable Cross-Section: 5 x 4
