Pioneer Outdoor XY series PA SET

Pioneer Outdoor XY series PA SET

Producător: Pioneer
Cod produs: Pioneer Outdoor XY series PA SET
Disponibilitate: pre-comanda
0,00 RON TVA inclus
Pret: 0,00€
VAT Incl.

Descriere

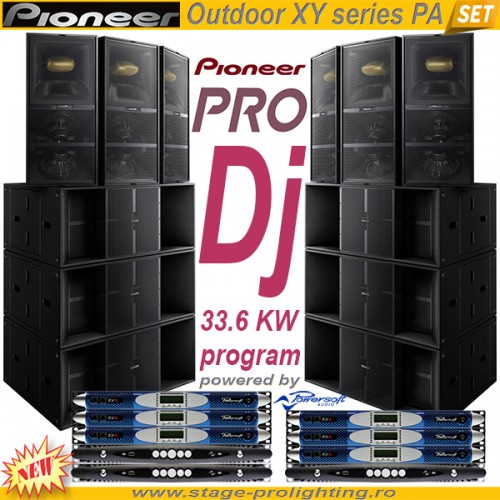

Organizezi un Festival proDJ, sau un DJ battle Outdoor? Atunci, una din solutiile tehnice de sonorizare propuse o reprezinta Pioneer XY series PA SET.

Sistemul de sonorizare de baza (fara accesorii) se compune din:

Component

Nr buc

Descriere de baza

Pioneer XY-218HS

6

Dual 18-inch horn-loaded subwoofer

Powersoft X4

 3

Power amplifier

Pioneer XY-3B

 6

3WAY Bi-amp loudspeaker

Powersoft K6, DSP, Dante

 6

Power amplifier

Sistemul se importa numai cu pre-comanda, plata integral anticipat, iar pentru o cotatie de pret incluzand si accesoriile, va rugam sunati la magazin. Va va fi oferita solutia tehnica “la cheie”. Plata dvs va fi garantata cu Bilet la Ordin pana la livrarea integrala a tuturor produselor comandate. Sunt acceptate si proiecte pe Fonduri Europene (in atentia Primariilor, sau a agentilor economici de profil).

Detalii tehnice:

XY-218HS, Dual 18-inch horn-loaded subwoofer

Dual high performance 18-inch LF drivers for clean, powerful ultra-low frequencies

The two 18-inch LF drivers feature 4-inch voice coils with high heat dissipation to allow the subwoofer to produce a continuously high SPL over a long time.

Rigid construction reduces resonance

The subwoofer is housed in a robust enclosure made from premium multi-laminate birch plywood, and reinforced with rigged support braces to prevent unnecessary resonance and withstand life on tour.

Easy to transport and carry

We’ve given the subwoofer handles on all sides of the enclosure to make loading in and out of trucks that little bit easier. Castors are sold separately.

Specification of XY-218HS

Type

Twin 18-inch fully horn-loaded subwoofer

Enclosure

18 mm (0.7-inch) birch plywood

Woofer

18-inch LF drivers x 2

Frequency Response

32 Hz to 150 Hz

Sensitivity

107.5 dB (half space)

Power Handling

1400 W RMS, 2800 W Program

Maximum SPL

139 dB cont., 145 dB peak (half space)

Input port

Neutrik SpeakON NL4 x 2

Impedance

Dimensions (W×H×D)

1308 mm × 558 mm × 890 mm (51.5 inch × 22 inch × 35 inch)

Weight

134 kg (296 lbs)



XY-3B, 3WAY Bi-amp loudspeaker

In the XY-3B, an 8-inch cone driver delivers clean and precise mid-range frequencies using Pioneer Pro Audio’s X-Phase system. A 1-inch compression driver produces crystal-clear HF which, thanks to the moulded Bi-horn, seamlessly blends with the mids. Two 12-inch drivers create tight, chest-pumping low mid.

Moulded Bi-horn

The 8-inch mid-range driver and the 1-inch compression driver are attached to the integrated waveguide with their depths perfectly aligned to minimise the difference of physical distance and reduce cancellation around the crossover frequency. This unique Bi-horn combines mid and high frequencies in a deep position inside the waveguide, improving the blend of the sounds compared to the performance of a conventional separated horn structure. The waveguide’s curved shape perfectly controls dispersion at 50 degrees horizontal and 35 degrees vertical, providing natural sound with high SPL in the targeted area while reducing the sound pressure outside that area.

X-Phase system with gold X-Phase plug

Driver cone cancellation is minimised thanks to Pioneer Pro Audio’s X-Phase system. The convex shape forces sound waves into small slits which are arranged in a fan shape, allowing all sound waves to exit in perfect phase aliment. The sound waves are forced over the top and bottom of the X-phase plug, producing higher SPL and greater sound projection over long distances.

Hybrid low-mid section

A hybrid dual 12-inch chamber in the low-mid section allows the drivers to produce tight notes. The LF drivers are also coated with a water-resistant finish on both sides, so you can use the XY-3 speakers outdoors. Plus, the added stiffness of this treatment allows the drivers to deliver a natural tightness rather than using thicker speaker cone material which would add weight and slow down the speed of the cones.

Rigging and tour ready

Rigging: Flying hardware options are available, along with ground stacking configurations.
Tour ready: Every detail of the XY-3 was designed to make it the perfect speaker to take on the road. You can load the speakers into trucks with the minimal amount of space lost, and they can be stacked two-high and four-wide when used with the XY-3 wheel board.

Specification of XY-3B

Type

3WAY Bi-amp loudspeaker

Enclosure

15 mm birch plywood

Drivers

LF:12-inch neodymium cone driver x 2
MF:8-inch neodymium cone driver
HF:1-inch exit neodymium compression driver

Frequency Response

55 Hz~17 kHz

Sensitivity

LF:102 dB
MHF:107 dB

Power handling

LF:1200 W(RMS), 2400 W(Program)
MHF:200 W(RMS), 400 W(Program)

Max SPL

LF:133 dB(cont.)、139 dB(peak)
MHF:130 dB(cont.)、136 dB(peak)

Terminals

speakON® NL4 x 2

Impedance

LF:4Ω
MHF:8Ω

Dimension (W×H×D)

530 mm x 1080 mm x 540 mm

Weight

57.6 kg

Powersoft K-Series amplifiers

K10DSP
K6DSP, 2-Channel professional power amplifiers with DSP and AESOP Ethernet interface

Features

  • Optimized preset data for Pioneer loudspeakers (not pre-installed).
  • Includes DSP Options, 40-bit audio processing with 96kHz sampling, AES3 digital audio in.
  • Advanced switch-mode power supply for high performance and compact size.
  • Compact 1U rack size.
  • Fully protected circuitry design including DC, infrasonic, high frequency, thermal overload and short circuit.
  • Temperature forecast with LCD traced historical behaviour.
  • Load impedance measurement and display for each channel.
  • Includes AESOP Ethernet options.
  • Full remote control and monitoring via Armonía Pro Audio Suite™ software.

Specification of K10DSP / K6DSP / K3DSP / K2DSP

Model

K10DSP

K6DSP

K3DSP

K2DSP

Output Power
EIAJ test,
1 kHz,
1% THD

6,000Wx2

3,600Wx2

2,800W×2

2,400W×2

4,000Wx2

2,500W×2

2,600W×2

1,950W×2

2,000Wx2

1,300W×2

1,400W×2

1,000W×2

4Ω Bridged

12,000Wx1

7,200W×1

5,600W×1

4,800W×1

8Ω Bridged

8,000Wx1

5,000W×1

5,200W×1

3,900W×1

Operating voltage

100 - 240V (±10%), 50/60Hz

Consumption / current draw

@230V

@115V

@230V

@115V

@230V

@115V

@230V

@115V



Idle

84W
/1.17A

91W
/1.3A

84W
/1.17A

91W
/1.11A

88W
/1.35A

69W
/1.2A

88W
/1.35A

69W
/1.2A

1/8 of max output power @4Ω

1,250W
/6.1A

1,250W
/12.2A

781W
/4.1A

781W
/8.2A

813W
/4A

813W
/8A

609W
/3.1A

609W
/6.3A

1/4 of max output power @4Ω

2,500W
/11.3A

2,500W
/22.6A

1,563W
/7.4A

1,563W
/14.8A

1,625W
/7.4A

1,625W
/14.8A

1,219W
/5.7A

1,219W
/11.4A

Audio signal input connectors

Analog: 2 x balanced Neutrik®
Combo XLR female/ 1/4” jack
AES3: use channel 2 XLR

Analog: 2 x balanced Neutrik®
XLR female
AES3: use channel 2 XLR

Audio signal output connectors

-------------------

Analog: 2 x balanced Neutrik® XLR male

Loudspeaker output connectors

2 x Neutrik® Speakon NL4MD

GAIN , selectable

26dB, 29dB, 32dB, 35dB

Frequency response (1W@8Ω,±0.5dB)

20Hz - 20KHz

S/N ratio (20Hz - 20kHz, A weighted)

110dBA or more

106dBA or more

Crosstalk separation (@1kHz)

66dB or more

70dB or more

Slew rate (8Ω, Input filter bypassed)

50 V/μs

Damping factor @8Ω

5000 or more (@20 - 200Hz)

DSP presets

50 stored locally + 150 stored on a smartcard

Dimensions (W×H×D)

483 x 44.5 x 475 mm

483 x 44.5 x 380 mm

Weight

12Kg (26.5 lb)

8Kg (17.7 lb)



Powersoft X4

Number of output channels

4 mono,

bridgeable per ch. pair

Number of input channels:

Analog

4 (4x XLR)

AES3

4 (2x XLR)

Dante™*

16 (2x RJ45)

* DANTE version only

Audio

Gain

17 dB - 47 dB

(0.1 dB increments)

Default Gain

32 dB

Output Noise

A-Weighted @ 8 Ω - Analog to Analog / Digital to Analog

< -70.0 dBV

Dynamic Range

A-Weighted @ 8 Ω - Analog to Analog / Digital to Analog

114, 3 d B

Damping Factor @ 8 Ω, 20Hz - 500Hz

> 5000

Slew Rate (input filter bypassed)

> 50 V/μs

Frequency Response ( -3 dB , 1 W @ 8 Ω)

5 Hz - 30 kHz

Crosstalk (1 kHz)

-70 dB

THD+N (from 0.1 W to Full Power)

< 0.5%

(typical < 0.01%)

DIM (from 0.1 W to Full Power)

< 0.5%

(typical < 0.01%)

Input Impedance

20 kΩ Balanced

Input Acceptance

+27 dBu

DSP

AD converters

24 Bit Tandem™ @ 48 kHz

129 dB Dynamic Range - 0.00056 % THD+N

DA converters

24 Bit Tandem™ @ 48 kHz

121 dB Dynamic Range - 0.00084 % THD+N

Sample rate converter

24 Bit @ 44.1 kHz to 192 kHz

140 dB Dynamic Range - 0.0001 % THD+N

Internal precision

40 bit floating point

Delay

2 s + 100 ms for time alignment

Equalizer

Raised-cosine, custom FIR, parametric IIR:

peaking, hi/lo-shelving, all-pass,

band-pass, band-stop, hi/lo-pass

Crossover

linear phase (FIR), hybrid (FIR-IIR), Butterworth,

Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)

Limiters

TruePower™, RMS voltage, RMS current, Peak limiter

Damping control

Active DampingControl™

Construction

Dimensions

483 mm x 44.5 mm x 495 mm (19.0 in x 1.75 in x 19.5 in)

Weight

15 kg (33.0 lb)

Output Stage

Maximum output power per channel @ 8 Ω

1600 W

Maximum output power per channel @ 4 Ω

3000 W

Maximum output power per channel @ 2.7 Ω

4000 W

Maximum output power per channel @ 2 Ω

5200 W

Maximum output power @ 8 Ω Bridged

6000 W

Maximum output power @ 4 Ω Bridged

10400 W

Peak total output, all channels driven

20000 W

Maximum unclipped output voltage

175 V

peak

Maximum output current

130 A

peak

The power figure is calculated by driving and loading symmetrically all the

channels: uneven loads allow to achieve highest performance.

AC Mains Power

Single Phase

Nominal Voltage

100 - 240 V @ 50/60Hz

Operating Range

90 - 264 V from DC to 200Hz

Power Factor

1/8 Maximum Output Power @ 4 Ω

> 0.9

Current Draw

1/8 Maximum Output Power @ 4 Ω

18 A

rms

@ 100V

9 A

rms

@ 240V

Suggested circuit breaker

C16

Three Phase

Nominal Voltage

173Y / 100 - 416Y / 240 V

3~, 3W+N+PE / 3W+PE

Power Factor

1/8 Maximum Output Power @ 4 Ω

> 0.9

Current Drawn from Each Single Phase

1/8 Maximum Output Power @ 4 Ω

6 A

rms

@ 173Y

3 A

rms

@ 416Y

Suggested circuit breaker (per phase)

C10

Idle Consumption (all AC MAINS cases)

< 100 W

Max consumption (all AC MAINS cases)

< 3000 W

Note: 173Y/100 V = 173 V phase-to-phase, 100 V phase-to-neutral
