Martin Audio Ltd - W8LC Line-array element

0 opinii | Spune-ţi opinia

Producător: Martin Audio
Cod produs: Martin Audio Ltd - W8LC Line-array element
Disponibilitate: pre-comanda

0,00 RON TVA inclus

Pret: 0,00€
VAT Incl.

Descriere
Opinii (0)

Descriere

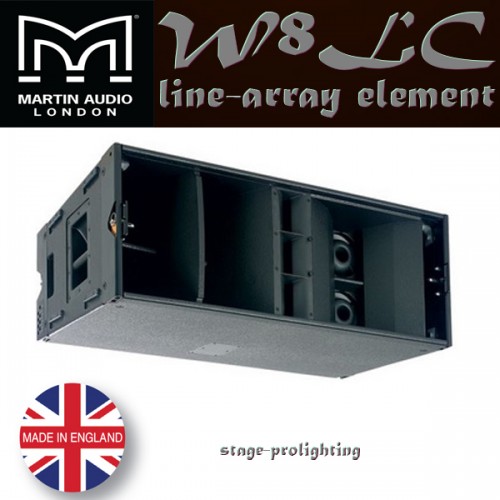

Martin Audio Ltd - W8LC Line-array element

Produs importat din UK, 3 ani garantie!!! Pentru configurarea sistemului line-array dorita, cotatia de pret si detalii privind livrarea sunati va rugam la magazin.

Prezentare si detalii tehnice:

The Martin Audio W8LC is a compact line array enclosure designed to bring superb next-generation line array performance to concert, theatre and commercial events. It meets the need for a high power, high bass impact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installation fields. W8LC grids allow systems to be flown or ground stacked as required. Though compact in size, the W8LC is a full-bandwidth system and may be used without subwoofers in many applications. Where additional low frequency extension is required, W8LCs may be complemented by the W8LS Line Array subwoofers, WLX horn and reflex loaded subwoofers or WSX horn loaded subwoofers.

Compact, high performance three-way line array enclosure
High power - maximum SPL 129dB continuous, 135dB peak (single unit)
Superior bass impact - all horn design
Wide bandwidth - 60Hz-18KHz ± 3dB (single unit)
True 90 degree (-6dB) horizontal mid and HF pattern control
Very smooth off-axis response - useable out to 120 degree (-10dB)
Compatible with the full-sized W8L Line Array
Fast, integral rigging system with variable splay angles from 0 to 7.5 degrees
Common grid may be used for flying or ground stacking
ViewPoint™ array optimisation software
Loudspeaker management preset files for a wide variety of configurations
Application includes: Medium/large scale touring, theatre, stadia, club and Compatible with W8L, W8LS and WSX
Connectors : 2 x Neutrik NL8
Crossover : 300 Hz 3kHz active via DX1.5 or DX2 controller
Depth : 551.18 mm
Depth : 21.70 in (550 or 656mm), (inc. wheelboard)
Enclosure : Vertical trapezoid with 3.75 degree wall angle, multi-laminate birch ply construction
Finish : Textured black paint
Height : 368.30 mm
Height : 14.50 in (367 mm), (inc. wheelboard)
Impedance : 8 ohm
Maximum SPL : LF: 129dB continuous, 135dB peak; MF: 129dB continuous, 135dB peak; HF: 129dB continuous, 135dB peak (calculated @ Im)
Type : Three-way line array element
Width : 1000.76 mm
Width : 39.40 in (1000 mm), (inc. wheelboard)
Power Handling : 1600 Watt
Drivers : 12 inch (300mm)/3 inch (75mm) voice coil Hybrid™ bass horn loaded, 2 x 6.5 inch (165mm)/1.5 inch (38mm) coil drivers, horn loaded, 3 x 1 inch (25mm) exit HF compression drivers, horn loaded
Maximum SPL (Sound Pressure Level) : 135 dB
Protective Grille : Black perforated steel
Fittings : Proprietary rigging system, 2 x bar handles, 2 x pocket handles
Product Weight : 58.06 kg
Product Weight : 128 lbs
Coverage Horizontal : 90 degrees
Coverage Vertical : 7.50 degrees
Minimum Frequency Response (Bandwidth) : 60 Hz
Minimum Frequency Response (Bandwidth) : 0.06 kHz
Maximum Frequency Response (Bandwidth) : 18000 Hz
Maximum Frequency Response (Bandwidth) : 18 kHz
Impedance (High Frequency) : 8 ohm
Impedance (Mid Frequency) : 8 ohm
Impedance (Low Frequency) : 8 ohm
Sensitivity (High Frequency) : 109 dB
Sensitivity (Mid Frequency) : 106 dB
Sensitivity (Low Frequency) : 103 dB
Power Handling (High Frequency) : 400 Watt
Power Handling (Mid Frequency) : 800 Watt
Power Handling (Low Frequency) : 1600 Watt
