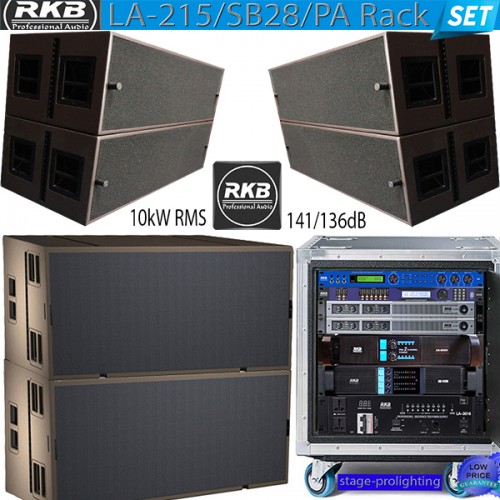

RKB LA-215-SB28-PA Rack SET
Cod produs: RKB LA-215-SB28-PA Rack SET
Disponibilitate: pre-comanda
VAT Incl.
Descriere
RKB LA-215-SB28-PA Rack SET este un sistem de amplificare configurabil dupa preferinta clientului. Sistemul propus de noi, prezentat in imagine, se compune din:
Component | Nr buc | Descriere de baza | ||||||||
RKB LA-215 | 4 | Module line-array pentru aplicatii de forta, outdoor/indoor, 1550W RMS, Max SPL: 141dB, 2 x15", 4 x 6,5", 2 x 1,75", neodym al, 70 kg
|
||||||||
RKB SB28 | 2 |
|
||||||||
Rack Amp | 1 | Hard case dedicat amplificatoarelor | ||||||||
RKB AK-4130 | 1 | 4 channel amplifier: (8Ω)4x1300W (4Ω)4x2100W (2Ω)4x2500W AC 220v/50~60Hz | ||||||||
RKB AK-6000 | 1 | stereo monitoring amplifier: (8Ω)2x600W (4Ω)2x900W AC 220v/50~60Hz | ||||||||
RKB LA-1300 | 2 |
4-channel amplifier: (8Ω); 4x1300W (4Ω)4x2400W; (2Ω)4x2600W AC 220v/50~60Hz
|
||||||||
RKB 2 in 6 out processor | 1 | Speaker management system processor 2 in 6 out, EQ/Comp/Limiter/dealy | ||||||||
RKB effect processor | 1 | Effect processor | ||||||||
RKB sequence power distributor | 1 | Power distributor/sequence | ||||||||
Rigging/clamps | 1 | Set | ||||||||
Patch cables | 1 | Set internal PA Rack | ||||||||
Speakon cables | 1 | Set cables speakon-speakon for all modules&subwoofers |
Intreg sistemul poate fi adus numai cu pre-comanda, plata integral anticipat, are o putere de 10000 W RMS, topurile avand un max.SPL impresionant de 141 dB, iar subwooferele 136 dB, avand o garantie individuala a produselor ce il compun de 2 ani!!
Sistemul este dedicat sonorizarilor pentru evenimente medii-mari, iar upgradarea lui este facil de facut, avand flexibilitate mare.
Detalii tehnice:
LA-215, Lightweight Dual 15'' 2 Way Compact Line Array System with High Bass For Theater
Detailed Product Description
Rated Power: |
HF:150W; MF:400W; LF:1000W |
Components:: |
HF: 2x1.75"; MF:4x6.5"; LF:2x15" |
Impedance: |
HF:16 Ohm; MF:8 Ohm; LF:8 Ohm |
Crossover: |
/ |
Sensitivity(1w/1m): |
HF:110dB/MF:103dB/LF:100dB |
Connectors: |
2xNL4 Speakon |
Frequency Response: |
50Hz-20kHz( ± 3dB) |
Dimensions: |
1300*505*434mm |
Net Weight: |
70KG |
Dual 15'' 2 Way Line Array Speaker Box /
Passive Audio Speaker LA-215
Product information
Specifications:
Components |
HF: 2x1.75"; MF:4x6.5"; LF:2x15" |
Frequency Response |
50Hz-20kHz( ± 3dB) |
Sensitivity(1W/1M) |
HF:110dB/MF:103dB/LF:100dB |
Max SPL |
141dB |
Rated Power(RMS) |
HF:150W; MF:400W; LF:1000W |
Peak Power |
HF:300W; MF:800W; LF:2000W |
Impedance |
HF:16 ohm; MF:8 ohm; LF:8 ohm |
Crossover |
/ |
Dispersion Angle(-6dB) |
90 ° H x 0-10 ° V |
Connectors |
2xNL8 Speakon |
Riggings |
Standard rigging hardware |
Enclosure Material |
High-strength Plywood |
Cabinet Finish |
Germany Water Paint |
Protective Grill |
Black Perforated Steel with Acoustic Fiber Outside |
Dimensions |
1300*505*434mm |
Net Weight |
70KG |
Competitive Advantage:
Every cabinets were manufactured by our own factory with CNC cutting machine, which can make sure the accuracy of the sizes
The speaker box is using Germany water paint, which is environment-protected.
Glass Fiber Reinforced Plastic (FRP) can be applied to the cabinet on requirement, so as to make the box waterproof.
Applications:
Large theaters
Outdoor stadiums
Large music halls
Large conference center
Large touring sound system
RKB-SB28
Detailed Product Description
Rated Power: |
1800W |
Components:: |
2x18" Subwoofer |
Frequency Response: |
30Hz-250Hz( ± 3dB) |
Sensitivity(1w/1m): |
102dB |
Connectors: |
2xNL4 Speakon |
Dimension: |
1300*700*550mm |
Net.W: |
90KG |
Impedence: |
4 Ohm |
High Derformance Dual 18'' Subwoofer Speaker SB28 /
Passive Subwoofer
Specifications:
Component |
2x18" subwoofer |
Frequency Response |
30Hz-250Hz( ± 3dB) |
Sensitivity(1W/1M) |
102dB |
Max SPL |
134dB |
Rated Power(RMS) |
1800W |
Peak Power |
3600 W |
Impedance |
4 ohm |
Connectors |
1xNL4 Speakon |
Enclosure Material |
High-strength Plywood |
Cabinet Finish |
Germany Water Paint |
Protective Grill |
Black Perforated Steel with Acoustic Fiber Inside |
Dimensions |
1300*700*550mm |
Net Weight |
90KG |
AK-4130 power amplifier
Detailed Product Description
8Ω Stereo Power: |
1300W X 4 |
4Ω Stereo Power: |
2100W X 4 |
2Ω Stereo Power: |
2500W X 4 |
8Ω Bridged Power: |
4200W X 4 |
4Ω Bridged Power: |
5000W X 4 |
Class TD Audio Model FP10000Q Pro 1300 Watt x 4 CH Stereo Power Amplifier Amp Rack Mount 2U
Model number: AK-4130
Characteristic:
- The introduction of foreign advanced technology, more than 90% of components are same with foreign brands, ensure quality authentic as original.
- TD class amplifier circuit, the whole amplifier reaches up to 89% work efficiency, sound quality as Class A amplifier, and save energy.
- Regulators switching power supply, make sure the output power is constant in the AC 190-260V.
- The excellent cooling design provides better cooling effect.
- Use imported high-power fan
- Smart power limit function, according to the speaker impedance and power requirements, matches the output power
- Optional hard limiter and soft limiter function, available upon request, in the case of overload, the amplifier output is not clipping
- Full-featured protection: Power soft start, overload, overheating, short circuit, DC output, peak limiter, intelligent clipping protection, output zero-current switching.
- 5200 watts PMPO, 2500W@2Ohms,2100W@4Ohms,1300W@8Ohms
- XLR, ¼" (6.5mm Jack) Balanced Inputs
- Speakon and Banana binding post Outputs
- Front-to-Rear Airflow and Dual Cooling Fans
Output Power, Per Channel
- 2 ohms: 2500W
- 4 ohms: 2100W
- 8 ohms: 1300W
- 16 ohms: 660W
Output Power, Bridged
- 4 ohms: 5000W
- 8 ohms: 4200W
- 16 ohms: 2600W
Specifications:
Model |
AK-4130 |
8Ω Stereo Power |
1300W x 4 |
4Ω Stereo Power |
2100W x 4 |
2Ω Stereo Power |
2500W x 4 |
8Ω Bridged Power |
4200W x 4 |
4Ω Bridged Power |
5000W x 4 |
Slew Rate |
30V/us |
Damping Factor(100Hz) |
>200:1 |
Cross Talk (1kHz) |
>85dB |
S/N Ratio |
112dB |
T.H.D. rate power@8Ω 1KHz |
<0.1% |
Frequency Response |
20Hz-35kHz,±0.1dB, 1W |
Gain Selectable |
23,26,32,35,38,41,44dB |
Input connectors |
XLR Plugs |
Protection |
Overheating, clipping, overcurrent, overload, short circuit. |
Power Supply |
AC 220v/50~60Hz |
Dimensions(W×D×H) |
483x398x89(2U) |
Net W. |
13kg |
AK-4130 Professional Power Amplifier is a high-end product, using the latest R&D leading technology. The efficient and reliable protection circuit makes it more safely. It is a lightweight and space-saving power amplifier.
Applications:
- Indoor or Outdoor Performance
- Live performance venues
- Sound system rental
- Indoor or Outdoor Stadium
- Any applications that require stable power amplifier
Competitive Advantage of RKB Audio:
- Effective use of technology in the production process
- Superior product quality (features, benefits, durability, reliability)
- Branding (strong customer recognition & desire; brand loyalty)
- Access to the most effective distribution channels
RKB DX26:2-in 6-out processor
- Each input has 5 parametric filters and each output has 7 parametric filters. Both input and output filters can be selected to be Bell or Shelving filters. On the outputs a Hp and a Lp filters up to 24dB/Oct. Output Limiter is working on the RMS value of the limiter's input. The Limiter's THR can range up to -30dBu. Each input and output channels have delays up to 850ms, with steps of 22usec.Linking functions between inputs and linking functions between outputs are available. A function is allowing to have ramps closing the output level on parameter changes, when the unit is used as installation unit; this function can be excluded when the unit is used live and it is necessary to perform small changes to the set parameter...on the fly. The Pc SW for the remote control is allowing to connect in net up to 32 units.
- Inputs: XLR balanced
*Outputs: XLR balanced, TCPIP connection
*Minimum Load: 150ohm
*User memories: 24
*Recall memories: 24
*VU metering: 7 led for Inputs [-20dBu up to +15dBu; Clip]
7 led for Outputs [-20dBu up to +15dBu; Clip; Limit]
*Output Leds can be used for displaying the Output
level OR the Limiter activity
*THD+N: 0.001% at 1kHz 0dBu
*S/N: >110dB
*Frequency Response: 20Hz – 20kHz ;
-0.5dBu at 20Hz and 20kHz
*A/D and D/A Resolution: 24bits
*Process Resolution: 24x32 bit for filtering process; 96 bits resolution on intermediate computation results
*Display: Graphic 2x20 characters
*Size: 19"X(1U)
*Process:
up to 24dBu/Oct HP/LP, +-15dB gain Bell and
Shelving filters, RMS compressor/limiter
[Attack time from 5ms up to 200ms (1ms resolution up
to 20ms, then 10ms resolution up to 100ms and 20ms
resolution up to 200ms), Release time from 0.1 sec up
to 3 sec (0.1sec resolution)], delay on Inputs and - Outputs up to 848.998ms with 21us increment steps.
- Limiters:
*Threshold: from 20dBu up to -10dBu
*Attack time: Attack time from 5ms up to 200ms (1ms resolution upto 20ms, then 10ms resolution up to 100ms and 20ms resolution up to 200ms)
*Release time: Release time from 0.1 sec up to 3 sec (0.1sec resolution)
*High pass and Low Pass Filters
*Frequency(HPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order(Butterworth, Linkwitz or Bessel -24dB/Oct)
*Frequency(LPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order(Butterworth, Linkwitz or Bessel -24dB/Oct)
*Filter's setting step:1/24th of octave
Delay & Gain:
Maximum Delay: 848.998ms by 21us increment/decrement step, oneach Input and Output channel
Spdif input gain(Digital):
0dBu on RCA connector
Parametric Equalization: 5 filters on each input assignable as Bell or Shelving
7 filters on each output assignable as Bell or Shelving
Filters:symmetrical Bell or High/Low Shelving up to second order
Filter gain:for Bell and Shelving the gain is ranging from -15dBu upto +15dBu by 0.5dBu resolution steps
Centre frequency:
selectable with a 1/24th of octave resolution steps from20Hz up to 20kHz
Filter Q/BW:Q from 0.05 up to 3 by 0.05 resolution steps
Digital Effector K5
1、This series is the Speaker Processor function of Kara OK effect, some of the features independently adjustable.
2、24Bit data bus and 32Bit the DSP.
3、MUSIC input channel is equipped with 7-band parametric equalizer.
4、MIC input channels with 15-band parametric EQ.
5、The main output has a 5-band parametric equalizer.
6、Center output, the rear output and subwoofer are equipped with 3-band parametric EQ.
7、Microphone three feedback inhibition, and can select the OFF / ON.
8、16 kinds of patterns can be stored.
9、The microphone output, main output, the output of the center, subwoofer output, rear output with limiter and delay function.
10、The site administrator mode and user modes: user mode can not be stored after adjustment parameter.
11、the unit has a full-featured menu can also be set via PC interface.
LA-1300, PA System 4 Channel Professional Power Amplifier Class D dsp Amplifier for line array and full range speakers
Detailed Product Description
Channel: |
4 |
Class: |
D |
Output Power: |
1300W*4 @ 8Ω Stereo |
Slew Rate: |
50V/us |
THD+N: |
<0.3% |
S/N Rate: |
>105dB |
Crosstalk: |
>75dB |
Power Requirements: |
AC 220V~240V(50~60Hz) / Or AC 100~110V |
PA System 4 Channel Digital Amplifier Class D dsp Amplifier for line array and full range speakers
Model number: LA-1300
LA series digital amplifier is a main model of the four channel professional digital amplifier of our company. It has attached our year’s effects on the R&D with the digital amplifiers. It has inherited all the strong points of the LA series digital amplifier. It has extremely high reliability, very low distortion, very high price/performance ratio, and very high efficiency. The splendid sound of this series will refresh your idea about the digital amplifiers. With a rack height of 1U, a weight of 9kgs, it delivers a maximum output of RMS 4*1300W/8 Ω 4*2400W/4Ω. Within the 1U space, this series has reached a new peak of output power transferring.- Class D
Characteristic:
- Modularization design, each channel is completely independent working without influence to other channels. The interference between channels has controlled to the minimum.
- High efficiency SMPS and big current storage, intelligent Limiter, multi-protection functions.
- 1U rack design, small size, light weight, big output power.
- Fine materials used, imported power transistors, high frequency capacitors, imported fans.
Specifications:
Model |
LA-250 |
LA-350 |
LA-600 |
LA-800 |
LA-1000 |
LA-1300 |
Channel |
4 |
4 |
4 |
4 |
4 |
4 |
Output power(AC 230V /50Hz. All channels driven output power, THD=1%) |
||||||
8Ω Stereo ** |
250W*4 |
350W*4 |
600W*4 |
800W*4 |
1000W*4 |
1300W*4 |
4Ω Stereo ** |
400W*4 |
500W*4 |
1000W*4 |
1500W*4 |
1800W*4 |
2400W*4 |
2Ω Stereo ** |
500W*4 |
600W*4 |
1200W*4 |
1800W*4 |
2200W*4 |
2600W*4 |
Frequency response (@8Ω) |
20Hz~20KHz,+-0.3dB~+-0.3dB |
|||||
Slew rate |
50V/us |
|||||
THD+N |
<0.3% |
|||||
IMD -SMPTE |
<0.3% |
|||||
S/N rate |
>105dB |
|||||
Crosstalk |
>75dB |
|||||
Damping factor |
>800(8Ω,20HZ~200HZ) |
|||||
Input power or voltage |
1.2V |
|||||
Input impedance(bal/unbal) |
20K/10K |
|||||
Voltage gain |
32dB |
35dB |
36dB |
38dB |
39dB |
40dB |
Efficiency |
>85% |
|||||
Cooling |
air flow from front to rear |
|||||
Power Requirements |
AC 220V~240V(50~60Hz) |
|||||
Height |
1U |
|||||
Product dimensions(mm) |
483*375*44mm |
483*430*44mm |
||||
Packing dimensions(mm) |
530*530*90mm |
|||||
Net weiht |
7.2Kg |
10.5Kg |
11.5Kg |
|||
Gross weight |
8.8Kg |
12.1Kg |
13.1Kg |
Applications:
- Business clubs/ Nightclubs
- Bars/High-class KTV rooms
- High-class hotels/ Theaters
- Electronic classrooms /Multi-functional halls
- Permanent Installation
- Toursing Sound System
- Indoor or Outdoor events
Competitive Advantage of RKB Audio:
- Effective use of technology in the production process
- Superior product quality (features, benefits, durability, reliability)
- Branding (strong customer recognition & desire; brand loyalty)
- Access to the most effective distribution channels
Opinii (0)
Spune-ţi opinia
Numele tău:Opinia ta: Notă: Codul HTML este citit ca şi text!
Nota: Rău Bun
Introduceţi codul din imagine:
