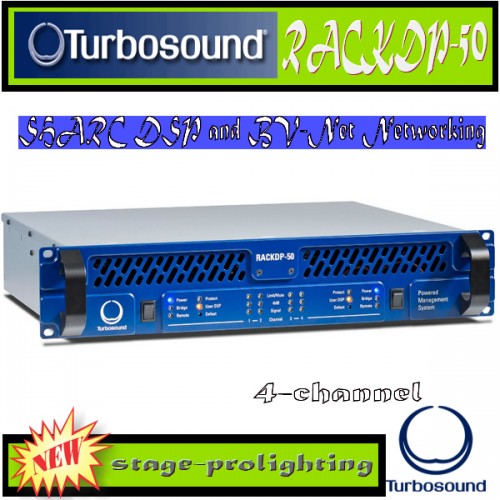

Turbosound RACKDP-50, 4-channel DSP amplifier

Turbosound RACKDP-50, 4-channel DSP amplifier

Producător: Turbosound
Cod produs: Turbosound RACKDP-50, 4-channel DSP amplifier
Disponibilitate: disponibil in 8-10 zile
17.280,00 RON TVA inclus
Pret: 3.386,88€
VAT Incl.

Descriere

Turbosound RACKDP-50
4-Channel Power Amplifier with SHARC DSP and BV-Net Networking.

Import SUA, 3 ani garantie!!!

Detalii tehnice:

The Turbosound RACKDP-50 is a four channel power amplifier integrating lightweight power supplies, high power sonically transparent Class-D amplifiers, full system monitoring (including 'end of line') and a fully featured USB or network controlled 24-bit/96 kHz DSP processing platform provided onboard as standard. The RACKDP-50 contains four channels of 1,250 W class-D amplification, providing significant benefits in efficiency and power density over conventional amplifier types.

The design has produced a short signal path which directly results in clean, fast amplification that is so efficient that even though capable of a total power output of 5,000 W, the variable-speed fans only run at high speed under extreme conditions. The advantages of switching technology have been carried through to the extremely efficient lightweight power supply evolving in harmony with the amplifier section and therefore achieves an optimum match between the two. Intelligent detection of the mains supply voltage makes the unit suitable for global operation without requiring any reconfiguration. Each pair of channels contains a complete 96 kHz digital loudspeaker management and control subsystem, containing an extremely powerful state-of-the-art floating point SHARC based DSP engine.

A simple PC connection allows customers to manipulate DSP parameters to optimize the performance and develop user settings, which are stored in the RACKDP-50 so a PC is not necessary for operation, for particular applications. The RACKDP-50 can also recall different settings (voices) by the means of rear panel auxillary port, useful in voice evacuation applications where it may be required to mute the current source of audio, switch to an alternate input carrying an evacuation message and broadcast it with different level and EQ settings.

The RACKDP-50 is networkable as standard, and the Turbosound TurboDrive PC application provides real-time control and monitoring functions for either single units or whole networks of products, PC connection being made either directly via USB or BVNet. Networked RACKDP-50s allow system installers to more easily optimize the performance of individual speakers in a space, solving a number of problems that cannot be addressed adequately with the traditional approach of one centralized system controller.

Networked amplifiers and TurboDrive also allow all the important system parameters, including load impedance, to be monitored and displayed. Sophisticated microprocessor controlled amplifier protection systems continuously monitor all aspects of performance and under extreme or abusive conditions the RACKDP-50 will progressively decrease the audio level while endeavoring to find a stable operating level. Even without a PC connection, the RACKDP-50 continuously records logs against time for the temperature readings, and the state of amplifier protection for up to three days into the past. These may be easily viewed at any time and their data can even be exported to a spreadsheet for further analysis.

Turbosound RACKDP-50 Features:

  • 4-channel rackmount amplifier
  • 24-bit/96 kHz SHARC DSP
  • TURBOSOUND BV-net networking
  • 5000 Watts continuous, 10000 Watts peak power
  • Neutrik speakON NL4 connectors for reliable long life operation
  • Neutrik powerCON power connector
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound RACKDP-50 Specifications:

  • Frequency Response:  20 Hz - 20 kHz (±0.5dB, 4 Ohm load)
  • Amplifier Type:  Class D
  • Connectors:  Mains (per RACKDP): Neutrik 'Powercon', Audio input & link (per channel): 3 pin XLR, Output (per channel): Neutrik NL4 'Speakon', Network (input and link): RJ45, Aux facilities: RJ45
  • Power Output:  1250 Watts/ch @ 2 Ohms, 800 Watts/ch @ 4 Ohms, 450 W @ 8 Ohms (RMS program, all ch. driven, 20 Hz-20 kHz); Bridged pair: 2500 Watts @ 4 Ohms, 1600 Watts @ 8 Ohms, 900 Watts @ 16 Ohms
  • Indicators:
    • Per Channel:  Sig, Limit -6dB, Limit
    • Per Channel pair:  Power, Protect, Bridge, User DSP defeat
  • Dimensions (HxWxD):  3.46" x 19" x 14" (88mm x 482mm x 360mm)
  • Net Weight:  20 lbs (9 kg)
