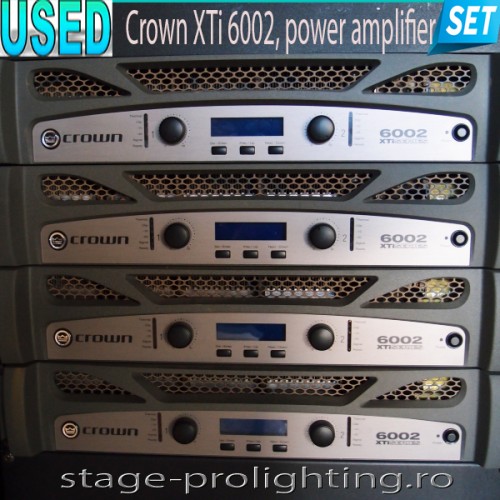

USED Crown XTI6002 Power Amplifier

USED Crown XTI6002 Power Amplifier

Producător: Crown
Cod produs: Crown XTI6002 Power Amplifier
Disponibilitate: disponibil in 8-10 zile
7.560,00 RON TVA inclus
Pret: 1.564,92€
VAT Incl.

Descriere

Crown XTI6002 Power Amplifier 2 x 1200W @ 8 Ohms, import USA, este un produs second-hand, stare foarte buna de functionare, stocul disponibil este de 12 bucati, estetic arata 8 din 10, puterile au fost tinute in rack-uri. Pretul exprimat este pentru o bucata.

Detalii tehnice:

  • 2 Ohms Stereo (per ch.) 3000W
  • 4 Ohms Stereo (per ch.) 2100W
  • 8 Ohms Stereo (per ch.) 1200W
  • 8 Ohms Bridge-Mono 4200W
  • 4 Ohms Bridge-Mono 6000W

There's no debate – when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.

Next Generation Features:

  • Peakx Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
  • Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
  • 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
  • New system monitoring provides software visibility of AC line voltage and power supply temperature
  • Integrated cast-aluminum handles for easy handling and enhanced durability
  • Locking power cord clip provides a secure connection between the amplifier and power cord
  • Updated HiQnet Band Manager and System Architect control software
  • Increased number of presets to a total of 30; 29 of which are user definable

PERFORMANCE

Input EQ:

  • 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.

Crossover Filters:

  • Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control.

Output EQ:

  • 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.

Delay:

  • For signal alignment of driver; 50 mS of total delay.

SubHarmonic Synth:

Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.

Peakx Plus Limiter:

  • User defeatable limiter that allows users to control Threshold, Attack, and Release times.

Presets:

  • 30 total presets, 29 of which are user-definable.

Sensitivity (for full rated power at 4 ohms):

  • 1.4 Vrms

Frequency Response (at 1 watt, 20 Hz - 20 kHz):

  • +0 dB, –1 dB

Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):

  • 100 dB (A weighted)

Total Harmonic Distortion (THD):

  • Damping Factor 20 Hz to 1 kHz
  • Crosstalk (below rated power)
  • 20 kHz - 1 kHz: > 70 db
  • Input Impedance (nominal)
  • 20k ohms balanced, 10k ohms unbalanced

Maximum Input Signal:

  • +22 dBu typical
  • AC Line Voltage and Frequency Configurations
  • 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz

AC Line Current:

  • 8.3A; no more than 38W at idle

Operating Temperature:

  • 0°C to 40°C at 95% relative humidity (non-condensing)

Level:

  • Two front-panel rotary level controls, one for each channel
  • Power Switch
  • On/Off switch applies AC power to the amplifier
  • Sel/Prev/Next Buttons
  • Three buttons near the LCD screen that are used to access menu items and front panel lockout
  • LCD Screen
  • Backlit liquid crystal display that shows preset and processing status

Indicators

Signal Indicator:

  • Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).

–10 Indicator:

  • Green LED flashes when output signal exceeds -10 dB below clip.

–20 Indicator:

  • Green LED flashes when output signal level exceeds -20 dB below clip.

Ready Indicator:

  • Green LED, one per channel, illuminates when the amplifier is ready to produce audio.

Clip Indicator:

  • Red LED, one per channel, turns on at the threshold of audible distortion

Temp Indicator:

  • Red LED, one per channel, illuminates under excessive temperature conditions

Power Indicator:

  • Blue LED illuminates when the amplifier has been turned on and has power

Input/Output Connectors

Input Connectors:

  • XLR, one per channel
  • Link/Out Connector
  • Loop-thru signal from input connector for linking another amplifier, one per channel.

Output Connectors:

  • Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).
  • HiQnet USB Connector
  • Type B, connects to HiQnet network.

Construction

Chassis:

  • Steel

Front Panel:

  • Cast-aluminum

Cooling:

  • Proportional speed fan with front-to-rear airflow.

Dimensions:

  • 19" (W) x 3.5" (H) x 12.25" (D)

Net Weight:

  • 18.5 lbs (8.4kg)

Shipping Weight:

  • 21.5 lbs (9.8kg)
