USED KS audio CPA-T-sub SET

USED KS audio CPA-T-sub SET

Producător: KS Audio
Cod produs: USED KS audio CPA-T-sub SET
Disponibilitate: disponibil in 5 zile
115.965,60 RON TVA inclus
Pret: 22.729,26€
VAT Incl.

Descriere

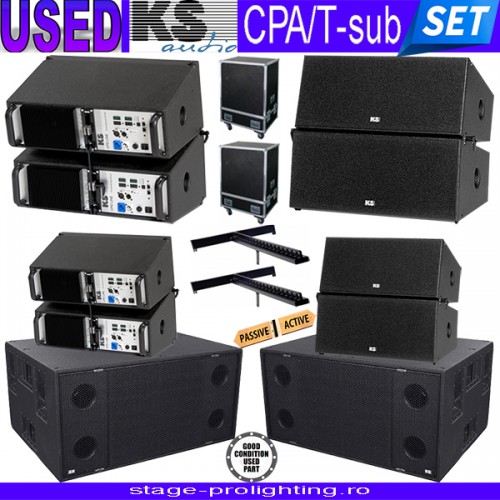

USED KS audio CPA-T-sub SET este un sistem complet de sonorizare si se compune din 8 module active line-array, doua subwoofere pasive, 2 case-uri pentru cate 4 module, bumpers/rigging si setul de cabluri aferent. Desi second-hand, acest set care nou costa aproximativ 60000 EU, este in conditie excelenta, fiind vandut de o firma vestica care inchide portile, devenind astfel disponibil. Producatorul german KS Audio este o firma de top in domeniu, produsele avand caracteristici remarcabile. Sistemul beneficiaza de inca 2 ani garantie, poate fi adus in numai 5 zile, iar plata se face integral anticipat, numai prin transfer bancar, garantata cu Bilet la Ordin pana la livrare.

Prezentare produse si detalii tehnice:

The CPA self-powered compact line array was designed with ease of setup and operation. The array boxes are loaded with 2 x 8" direct radiating carbon-fiber cone transducer and a 1" neodymium compression driver with a Mylar diaphragm. The driver is mounted on a wave guide (like a horn) that is similar to the one used in the KS Digital Line Master studio reference monitor. In real-world terms, the 8" speakers are built to be bulletproof and the compression driver is designed to be of studio quality.

The enclosures themselves are built out of 18-mm Birch plywood and coated in a black plastic polyurethane finish. They sport two amplifiers totaling 480 watts (400W + 80 Wrms) with an active 2-way crossover (1 kHz). Frequency response is 60-20,000 Hz at an SPL or 125 dB continuous. The boxes weigh in at only 51 lbs. including flyware. Along with the array cabinets there were four CPA SUB/2 self-powered subwoofers. These subs use 10 transducers with a long excursion and double magnets. KS claims these powered boxes will provide smooth low frequencies down to 35 Hz. The power amp boasts 800 watts rms/1,600 watts peak, claiming 128 dB continuous of audio and features a transformerless digital auto switching power supply. The box is constructed out of 18-mm Birch plywood coated in black polyurethane finish and weighs a mere 99 lbs. Of course, casters, handles and pole mounts are part of the package. The active onboard crossover is switchable between 70 Hz and 100 Hz, as well as +6 dB boost switch at 35 Hz for some extra low-end kick if desired.

Two more cool features are that the array-rigging frame mounts to the subs themselves and the boxes have integrated quick-lock flyware for easy adjustments. This makes for a neat and manageable package. When I say manageable, I mean that a two-man crew can put an array package together made up of four subs, 12 array boxes and cabling in less than two hours.

Henry did it that day for the very first time without any help or introduction from us. The real time to set this system up is less than an hour. Between my technician and myself. we stop-watched it at 38 minutes.

The array enclosures themselves are not only easy to set up, but very easy to adjust prior to a show. There are three knobs on the back of each powered compact array box. The first knob adjusts the volume, the second selects how many cabinets are being used and the third adjust "curving" in degrees, which has been selected by the user between the particular  box and the one above.  Preset program angle suggestions covering typical scenarios are provided with the system as a part of the manual.

With the selection knob of pieces in the array and curving preset EQ programs are being activated. Each adjustment of every knob influences the effect all of the other knobs have on the sound, resulting in a custom system program for each position of the knob to achieve the best possible results with the least possible work. Internal electronics protects the audio components from overload and dials in the systems time alignment.

Each box has built-in time alignment, limiter, crossover,filters and pre-set EQs built-in. With the subs and array boxes, we have a compact and potentially very potent three-way array system. So, let’s look at how it all sounds in a live setting.

T Sub Unpowered Sub

With the T Sub subwoofer, KS Audio has set a new benchmark for incredible subwoofer performance.

The T Sub outputs an impressive bass fundamental, even in the lowest octave of the low frequency band. This is achieved by the use of eight highly resilient 10” long-throw woofers, each with a 30mm voice-coil, an extra long excursion, and double magnets.

The relatively small moving mass of the coated membranes, in connection with push-pull technology, produces a precise in and out transient response. The drivers are designed in specially engineered enclosures with exact acoustically tuned properties. This minimizes any possible distortion and results in a clear, open bass response with fantastic articulation no matter what the volume. Engineers the world over have commented how this system sounds more impressive than traditional 12", 15", 18", or even larger competing designs… it truly brings audiophile-level playback to live systems.

The speaker cabinet itself has very little vibration due to its strategically reinforced plywood construction, again bringing clarity and pureness to the signal.

The cabinet construction is, like all KS Audio systems, built from birch plywood with an extremely robust charcoal-colored polyurethane coating. At your request, the finish can be changed to any desired color from the RAL color charts. Handholds, four stable wheels, and a protective grill (with or without acoustic foam) are further features of this high quality product.

The T Sub is the perfect low frequency extension for many KS Audio top enclosures, and in particular for the C Line

CPD Line Powered Line Array System

The CPD Line compliments the CPD series by adding a compact line array system to the lineup. The power for the three drivers of the CPD Line are produced from the latest generation “cold” PWM amplifier for low / middle tone drivers, and a FET amplifier with the best audio characteristics for the mid-high compression driver. Each of the two 8” woofers delivers 200W rms / 8 Ohms, and the single 1” HF compression driver delivers 100W rms / 16 Ohms. With this 500W rms total power, a single CPD Line system can produce a 125dB SPL peak.

What makes the CPD Line unique: after you choose the layout of the system (either from our engineered setup charts or your experience), the necessary set-ups for different lengths and curvings are pre-set in the loudspeaker software, and easy to access. You simply choose the number of speakers, the angles between them, and the system creates the optimum acoustic line array dispersion for the venue.

Every room has unique acoustic properties and issues--with the CPD system adjusting each individual speaker to compensate for these acoustic issues, your work is made easy. Each loudspeaker, with its individually assigned IP address, can be individually adjusted and monitored with KS Audio Remote 3 software over an ethernet network. Each CPD Line loudspeaker has an integrated network switch which allows the speakers to be linked. All CPD Line adjustments can easily be made on your PC.

The rear mounted 2-way FIR Control DSP amplifier operates very efficiently without the need of a cooling fan. The FIR crossover and filters are specially matched to the drivers, with corresponding compressors and limiters to ensure safe operation. The electronically balanced input is in the form of XLR connectors. The control panel also has a digital volume control to individually adjust for each venue and a digital delay up to 140ms or 40m (120ft), for time alignment and decentralized PA systems. There is a Low Cut switch for speech reproduction or for adding a subwoofer to the system.

Operation and set-up with a PC using the KS Audio Remote 3 software is also possible over an ethernet connection.

CPD Line Technical (single)

  • Frequency response: 60 - 20,000 Hz ( +/-3dB)
  • Output SPL (pink noise at 6dB crest factor): 125 dB / 128 dB peak (single speaker)
  • Dispersion angle (horizontal x vertical in degrees): 120 x 7.5
  • Integrated amplifier / system controller type: PWM, FET-amp / FIRTEC, DSP
  • Transducers: 2 x 8” ND cone + 1” ND compression driver
  • Power RMS / peak in Watts (AES standard): 400 + 100 / 800 + 200
  • Amplification / x-over: 2-way bi-amp / 1,000Hz linear FIRTEC
  • Input signal: Automatic detection of analog or digital AES/EBU XLR3
  • Input connectors: XLR3, powerCON inlet (117/230VAC)
  • Output connectors: XLR3 - thru / powerCON outlet
  • Cabinet: Birch plywood
  • Grill: Perforated RVS
  • Finish: Charcoal polyurethane
  • Dimensions (height x width x depth): 27 x 58 x 40 cm / 10.6” x 22.7” x 15.7”
  • Weight (without options): 20 kg / 44 lbs
  • Features: Ethernet in/out, remote controlled, integrated digital delay, array presets with display, integrated C-RIG flyware, self-regulating power supply
  • Options: C-RIG cradle, flight case for 4 pieces, outside foam, black HD cover, finish available in 200 RAL colors
  • CPD LINE
  • powered
  • The CPD-LINE compliments the CPD series by adding a compact line array system to the lineup. The power for the
  • three drivers of the CPD-LINE are produced from the latest generation “cold” PWM amplifi er for deep middle tone
  • drivers and a FET-amplifi er with the best audio characteristics for the mid-high compression driver. Each of the two
  • 8” woofers delivers 200Wrms /8 Ohm and the single 1” HF compression driver delivers 100Wrms /16 Ohm. With
  • this 500Wrms total power, a single CPD LINE system can produce 125dB SPL peak.
  • What makes the CPD LINE unique is: after you choose the layout of the system, either from our engineered setup
  • charts or your experience. The necessary set-ups for different lengths and curvings are pre-set in the loudspeaker
  • software, and easy to access. You simply choose the number of speakers, the angles between them, and the system
  • creates the optimum acoustic line array dispersion for the venue.
  • Every room has unique acoustic properties and issues, with the CPD system adjusting each individual speaker
  • to compensate for these acoustic issues is made easy. Each loudspeaker, with its individually assigned IP address, can
  • be individually adjusted and monitored with KS AUDIO REMOTE 3 software over an Ethernet network. Each CPD
  • LINE loudspeaker has an integrated network switch which allows the speakers to be linked. All CPD LINE adjust-
  • ments can easily be made on your PC.
  • The rear mounted 2-way FIR CONTROL
  • ®
  • DSP amplifi er operates very effi ciently without the need of a cooling fan.
  • The FIR crossover and fi lters are specially matched to the drivers, with corresponding compressors and limiters to
  • ensure safe operation. The electronically balanced input is in the form of XLR F+M connectors. The control panel
  • also has a digital volume control to individually adjust for each venue and a digital delay up to 140ms or 40m,
  • (120ft)for time alignment and decentralized PA systems. There is a Low Cut switch for speech reproduction or for
  • adding a subwoofer to the system. Operation and set-up with a PC using the KS AUDIO REMOTE 3 software is also
  • possible over an Ethernet connection.
  • CPD LINE powered
  • 60 - 20,000Hz +/-3dB
  • 125dB / 128dB peak (single speaker)
  • 120 x 7.5
  • PWM, FET-amp / FIRTEC
  • ®
  • , DSP
  • 2 x 8” ND cone + 1” ND compression driver
  • 400 + 100 / 800 + 200
  • 2-way bi-amp / 1,000Hz linear FIRTEC
  • automatic dedection of analog or digital AES/EBU XLR3
  • XLR3, powerCON inlet (117/230VAC)
  • XLR3 - thru / powerCON outlet
  • birch plywood
  • perforated RVS
  • charcoal polyurethane
  • 27 x 58 x 40 cm 10.6” x 22.7” x 15.7”
  • 20 kg 44 lbs
  • ethernet in/out, remote controlled, integrated digital de-
  • lay, array presets with display, integrated C-RIG
  • fl yware, self regulating power supply
  • C-RIG craddle, fl ightcase for 4 pieces, outside foam,
  • black HD cover, fi nish available in 200 RAL colo
