db audiotechnik Y7P-B6-D20 SET

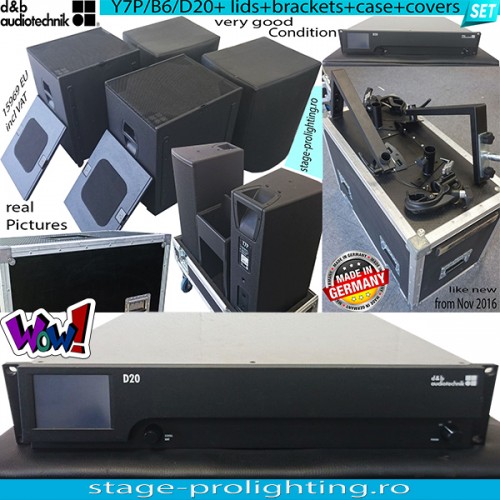

db audiotechnik Y7P-B6-D20 SET se compune din 2 buc d&b audiotechnik Y7P, 2 buc B6-subwoofer, 1 buc D20 amplificator, 1 case pentru 2 buc Y7P, elementele de prindere ale acestora, lid-uri si huse de protectie pentru subwoofere.

Intreg sistemul este second-hand in conditie tehnica foarte buna, pozele fiind reale, poate fi adus in 6-8 zile de la confirmarea platii integrale in avans si se ofera o garantie de 1 an la fiecare componenta in parte.

Oferta este limitata la un singur set, astfel incat primul venit va fi primul servit.

Detalii tehnice

Y7P

Data

System data
Frequency response (–5 dB standard)	59 Hz - 18 kHz
Frequency response (–5 dB CUT mode)	118 Hz - 18 kHz
Max. sound pressure (1m, free field)1 with D6/10D with D20/30D with D80	132 dB 135 dB 137 dB
Cabinets per amplifier channel	2



Loudspeaker data
Configuration	High performance 2-way passive point source loudspeaker
Nominal impedance	8 Ω
Power handling capacity (RMS/peak 10 ms)	400/1600 W
Nominal dispersion angle (h x v)	75° x 40°
Components	2 x 8" driver with neodymium magnet 1.4" exit compression driver passive crossover network
Connections	2 x NLT4 F/M optional 2 x NL4 or 2 x EP5



Dimensions, weight
Dimensions (H x W x D)	580 x 257 x 341 mm 22.8 x 10 x 13.4"
Weight	18 kg 40 lb



The compact, 2-way passive Y7P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn.Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 75° horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40°. The horn can be rotated by 90° to enable horizontal orientation.
The Y7P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown.
The loudspeaker cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.
The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The cabinet incorporates a pair of handles whilst M10 threaded inserts are provided for attaching d&b rigging hardware. Additionally, two further M10 sockets accept the 8mm load pin to expand the mounting options.

B6

Data

System data
Frequency response (–5 dB standard)	37 Hz - 140 Hz
Frequency response (-5 dB 100 Hz mode)	37 Hz - 110 Hz
Frequency response (–5 dB INFRA mode)	35 Hz - 80 Hz
Max. sound pressure (1m, free field)1 with D6/10D with D20/30D with D80	128 dB 131 dB 134 dB
Cabinets per amplifier channel	2



Loudspeaker data
Configuration	High performance subwoofer
Nominal impedance	8 Ω
Power handling capacity (RMS/peak 10 ms)	500/2000 W
Components	1 x 18" driver
Connections	2 x NLT4 F/M optional 2 x NL4 or 2 x EP5



Dimensions, weight
Dimensions (H x W x D)	490 x 580 x 7003 / 805 mm 19.3 x 22.8 x 27.53 / 31.7"
Weight	41 kg 90 lb



The B6-SUB is a high performance subwoofer designed for ground stacked applications, housing a long excursion 18” driver built into a bass-reflex design. When three or any multiple of three B6-SUBs are used, they can be positioned in a Cardioid Subwoofer Array with one cabinet physically facing backwards and driven by an amplifier channel with CSA mode selected. This achieves exceptional directivity control in lower frequencies and significantly reduces the energy radiating towards to the rear. The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.
The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, whilst the side panels incorporate two handles. Four wheels are mounted to the rear and the enclosure features two runners to protect the bottom panel from scratching. Two correspondingly shaped recesses are incorporated into the top panel of each cabinet to accept these runners, preventing cabinet movement when stacked. An M20 threaded flange in the top panel accepts the d&b Loudspeaker stand winder M20. An optional transport lid protects the front of the subwoofer during transit.

D20

Data

Controls and indicators	聽
POWER	Mains power switch
SCROLL/EDIT	Digital rotary encoder
Display	Colour TFT touchscreen, 3.5"/320 x 240 pixel
ISP, GR, OVL A/B	Colour TFT



Digital Signal Processing	聽
Equalizer	2 x 16-band PEQ/notch/shelving/asymmetric
Latency analog and digital inputs	0.3 msec.
Delay setting	0.3 - 10000 msec.
Configurations	current d&b loudspeakers (except J-Series and M2 monitor) and linear mode
Function switches	d&b loudspeaker specific circuits
Frequency generator	Pink noise or Sine wave
Sampling rate	96 kHz/27 Bit ADC/24 Bit DAC



Connectors	聽
INPUT ANALOG (A1 - A4)	3 pin XLR female
ANALOG LINK (A1 - A4)	3 pin XLR male
INPUT DIGITAL (D1/2, D3/4)	3 pin XLR female AES 3
DIGITAL LINK (Output)	3 pin XLR male
Sampling Digital AES/EBU	48 kHz/96 kHz
Speaker outputs A/B/C/D	NL4
Mix TOP/SUB / 2-Way Active output A/B and C/D	NL4
4 Channel output	NL8
CAN	2 x RJ 45 parallel
ETHERNET	2 x etherCON庐, 10/100 Mbit Ethernet
Mains connector	powerCON庐



Data (linear setting with subsonic filter)	聽
Maximum output power per channel (THD+N < 0.5%, all channels driven) CF = 6 dB at 4 / 8 ohms CF = 12 dB at 4 / 8 ohms	4 x 1000/800 W 4 x 1600/800 W
S/N ratio (unweighted, RMS) Analog input Digital input	> 104 dBr > 106 dBr



Power supply	聽
Type	Universal range switch mode power supply with active PFC
Rated mains voltage	100 - 240 V, 50 - 60 Hz



Dimensions, weight	聽
Dimensions (H x W x D)	2 RU x 19" x 460 mm/18.1"
Weight	10.8 kg/23.8 lb



The 2 RU four channel D20 amplifier is ideally suited to mobile and installation applications which require low to medium Sound Pressure Level (SPL) capabilities. The D20 features the same Digital Signal Processing (DSP) platform as the latest generation of d&b amplifiers, containing configurations for all d&b loudspeakers except the J-Series and the M2 monitor, plus a linear mode.
The signal delay capability enables user definable settings of up to 10 s (= 3440 m/11286 ft), which can be applied independently to each channel. The same applies to the two 16-band equalizers, providing optional parametric, asymmetric, shelving or notch filtering.
The D20 incorporates a colour TFT touchscreen, offering quick access to the menu structure, while the rotary encoder can be used for fine adjustment. The front panel and the integrated touchscreen are tilted up for easy operation when the amplifier is below eye level.
The equal ratio of signal input to amplifier output channels increases application flexibility particularly for monitor, frontfill or effect channel use. The LoadMatch function integrated within the D20 amplifier electrically compensates for the properties of loudspeaker cable used.
The D20 incorporates Class D amplifiers utilizing a power supply with active Power Factor Correction (PFC) suitable for mains voltages 100 V - 240 V, 50 - 60 Hz and maintains a stable output when used with weak or unstable mains supplies. An NL8 provides all outputs on a single connector for loudspeaker multicores. Dual channel mode is driven through four individual NL4 connectors, while Mix TOP/SUB and 2-Way Active mode output configurations for applicable d&b loudspeakers are available via two central NL4 connectors. etherCON and RJ 45 connectors enable access to the d&b Remote network through OCA/AES70 via Ethernet and through CAN-Bus respectively.
