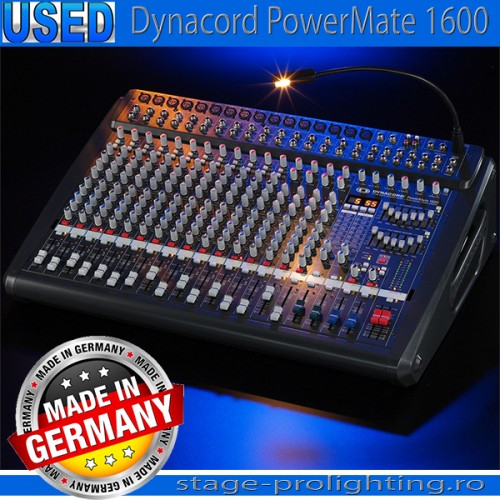

USED Dynacord PowerMate 1600

Used Dynacord PowerMate 1600, produs original Dynacord  din Germania este un produs second-hand, in stare foarte buna, poate fi adus in 8 zile din U.K. cu plata integral anticipat. Fara garantie, produs verificat, iar pozele reale sunt trimise numai la cerere.

Detalii tehnice:

Maximum Midband Output Power, 1 kHz, THD=1%:

-

into 2.66 Ohms

2 x 870 W

into 4 Ohms

2 x 700 W

into 8 Ohms

2 x 430 W

Rated Output Power, THD=0.1%, Single Channel:

-

into 4 Ohms

2 x 700 W

into 8 Ohms

2 x 350 W

Maximum Output Voltage of power amplifi er, no load

70 Vrms

THD at 1kHz, MBW=80kHz:

-

MIC input to Main L/R output, +16 dBu, typical

< 0.005%

Power amplifier input to Speaker L/R output

< 0.01%

DIM 30, power amplifier

< 0.01%

IMD-SMPTE, power amplifier, 60Hz, 7 kHz

< 0.01%

Frequency Response, -3dB ref. 1kHz:

-

Any input to any Mixer output

15Hz ... 80kHz

Any input to Speaker L/R output

20Hz ... 70kHz

Crosstalk, 1kHz:

-

Fader and AUX-Send attenuation

> 85 dB

Channel to channel

> 80 dB

CMRR, MIC input, 1kHz

> 80 dB

Input Sensitivity, all level controls in max. position:

-

MIC input

-74 dBu (155 µV)

LINE Input (Mono)

-54 dBu (1.55 mV)

LINE Input (Stereo)

-34 dBu (15.5 mV)

Power Amplifier Input

+6 dBu (1.55 V)

Maximum Level, mixing desk:

-

MIC inputs

+ 21 dBu

Mono Line inputs

+ 41 dBu

Stereo Line inputs

+ 30 dBu

All other inputs

+ 22 dBu

Record Send output

+ 14 dBu

All other outputs

+ 22 dBu

Input Impedances:

-

MIC

2 k ohms

Insert Return

2.2 k ohms

EQ Input and 2 Track Return

8 k ohms

All other inputs

> 15 k ohms

Output Impedances:

-

Record Send

1 k ohms

Phones

47 ohms

All other outputs

75 ohms

Equivalent Input Noise, MIC Input, A-weighted, 150 ohms

-130 dBu

Noise, Channel inputs to Main L/R outputs, A-weighted:

-

Master fader down

-95 dBu

Master fader 0 dB, Channel fader down

-88 dBu

Master fader 0 dB, Channel fader 0 dB, Channel gain unity

-82 dBu

Signal/Noise-Ratio, power amplifi er, A-weighted

105 dB

Equalization:

-

LO Shelving

± 15 dB / 60 Hz

MID Peaking, mono inputs

± 15 dB / 100 Hz ... 8 kHz

MID Peaking, stereo inputs

± 12 dB / 2.4 kHz

HI Shelving

± 15 dB / 12 kHz

Master EQ, 2x7-band, 63, 125, 400, 1k, 2k5, 6k, 12k Hz

± 10 dB / Q=2.0

Power Consumption at 1/8 maximum output power, 4 ohms

640 W

Dimensions, (WxHxD), mm

673.5 x 210.5 x 504.5

Weight, without lid / including lid

23.5 kg / 25 kg

Optional

RMK-1000 (Rack-Mount-Kit PowerMate1000-2) 112 698, Gooseneck Lamp, 12V/2.4W, 12“, XLR 112 700, FS11 (Footswitch) 110 693
