JBL pro-Wireless Alto-dbx-PA 3500W RMS active Sys

Producător: JBL
Cod produs: JBL pro-Wireless Alto-dbx-PA 3500W RMS active Sys
Disponibilitate: disponibil in 8-10 zile

32.640,00 RON TVA inclus

Pret: 6.397,44€
VAT Incl.

Descriere
Opinii (0)

Descriere

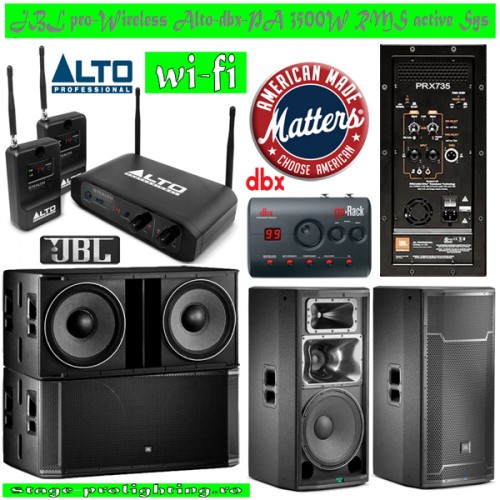

JBL pro-Wireless Alto-dbx-PA 3500W RMS active Sys este un sistem PA activ compus din:

Component	Nr Buc	Descriere sumara
JBL SRX828SP	2	Dual 18-inch Powered Subwoofer 2000-Watt
JBL PRX735	2	15" Three-Way Full-Range Main System 1500 W
Alto Stealth Wireless	1	Wireless System for Powered Speakers
dbx goRack	1	PA Speaker System Performance Processor
Accessories	1	Set 10 x XLR-XLR 0,5m Cables

JBL SRX828SP Dual 18-inch Powered Subwoofer 2000-Watt

Features:

Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
JBL Premium Transducers
Drivecore Amplification By Crown
Full User Configurable DSP
Network Control
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
M10 Suspension Points

UNPRECEDENTED CONTROL

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400mHz Sharc DSP includes 20 PEQ's, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL's patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With an outstandingly low 103dB signal- to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.

Applications:

Live performance systems
Mobile and fixed DJ systems
Sound system rental and tour
Permanent installations

Specifications:

System Type: Self powered dual 18", subwoofer system
Max SPL Output: 141 dB
Frequency Range (-10 dB): 29 Hz - 150 Hz
Frequency Response (-3 dB): 35 Hz - 120 Hz
Amplifier Design: Class D
Power Rating: 2000 W Peak
Dimensions (H x W x D): 574 x 1205 x 681 (mm)/22.57 x 47.42 x 26.79 (in)
Net Weight: 65.9 kg (145 lbs.)

JBL PRX735 15" Three-Way Full-Range Main System

The PRX735 is the next step in the highly successful PRX Series and introduces the first use of JBL’s patented Differential Drive Technology with ferrite drivers. Differential Drive technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efifciency for greater heat dissipation and increased power handling. Powering the PRX735 is a 1500 Watt high performance, exceptionally low distortion tri-ampli?cation system engineered to deliver clean power with maximum headroom to efficiently deliver smooth high frequencies and rich, deep bass response even at very high sound power levels. Compact, ultra-lightweight, the PRX735 uses JBL’s tour tested technology throughout so you can trust it to deliver a lifetime of reliable performance.

Features:

136 dB peak SPL
15" Differential Drive low-frequency driver for low-distortion and higher SPL
165 mm (6.5 in) horn loaded midrange transducer
1.5" diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Efficient Class-D amplifier technology
Normal and Boost user selectable EQ presets
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Line level and direct microphone input capability
Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
Multiple injection molded handles with backing cup for easy transport
Integrated M10 suspension points for easy setup
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

Specifications:

Power Rating: 1500 W
Frequency Range (-10 dB): Normal: 35 Hz – 20 kHz
Boost: 34 Hz – 20 kHz
Frequency Response (±3 dB): Normal: 42 Hz – 20 kHz
Boost: 39 Hz – 20 kHz
Coverage Pattern: 90° x 50° nominal
Directivity Index (DI): 10.5 dB
Directivity Factor (Q): 11.2
Crossover Frequency: 480 Hz, 2.0 kHz
Maximum SPL: Normal: 136dB, Boost: 136dB
Signal indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting, Signal: Green LED indicates signal present, Power/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input): dbx Type IV limiter circuit
Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver: 1 x JBL 275G 380mm (15 in) woofer
MF Driver: 1 x JBL 196H 165mm (6.5 in) horn-loaded midrange transducer
HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver"
Enclosure: Trapezoidal, 18 mm, plywood
Suspension / Mounting: 12 x M10 Suspension Points
Transport: 2 x integrated handle with injection molded backing cup
Finish: Obsidian DuraFlex™ finish
Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connector: 1 male XLR balanced output
Dimensions (H x W x D): 952.5 mm x 445.0 mm x 537.97 mm, (37.5 in x 17.52 in x 21.18 in)
Net Weight: 34.9 kg (77 lb)

Alto Stealth Wireless System for Powered Speakers

Unchain your speakers from the tangled mess that are signal cables, and instead replace them with the incredibly convenient Alto Stealth Wireless system! Establish a reliable wireless connection to your speakers and never worry about running hundreds of feet of cable again. Alto Professional's Stealth Wireless is compatible with all powered PA speakers; enjoy it with JBL EONs, QSC K and KW Series, Alto TS and Black Series, along with many more. Expand your PA system with additional stereo receiver packs for interference-free sound to an unlimited amount of speakers.

Save Time. Save Money.

Enjoy faster setups, quicker teardowns, and eliminate complicated or unsightly cable runs, regardless of the venue. The Stealth Wireless system instantly establishes a hardy, unseen connection from the output of your mixer or DJ controller to the inputs of your powered speakers. Your days running and securing cables are a thing of the past. After the show, simply disconnect the system and you're ready to go - who has time to wind up cables?

Everything You Need

This complete, ready-to-use system contains a stereo (2-channel) transmitter equipped with XLR+1/4" combo inputs to accommodate nearly any type of mixer and most other sources of audio. Also included are two single-channel receivers, each providing a single XLR output. The system also ships with two small XLR cables to connect the receivers into your speakers and for your convenience, the Stealth Wireless also includes a variety of mounting hardware, used to secure the receivers in place.

It's Easy As 1, 2, 3

Step 1: Connect the transmitter. Plug the main outputs of your audio source (DJ controller, mixer, etc.) into the Stealth Wireless transmitter, using either the XLR or 1/4" inputs.

Step 2: Connect the receivers. Take the XLR output on the Stealth Wireless Receiver and connect it to the input of your active loudspeaker. Repeat this step for the second receiver.

Step 3: Turn the transmitter on first, and then the receivers.

It's that simple!

Select any one of the 16 reliable UHF channels to minimize interference. The squelch control can be manually set to one of three levels for optimal performance. As you expand, you can continue to implement more and more speakers wirelessly using the Stealth Wireless Expansion Pack.

Includes:

Stealth Wireless Transmitter
Stealth Wireless Receivers (x2)
Power supplies (x3)
XLR cables (x2)
M10 screws (x2)
Machine screws (x2)
Hook and loop strips (x2)
User Guide
Safety & Warranty Manual

TRANSMITTER

Type: Dual Channel Transmitter
RF Frequency: 500~930 MHz
Oscillation Type: PLL
Preset Channels: 16 Channels (stereo)
Frequency Response: 50 Hz ~ 17 kHz / 3dB
Bandwidth: 24 MHz or 30MHz
Frequency Stability: 0.005%
Frequency Deviation: 20 kHz
LED Indicators: Power On/Off, Sig/Clip
Power External Adaptor, 12 VDC/300 mA
Output Power: <10 mW
Controls: Power Switch; Channel Select; Mono/Stereo Switch

RECEIVER

Type: Single Channel Receiver
Preset Channels: 16 Channels
RF Frequency: 500~930 MHz
S/N Ratio: >100 dB/A
RF Sensitivity: 100 dBm
Image Rejection: >70 dB
T.H.D.: < 0.5% 1kHz
LED Indicator: Power On, RF/AF LED Indicator
AF output Impedance: 660O balanced
Squelch: 3-step & Pilot Tone
Operation Voltage: 12 VDC,300 mA

dbx goRack PA Speaker System Performance Processor

Great Portable PA Sound Made Simple.

Historically, the convenience of portability in a PA System has meant a compromise in sound quality and fidelity. To answer that call, dbx Professional Products are proud to introduce the all-new goRack Performance Processor. The goRack is an easy-to-use portable speaker processor. Based on our industry-leading DriveRack Series, the goRack sits next to a set of powered speakers and provides powerful signal processing including Anti-Feedback (based on our AFS Advanced Feedback Suppression algorithm), Compression, Sub-Harmonic Synth and EQ. Each processing function can easily be enabled or disabled via top-level function buttons, and settings can be adjusted via goRack's large data wheel.

goRack's rear panel features combination 1/4"/XLR inputs that can be connected to either mixer outputs or microphones. When using a mic, the goRack's Mic/Line switch selects the proper input sensitivity and gain range while dual gain controls on the top provide independent level adjustment. goRack's 1/8” Aux input allows for direct connection of mobile music players while XLR outputs interface with powered speakers.

The goRack represents the best of dbx's DriveRack processing in its purest, most simplified form all housed in a sleek, compact form factor that fits in your hand, or back pocket. The goRack is perfect for applications from a mixer, or with its dual XLR inputs and Aux input, it can be used as a standalone performance processor/mixer for the solo artist.

Anti-Feedback Processing

Make annoying and potentially painful audio feedback a thing of the past with the goRack's simple-to-use, Anti-Feedback processing. Based on dbx's industry-leading AFS (Advanced Feedback Suppression) algorithm, the goRack makes eliminating system feedback a snap. Simply press the goRack's Anti-Feedback function button and use the Data Wheel to adjust the settings. The goRack listens for, anticipates and removes feedback automatically without altering your sound.

Compressor

Control dynamics and fine-tune your system with the straightforward Compressor feature based on the legendary dbx 163 Compressor. Minimize peaks and level out variances in your audio source material with goRack's intuitive Compressor feature.

Sub-Synth

goRack's Sub Synth feature is the perfect tool for adding extra bass to your system. For decades, dbx's patented Subharmonic Synthesis has been the secret weapon used by mobile DJ's and film and sound professionals to produce low frequency impact unavailable from any other device—unique because the dbx process actually produces a new, Waveform Modeled bass note, exactly an octave below the bass in the original audio.

Add richness and clarity to your audio with the goRack's EQ feature. Experiment with one of goRack's custom EQ settings to instantly improve bass, midrange and treble response. The goRack's EQ can also be used to adjust a sound system to account for the acoustical response of a room or an outdoor venue.

The dbx goRack is ideally suited for live sound applications where portability is essential without compromising sound quality.

Available Processing:
