Descriere
BASSBOSS Active Line-array PA SET nu este un sistem de sonorizare, este o bestie de 40000 W. Pentru orice club cu pretentii, sonorizari in aer liber, sali mari de evenimente, etc, acest sistem va impresiona in primul rand prin forta si claritate. Conceput si realizat integral in USA de redutabila firma BASSBOSS, sistemul este senzational atat ca sound, cat si calitativ. Se importa numai la comanda, plata integral anticipat, are garantie 3 ani si poate fi livrat in doua saptamani. Sistemul se compune din 8 module line-array LA88, fiecare de cate 3000W si 4 subwoofere duble de 18" ZV28, fiecare de 4000 W. Pretul exprimat este pentru tot sistemul. Optional, anumite accesorii pot fi comandate tot prin intermediul magazinului nostru ca reprezentant al producatorului american in Romania. Produse recomandate de stage-prolighting.ro
Detalii tehnice:

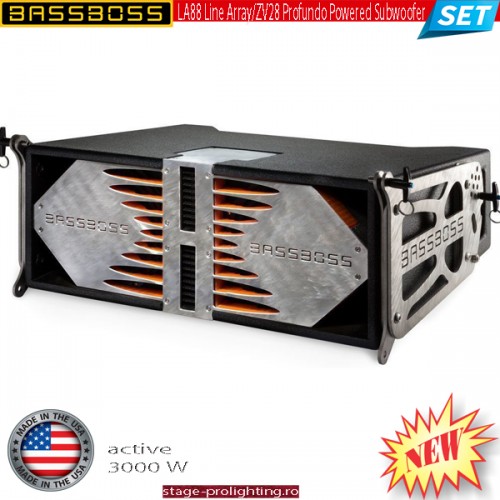

LA88 Line Array
Specifications
LOUDSPEAKER |
|
---|---|
Loudspeaker Description |
Small format Dual 8 in. Line Array |
Frequency Response (±3 dB) |
50 – 19,000 Hz (Full-Range) 100-19,000 Hz (Satellite Mode) |
Maximum Sustained Output |
129 dB |
Nominal Dispersion (°H x °V) |
140 x 8 |
POWER |
|
Amplifier |
3000 W – Two-Channel Powersoft Class D Digital Amplifier |
DSP |
Integrated comprehensive DSP provides high pass, low pass, equalization, phase alignment and limiting |
Electrical Connectors |
Neutrik Powercon in and through |
Voltage Operating Range |
90-250V. Auto-sensing, auto switching universal supply |
Current Draw, Nominal |
3A @ 1/8 power |
Signal Input Connector |
XLR-F |
Signal Output Connector |
XLR-M pass-through only |
PHYSICAL |
|
Enclosure Type |
2-way line array. Vented LF section with multi-aperture midrange loading, horn-loaded HF section |
Transducer |
LF: Two 8 in. dia (200 mm) neodymium motor woofers with 2 in. (51mm) copper winding voice coil. HF: Two 1.7 in. (44mm) diaphragm compression driver on 1 in. throat isophasic wave guides |
Cabinet Construction |
15mm Baltic Birch plywood. Integrated cabinet handles |
Flyware |
Integrated aluminum line array flyware, adjustable in one degree increments, with fixed front pivot point |
Dimensions (HxWxD) |
24 in. wide x 19 in. deep x 9.5 in. tall (front); 7 in. tall (back) without flyware; 26.25 in. wide x 11 in. tall (front) x 7 in. tall (back) x 19 in. deep with flyware |
Net Weight |
55 lbs |
Shipping Weight |
65 lbs |
Exterior Finish |
Weatherproof bonded high-pressure polyurethane |
Grill |
Diffraction aperture cut aluminum fascia |
OPTIONS |
|
Array Frame (Bumper Bar) |
Support frame Light for up to twelve cabinets or Heavy for up to twenty four cabinets |
Case |
Heavy-duty clam-shell hard case |
Wheel Dolly |
Multibox rolling cart/ground support bracket |

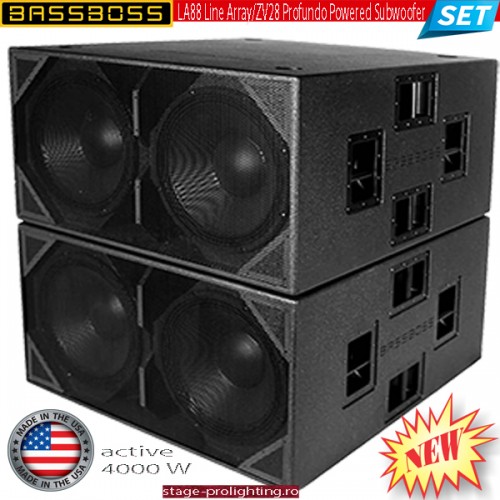

ZV28 Profundo Powered Subwoofer
Specifications
ACOUSTICAL |
|
---|---|
Loudspeaker Description |
Extended Low-Frequency Dual 18 Inch Powered Subwoofer |
Frequency Response (+-3 dB) |
24 – 90 Hz |
Frequency Response, Pair (+-3 dB) |
21 – 90 Hz |
Maximum Sustained Output |
134 dB SPL, 1 meter, half-space (ground plane) |
Nominal Dispersion (H° x V°) |
360 x 360 – Cardioid Mode Available with Multiple Boxes |
ELECTRICAL |
|
Amplification |
4000 Watt Continuous RMS Class D Subwoofer Amplifier |
Processing |
Integrated comprehensive DSP provides high pass, low pass, phase alignment and limiting |
Electrical Connectors, Amplifier |
Neutrik powerCON Input (Blue) NAC3FCA, Neutrik powerCON Through (Grey) NAC3FCA |
Electrical Connector, Mains |
Standard US 3-pin 120V electrical plug: NEMA 5-15 (Edison), Optional electrical plugs available, including L5-30 and others, upon request. |
Voltage Operating Range |
90-132VAC, 55-65Hz |
Current Draw, Nominal |
564 W, 4.7A @ 120 Volts (typical, 1/8 max power) |
Signal Input Connector |
XLR-F |
Signal Output Connector |
XLR-M (pass-through only) |
PHYSICAL |
|
Enclosure Type |
Direct radiating, vented enclosure, optimally tuned for extremely low frequency response with good sensitivity and high power handling |
Transducer |
2 x 18 in. diameter (457 mm) neodymium motor woofer with 4.5 in. (115 mm) copper winding voice coil and 56 mm (2.2″) peak to peak excursion. Waterproof fiber composite cone |
Cabinet Construction |
18 mm Baltic Birch plywood, extensively braced. Equipped with 16 flypoints, 8 steel handles, 2 pole sockets, 4 large rubber feet, and 4 interlocking foot pockets |
Dimensions (HxWxD) |
22.5 in. x 42 in. x 42 in. (23.25 in. high with feet) |
Net Weight |
225 lbs |
Shipping Weight |
240 lbs |
Exterior Finish |
Rugged, weatherproof, black textured, bonded high-pressure polyurethane coating |
Grill |
Perforated, powder-coated steel |
Pole Sockets |
2 (35 mm) |
Handles |
8 Steel Handles |
OPTIONAL |
|
Flying Hardware |
Side-pull anchors and/or shoulder eyebolts |
Suspension System |
16 x 3/8 in.-16tpi threaded flypoints |
Amplification for Installation |
Complete power package including DSP in two space rack chassis for permanent installations |
Installation Version |
Available without handles and pole sockets |
Transport Dollies |
Dolly cart with 4 locking casters and recesses to accept interlocking cabinet feet for transporting 1 to 3 cabinets |
Covers |
Heavy-duty padded nylon transport covers for 1 or 2 cabinets |
