Entertainer mini PA-Studio SET

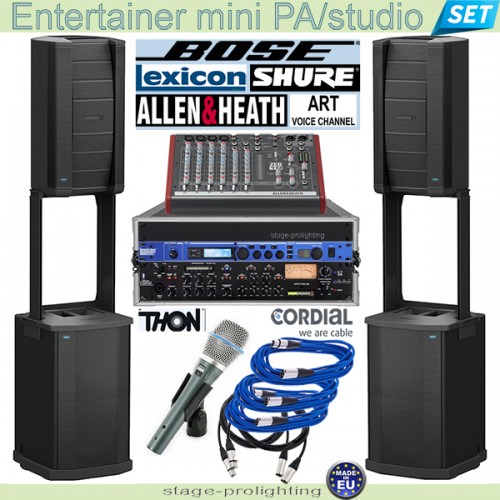

Entertainer mini PA-Studio SET este poate una din cele mai eficiente solutii de sonorizare pentru un entertainer care urmareste nu numai un sound bun, dar sa acopere si nevoia unui home studio din punct de vedere al monitorizarii si pre-amp-ului pentru canalul de voce. S-a cautat combinatia de echipamente care sa satisfaca la maxim aceste multiple cerinte sub raportul calitate/pret - eficienta. De multe ori ceea ce pregatim in studio are prostul obicei sa sune putin diferit in aplicatiile LIVE. Ei bine, nu si cu aceasta combinatie de echipamente. Sound-ul din studio se va regasi si pe scena. In plus, nu vei avea nevoie de doua randuri de echipamente (unul dedicat studioului si unul pentru LIVE), acest set facand fata cu brio ambelor provocari, avand in plus marele avantaj al unui setup rapid, usor de instalat, usor de mutat si mai ales dimensionat la minimum. Caracteristicile microfonului condenser SURE 87A sunt foarte apropiate cu cele cerute intr-un studio cu pretentii, fiind totodata una din cele mai bune solutii mic intr-o aplicatie LIVE. Semnalul va fi apoi preluat de ART Voice Channel care nu este doar un preamp excelent, dar si Compresor/Limitator/De-Esser si EQ. In insertie cu procesorul de efecte Lexicon MX300, semnalul astfel pre-prelucrat si preamplificat se strecoara in mixerul (neasteptat de bun) Allen & Heath ZED-10FX unde va beneficia de ultimele ajustari EQ si FX-ul mixerului. astfel incat canalul de voce va fi ”incoronat” de procesare multipla EQ si Fx (pre si post). Rezultatul? Un sunet excelent obtinut cu minimum de efort atat in studio, cat si pe scena. Ce ar mai fi nevoie? Un sistem PA/monitorizare care sa redea cu fidelitate tot acest preamp. De asta se ocupa BOSE:)).

Detalii Tehnice:

Allen & Heath ZED-10FX

Small Mixer

• 4 Mic/Line inputs
• 2 Dual stereo inputs
• 2 Aux Sends
• USB Send and return
• Integrated 24Bit 48 kHz effects processor with tap delay
• High-pass filter
• Stereo return
• 2-Track return
• 6.3 mm headphone connector
• Stereo record output
• XLR Master LR
• Main insert
• 12-Segment LR displays
• Master control for Aux 1 and 2
• Integrated power supply
• Dimensions: 336 x 95 x 275 mm
• Weight: 3,3 kg



Bose F1 Model 812

Array Speaker System

• PA with high SPL for bands, DJs and general applications
• Flexible array with four configurations
• Equipped with: 12"  Woofer and eight 2.25" drivers
• Power: 1000W
• Flexible vertical sound coverage pattern with a horizontal dispersion of 100°
• 35 mm Speaker flange
• Dimensions (W x H x D): 665 x 334 x 372 mm
• Weight: 20.2 kg

Bose F1 Subwoofer

Subwoofer

• Power: 1000 W
• Equipped with: Two 10" woofers with high diaphragm deflection
• Compact, lightweight design
• Integrated mounting feet for the F1 model 812 speakers
• Dimensions: 688 x 410 x 449 mm
• Weight: 24.9 kg



ART Voice Channel

Tube Channel Strip

• Class A tube preamp
• Compressor / expander / de-eater / gate
• 4-band semiparametric EQ with cut / boost switching pre or post compressor switchable
• Frequency response: 12 - 100000 Hz analog
• Sampler data: 44.1 - 192 kHz
• Digital Connections: ADAT
• S / PDIF optical / coaxial
• AES / EBU and USB
• Word Clock I / O
• Analog Connections: MIC / Line / Instrument-Input XLR-combo
• Insert: 6.3 mm jack
• Balanced output XLR and 6.3 mm jack
• Mic-Preamp Out 6.3 mm jack
• VU meter
• Format: 19"/ 2U
• Dimensions (H x W x D): 88.9 x 483 x 233 mm
• Weight: 4.7 kg



Channels	1
Number of microphone  inputs	2
Instrument input	Yes
Tubes	Yes
Compressor/Limiter	Yes
Equalizer	Yes
De-Esser	Yes
Phantom power	Yes
Phase Reverse	Yes
External effect loops	Yes
Analogue Outputs	XLR, jack
Digitale Outputs	ADAT, AES, S/PDIF
Headphone connection	No
Level Meter	Yes





Lexicon MX 300

Multi effects Device

• 16 Legendary Lexicon Hall algorithms (ex. halls, chamber, plates, ...)
• Lexicon delay & modulations effects
• Dbx dynamic algorithms, quad processor design
• Presets and parameters are controllable via VST plug-in
• Five routing configurations
• One digital S/PDIF in/out interface
• Analog 24-bit in- and outputs
• 99 Factory- and 99 user programs for stereo and dual-stereo
• LCD display
• MIDI Interface
• In/Outputs: Sym. jack + XLR
• Format: 19" / 1 U
• Weight: 2.6 kg
• Incl. MX Edit software



Shure Beta 87A

The Shure Beta 87 A is a high-quality, permanently polarized condensation microphone with a super-cardioid characteristic for vocals, characterised by an exceptionally linear transmission range and high sound pressure resistance. It is used in professional sound reinforcement, radio and studio recording, and combines excellent sound quality with the robustness required for touring and outdoor productions.

The Beta 87 A has a bass reduction, which compensates for the proximity effect and prevents disturbance caused by close-up sounds. The Shure-typical presence raises the upper mids, while the supercardioid characteristics provide for maximum isolation from other sound sources such as vocal or instruments, allowing for minimal off-axis sound.

One of the most robust, reliable and high-quality condenser microphones available

• Super-cardioid
• Linear transmission range for precise, detailed and authentic vocal and voice transmission.
• Extremely precise super-cardioid characteristics over the entire transmission range for the greatest possible feedback with maximum gain.
• Built-in, three-ply windscreen minimises pop-up and breath sounds.
• Operation with phantom power
• Transmission range: 50 Hz - 20 kHz
• Output Impedance: 100 Ohm
• Noise Sensitivity: -54 dBV / Pa (2 mV)
• Maximum sound pressure (at 1 kHz, 1 k load, 0.25% distortion factor): 140.5 dB SPL
• Noise (equivalent sound pressure): 23.5 dB (A)
• Power supply: 11 to 52 V
• Power consumption: max. 1.2 mA
• Dimensions (L x Ø): 192 x 51 mm
• Weight: 207 g
• Incl. Clip and pocket
