Descriere

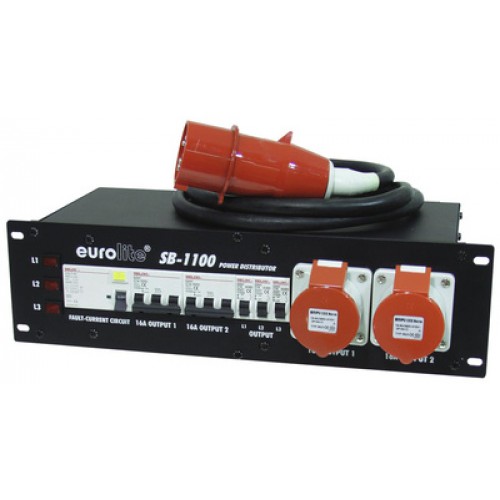

Eurolite SB-1100 Power distributor 32A, SB-1100 Power distributor 32A. Practical 32 A distributor in 483 mm housing (19"). Specially designed for larger distribution needs, 3 U necessary for installation, 32 A three phase current input via power cable and plug, 32 A three phase current output via mounted plug secured on the rearpanel by a Residual Current Device (RCD), The entire distributor thomann is secured via 30 mA Residual Current Device (RCD), 2 mounted CEE sockets with 16 A on the front panel, secured via 3 x 16 A fuse blocks, Control lamps indicate each phase, 6 safety sockets on the housing back (2 per phase), Each pair of safety sockets feature fuse protection via 16 A automatic circuit breakers, With M6 earthing screw in order to ground a rigg if necessary, Technical specifications: Power supply: 380-400 V AC, 50 Hz ~, Max. power output: 22080 W, Max. Output/phase: 7360 W, Max. current/phase: 32 A, Fuses: 2 x 16A 3 Ph, 3 x 16A 1 Ph, FI/RCD 40A/0.03A, Height: 3 U, Dimensions (LxWxH): 482 x 295 x 132 mm, Weight: 6 kg, Shipping weight: 6.55 kg,
