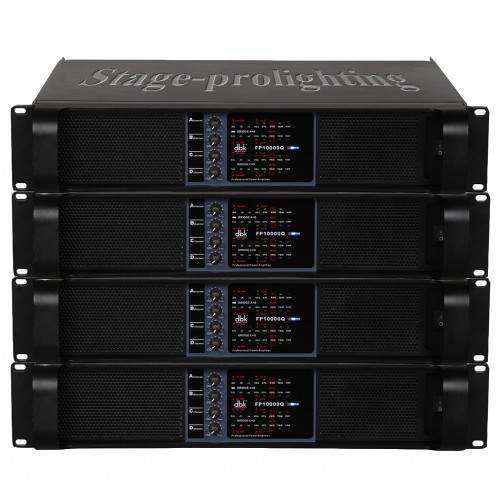

FP 10000Q (clona) power amplifier

Aceste amplificatoare sunt clone ale vestitelor FP 10000Q de la LAB Gruppen (Sweden). Fabricate si importate din Hong Kong, respecta in proportie de 85% calitatile produsului initial, avand o putere impresionanta de 4 x 2500W la 2 Ohmi. Fiind puteri cu 4 canale, o singura putere este capabila sa duca practic 4 top-uri, sau 4 subwoofere de mare randament, ceea ce le face extrem de utile intr-un system PA. Diferentele calitative fata de produsul original suedez (de patru ori mai scump) la un randament de 70% din puterea instalata sunt relative si se fac simtite doar dupa acest randament de putere, ceea ce le face competitive sub raportul calitate/pret, fiind practic niste clone destul de reusite ale produsului original suedez. Garantia oferita este de 1 an. Magazinul stage-prolighting nu-si asuma responsabilitatea diferentelor fata de produsul original, dar sub raportul calitate/pret le recomandam ca fiind o optiune in fata unui buget limitat. Pretul exprimat este per bucata, avand toate taxele de import si TVA incluse. Pot fi aduse prin DHL in 8-10zile de la plata integral facuta in avans.

Specifications FP 10000Q (original)

General

Number of channels

4

Peak total output all channels driven

10000 W

Peak output voltage per channel

150 V

Max. output current per channel

38 Arms

Max. Output Power

2 ohms

4 ohms

8 ohms

16 ohms

Per ch. (all ch.’s driven)

2500 W

2100 W

1300 W

660 W

Bridged per ch.

- 3)

5000 W

4200 W

2600 W

Performance with Gain: 35 dB and VPL: 150 V

THD 20 Hz - 20 kHz for 1 W

<0.1%

THD at 1 kHz and 1 dB below clipping

<0.05%

Signal To Noise Ratio

>112 dBA

Channel separation (Crosstalk) at 1 kHz

>70 dB

Frequency response (1 W into 8 ohms) +0/-3 dB

6.8 Hz - 34 kHz

Input impedance

20 kOhm

Input Common Mode Rejection, CMR

45 dB

Output impedance @ 100 Hz

56 mOhm

Output slew rate into 8 ohms

20 V/microsecond

Voltage Peak Limiter (VPL), max. peak output

VPL, selectable per ch.

150, 121, 101, 83, 70, 56, 47, 38 V

VPL, selectable when bridged

1)

300, 242, 202, 166, 140, 112, 94, 76 V

Voltage Peak Limiter mode (per ch.)

Hard / Soft

Gain and Level

Amplifier gain selectable (all channels)

1)

– rear-panel switches

23, 26, 29, 32, 35, 38, 41, 44 dB

Default gain

35 dB

Level adjustment (per ch.)

Front-panel potentiometer, 21 position detented from -inf to 0 dB

Connectors and Switches

Input connectors (per ch.)

3-pin XLR, electronically balanced

Output connectors (per ch.)

Neutrik Speakon or Binding Posts (must be specified upon order)

Output bridge mode

A+B, C+D - Ch.’s A and C are signal input source

NomadLink

®

network

On board, 2 x RJ45 EtherCon connectors, IN and OUT

Intelligent fans (on/off)

Yes, depending on presence of output signal

Power on/off and Remote enable on/off

Individual switches on front-panel

Cooling

Two fans, front-to-rear airflow, temperature controlled speed

Front-panel indicators:

Common

NomadLink

®

Network; Power Average Limiter (PAL)

2)

; Power on

Per channel

Signal present / High-impedance; -20 dB, -15 dB, -10 dB and -4 dB output signal;

Voltage Peak Limiter (VPL); Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute

Power

Operating voltage, 230 V / 115 V nominal

4)

130-265 V / 65-135 V

Minimum power-up voltage, 230 V / 115 V

171 V / 85 V

Power Average Limiter (PAL)

2)

Yes

Soft start / Inrush Current Draw

Yes / max. 5 A

Mains connector

230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock

Dimensions (W/H/D)

W: 483 mm (19”), H: 88 mm (2 U), Overall D: 396 mm (15.6”), Mounting D: 358 mm (14.1”)

Weight

12 kg (26.4 lbs.)

Finish

Black painted steel chassis with black painted steel / aluminum fron
