Descriere

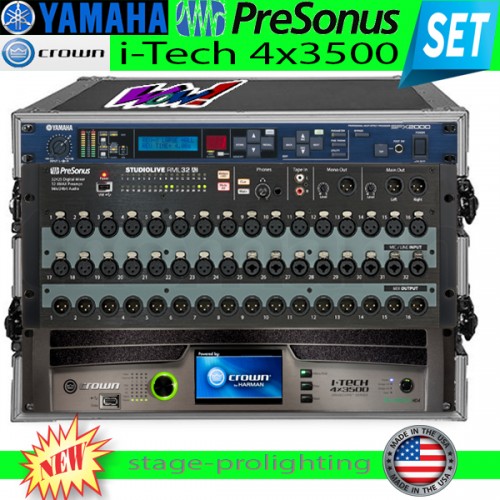

HD Rack power amplifier este integral o minune a tehnicii sub toate aspectele: multi Fx, digital mixing, DSP, amp. Calitativ, aceste trei produse de top (descrise amplu d.p.v.d. tehnic in cele ce urmeaza) nu lasa loc nici unui compromis. Veti avea suficienta forta, flexibilitate in operare, fiabilitate maxima si mai ales, alaturi de un grupaj de speakere si sub-uri pe masura (line-array, sau „classic”), veti obtine un sistem de sonorizare de invidiat. Pentru sugestii privind o configurare a speakerelor in functie de genul de aplicatie dorit (touring, fixed, club, etc) va rugam sunati la magazin. Sistemul, fabricat in SUA, beneficiaza de 3 ani garantie, se aduce numai cu pre-comanda si se compune din:
Presonus StudioLive RML32AI
Presonus StudioLive RML32AI, 32-channel rack-mount digital m ixer with Total Recall, Rugged steel chassis, 19"/4U, UC Sur face Live Mixing thomann and Control Software, designed specifically for live sound mixing, Multiplatform support for Mac, Windo ws, and iPad, Windows 8 multi-touch-compatible for large tou chscreen mixing, Wi-Fi and wired networking, Monitor (aux) m ixes controllable via iPhone or iPod touch (with free QMix-A I app), USB jack for thomann Wi-Fi LAN adapter (using a router), Eth ernet port, 32 locking XLR inputs, each with recallable XMAX Class A mic preamps, +48V phantom power, individually switc hable, Stereo tape input (RCA jacks), 32 LED meter grid (sel ectable: input signal or phantom power status), Dual Fat Cha thomann nnel signal processing (A/B selectable), with phase switch, HPF, 4-band fully parametric EQ, Compressor, Limiter, Noise Gate with Sidechain and Key Filter, 50 Fat Channel presets f or Drums, Bass, Guitars, Keyboards, and Vocals, 99 user-prog rammable presets, 15 graphic EQs for the first 12 line thomann outpu ts and the 3 Main outputs, variable LPF for the mono output, programmable alignment delays on the last 4 XLR outputs (up to 300 ms), 4 internal effect processors (2x Reverb, 2x Del ay), 8 Mute Groups, 8 Quick Scenes, Global Scene Storage - u thomann p to 99 at a time. 16 XLR line-level Mix outputs, 2 DB25 jac ks mirror the line-level Mix outputs3 XLR main outputs (left , right, mono/center) with analog trim pots, S/PDIF digital output (coax), Headphone output with volume knob and selecta ble source (Cue/Main), Fully integrated, thomann continuously bidire ctional, 52-in/34-out FireWire 800 audio interface, High-def inition Burr-Brown analog-to-digital converters (118 dB dyna mic range), 24-bit/96 kHz, Option card slot for future expan sions (Dante & Thunderbolt cards), Software included: Captur e (Mac, Windows) for easy multitrack-recording and virtual s oundcheck, Studio One Artist, DAW thomann Software (Mac, Windows), C omputer system requirements for UC Surface: Apple iPad Pro: iPad Air, iPad mini with Retina-Display, iPad 4, iPad mini, iPad 3, or iPad 2, iOS 7.03 or later, Mac: OS X 10.8.5, 64-b it, or later, Intel Core 2 Duo processor (Intel thomann Core i3 or f aster recommended), 4 GB RAM (8 GB or more recommended), Wir ed or wireless network connection, Internet connection, Wind ows: Windows 7 x64/x86 SP1, Windows 8 x64/x86, Intel Core 2 Duo processor (Intel Core i3 or faster recommended), 4 GB RA M (8 thomann GB or more recommended), Wired or wireless network conn ection, Internet connection, Computer system requirements fo r Capture and Studio One (Mac and Windows): FireWire S800 (I EEE 1394b) or Thunderbolt-Port, Internal or external 7200 RP M storage drive highly recommended, Monitor with 1280x800 re solution, Dimensions: 483 thomann x 267 x 178 mm, Weight: 10.0 kg
CROWN I-Tech 4x3500HD
Four-channel, 4000W @ 4Ω Power Amplifier
The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs. Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings. Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.
More Flexibility
• True Ethernet backbone – fast, reliable and scalable
• Color LCD provides users with diagnostics and presets for easy setup
• Includes SLM (Sweep Load Monitoring) with system-level diagnostics
• Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP
• New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
• The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity
No Compromise
• BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters
• High common-mode rejection eliminates hum and RFI on input cables
• Professional-grade connectors for all inputs and outputs
• Full power-supply voltage is always available, allowing instantaneous power on demand
• Quality-graded components let you safely drive the amplifier harder
• More total capacitance provides tremendous energy reserves for power bursts
No Comparison
• The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)
• LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
• Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
• Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)
|
Channels |
4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet) |
|
Sensitivity |
Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms |
|
Damping Factor |
> 5000 |
|
Signal to Noise Ratio |
≥ 108dB |
|
THD (full rated power, 20 Hz - 20 kHz) |
0.35% |
|
Frequency Response |
± 0.25dB |
|
Intermodulation Distortion (from 0 dB down to -40 dB) |
0.06% |
|
Crosstalk |
> 80dB |
|
Common Mode Rejection |
> 80dB typical |
|
Dimensions |
3.3" x 19" x 16.95" (8.9 cm x 48.3 cm x 43.1 cm) |
|
Net Weight |
29 lbs (13.2 kgs) |
|
Power Connector |
32A powerCON (on amp) - L6-30 plug (into |
YAMAHA SPX2000, multieffect processor
Technical spec:
|
Outline |
SPX2000 |
|
|
I/O |
Line inputs |
2 |
|
AD converter |
24bit; 64-time(@96kHz) / 128-time(@48kHz) over sampling |
|
|
Line outputs |
2 |
|
|
DA converter |
24bit; 64-time(@96kHz) / 128-time(@48kHz) over sampling |
|
|
Digital I/O |
1x AES/EBU (2-in/2-out) |
|
|
General specifications |
SPX2000 |
|
|
Internal processing |
32bit |
|
|
Sampling frequency rate |
Internal |
44.1kHz, 48kHz, 88.2kHz, 96kHz |
|
External |
44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%) |
|
|
Signal delay |
Less than 426 micro sec |
|
|
Total harmonic distortion |
Less than 0.05% (20Hz-40kHz) |
|
|
Frequency response |
0, +1, -3dB 20Hz-40kHz |
|
|
Dynamic range |
AD+DA: 106dB |
|
|
Hum & noise level |
Residual output noise |
-80dBu |
|
Crosstalk |
-80 dB |
|
|
Power requirements |
Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz |
|
|
Power consumption |
25W |
|
|
Dimensions |
W |
480mm; 18-7/8in |
|
H |
45mm; 1-3/4in (1U) |
|
|
D |
372.5mm; 14-5/8in |
|
|
Net weight |
4kg; 8.8lbs |
|
|
Accessories |
Owner’s manual, AC power cord |
|
Analog input and output characteristics
|
Terminal |
LEVEL SW |
Impedance |
For use with nominal |
Level |
Connector |
|
|
Nominal |
Max before clip |
|||||
|
INPUT[L,R] |
+4dBu |
10kohms |
600ohm Lines |
+4dBu |
+24dBu |
XLR-3-31 type |
|
-10dBu |
-10dBu |
+10dBu |
||||
|
OUTPUT[L,R] |
+4dBu |
75ohms |
600ohm Lines |
+4dBu |
+24dBu |
XLR-3-32 |
|
-10dBu |
-10dBu |
+10dBu |
||||
Digital input and output characteristics
|
Terminal |
Format |
Data length |
Level |
Connector |
|
AES/EBU (IN) |
AES/EBU |
24bit |
RS422 |
XLR-3-31 type (Balanced) |
|
AES/EBU (OUT) |
AES/EBU |
24bit |
RS422 |
XLR-3-32 type (Balanced) |
Control I/O characteristics
|
Terminal |
Format |
Level |
Connector |
|
|
TO HOST |
USB |
USB 1.1 |
0 to 3.3V |
B type USB Connector |
|
MIDI |
IN |
MIDI |
- |
DIN Connector 5P |
|
OUT/THRU |
MIDI |
- |
DIN Connector 5P |
|
|
WORD CLOCK |
IN |
- |
TTL/75ohms |
BNC Connector |
New-generation SPX with 24-bit 96-kHz Processing and Advanced REV-X Reverb Algorithms
For more than 15 years the letters "SPX" have been synonymous with professional multi-effect processors, and over that time you would almost always find an SPX90, SPX90II, SPX900, SPX1000 or SPX990 in any well-equipped studio or live-sound rack. The SPX2000, while inheriting the standard interface and popular programs from its predecessors, brings a new dimension to the SPX sound with advanced REV-X reverb algorithms and 24-bit, 96k-Hz audio processing. It also offers an innovative user interface with features such as five assignable LCD backlight colors, operation lock modes, and computer-based editing. The SPX2000 is a new-generation multi-effect processor that delivers performance that is a perfect match for Yamaha's DM series Digital Production Consoles, and is suitable for applications from live sound to production studios.
Hard case, patch cables included.
