Descriere

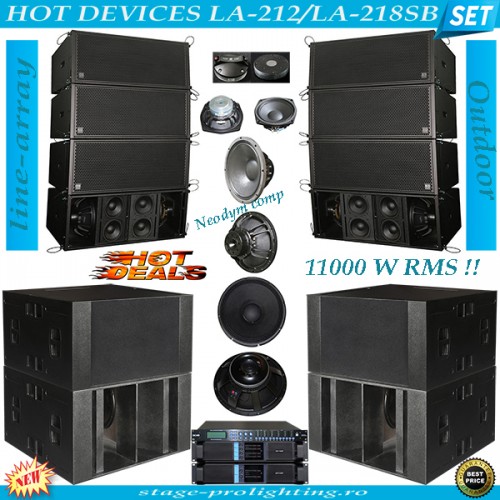

Hot Devices LA-212 - LA-218SB SET este un sistem complet (dar si upgradabil) pentru sonorizari Outdoor, concerte, (sau Sali mari - Indoor). Sistemul se compune din:
|
Nr Crt |
Produs |
Nr Buc |
|
1 |
LA-212 (Dual 12 Inch 1560W Line Array Speaker With Neodymium Drivers For Concert, Outdoor LIVE Events) (2 x 12” + 4 x 6,5” + 2 x 1,4” Neoodym) |
8 |
|
2 |
LA-218SB (2x18” Horn Loaded Subwoofer For Concert , Disco And Nightclub)
|
4 |
|
3 |
FP 10000Q, power amplifier, 4 channels, 10000W |
1 |
|
4 |
FP 14000Q, power amplifier, 2 channels, 14000W |
1 |
|
5 |
DC48 , Concert Sound Equipment / 4 input , 8 ouput Digital Signal Processor For Line Array Speaker System |
1 |
Sistemul se importa extra-comunitar in aproximativ 2 saptamani, avand o garantie oferita de 2 ani!! Plata sistemului se face integral anticipat, garantata cu Bilet la Ordin pana la livrarea integrala. In oferta producatorului nu sunt incluse si cablurile. Pentru configurare specifica va rugam sunati la magazin, va vom oferi cea mai buna cotatie, iar tehnicienii nostri va stau la dispozitie.
Prezentare si detalii tehnice:
Dual 12 Inch 1560W Line Array Speaker With Neodymium Drivers For Concert , Living Event
|
|
Product Details:
Top of Form Bottom of Form |
||||||||||
Detailed Product Description
|
Components: |
2*1.4"(neodymium) + 4*6.5" (neodymium)+ 2*12"(neodymium) |
Application: |
Concert|living Event|show |
|
Color: |
White|Black |
Connector: |
2 NL8MPR |
|
Feature: |
High Power|good Sound|light Weight |
Nominal Impedance: |
HF/MF/LF--8Ω/8Ω/16Ω |
|
Power Handling: |
1560W |
Product Name: |
Line Array Speaker |
Dual 12 Inch 1560W Birch Plywood Line Array Speaker With Neodymium Drivers For Touring Concert , Big Living Event
Quick Detail:
Birch Plywood line array speaker, neodymium drivers, 1560W, good sound quality , hardware for easy flying
Description:
LA-212 line array speaker is designed for applications with high requirements on SPL, sound quality, throw distance, and dispersion.This line array loudspeaker system can be used in touring concert, disco, nightclub, living show, stadium, church and other applications.
LA-212 is a 3-way line array speaker fixed with 2pcs P.Audio 1.4" HF neodymium compression drivers, 4pcs 6.5" MF neodymium drivers and 2pcs 12" LF neodymium drivers. Crossover mode-ACTIVE.The cabinet is made of high grade birch plywood to get one better sound,high durability and high safety.
Sometimes, in order to get better sound or make the cabinet look more beautiful and professional, we may make some little changes with drivers, cabinet dimensions, cabinet interior structure, horn dispersion, flying hardware, and handle position.
LA-218SB is one horn-loaded dual 18" subwoofer with power handling capacity 1200W@4ohm.
System configuration:
To set up LA-212 + LA-218SB line array speaker system, you can choose our 4 channel switching amplifier FP 10000Q(MST-4130) for LA-212 and 2 channel switching amplifier FP14000(MST-2350) for LA-218SB. And DC36(or DC48) signal processor,according to loudspeaker quantity.
White/Black/Gray finish available for options to meet the requirements for different venues.
To avoid damage and scratch during transport,according to customers’ requirement,we can put the items in flight cases.
Applications:
Touring, Concert, Living Show, Living Event, night club, disco, theatre,and fixed installation in other venues
Specifications:
|
|
LA-212 (Crossover Mode: ACTIVE) |
LA-218SB (Horn Loaded Design) |
|
Components: |
HF: 2*1.4"(Neodymium, voice coil Φ 2.5") |
|
|
Nominal Impedance: |
HF/MF/LF--8Ω/8Ω/16Ω |
4Ω |
|
RMS Power Handling: |
HF/MF/LF--2*80W/4*150W/2*400W |
1200W |
|
Frequency Response: |
50Hz-18KHz(-10dB) |
35-220Hz |
|
Crossover Point: |
---- |
---- |
|
Sensitivity(1W/1M): |
LF-105 dB, MF-110 dB, HF-116 dB |
104 dB |
|
Max. SPL: |
129 dB |
138 dB |
|
Dispersion(HxV): |
120°x8° |
---- |
|
Dimensions(HxWxD): |
368x966x556mm |
586x1156x918mm |
|
Packing Dimensions: |
|
820x1230x980mm |
|
Net Weight(Kg): |
49 |
100 |
|
Connector: |
2xNL8MPR |
2xNL4MP |
Competitive Advantage:
P.Audio Neodymium drivers, active crossover mode, high power handling capability, good sound quality, light weight, flying system easy for operation, beautiful mesh grille design
4ohm 1200W Concert Sound Equipment 2x18" Horn Loaded Subwoofer For Concert , Disco And Nightclub
|
|
Product Details:
Top of Form Bottom of Form |
||||||
Detailed Product Description
|
Components: |
2x18" |
Power Handling: |
1200W @ 4ohm |
|
Application: |
Living Event|Living Show|Concert |
Connector: |
2 NL4MP |
|
Feature: |
High Power, High Sensitivity, High SPL |
Product Name: |
Horn Loaded Dual 18" Subwoofer |
|
Packing: |
Flight Case, Carton |
Finish: |
Black/White/Purple/Gray/Brown |
4ohm 1200W Concert Sound Equipment 2x18" Horn Loaded Subwoofer For Concert , Disco And Nightclub
Quick Detail:
Plywood loudspeaker, high quality sound. high power handling capability, punch sound.
Description:
LA-218SB is a 2x18” horn loaded subwoofer made of 18mm thick plywood. It is our best dual 18" subwoofer for touring concert, big living event, nightclub and disco.
It features high sensitivity, high SPL, and more focused sound energy(further compressed by the horn). Slots at cabinet top and left side, wood strips at cabinet bottom and right side.You can stack the subwoofers vertically or horizontally, then, during music playing, the cabinets won't move easily.
For outdoors applications, LA-218SB subwoofer can be driven by our light weight switching amplifier FP 14000(MST-2350: 2x2400W @ 8ohm, 2x4800W @ 4ohm) or analogue amplifier TOP-1200(2x1200W @ 8ohm, 2x1850W @ 4ohm). But, if weight matters and in order to make system configuration easy, FP 14000 will be a better option than TOP-1200. Together with LA-210 + LA-118B line array speakers and DC36(or DC48) processor, it will be a complete and very good line array speaker system. FP 10000Q switching amplifiers for LA-210 + LA-118B, and FP 14000 for LA-218SB.
For indoors applications like nightclub and disco, direct reflex dual 18" subwoofer M-528B will be a better and economic option.
White/Black/Gray/Purple/Brown finish available for options to meet the requirements for different venues.
For easy transport,according to customer's requirement, loudspeaker rear board can be fixed with 4 castors with brake.
To avoid damage and scratch during transport,according to customers’ requirement,we can put the items in flight cases.
Applications:
nightclub, disco, church, concert, show and living event.
Specifications:
|
LA-218SB (Horn Loaded Design) |
|
|
Components: |
2x18" |
|
Nominal Impedance: |
4 ohm |
|
RMS Power Handling: |
1200 W |
|
Frequency Response: |
35-220Hz |
|
Sensitivity(1W/1M): |
104 dB |
|
Max. SPL: |
138 dB |
|
Dimensions(HxWxD): |
586x1156x918mm |
|
Flight Case Dimensions(HxWxD): |
820x1230x980mm |
|
Net Weight(Kg): |
102 |
|
Connector: |
2xNL4MP |
Concert Sound Equipment / 4 input , 8 ouput Digital Signal Processor For Line Array Speaker System
Detailed Product Description
|
Delay: |
990ms |
Type: |
Digital Processor |
|
Include: |
Software Disc |
Application: |
Concert/living Event/show/night Club|disco |
|
Feature: |
Easy Operation/high Quality/good Sound |
Product Name: |
Digital Signal Processor |
Concert Sound Equipment / 4 input , 8 ouput Digital Signal Processor For Line Array Speaker System
Quick Detail:
► 4 inputs and 8 outputs with free routing
► Intuitive handling at the front-panel and via PC software
► 8 equalizers p. input ch. (low-/high-shelf/parametric)
► 6 equalizers p. output ch. (low-/high-shelf/parametric)
► Symmetric inputs and outputs via XLR connectors
► Analog and digital (AES/EBU©) inputs
► High performance 32-bit DSP (digtial sound processor)
► 96 kHz AD/DA converters (Burr Brown©)
► Dynamic range >114 dB
► Security functions (lock front panel, etc.)
Description:
The DC48 is a digital 4-in / 8-out speaker management matrix system with an internal resolution of 32 bit and 96 kHz sampling rate. The DC48 is equipped with 4 analog inputs, 8 analog outputs and one remote-connector(USB). The use of modern and fast DSPs enables a latency (analog to analog) of 0,625 ms only. Each input channel includes 6 equalizers (with low-shelf, high-shelf and parametric function), and a delay function. The polarity of each input channel can be switched from + to -. Each output channel includes 6 equalizers (with low-shelf, high-shelf and parametric function) and a delay function. The HPF (high-pass filter) and the LPF (low-pass filter) is part of each output channel. Both offer three different operation modes: Linkwitz-Riley, Butterworth and Bessel (up to 48 dB/Oct). Each output channel includes a high performance limiter. The integrated flash memory chip offers space for 30 presets which can be loaded via the preset-menu, three default-buttons or the PC remote software.
The DSP can be adjusted and controlled with the free PC software. This software is a professional tool and enables a quick and effective programming of presets in real-time (online or offline). The program shows adjustments of any filter in a graphic simulation. All DSP-functions and adjustments can be loaded, edited and saved with this tool. The software is compatible with WINDOWS 98©, WINDOWS 2000©, WINDOWS XP©, WINDOWS VISTA© and WINDOWS 7© (all 32-bit and 64-bit versions).
DC48(or DC36) processor and FP 10000Q (MST-4130), FP 14000 (MST-2350) switching amplifiers can be used together with our LA-803 + LA-803S, LA-110 + LA-110S, LA-210(Q-1) + LA-18S(Q-Sub), or LA-1203 +B2(MX-218) line array speaker system.
Applications:
Concert, living event. night club, disco and other applications
Specifications:
Inputs: 4 (analog & digital AES/EBU©)
Outputs: 8 (analog)
Frequency crossovers: 6 dB/Oct., 12 dB/Oct., 18 dB/Oct., 24 dB/Oct., 48 dB/Oct. (slope),
Linkwitz-Riley, Butterworth und Bessel
Filters: 80 parametric EQs, 80 shelving EQs (high shelf or low shelf),
8 low cut filters, 8 high cut filters, 8 limiters / compressors with peak limiter
Delay: 4 master delays (0 ms - 990 ms)
8 channel delays (0 ms - 990 ms)
Converting & processing: Burr Brown© AD/DA converters, 96 kHz sampling rate (internal),32-Bit processor (DSP), 128-times over sampling
Input connectors: 4 x Neutrik© XLR female, electronically balanced
Input voltage: 1.55 V / + 6 dBu (nominal)
Max. input voltage: 24.5 V / + 30 dBu
Input impedance: 20 kohms
Common mode rejection: > 70 dB / 1 kHz
Output connectors: 8 x Neutrik© XLR male, electronically balanced
Output voltage: 1.55 V / + 6 dBu (nominal)
Max. output voltage: 8.7 V / + 21 dBu
Output impedance: > 100 ohms
Minimum load impedance: 600 ohms
Frequency response: 20 Hz - 20 kHz (-0.5 dB)
S/N ratio: 114 dB (typical)
Distortion: < 0.01%
Display: 4 x 20 character LCD display with LED background lighting
Mains voltage / power consumption: 90 - 250 V (AC) @ 50 - 60 Hz / 20 W
Latency: 0,625 ms
Maximum power consumption: 20 W
Dimensions unit (mm) W x H x D: 472 x 44 x 277,
Weight (net / gross): 3.5 kg / 5 kg
Competitive Advantage:
Easy operation, good sound quality, high stability, fixed with good electronic components,
FP 14000 2 x 2400W Concert Sound Equipment , 2 Channel High Stability Switching Amplifier
Detailed Product Description
|
8Ω Stereo Output: |
2x2400 W |
Frequency Response: |
20Hz - 25KHz |
|
Type: |
2 Channel |
Application: |
Living Event |
|
Feature: |
Light Weight |
Product Name: |
Switching Power Amplifier |
FP 14000 2 x 2400W Concert Sound Equipment , 2 Channel High Stability Switching Amplifier
Quick Detail:
1. Light weight, 2-channel switch mode amplifier, 2x2400W @ 8Ω.
2. Fixed with original NOVER(from UK) power capacitors and SK power transistors to achieve good sound quality. Actual copper heat sink with better structure ensures fast heat dissipation and performance stability.
3. Fixed with original NEUTRIK XLR and SPEAKON connectors.
4. Our MST-2350 is much better than other Chinese suppliers' FP 14000 or other models 2x2400W switch mode amplifiers at power capacitors, power transistors, heat sink, cable connection, transformer, details, artwork, and most important at sound quality and stability.
5. FREE spare parts are included in EACH packing carton.
Description:
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
In China,there are many suppliers for FP 14000 switching amplifier,and at the first sight,almost all the FP 14000 amplifiers look like the same.Are there some differences between FP 14000 amplifiers from different Chinese suppliers?Yes,the difference are: heat sink material and structure,power capacitors,power transistors,power supply part,other components,artwork,details,packing carton(with different protection level),sound quality,stability,LED indicators at front panel,and function switches at rear panel.......
We aim to make one 2 channel switching amplifier with power output 2x2400W @ 8ohm. If we make it,it must be better,much better than similar amplifiers from other Chinese suppliers. The same or even worse amplifiers are meaningless and unacceptable to all the customers.
To get good sound quality,we should have high quality components.And to ensure the stability,we must solve the problem of heat dissipation. Now,we have this amplifier FP 14000 (MST-2350). Our FP 14000 (MST-2350) is Class TD switching amplifier fixed with original NOVER (from UK) power capacitors, SK power transistors,original NEUTRIK connectors and other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands,open the chassis,you will find artwork and detail difference from other Chinese suppliers' FP 14000 amplifiers. FP 14000 (MST-2350) can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
FP 14000(MST-2350), FP 10000Q(MST-4130) switching amplifiers and DC36(or DC48) processor can be used together with LA-110, FP 14000(MST-2350) drives our best dual 18" subwoofer for living event and installation- B2(MX-218).
Order one FP 14000 amplifier sample from us for a try.Actual sample will prove more than our words.
Applications:
Concert, living event. night club, disco and other applications with high requirements on sound quality and stability
Specifications:
|
|
FP 14000(MST-2350) |
FP 10000Q(MST-4130) |
FP 6000Q(MST-4650) |
|
8Ω Stereo Output: |
2x2400 W |
4x1300 W |
4x650 W |
|
4Ω Stereo Output: |
2x4800 W |
4x2200 W |
4x1300 W |
|
2Ω Stereo Output: |
2x6500 W |
4x2500 W |
4x1600 W |
|
8Ω Bridge: |
8800 W |
2x4400 W |
2x2650 W |
|
4Ω Bridge: |
14000 W |
2x5000 W |
2x2800 W |
|
Frequency Response: |
20Hz-25KHz(±0.5dB) |
||
|
THD+N: |
0.1% |
||
|
S/N Ratio: |
110dB |
||
|
Damping Factor: |
500 |
||
|
Power Consumption: |
150W(static state,no signal input) |
120W (static state, no signal input) |
|
|
Power Consumption: |
4500W (with signal input, and all 2 channels fully loaded @ 8Ω) |
4500W (with signal input, and all 4 channels fully loaded @ 8Ω) |
2400W (with signal input, and all 4 channels fully loaded @ 8Ω) |
|
Power Efficiency: |
90% |
||
|
Input Impedance: |
20KΩ BALANCED, 10KΩ UNBALANCED |
||
|
Item Dimensions(mm): |
88x483x377 |
88x483x377 |
88x483x377 |
|
Packing Dimensions(mm): |
180x580x550 |
180x580x550 |
180x580x550 |
|
Net Weight(kgs): |
13 |
13 |
13 |
|
Gross Weight(kgs): |
15 |
15 |
15 |
Competitive Advantage:
good sound quality, high power output, high stability, fixed with imported capacitors and power transistors, a fast solution-FREE spare parts in EVERY packing carton in case some problems happen with the item.
