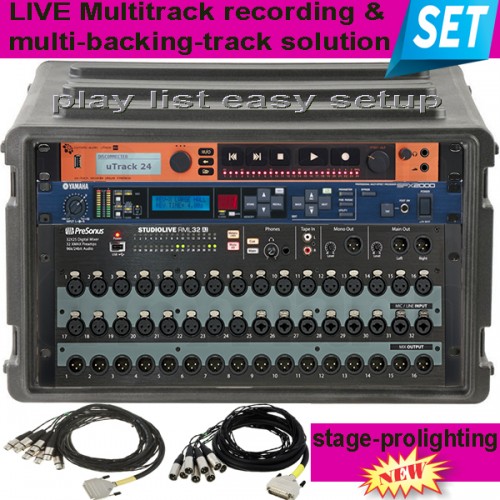

LIVE Multitrack record-playback solution

LIVE Multitrack record-playback solution se adreseaza orchestrelor si reprezinta o solutie cat se poate de eficienta de inregistrare/redare in sistem multitrack. Extrem de folositoare atat in studio, cat mai ales in aplicatiile LIVE, solutia multi-backing-track prezinta urmatoarele avantaje:

1. Trupele care folosesc backing-track-uri au posibilitatea de redare, mixare, procesare, simplificare, etc pe canale independente in real time (multitracking insemnand ca fiecare instrument, voce, etc isi are propriul canal) astfel incat sunetistul realizeaza mixajul propriu-zis, sau un eventual sound-check, deopotriva cu prestatia LIVE si pre-recording-ul back-ing.

2. Formatul wave 24 bits/48K (recomandat) asigura calitatea sunetului, iar mixul realizat are o claritate mult mai buna comparativ cu backing-track-urile stereo standard, care nici macar nu mai pot fi editate, sau remixate. Cu alte cuvinte, senzatia de "stick-uiala" este inlaturata, prestatia LIVE fiind primordiala, rezumand backing-track-urile la rolul lor, nu la o facatura grosolana.

3. Orchestra are posibilitatea sa inregistreze LIVE prestatia in sistem multitrack-ing cu pana la 24 de canale independente, care ulterior pot fi post-procesate/mixate si masterizate in studio.

4. O eventuala absenta a unui membru al orchestrei la un show, poate fi imediat suplinita de inginerul de sunet prin folosirea backing track-ului aferent, astfel incat show-ul poate fi realizat in orice conditii, chiar cu minimul de participanti.

5. Este solutia ideala pentru mini-band-uri, eliminand astfel aranjoarele standard si efectul "robotizant".

Sistemul dvs este gata pre-configurat pentru 8 ch recording/play-back multi-tracking, dar poate fi extins pana la 24 de canale achizitionand extra cablurile aferente. Poate fi adus in numai 5 zile, plata integral anticipat si se compune din:

Presonus StudioLive RML32AI

32-Channel digital rack mixer

Intuitive software/app "UC Surface" for real-time control via Mac, Windows or iPad

Compatible with Windows 8 for large touchscreen mixing

Network-capable - wireless or wired

USB port for optional Wi-Fi adapter (router required)

Ethernet port

Monitor mix via iPhone and iPod touch possible (with the free QMix-AI app)

32 XLR inputs with recallable XMAX microphone preamplifiers

Separately switchable 48 V phantom power on each input

Stereo AUX input (RCA pair L/R)

32 LEDs to display the input signal and phantom power

Dual Fat Channel processing (A/B, alternatively selectable) with phase switch, high-pass filter, fully-parametric 4-band EQ, compressor, limiter, noise gate with sidechain and key filter

50 Fat Channel presets for drums, bass, guitars, keyboards and vocals

100 User locations

15 Graphic EQs (31 band) for the first 12 line- and three main outputs

Controllable low-pass filter for the mono output

Programmable line delays for the last four XLR outputs (up to 300 ms)

4 Master-send effects: 2x Reverb, 2x Delay

8 Mute groups

8 Quick scene memory

99 Memory locations for complete scenes

8 XLR line outputs + two DB25 jacks mirrored on rear-panel

3 XLR main outputs (left, right, mono / centre) with analog trimpots

S/PDIF output (coaxial)

Headphone output with volume control and source selection button (Cue/Main)

Built-in 52/34 audio interface (FireWire 800)

Burr Brown Digital Converter

118 dB Dynamic range

24 Bit / 96 kHz

Pre-prepared for alternative, optional Dante and Thunderbolt cards

Robust steel housing

Design: 19"/ 4U

Dimensions: 483 x 267 x 178 mm

Weight: 10 kg

Included software licenses (may be connected via download): Capture (Mac, Windows) for live recording (with one mouse click) and virtual soundcheck; Studio One Artist DAW software (Mac, Windows)

System requirements for "UC Surface"

Apple  iPad: iPad Pro, iPad Air, iPad mini with Retina display, iPad 4, iPad mini, iPad 3 or iPad 2, iOS 7.03 or later

Mac: OS X 10.8.5 or later, Intel Core 2 Duo (Intel Core i3 or faster recommended), 4 GB RAM (8 GB or more recommended), wired or wireless network connection, internet connection

Windows 7 x64/x86 SP1, Windows 8 x64/x86, Windows 10 x64/x86, Intel Core 2 Duo (Intel Core i3 or faster recommended), 4 GB of RAM (8 GB or more recommended), wired or wireless network connection, internet connection

System Requirements for Capture and Studio One (Mac and Windows):

FireWire S800 (IEEE 1394b) or Thunderbolt port

Internal or external hard drive (7200 RPM strongly recommended)

Monitor with a resolution of 1280 x 800



Cymatic Audio uTrack24



Recorder, Player and USB Audio Interface

Recording / Playback of 24 tracks

24 Bit / 96 kHz with USB storage device

2 Devices can be synchronized for 48 tracks

24 x 24 USB audio interface (24 Bit / 96 kHz)

Internal mixer with Mute, Solo, Pan and volume per track

24 Balanced inputs and outputs (3 x D-Sub 25)

MIDI I/O and playback

Adjustable control room and headphone outputs

Clear level meters, large LCD display

Playlist editor

Expansion slot

BNC Word clock in / out

RJ-45 Network port for remote control

For iOS, Mac and PC

External power supply

Dimensions (W x H x D): 485 x 44 x 200 mm

Format: 19" / 1 U

Weight: 1.5 kg

Including: AC / DC power adapter, USB cable and quick start guide in English

System requirements (when used as interface):

Min. 512 mB RAM (1GB or more recommended)

One free USB 2.0 compatible port

PC: Windows XP (SP2), Windows Vista, Windows 7/8 (32/64-bit) - requires Internet connection for driver download

Mac: Class Compliant - no drivers needed - Compatible with OSX 10.8 and higher

iPad: iOS 7 or later with Apple Lightning or 30-pin Camera Connection kit (not included)



Cordial Analog Multi-Core

Sub-D 25-pin male to 8 x XLR male

Sub-D connector: Neutrik (Rean)

Compatible with standard analog Tascam etc.

Length: 3 m



Analog Multi-Core cables

Sub-D 25-pin male to 8 x XLR female

Sub-D connector: Neutrik (Rean)

Compatible to standard analog Tascam

Length: 3 m

Colour: Black



SKB R6U Roto Rack, 19" 6 U plastic rack, rack depth 44,70 cm, two recessed handles, 8x Recessed latches, heavy duty black plastic housing, external dimensions: 609 x 569 x 335 mmm, weight 8,35 Kg,



Yamaha SPX 2000



Digital Multi-Effects Processor

24bit / 96kHz converter 32bit internal

New REV-X reverb algorithms

Reworked SPX effects

97 presets, 99 user programs

Display with selectable colours e.g. Depending on the type of effect

Balanced XLR / jack in / out

AES / EBU

BNC-wordclock-IN connector

MIDI IN, OUT / THROUGH

USB TO HOST

Foot switch connection on the front side for tap tempo

Controllable via editor software

Size: 19"/ 1U
