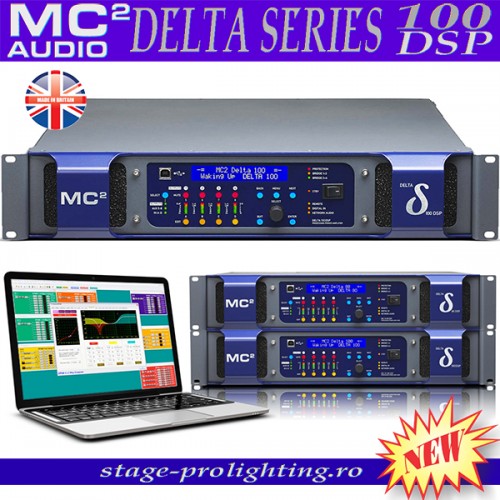

MC2 Audio Delta 100 DSP, power amplifier



MC2 Audio Delta 100 DSP este un amplificator cu 4 canale cu DSP (XTA) incorporat, fabricat in Marea Britanie, avand o putere impresionanta pe canal de:

8 ohms	1400W (in total 5600 W)
4 ohms	2700W (in total 10800W)
2.7 ohms	3700W (in total 14800W)
2 ohms	3500W (in total 14000W)

DSP-ul poate fi configurat independent pe fiecare canal, marind astfel flexibilitatea amplificatorului care astfel poate fi folosit practic in orice sistem.

Pentru informatii legate de pret, disponibilitate si termenul de livrare va rugam sunati la magazin. Produsul se aduce numai la comanda, plata integral anticipat si are o garantie de 3 ani!

Prezentare si detalii tehnice:

Combining new technology power amplification with the highest definition XTA DSP, the Delta Series offers performance and convenience at a whole new level.



Powerful processing features, such as FIR filtering and Dante networking, work alongside unique enhancements including 4 local + 4 aux DSP channels (also supplied to the network), meaning a single Delta DSP amplifier can control a stereo 4-way system with no external processing.

Configure and tune using a fast, powerful combination of AudioCore (XTA’s fast efficient control software platform) and DeltaDirect, the bespoke iPad app. Every aspect of a network of amplifiers can be controlled and monitored, wirelessly. USB, direct Ethernet and RS485 control options plus configurable GPIO offer unparalleled flexibility.

All MC² Audio products are covered by a 5 year warranty.

Specifications

Number of channels	4
Output Power: (per channel)
8 ohms	1400W
4 ohms	2700W
2.7 ohms	3700W
2 ohms	3500W
Output Power: (bridged)
8 ohms	5400W
4 ohms	7000W
THD%: (@1dB below max output)
@ 1kHz	< 0.08%
20Hz to 20kHz	< 0.1%
Gain / Sensitivity:
Gain	32dB
Sensitivity (for max power)	10.7dBu
Frequency Response:		20Hz to 20kHz (+ 0/- 0.5dB)
Power Consumption: (< 50W in standby)
Nominal @ 240v into 4 ohms		7.5A
Nominal @ 120v into 4 ohms		15.5A
Dimensions: (2U) (mm)
Amplifier		88(h) x 482(w) x 428(d)
Single Box (UK shipping)		230 x 580 x 560
Double Box (outside UK)		250 x 610 x 600
Weight:
Amplifier		10.9kg
Boxed (shipping weight)		12.4kg
