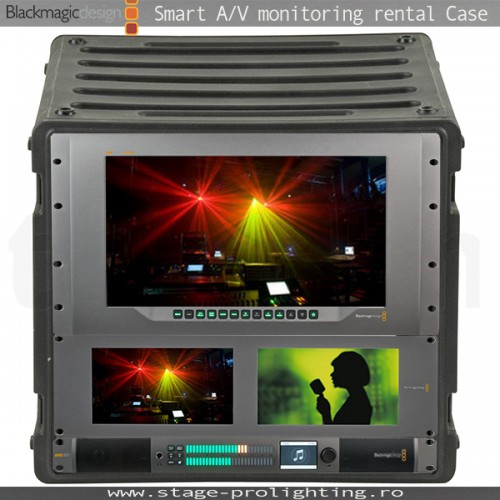

Sistem de monitorizare A/V, rental, Blackmagic design

Sistem de monitorizare A/V, rental, Blackmagic design permite atat monitorizarea video, cat si audio simultan si in sync. Format video suportat pana la 4 K inclusiv.

Pentru ca sistemul sa lucreze cu maximum de randament, recomandam folosirea oricarui swicher ATEM de la Blackmagic design, dar bineinteles pot fi folosite toate celelalte swich-uri prevazute cu SDI out. Un convertor HDMI-SDI (4K, sau 12G) e binevenit, mai ales daca se folosesc ATEM mini.

Blackmagic Design SmartScope Duo 4K 2; two 8-inch LCDs in 3U size for monitoring SDI / HD-SDI / 3G-SDI and 6G-SDI with integrated scopes for technical waveform monitoring; Choice between the displays for waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level; the two monitors work independently of one another and can display any combination of scopes or image displays; SDI video inputs: Switches automatically between SD, HD and 6G-SDI signals. Reclocked loop-through output; SDI video outputs: 1 x 10 bit looped through SD / HD and 6G-SDI, switchable; SDI audio inputs: 16 channels embedded in SD, HD and UHD; SDI audio outputs: 16 channels embedded in SD, HD and UHD; Multi-rate support; Standard Definition SDI, High Definition SDI and 3G-SDI; Tally: 9-pin SUB-D connector; 19 "rack compatible; dimensions (WxHxD): 482 x 133 x 32 mm; weight: 1.53 kg

Blackmagic Design SmartView 4K v2; rack mount Ultra HD broadcast monitor with multi rate 12G-SDI; for native display of up to 2160p60; extremely bright display with wide viewing angle; dvanced broadcast features like 3D LUT support, H/V delay, blue only, adjustable frame guides and more; compatible with all SD, HD and Ultra HD formats up to 2160p60; With both AC and DC power connections; Connections; SDI Video Input: 2x SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI (Reclocked video output); Optical Video Input: SFP Optical Fiber connector cage (SFP Module not included); SDI Video Output: Automatically switches to input selection; Multi Rate Support: Auto detection of 4K, 2K, HD or standard definition inputs; Updates and Configuration: via USB; Ethernet: Gigabit ethernet with loop through; Tally: 9-pin D connector; Display Element: 15.6" TFT Active Matrix LCD; Display Resolution: 3840 x 2160 pixels; Response: 25 ms; Contrast Ratio: 1000:1; Color Depth: 16.7 million colors; Power consumption: 24 W; Power supply: Built in IEC 90 - 240 V AC power supply, plus DC input jack for external power; IEC power cord or DC power supply not included; Abmessungen: 484 x 266 x 70 mm; Gewicht: 3,6 kg



Blackmagic Design Audio Monitor 12G; 1U audio and 4K video monitoring compact device; built-in 2.2 "LC display with 320 x 240; built-in loudspeakers with a dual subwoofer system and class D amplifier; built-in volume control; audio level display with 2x 27 LEDs (can optionally display VU, PPM or loudness); Connections: ; SDI video inputs: 1; SDI video outputs: 1 loop-through output; SDI rates: 270 Mbit / 1.5G / 3G / 6G / 12G; HDMI 2.0 video outputs: 1; Multirate support: SDI and HDMI are between standard definition, High definition and ultra high definition switchable; SDI video loop-through: 1 reclocked connection for 10 bit SD, HD, 3G-SDI, 6G-SDI and 12G-SDI; analog audio inputs: 2 XLR, 2 RCA HiFi; analog audio outputs: 1x 6.5 mm headphone socket; digital audio inputs: 1 XLR socket; built-in speakers: stereo speakers with 2-way crossover and separate stereo subwoofers; AES / EBU audio inputs: 2 channels of symmetrical 110 Ohms AES / EBU via XLR; SDI -Audio inputs: 16 channels embedded in SD, HD and Ultra HD 4K; SDI audio outputs: 16 embedded channels with audio loop-through; HDMI audio outputs: 8 channels embedded in SD, HD and 4K; Ethernet: 1 Gbit/s for product software updates and configuration; Computer interface: USB-C for product software updates and configuration; Audio sampling frequency: 96 kHz and 24 bit; Video sampling frequency: 4:2:2 and 4:4:4; Compatible operating systems: Mac 10.13 High Sierra, Mac 10.14 Mojave or higher / Windows 8.1 and 10; Power consumption: 55 W; Power supply: AC 110 - 240 V (IEC power cord not included); Dimensions (WxHxD): 482 x 44 (1U) x 245 mm; Weight: 2.6 kg

SKB R10U Roto Rack

9" Plastic Rack

·     Size: 10 U

·     With internal shock absorbers on all corners

·     Installation depth: 44.70 cm

·     8 Butterfly latches

·     2 Handles

·     Black hard plastic housing

·     External dimensions: 609 x 569 x 513 mm

·     Weight: 11.52 kg

BNC Video Patch Cable

·     Length: 0.5 m

·     Assembled HD-SDI (HDTV) SC-Vector PLUS 1.2L / 4.8 DZ video patch cable in professional quality

·     6G-SDI / 12G-SDI capable

·     With Neutrik BNC Reartwist connector and black grommets

·     Soft PUR sheath for high flexibility even in the cold

·     PUR jacket Ø: 7.10 mm

·     Inner conductor: 0.88 mm²

·     Cable colour: Black

HDMI Cable

·     1 m

·     HDMI 19-pin male/male

·     High Speed HDMI with Ethernet

·     HDMI A connector > HDMI A connector

·     HDCP compliant

·     Internet via HDMI (HEC)

·     Audio return channel (ARC)

·     3D playback with definition up to 1080p

·     Definition 4x higher than 1080p (max. 4096 x 2160 at 24 Hz)



BNC Video Patch Cable

·     Length: 10.0 m

·     Assembled HD-SDI (HDTV) SC-Vector PLUS 1.2L / 4.8 DZ video patch cable in professional quality

·     6G-SDI / 12G-SDI capable

·     With Neutrik BNC Reartwist connector and black grommets

·     Soft PUR sheath for high flexibility even in the cold

·     PUR jacket Ø: 7.10 mm

·     Inner conductor: 0.88 mm²

·     Cable colour: Black
