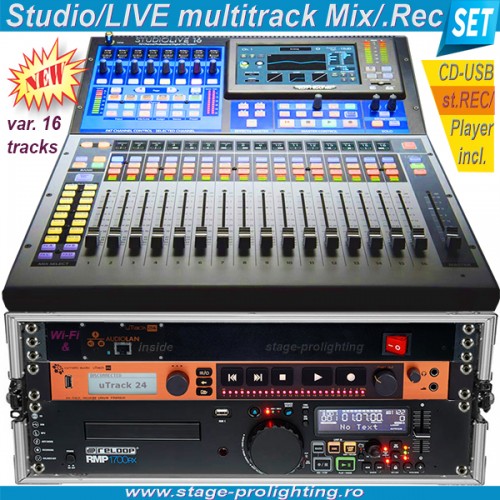

Studio/Live multitrack Mix/Rec Set se compune din:

Component	Nr Buc	Descriere de baza
Fun Generation Rack 4HE ECO Wood	1	Hard case 4 u
Cordial CFD 1,5 DMT	1	Cablu multicore
Cordial CFD 1,5 DFT	1	Cablu multicore
Wi-Fi	1	Wi-Fi adapter
Reloop RMP1700RX	1	Player/St Rec CD-USB
Cymatic Audio uTrack24	1	Multitrack recorder/Player
Cymatic Audio Audiolan Option Card	1	Audiolan card
Presonus StudioLive 16 Series III	1	Mixer digital cu 16 canale
The t.racks Power 8S	1	Patch power



Sistemul Mix/multitrack recorder/Player prezentat reprezinta una din solutiile (simplificate) de inregistrare in sistem multitrack, beneficiind totodata de toate avantajele oferite de prezenta unui mixer digital performant, atat pentru mixat, cat si pentru pre- si post- editare trackuri. Este un sistem multifunctional atat pentru prestatiile LIVE adaugand backing-track-uri in sistem multitrack, sau stereo, cat si in studio. Sistemul vine cu solutia (optima analogic) 8 track rec/play, avand astfel inca 8 canale disponibile pentru aplicatiile LIVE, dar poate fi extinsa la 16 tracks rec/play simultan prin adaugarea a inca unei perechi de cabluri multicore XLR-25 SubD, aceasta fiind solutia maxima (de studio) limitata doar de mixerul cu 16 canale, sau poate fi folosita varianta audio-lan. Software-ul se downloadeaza atat din pagina producatorului Presonus, cat si Cymatic. Intreg sistemul poate fi comandat si dupa tableta, recomandarea noastra fiind Apple Pro.

Detalii tehnice:

Fun Generation Rack 4HE ECO Wood

19" Economy Case

• 4 HE
• Double door version
• Spring locks
• 35 cm Working depth
• With grips
• 25/25 mm Aluminium edge
• Stepless rack rail
• Dimensions: 535 x 225 x 460 mm
• Includes screw set

Informatii aditionale

Formfactor	19"
Construction Type	Double-Door
Vertical Height Units	4 U
Usable Depth in mm	460 mm
Horizontal Height Units	0 U
with display stand	No
Rack rail at the back	No
Service flap	No
With Wheels	No
Trolley	No
Clasps	Snap lock
Material	4,4 mm Plywood
Colour	Grey



Cordial CFD 1,5 DMT

Analogue Multicore

• Length 1.5 m
• 25-Pin Sub-D male to 8 x XLR male
• Sub-D connector: Neutrik (Rean)
• Compatible with standard analogue Tascam, etc.

Informatii aditionale

Channels	8
Length	1,50 m
Connector 1	Sub-D 25-pin
Connector 2	XLR (male)
Balanced	Yes

Cordial CFD 1,5 DFT

Analogue Multi-Core

• 25-Pin Sub-D male to 8 x XLR female
• Sub-D connector: Neutrik (Rean)
• Compatible with standard analogue Tascam
• Length: 1.5 m

Informatii aditionale

Channels	8
Length	1,50 m
Connector 1	Sub-D 25-pin
Connector 2	XLR (female)
Balanced	Yes



Reloop RMP1700RX

Professional DJ CD & USB media player

• 19 "rack format
• Record & play MP3 / WAV files via two USB ports
• USB 2.0 ports for connecting hard disks or USB sticks
• Seamless loop and reloop function
• Pitch bend
• Frame search and recording volume via jog wheel
• Key Lock function
• Folder and title navigation
• Instant start by 1-bit technology
• Auto-cue and single / continue playback
• RCA input for recording from external sources
• Balanced and unbalanced outputs XLR, RCA
• Fader startup support
• Signal to noise ratio: 90 dB
• Dimensions: 482 x 270.5 x 88.8 mm
• Weight: 4.3 kg
• Including remote control

Informatii aditionale

Design	19"
mp3 Compatibility	Yes
Digital Output	Yes
Master Tempo	Yes
Anti Shock	No



Cymatic Audio uTrack24

Recorder, Player and USB Audio Interface

• Recording / Playback of 24 tracks
• 24 Bit / 96 kHz with USB storage device
• 4 Devices can be synchronised for 96 tracks
• 24 x 24 USB audio interface (44.1/48kHz ; 8x8 88.2/96kHz)
• Internal mixer with Mute, Solo, Pan and volume per track
• 24 Balanced inputs and outputs (3 x D-Sub 25)
• MIDI I/O and playback
• Adjustable control room and headphone outputs
• Clear level meters, large LCD display
• Playlist editor
• Expansion slot
• BNC Word clock in / out
• RJ-45 Network port for remote control
• For iOS, Mac and PC
• External power supply
• Dimensions (W x H x D): 485 x 44 x 200 mm
• Format: 19" / 1 U
• Weight: 1.5 kg
• Including: AC / DC power adapter, USB cable and quick start guide in English

System requirements (when used as interface):

• Min. 512 mB RAM (1GB or more recommended)
• One free USB 2.0 compatible port
• PC: Windows 7 / 8 / 8.1 / 10 (32/64-bit) - requires Internet connection for driver download
• Mac: Class Compliant - no drivers needed - Compatible with OSX 10.8 and higher
• iPad: iOS 7 or later with Apple Lightning or 30-pin Camera Connection kit (not included)

Informatii aditionale

Number Of Tracks	24
Simultaneous Recording: Amount Of Tracks	24
Effects	Yes
Storage Medium	USB
Phantom power	No
XLR Connectors	0
Jack Connectors	0
RCA Connectors	No
MIDI Interface	1x Out
USB connection	Yes
Digital Connections	USB
Miscellaneous Connectors	Wordclock
Headphone connection	Yes

Cymatic Audio Audiolan Option Card

24-Channel Expansion Card for uTrack24

• Supports AES67 / Ravenna audio networks
• Routing of 24 channels from network to the uTrack24
• Playback of 24 tracks of the uTrack24 at any network node
• RJ45 connector
• Remote controllable via uRemote Control App



Presonus StudioLive 16 Series III

Digital Mixer with Integrated 38 x 38 USB Recording Interface

• 55 x 55 AVB recording interface
• Integrated SD card recorder for 16-track recording and virtual soundcheck without computer
• 17 Touch-sensitive motor faders
• Freely programmable fader assignment
• 24 Programmable filter DCA groups of assignable channel types
• 16 High-resolution digital label fields with pan pot display
• 8 Microphone inputs (XLR) plus 8 Mic/Line inputs (combo XLR/jack, balanced)
• 2 Stereo AUX inputs (jack, balanced)
• Stereo RCA input (L/R)
• Talkback mic input (XLR)
• Integrated Bluetooth 4.1 receiver for audio playback from iPhone/Smartphone
• 16 Programmable XMAX Class A microphone preamp
• Individually switchable 48 V phantom power
• Double assignable Fat Channel with 7 colour touch screen
• 8 LCDs
• 8 Buttons
• 8 Encoder
• A/B switch for alternative sounds and comparisons
• User-programmable buttons
• Fat Channel button: Source selection, Gain, 48V, phase switch, pan pot, AUX sends, routing
• Fat Channel signal processing: High-pass filter
• Noise Gate/Expander with side chain function and key filter
• Limiter
• 4-Band parametric EQ
• Compressor with sidechain function and key filter
• Alternative vintage presets for EQ and compressor
• Library with professional Fat Channel presets for drums, bass, guitars, vocals, etc.
• 99 Fat Channel memory slots with Save/Load/Copy
• 4 Internal digital effects processors (2x delay, 2x reverb) including vintage presets
• Programmable delay for all inputs and outputs
• Parametric 6-band EQ for all outputs
• Integrated real-time analyser with signal generator
• 8 Programmable 31-band graphic EQs
• 100 Complete panel scenes can be saved, edited, played back
• 8 Programmable mute groups and 8 quick-scene memory
• 10 FLEXMIX outputs (6x XLR, 4x jack, balanced)
• Configurable as AUX, subgroup or matrix
• 4 Additional predefined subgroup outputs (TRS, balanced)
• Trimmable main stereo output (XLR L/R) plus trimmable main mono output (XLR)
• Monitor output (jack L/R, balanced)
• Stereo RCA output (L/R)
• Headphone output (stereo jack)
• AES/EBU stereo digital output (XLR)
• Ethernet control port
• Ethercon AVB audio network port
• Dimensions (W x D x H): 447 x 584 x 166 mm
• Weight: 10.6 kg
• Download licence for Studio One Artist (DAW) and Capture (recording software) included

Informatii aditionale

Max.number of input channels	16
Microphone Inputs	16
Analog Line Inputs	14
Analog Line Outputs	16
Analog in/ out with plug-in card expandable	No
Digital Outputs	AES, EBU
Digital in-/ outputs expandable	No
Word Clock	No
Motorfader	Yes
Computer Inteface	USB, Ethernet
MIDI-interface	No
