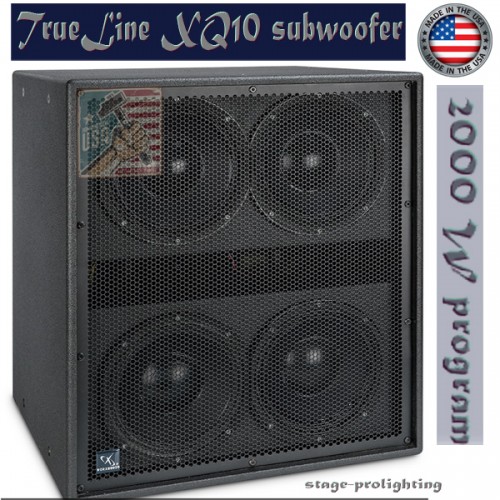

TrueLine XQ10 active subwoofer
Cod produs: TrueLine XQ10 active subwoofer
Disponibilitate: pre-comanda
VAT Incl.
Descriere
TrueLine XQ10, active subwoofer 2000W, 4 x 10".
Import SUA, 3 ani garantie!!! Produsul se aduce numai cu pre-comanda, pentru ultimele detalii privind pretul, modalitatea si termenul de livrare, va rugam sunati la magazin.
Detalii si specificatii Tehnice:
TrueLine XQ10
Extreme high SPL extended bass loudspeaker system
|
SYSTEM PEFORMANCE |
|
|
Frequency Response (-3dB)1 |
48 Hz – 500 Hz |
|
Frequency Range (-10dB) |
38 Hz – 500 Hz |
|
Recommended High-Pass |
40 Hz – with minimum 24 dB / octave (4th order) Butterworth slope |
|
Recommended Crossover Frequency |
190Hz with minimum 24 dB / octave (4th order) Butterworth slope |
|
Long Term Power Handling2 |
Low Frequency, 250W X 4 |
|
Nominal Impedance |
BiAmp LF: 4 ohms |
|
Max P SPL @ 1 Meter3 |
135 dB SPL |
|
TRANSDUCERS |
|
|
LF: 10” (254mm) x 3 |
2.5” (63.5) voice coil |
|
PHYSICAL |
|
|
Enclosure |
Baltic birch plywood, engineered plastics, and aluminum frame |
|
Finish |
Two-part spray catalyzed Polyurea coating on plywood |
|
Grill |
14-gauge (1.0 mm) perforated steel, powder-coated finish, black |
|
Environmental |
Indoor use only (Outdoor coatings available for weatherization) |
|
Connectors |
Two (2) parallel-wired NL4 Neutrik® Speakon® connectors |
|
Power Amp Connectors |
Neutrik® PowerCon (AC) XLR M/F (In/Out) |
|
Suspension/Mounting |
TrueAim® rigging; optional array frame accessories |
|
Dimensions |
24.5W x 28T x 22.5D |
|
Net Weight |
TBA |
|
Shipping Weight |
TBA |
|
Product Versions |
XQ10i-P, XQ10i-BA, XQ10T-P, XQ10 |
|
Digital Power Amp |
PDA-2000, 500W (x4) LF |
ENDNOTES
1Frequency response and range measured on-axis with recommended active EQ in an anechoic environment.
2Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ.
3Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression.
Description
The TrueLine XQ10-P is designed to satisfy the need for an extreme high SPL extended bass loudspeaker system. Components have been selected solely for their performance. The TrueLine XQ10-P utilizes 4 each (quad) direct radiating 10” 500W cone drivers in a tuned enclosure, which provides maximum output with minimal distortion and smooth extended low frequency response.
The tour-tested 15 ply Baltic Birch highly braced enclosure and 18mm thick baffle board construction provide unsurpassed rigidity and strength. The enclosure is built to truck pack dimensions for efficient transportation of multiple units, and should be arrayed to increase performance in large or outdoor venues. The TrueLine XQ10-P is designed to be used for lowmid frequency sections in multi-way speaker systems, or as a extended bass section in any sound system requiring extend low frequency response and the highest quality audio reproduction.
The TrueLine XQ10-P comes with a multi-layered Polyurea finish and is offered with black and white as color options. The TrueLine Q10-P delivers the transparent sonic quality and easy portability necessary for the demands of professional audio today
