EUROLITE LED TMH-X12 Moving-Head Spot

EUROLITE LED TMH-X12 Moving-Head Spot

0 opinii

0 opinii  |  Spune-ţi opinia
Producător: Eurolite
Cod produs: EUROLITE LED TMH-X12 Moving-Head Spot
Disponibilitate: disponibil in 5 zile
6.039,60 RON TVA inclus
Pret: 1.183,76€
VAT Incl.

Descriere

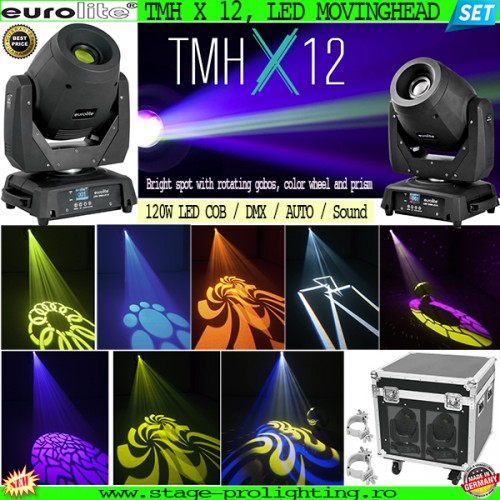

2x bright spot with 120 W LED, rotating gobos, color wheel and prism incl. flightcase (SET)

EUROLITE LED TMH-X12 Moving-Head Spot

Bright spot with 120 W LED, rotating gobos, color wheel and prism

  • Equipped with a white 120 W COB LED
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Internal programs+
  • Rotating 3-facet prism
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Motorized focus
  • Electronic dimmer
  • Automatic position correction
  • Lightbeam with 12° radiation angle
  • Control board with graphic LC display and four operating buttons for adjusting the DMX starting address, PAN/TILT reverse
  • P-Con terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • LED: 1 x COB (chip-on-board) 120 W CW
  • Color wheel 8 dichroic filters plus open
    Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for exchanging gobos without tools
  • Can be operated in 13; 15 CH mode
  • The device is cooled by cooling fan
  • Controlling by Stand-alone; DMX; Sound to light via Microphone
  • Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
  • Flicker-free projection
  • Effect: Multi beam effect; gobo effect

ROADINGER Flightcase 2x TMH-X12

Flightcase for 2x TMH-X12

  • Interior suitable for two TMH-X12 Moving-Heads
  • With additional storage compartment
  • Interior and cover (not removable) upholstered with foam
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners (chrome)
  • 4 stacking dishes for stacking the cases
  • 2 hinges
  • 2 high-quality butterfly locks
  • 2 case handles
  • Transport aid: With wheels


Weight:

48,90 kg

EUROLITE LED TMH-X12 Moving-Head Spot

Power supply:

100-240 V AC, 50/60 Hz

Power consumption:

170 W

IP classification:

IP20

Power connection:

Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)

Lamp type:

LED lamp

LED:

1 x COB (chip-on-board) 120 W CW

Max. TILT movement:

Exact positioning (16 bit resolution) 270° Auto position correction (feedback)

Max. PAN movement:

Exact positioning (16 bit resolution) 540° Auto position correction (feedback)

Flash rate:

0 - 18 Hz

Equipment:

Gobo wheel with rotating gobos; Prism 3-fold; Focus motor-driven

Color generation:

Color wheel 8 dichroic filters plus open

Gobos:

Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 23,5mm
Image diameter 18mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools

DMX channels:

13; 15

DMX input:

1 x 3-pin XLR (M) mounting version

DMX output:

1 x 3-pin XLR (F) mounting version

Cooling:

Cooling fan

Control:

Stand-alone; DMX; Sound to light via Microphone; Light J Software; EUROLITE LED PC-Control 512 software

Color rendering index (CRI) more than:

80 Ra

Beam angle:

12°

Beam angle (1/2 peak):

12°

Illuminance in Lux (lx):

CW 3m: 9502 lx, 6m: 2436 lx

Housing color:

Black

Dimensions:

Width: 33 cm
Depth: 32 cm
Height: 40 cm

Weight:

11,35 kg
