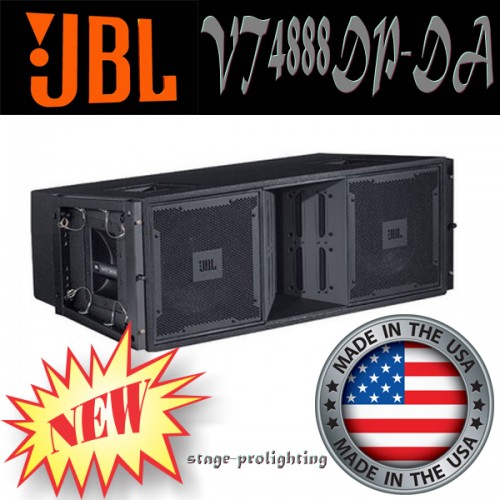

JBL Professional - VT4888DP-DA
Produs importat din SUA, 3 ani garantie!!! Pentru configurarea sistemului line-array dorita, cotatia de pret si detalii privind livrarea sunati va rugam la magazin.
Prezentare si detalii tehnice:
Powered 3-way line array element is designed to deliver high-quality reinforcement of music and speech in variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations. Lightweight 3-way line array element housing two 12-inch woofers, four 5.5-inch midrange radiators and two high frequency compression drivers, with 6000W peak output power and comprehensive digital signal processing. Designed in cooperation with Harman Professional development partners, the JBL DrivePack DP-3 features patented high efficiency Class-I power amplifier technology from Crown and onboard BSS Omnidrive HD digital signal processing that communicates readiness and operational status while monitoring fault detection of components and electronics. PlyMax® enclosure features foambacked low frequency grilles, dense protective foam inserts for midrange apertures, and fine steel mesh grille to protect high frequency apertures. Speaker cones are treated with weather-resistant compounds. Rugged DuraFlex™ exterior finish. VERTEC suspension systems are engineered for maximum support strength and flexibility. The VT4888DP-DA suspension hardware relies on quick-release pins and end-mounted metal tubes to couple adjacent enclosures together in rigid arrays. Enclosure ships with integral front and rear hinge bar set.
- JBL DrivePack DP-3 electronics package with robust high efficiency Class-I power
- Modular bay fitted with DPDA input module
- Worldwide AC line voltages automatically selected for 50 or 60Hz
- Advanced technology components
- Proprietary waveguides couple to create precision HF vertical slot aperture
- Radiation Boundary Integrator
- JBL PlyMax engineered wood materials provides rigid, yet lightweight enclosure
- Rugged DuraFlex exterior finish
- Weatherized loudspeaker cones
- Patented integrated SAFE suspension system with premium heat-treated alloys
- Controls : Via Harman HiQnet System Architect software
- Depth : 673 mm
- Depth : 26.50 in
- Frequency Range : 48Hz to 18kHz (-10dB)
- Height : 378 mm
- Height : 14.88 in
- Signal Processing : BSS OmniDrive HD processing provides 3-way precision bandpass filters limiting, pre-equalization filters and automatic self-test functions
- Width : 1000 mm
- Width : 39.37 in
- Shipping Weight : 74 kg
- Shipping Weight : 163.14 lbs
- Power Handling : 3000 Watt
- Grille : Black perforated steel and foam backed
- Vertical Coverage Angle : Varies with array size and configuration (-6 dB)
- System Management : LevelMax multi-state limiters provides electrical, mechanical and thermal protection
- Maximum SPL (Sound Pressure Level) : 140 dB
- Peak Power : 6000 Watt
- Product Weight : 68 kg
- Product Weight : 149.91 lbs
- Horizontal Symmetry : Yes
- Vertical Symmetry : Yes
- Coverage Horizontal : 90 degrees
- Coverage Horizontal : 90
- Warranty (Length/Type) : 5 Years
- Construction : Black perforated steel, foam backed (Grille)
- Minimum Frequency Response (Bandwidth) : 60 Hz
- Minimum Frequency Response (Bandwidth) : 0.06 kHz
- Maximum Frequency Response (Bandwidth) : 16000 Hz
- Maximum Frequency Response (Bandwidth) : 16 kHz
- Current Draw : 3 Amps
- Box Construction : Wedge frustum 5° side angle enclosure, PlyMax engineered composite structure, DuraFlex finish and 6 handles
- Signal Loop-through : M-XLR (analog pass-through) and M-XLR (buffered AES)
- Peak DP-3 Internal Amplification Output : 6000 W (At nominal load)
- Continuous DP-3 Internal Amplification Output : 3000 W (At nominal load)
- AC Voltage (Minimum) : 120 Volts
- AC Voltage (Maximum) : 240 Volts
