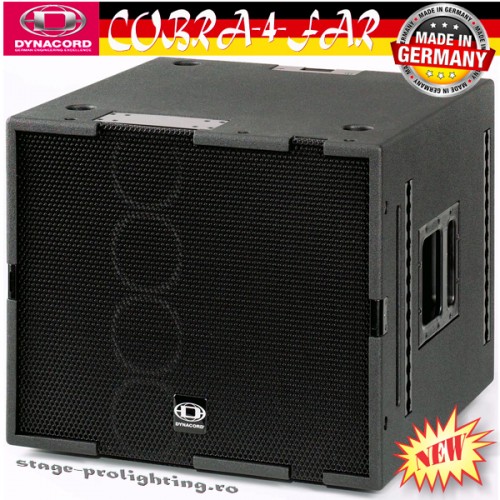

Dynacord COBRA-4-FAR

DYNACORD´s COBRA-4-FAR este cel mai recent top pentru sistemele COBRA, avand o putere de 800W RMS, respectiv 1600 W in program si o dispersie a sunetului pana la 80m, fiind o incinta activa pe trei cai la un maxim SPL de 131dB.

Produsul se importa din Germania numai cu pre-comanda. Pentru cotatia de pret a zilei si detalii de livrare, sunati va rugam la magazin.

Detalii tehnice:

DYNACORD´s COBRA-4-FAR is an active 3-Way cabinet for use as a farfield cabinet in compact line arrays and other demanding applications, where wide horizontal coverage, extremely low distortion and a low sensitivity against acoustic feedback are mandatory.

Depending on the application, the COBRA-4-FAR cabinet can be used up to 80m throw distance. For the high frequencies of the COBRA-4-FAR, three Electro- Voice DH2T titanium diaphragm drivers are connected to a low-resonance waveguide that creates a coherent isophasic wavefront with a precisely defined vertical dispersion angle of 5° at 10kHz. Stacking of COBRA-4-FAR cabinets automatically increases the height of the isophasic wavefront due to the mechanical design of the low-resonance waveguide. The mid-range of the COBRA-4-FAR uses selected DYNACORD C8 cone transducers in a line array configuration. The C8 transducers show significantly lower distortion than typical horn/compression driver combinations.

Therefore an extremely natural sound quality over large distances can be achieved. The DYNACORD COBRA-4-FAR uses a vented direct-radiator design equipped with an Electro-Voice EVX155 for the low frequencies. The cabinet is equipped with an electronic circuit called VOICE COIL TRACKING PROTECTION. This circuit senses the terminal voltage of the transducers and simulates the thermal behaviour of the transducer voice coils. In case of potential thermal overload the power applied to the speakers is reduced to a safe level. Power amps up to 1200W/8Ohms can be used in order to have maximum dynamic range without the danger of thermal overload in non-controlled situations. The VOICE COIL TRACKING PROTECTION exhibits “soft” switching characteristics, so no annoying clicks or pops are audible. The circuitry automatically resets after the voice coil temperatures have reached a safe value.

Cabinet

MID - HIGH Cabinet

Configuration

Compact line array / active 3-way

Nominal impedance: LOW - MID - HIGH

8 Ohms - 8 Ohms - 8 Ohms

Rated power RMS: LOW - MID - HIGH

400 W - 200 W - 200 W

Program power: LOW - MID - HIGH

800 W - 400 W - 400 W

SPL 2,83 V / 1m 1 W / 8 Ohm

100 dB

Max. SPL 1m (calculated)

131 dB

Frequency response ( -10dB )

90Hz - 17kHz

measured with DSP 244 preset

COB4TOPFAR200203

Coverage angle 1 kHz (-6dB)

H 120° x V 30°

Coverage angle 10kHz (-6dB)

H 90° x V 5°

Active crossover frequency

124Hz - 700Hz - 4kHz

Voice coil tracking protection

LOW - MID - HIGH

Components HIGH

DH 2T Line array

Order No.

3x 355 391

Components MID

C8 Line array

Order No.

4x 361 376

Components LOW

EVX155

Order No.

359 561

Connector wiring HIGH

8-pole 4+/4-

Connector wiring MID

8-pole 3+/3-

Connector wiring LOW

8-pole 2+/2-

Connector model

Speakon 2x NL8 MPR

Dimensions (WxHxD) mm

600 x 495 x 717

Shipping weight

67 kg

Net weight

63.5 kg

Enclosure material

Birch plywood 18mm

Finish

Black polyurethane

Grille

Powder coated steel

Handles

2

Ancra Tracks

4

Webbing strap point

2

Front cover

1

Castors

4

Warranty

36 Months
