Meyer Sound M1D - M1D-sub, active System PA SET

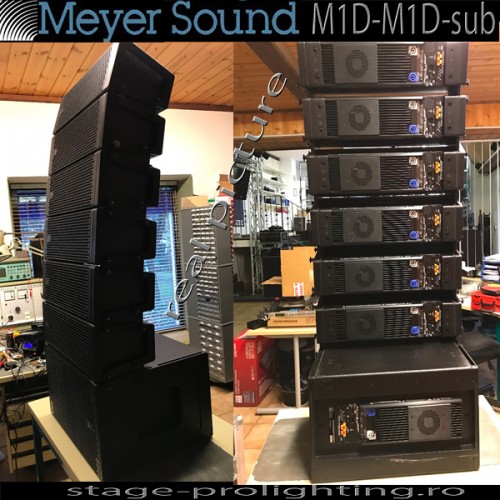

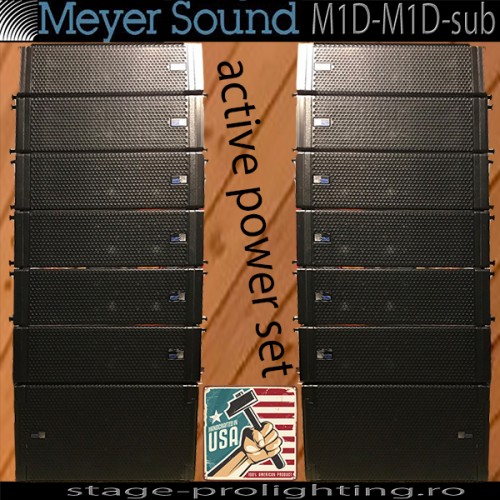

Meyer Sound M1D - M1D-sub, active System PA SET se compune din 12 top-uri active Meyer Sound M1D (module line-array) si 2 subwoofere active Meyer Sound M1D-sub (line-array). Sistemul integral cu poze reale este importat din Austria, este in stare foarte buna fiind recent verificat si revizuit componenta cu componenta, estetic arata 8 din 10, si poate fi adus in numai 5 zile cu plata integral anticipat. Sistemului i se ofera o garantie de 3 luni. Plata dvs este garantata cu Bilet la Ordin. Sistemul este prevazut cu toate componentele necesare (cabluri, sisteme de prindere, etc) pentru ca produsul sa fie considerat "la cheie". Calitatea produselor Meyer Sound, fabricat in USA este cunoscuta in toata lumea. Acest sistem are un sunet cald si placut, puternic, prezentand avantajul instalarii rapide, usor de transportat, perfect pentru orice sala de evenimente, trupa, Dj, etc. Pretul de nou al acestui sistem este de 3 ori mai mare. Produs recomandat de stage-prolighting.ro

Detalii tehnice:

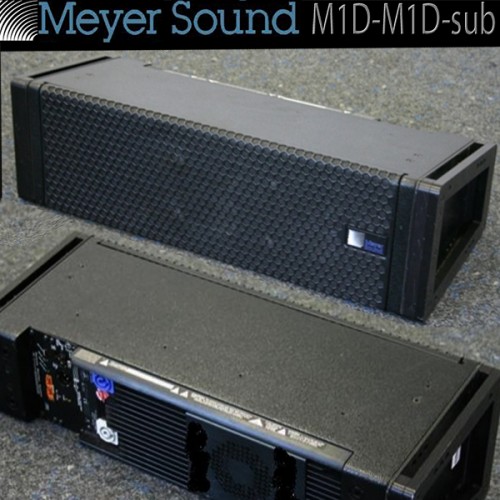

Meyer Sound M1D ultracompact curvilinear array loudspeaker

The Meyer Sound M1D ultracompact curvilinear array loudspeaker brings the singular advantages of self-powered line arrays to sound reinforcement applications in small and mid-sized venues. The exceptionally compact enclosure enables sound designers to achieve high output, precise pattern control with very low distortion from a lightweight and unobtrusive system. The M1D provides a substantial peak SPL of 125 dB at 1 meter with an operating frequency range of 60 Hz to 18 kHz and is designed specifically for implementing vertical curvilinear arrays of up to 16 cabinets having 0- to 8-degree splay between adjacent units. This design affords the flexibility to tailor vertical coverage by varying the number and splay of cabinets in the array while maintaining a consistent 100° horizontal coverage.

The M1D loudspeaker system comprises two 5-inch cone drivers and three 0.75-inch high-frequency metal dome tweeters with neodymium magnets. To assure the smoothest response in the critical midrange, the M1D incorporates a complex crossover design similar to that pioneered in Meyer Sound’s UPM loudspeakers. At the lowest frequencies, both 5-inch drivers combine to reproduce powerful, coherent bass. In the mid frequencies, however, the crossover feeds the signal to only one driver; this technique eliminates interference between the two drivers (that would otherwise occur at shorter wavelengths) in order to maintain optimal polar and frequency response characteristics. The three vertically aligned dome drivers act as a small line array, focusing the sound into a tight vertical coverage pattern while the constant-directivity horn maintains broad horizontal coverage.

The bi-amplified M1D incorporates a complementary MOSFET power amplifier module with 500 watts total burst capability, together with active crossover and optimized frequency and phase response correction circuitry. An Intelligent AC power supply selects the correct operating voltage in the range of 90 to 264 V AC at 50 or 60 Hz, allowing international use without manually setting voltage switches. The Intelligent AC supply also performs protective functions to compensate for hostile conditions on the AC mains. Integral peak and rms limiters protect the loudspeaker components from over-excursion and over-heating.

The M1D’s vented, trapezoidal cabinet is constructed from multiply hardwood and has a textured hard shell finish. The M1D incorporates QuickFly rigging as standard, and utilizes connecting links that are secured to the steel and aluminum rigging end frames by quick release pins. An ingenious arrangement of rigging holes allows quick and easy adjustment of cabinet splay for maximum freedom in customizing vertical coverage. The optional QuickFly MG-1D multipurpose grid allows either flying or ground stacking various combinations of M1D and M1D-Sub. Up to 16 M1Ds (or the equivalent weight of M1D and M1D-Sub) with a 7:1 safety factor may be flown, or up to eight M1Ds or four M1D-Subs may be ground stacked. For flying only, the simpler optional MTG-1D will support up to 16 M1Ds (or the equivalent weight of M1D and M1D-Sub) with a 7:1 safety factor.

M1D comes equipped with Meyer Sound’s RMS remote monitoring system as standard. RMS allows the full range of operating parameters to be monitored over a network using a Windows computer.

M1D-Sub

Features and Benefits of the Meyer Sound M1D-Sub

• Extremely compact and lightweight; forms virtually “invisible” PAs
• High power-to-size ratio for maximum installation flexibility
• Exceptional fidelity and peak capability assure clean, high-impact lows
• QuickFly rigging system simplifies integration in flown or ground-stacked arrays

The Meyer M1D-Sub ultra-compact subwoofer complements the M1D ultra-compact curvilinear array loudspeaker by extending bandwidth with its operating frequency range of 32 Hz to 180 Hz. Because it produces a prodigious peak SPL of 130 dB at 1 meter from a compact cabinet, the M1D-Sub allows system designers to minimize array size while maximizing system response.

The Meyer Sound M1D Sub contains two robust 10-inch cone drivers, each featuring a 2-inch voice coil and a lightweight neodymium magnet structure. Power rating per driver is 400 AES watts*. A fully integrated and self-powered system, the M1D-Sub also incorporates a two-channel class AB/bridged complementary MOSFET amplifier with 450 watts total burst capability. An Intelligent AC power supply selects the correct operating voltage in the range of 90 to 264 V AC at 50 or 60 Hz, allowing international use without manually setting voltage switches. The Intelligent AC supply also performs protective functions to compensate for hostile conditions on the AC mains. These functions protect both the loudspeaker and electronics from erratic AC conditions and increase the lifespan of the loudspeaker. An ultra-low-noise fan is fitted, but cooling is primarily provided by a massive external extruded aluminum heat sink.

M1D-Sub features Meyer Sound's QuickFly rigging system with rugged, reliable and deceptively simple components. All load stresses are transmitted through the rigging frames and associated hardware, not through the wooden cabinets. The optional QuickFly MG-1D multipurpose grid allows either flying or ground stacking various combinations of M1D and M1D-Sub. Up to 16 M1Ds (or the equivalent weight of M1D and M1D-Sub) with a 7:1 safety factor may be flown, or up to 8 M1Ds or 4 M1D-Subs may be ground stacked. For flying only, the simpler optional MTG-1D will support up to 16 M1Ds (or the equivalent weight of M1D and M1D-Sub) with a 7:1 safety factor.

The M1D-Sub includes Meyer Sound's RMS monitoring system as standard. RMS allows the full range of operating parameters to be monitored in real time, remotely over a network using a Windows computer.
