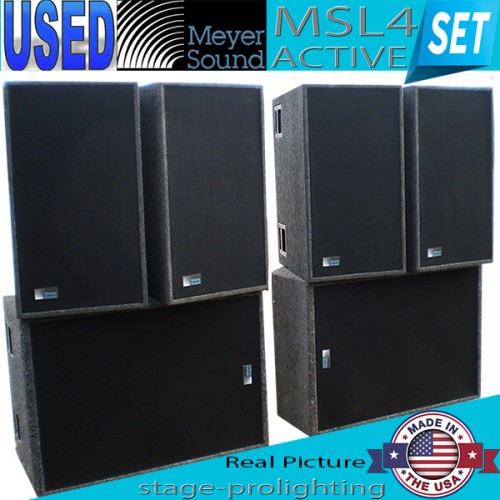

Used Meyer Sound MSL4 Active SET

Sistrem complet Meyer Sound compus din 4 topuri active MSL4 si 2 subwoofere 650-P, in stare ireprosabila, avand o uzura estimata sub 20%. Din punct de vedere tehnic functioneaza perfect, iar estetic arata 8 din 10 fiind foarte bine si atent ingrijit de proprietarul francez. Pretul exprimat este pentru intreg setul si reprezinta sub 40% din valoarea de nou. Oferta este limitata la un singur set, astfel incat primul venit va fi primul servit. Produsele se aduc numai cu pre-comanda, plata integral anticipat garantata cu Bilet la Ordin si desi sunt second-hand se ofera o garantie de 6 luni. Absolut competitiv, acest sistem spulbera o audienta de pana la 600 de persoane, avand o forta redutabila de 10000 W @ 140dB distribuiti foarte precis intre top-uri si sub-uri cu o calitate fara compromis in banda de frecvente 28Hz-18000Hz. Este fabricat in SUA de redutabila firma Meyer Sound. Dupa prima prestatie LIVE pe acest sistem multi isi vor schimba definitiv conceptia despre ce si cum trebuie sa sune un adevarat sistem PA. Sisteme de acest tip au fost testate de noi in Germania, iar impresia pe care ne-au lasat-o a fost, rezumativ: exceptional. Pana la 35-40% din puterea lui sistemul se comporta normal. Abia dupa fortare simti diferenta. Deja la 70% ai senzatia de  „fara limite”: distorsiuni minime, claritate si nu deranjeaza nici la 1m, nici la 40m, SPL maxim incepand sa-si faca prezenta. Spre limitele maxime efectiv te scoate prin pereti, iar joasele sunt calde, nederanjante, un sunet pufos, tare si cristalin in zona medii-inalte gratie driverelor exceptionale de 2” cu 4” diafragma si a coaxialelor matriceale de 12”.

Système complet longue portée Meyer Sound composé de

4 enceintes amplifiées MSL4 et 2 subwoofer amplifiés 650-P

Fabriqué aux USA

MSL4 Specifications

Acoustical (each loudspeaker)

Operating Frequency Range (1) ... ±4 dB from 65 Hz to 18 kHz   ... -6 dB at 60 Hz and 20 kHz Phase Response (1) ... ±30° from 450 Hz to 10 kHz Maximum SPL (1) ... 140 dB @ 1 meter Dynamic Range ... > 110 dB

Coverage

... 40° Horizontal x 35° vertical

Crossover

... 800 Hz

Transducers

Low Frequency ... 12" Cone driver High Frequency ... 2" Throat, 4" diaphragm compression driver

Audio Input

Type ... 10 k ohm impedance, electronically balanced Connector ... Female XLR input and male XLR loop output or VEAM Nominal Input Level ... +4 dBu

Amplifiers

Type ... Complementary power MOSFET output stages (audio class AB/H) Burst Capability (2) ... 1240 Watts (620 watts/channel) THD, IM, TIM ... < .02 %

AC Power

Connector ... 250V NEMA L6-20 (Twistlock) inlet, IEC 309 male inlet or VEAM(3) Automatic Voltage Selection ... 85 - 134 VAC; 165 - 264 VAC; 50/60 Hz (4) Operational Voltage Range ... Turn on: 85 VAC; Turn off: 134 VAC; 50/60 Hz   ... Turn on: 165 VAC; Turn off: 264 VAC; 50/60 Hz Max.Continuous RMS Current (> 10 sec) ... at 115 V: 8 A rms at 230 V: 4 A rms at 100 V: 10 A rms Burst RMS Current (< 1 sec) ... at 115 V: 15 A rms at 230 V: 8 A rms at 100 V: 18 A rms Max Peak Current During Burst ... at 115 V: 22 A pk at 230 V: 11 A pk at 100 V: 25 A pk Inrush current ... < 12 A at 115 V

Physical

Dimensions ... 21.26" w x 36.00" h x 30.00" d (540 mm x 914 mm x 762 mm) Weight ... 180 lbs (81.67 kg); Shipping: 215 lbs (97.52 kg) Enclosure ... Multi-ply hardwood Finish ... Black textured Protective Grille ... Hex perforated metal screen, foam covering Rigging ... Aircraft pan fittings, three on both top and bottom. Working load for each fitting is 600 lbs, which is 1/5 the cabinet breaking strength (with straight tensile pull).

Notes

1. Subject to half-space loading, measured with one-third octave frequency resolution in fixed ISO bands. 2. Nominal 8 ohm resistive load, pink noise, 100 V peak. 3. Other connectors available. For European applications, the IEC 309 (16A) panel is used. 4. The unit is rated at 88-125 V and 182-235 V, 50/60 Hz, to satisfy EC standards for -10% to 6% AC line voltage.



650-P SPECIFICATIONS



Meyer Sound Laboratories, Inc.

2832 San Pablo Avenue

Berkeley, CA 94702

tel: 510.486.1166

fax: 510.486.8356

e-mail: techsupport@meyersound.com

http: www.meyersound.com

Frequency Response

1

Phase Response

1

Maximum SPL

1

Dynamic Range (-6 dB points)

Low Frequency

TypeConnector

Nominal input level

TypeBurst capability

2

THD, IM, TIM

Connector

Automatic voltage selection

Operational voltage range

Max.Continuous RMS Current (

>10 sec)

Burst RMS Current (<1 sec)

Max Peak Current During Burst

Soft-Current

Turn-on

Dimensions

Weight

Enclosure

FinishProtective Grill

Acoustical

(each loudspeaker)

Coverage

Transducers

Audio Input

Amplifiers

AC PowerPhysical

±4 dB from 28 Hz to 100 Hz

±30° from 45 Hz to 145 Hz

136 dB @1 meter

>110 dB

360°H ; 180°V

18" diameter MS-18 cone (2)

10kΩ impedance, electronically balanced

XLR (A-3) male and female

+4 dBu

Complementary power MOSFET

output stages (audio class AB/H)

1240 watts (620 watts/channel)

<.02 %

250V NEMA L6-20P

(twistlock) inlet or I

EC 309 male inlet

3

95-125

V

A

C and 208-235

V

A

C; 50/60 Hz

4

T

urn on: 85

V

A

C;

T

urn off: 134

V

A

C; 50/60 Hz

T

urn on: 165

V

A

C;

Turn off: 264

VA

C; 50/60 Hz

@115

V

: 8A @230V

: 4A @100V

: 10A

@115

V

: 15A @230V

: 8A @100V

: 18A

@115

V: 22Apk @230V

: 11Apk @100V

: 25Apk

Inrush current

<

12A@115V

30"

W x 45" H x 22 1⁄2" D

221 lbs (100 kg) / shipping: 250 lbs (113 kg)

Multi-ply hardwood

Black textured

Perforated metal grill, charcoal-grey foam

1
