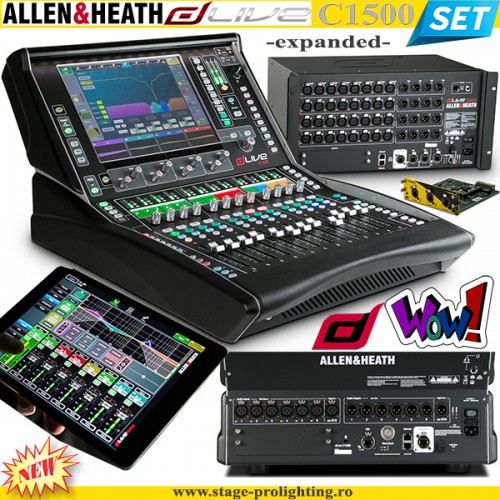

ALLEN & HEATH dLIVE C1500 SET este un pachet promotional care cuprinde

Component	Nr buc	Descriere de baza
ALLEN & HEATH dLIVE C1500	1	Mixer digital (surface)
ALLEN & HEATH dLIVE CDM32	1	MixRack with I/O control and audio networking
WAVES V3(M-DL-WAVES3)	1	The Waves V3 Audio Networking Card

Fiind proiectat pentru touring, sau activitati rental in sonorizarile care presupun si prestatia LIVE, acest sistem de mixaj/multitrack recorder complet digital beneficiaza de toate avantajele tehnologice ale momentului in materie de exploatare prin network, iar interfata V3 va va facilita integrarea Waves, beneficiind astfel de toate plug-in-urile aferente, precum si de inregistrarea instant. Pentru informatii legate de pret, sau termen de livrare, va rugam sunati la magazin. Produsele se aduc numai cu pre-comanda si au o garantie oferita de producatorul englez de 3 ani.

Prezentare produse:

dLive CDM32

The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

There are different sizes of dLive MixRack available. All feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.

 Features

• 32 mic/line inputs, 16 line outputs
• XCVI 160×64 FPGA core
  • 96kHz sample rate
  • Variable bit-depth for ultimate precision and noise performance
  • Virtually infinite mix headroom thanks to 96bit accumulator
  • Class leading, ultra-low latency at 0.7ms
• 128 Input Channels with full processing
• 64 Mix Outputs with full processing
• Configurable 64 bus architecture (group, FX, aux, matrix, mains)
  • LR, LCR and up to 5.1 mains mode
  • Multiple PFLs
• 16 RackExtra FX with dedicated stereo returns
• 24 DCAs
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones

• Built-in signal generator and RTA
• New preamp design for extra transparency
• Unique Active PAD circuit for consistent performance with any source
• Connection hub
  • gigaACE gigabit link to Surface
  • 2x DX links for I/O expansion
  • I/O Port – 128 ch 96 kHz
  • Dedicated ME-1 48kHz port
  • 2x Network ports
  • Wordclock BNC I/O
• Add up to 22 DX I/O expanders via DX Hub modules or DX Link cards
• Flush front panel with ultra quiet fan
• Reversible rack ears design

 C1500

The C1500 is the first rack-mountable control Surface for the dLive MixRack. Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

Harmony User Interface

Where many digital consoles are still trying to recreate the experience of using an analogue mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. C1500’s 12” capacitive touchscreen feels instantly familiar, responding to every pinch, swipe, drag and drop exactly how you’d expect it to. Bespoke ‘widget’ areas can also be set up on the screens to keep track of scenes, meters, FX and other custom controls. The screen is complemented by a set of rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen. The high-grip rotary knobs offer precision control, and feature RGB illumination, with colours mapped to functions for instant visual orientation.



Technical Specification (base)

• 12 faders
• Fully assignable layout – 72 fader strips
• Harmony UI integrates screen and wrap-around controls
  • 12” capacitive touchscreen
  • Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view
  • Configurable widget areas for Scenes, meters, FX and more
• 19 assignable SoftKeys
• Engineer’s Wedge and IEM fader strips
• Comprehensive multipoint metering

• Daylight visibility
• USB stereo recording and playback
• 6 XLR mic/line in, 6 XLR line out
• 1 digital st AES3 in, 1 digital st AES3 out
• Connection hub
  • GigaACE gigabit link to MixRack
  • DX link for I/O expansion
  • I/O Port – 128 ch 96 kHz
  • 2x Network ports
  • Wordclock BNC I/O
  • Video output

The Waves V3 Audio Networking Card
