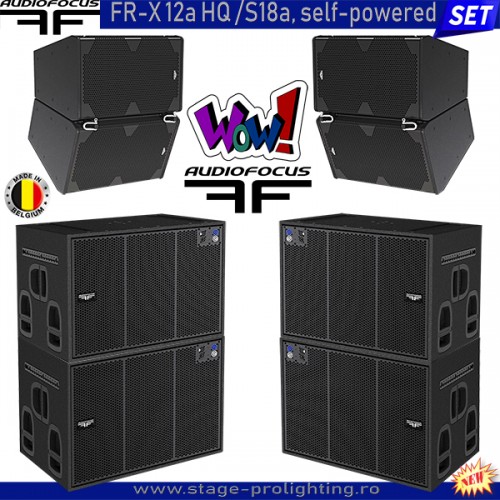

AudioFocus FR-X12aHQ-S18a, self-powered SET

Producător: AudioFocus
Cod produs: AudioFocus FR-X12aHQ-S18a, self-powered SET
Disponibilitate: disponibil in 5 zile

0,00 RON TVA inclus

Pret: 0,00€
VAT Incl.

Descriere
Opinii (0)

Descriere

AudioFocus FR-X12aHQ-S18a, self-powered SET, se compune din:

Component	Nr Buc	Descriere de baza
AudioFocus FR-X12a HQ	4
AudioFocus S18a	4	Self-powered subwoofer, 18",
Cover	8	Huse atat pentru top-uri, cat si pentru subwoofere

Sistemul prezentat este o solutie de sonorizare de top a producatorului Belgian AudioFocus, excelenta sub raportul calitate/pret, pentru sonorizari cu pana la 800 de persoane. Atat top-urile multifunctionale, cat si subwooferele sunt active (auto-amplificate) cu amplificatoare personalizate Powersoft de clasa D, avand preseturi predefinite DSP, ceea ce face ca sistemul sa fie perfect setat "din zbor", fara sa fie nevoie de alte ajustari, ceea ce ofera o mai mare usurinta in exploatare si rapiditate de instalare. Din toate punctele de vedere, acest sistem este o reusita: calitatea sunetului nu lasa loc niciunui compromis, astfel incat se aude ala fel atat de la 3m, cat si de la 30m, subwooferele avand atat forta, cat si "punch" (atac), iar top-urile o foarte buna dispersie, fiind de tipul point-source (deci si long-throw), iar pretul promotional le califica (desi fiind produse de top) in clasa "best money can buy", avand totodata si fiabilitate mare datorita driverelor Faithal PRO, extrem de rezistente si cu randament foarte bun, printre cele mai bune difuzoare ale momentului. Calitatea amplificatoarelor Powersoft este de asemenea bine stiuta, fiind o garantie in plus ca investitia dvs este una sigura si de termen lung, fara probleme. Toate produsele pot fi aduse in numai 5 zile prin intermediul nostru in calitate de unic distribuitor oficial in Romania. Conform politicii de marketing a producatorului Belgian, pretul se comunica numai telefonic si strict pentru clientii interesati care deschid comenzi, care apoi vor putea fi onorate prin intermediul magazinului nostru. Garantia oferita este de 3 ani, iar calitatea noastra de reprezentanta va va oferi ulterior un foarte bun suport tehnic si service. Toata gama de produse de la Audiofocus va putea fi testata si vazuta in show-room-ul nostru dedicat incepand cu jumatatea lunii Aprilie. Va invitam la probe.

Prezentare produse si detalii tehnice:

FR-X 12a HQ Key Features

Multi-functional FOH system
For audiances of 100-3000 people
Plug & Play system
Adaptive (rotable) AF horn 80x30°
X-comb technology inside
Optimised for medium throw applications
Active/Dante/Passive versions

(1) Peak SPL is calculated on built in amplifier's peak output voltage limit, perfectly matched with specific FR-X 12a driver.
(2) ''VERH-II'' system to change directivity in less than 1min without tools.
(3) RMS power is given by the RMS power handling of the specific FR-X 12a driver.

Description

2-way, vented self-powered FOH system

Usable bandwith (-6dB)

55 Hz - 20 kHz ([ Extended] preset)

Maximum SPL Peak / 1m

139.5 dB (1)

Coverage angle (-6dB)

80° x 30°, "VERH-II" rotating system (2)

Transducers

LF: 1 x 12", neodymium, weather resistant,
HF: 1 x 1,4", ferrite, compression driver, AF versatile horn

Input impedance

10 kΩ balanced

RMS power handling

1700 W (3)

Connectors

Balanced 1 x IN, 1x OUT Neutrik© XLR
1 x IN, 1 x OUT Neutrik© Powercon

Rigging components

H coupling bars + standard cargo

Dimensions (H x W x D)

604 x 382 x 437 mm (incl. feet) / 22,5°

Weight

33 kg / 73 lb

Cabinet

Baltic birch plywood

Finish

High resistant Polyurea coating

Front

Steel removable grill on magnets

Mounting accessories

d35 steel flange

Key Features S18a

Powerful bass-reflex T-lined design
Mobile and fixed installation
Pole mount socket
Passive/Active & Dante
Integrated rigging
Equipped with one powerful specific 18’’ Faitalpro neodymium driver with 4’’ voice coil powered by a built-in Powersoft amplifier with DSP on board.

AUDIOFOCUS T-ligned + reflex design subwoofer delivers exceptional sensitivity and reaches 138 dB max SPL.

Its compact size and integrated rigging makes it particularly well suited for flown coupled configurations. For easy wiring, the S18 provides additional connectors on the front grill for cardioid setup.

Spécification	S18
Type	Vented T-ligned - Passive/Active
Nominal Impedance	Passive: 8Ω
Power handling RMS / Peak	Passive: 900W RMS / 1800W Peak Active: 1225W RMS / 2450W Peak
Frequency range @-3dBspl	Passive: 45 Hz - 1,0 kHz Active: 40 Hz - 100 Hz (extended preset)
Sensitivity spl 2πsr	102 dB
SPL@ Peak power	Passive: 134,5 dB Active: 136 dB / 138 dB
Components	18" LF Faitalpro Custom made, 4" Voice coil
Line Connectors	Active: Balanced 1 x IN, 1 x OUT Neutrik© XLR
Front connection for Cardio	Active: powerCON and XLR IN OUT Passive: speakON 4 or speakON 8 IN OUT
HP Connectors	Passive: 2x Neutrik© speakON linked
Construction	Birch marine Plywood 15 & 24 mm
Finish	High resistant Polyurea coating
Dimensions (h x w x d)	510 x 650 x 560 mm 20,07’’ x 25,59’’ x 22,04’’
Weight	Passive: 39 kg / 86 lb Active: 40 kg / 88 lb
Mounting accessoiries	M20 screw & 35 mm compatible flange
