BOSE professional ShowMatch SET

BOSE professional ShowMatch SET, din gama BOSE professional line-array, reprezinta o solutie de sonorizare "WAW!!" atat din punct de vedere al calitatii sunetului obtinut, cat si ca eficienta. Avand un SPL maxim de 145 dB, aceasta instalatie line-array va spulbera efectiv o audienta de pana la 600 de persoane, fiind perfecta atat pentru aplicatii LIVE, cat si pentru sali de evenimente, cluburi cu pretentii, sali de spectacole, teatre, etc. Produsele fabricate in SUA, se importa din America, numai cu pre-comanda, plata integral anticipat garantata cu Bilet la Ordin, au o garantie de 3 ani!!, iar livrarea se face in aproximativ 2 saptamani. Pretul se comunica numai telefonic conform politicii de marketing a producatorului american.

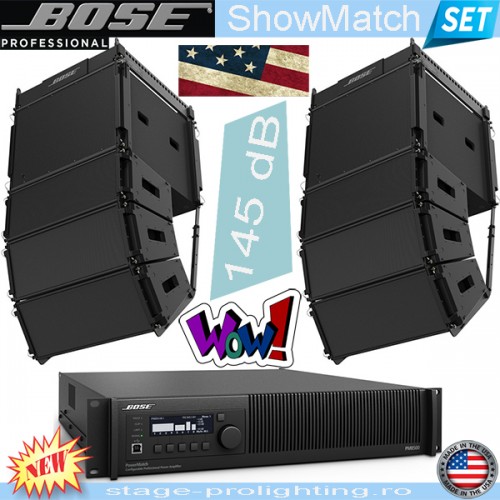

Sistemul propus in imagine se compune din:  2 x subwoofere line-array ShowMatch™ SMS118, 2 x module line-array ShowMatch™ DeltaQ™ SM5  , 4 x module line-array ShowMatch™ SM20 si un amplificator de sistem pe 8 canale cu DSP incorporat PowerMatch® PM8500 / PM8500N, precum si sistemele de prindere si(sau) suspendare aferente.

TECHNICAL DATA

ShowMatch™ SMS118

DeltaQ™ array subwoofer

Product Overview

Bose ShowMatch™ SMS118 subwoofer is designed primarily to integrate with DeltaQ™ array loudspeakers and extend low-

frequency response down to 29 Hz. The SMS118 enclosure width and integrated rigging allows fast integration in arrays with

ShowMatch full-range modules using optional array frames and accessories. The portable-rated Baltic birch enclosure may

also be used for ground-stack applications and includes an integrated mounting-pole adapter for use with other mid/high

loudspeakers.

Key Features

• DeltaQ™ technology

– defines the next-generation in loudspeaker array design with selectable coverage patterns that more

precisely direct sound to audience areas for improved sound quality and vocal clarity with fewer boxes versus line arrays.

• ShowMatch™ companion 1x 18” subwoofer

– for low-frequency extension down to 29 Hz with mixed mid/high and subwoofer

ShowMatch arrays

• Bose LF18 neodymium 18-inch,

high-excursion, 4.5-inch voice coil, transducer provides maximum performance (same

transducer as in Bose RMS218)

• Integrated 4-point “quick pin” rigging

– allows arrays of up to 18 subwoofers with 10:1 design factor

• Front-grill mounted NL4 input, plus rear NL4 inputs

– allow easy setup for “reversed-box” cardioid arrays

• Integrated pole-cup adapter

– allows use with other mid/high loudspeakers and accessory mounting poles

• Removable side guards

– provide rigging guard for portable applications. Easily removed for permanent installs to reduce

width and improve sight lines

PROFESSIONAL

Technical Specifications

SINGLE MODULE PERFORMANCE

Frequency Response (-3 dB) (1)

32 – 250 Hz

Frequency Range (-10 dB)

29 – 300 Hz

Recommended High-Pass Protection Filter

30 Hz with minimum 12-dB / octave filter

Nominal Coverage Pattern

omni with cardioid array configuations

Recommended Crossover

60-100 Hz (requires active crossover in DSP)

Bose extended-lifecycle test

(4)

AES transducer test

(5)

Array (free field)

Ground Stack (half space)

Array (free field)

Ground Stack (half space)

Power Handling, long-term continuous

750 W

750 W

1250 W

1250 W

Power Handling, peak

3000 W

3000 W

5000 W

5000 W

Sensitivity (SPL/ 1W @ 1 m) (2)

92 dB

98 dB

92 dB

98 dB

Calculated Maximum SPL @ 1 m (3)

121 dB

127 dB

123 dB

129 dB

Calculated Maximum SPL @ 1 m, peak

127 dB

133 dB

129 dB

135 dB

TRANSDUCERS

Low Frequency

1 x Bose LF18 neodymium 18-inch, high-excursion woofer (4.5-inch voice coil)

Nominal Impedance

4 ohms

PHYSICAL

Enclosure Material

Baltic birch plywood

Finish

Two-part spray polyurethane coating, black

Grill

16-gauge (1.5 mm) perforated steel, powder-coated finish, black

Environmental

IPx4

Connectors

2 x Neutrik® NL4 on rear, 1x NL4 front-grill mounted; all wired parallel

Suspension / Mounting

4-point “quick pin” rigging; 4x M10 top and 4x M10 bottom inserts; M20 pole cup

Dimensions (H x W x D)

21.2” x30.1” x30.5” (540 x 765 x 775 mm) / W: XX side guards removed

Net Weight

136.5 lbs (61.9 kg)

Shipping Weight

145 lbs (65.8 kg)

Accessories

rigging frames, ground stack bracket, short quick pins



ShowMatch™ SM5

DeltaQ™ array loudspeaker



TECHNICAL DATA

Product Overview

Bose Professional ShowMatch™ DeltaQ™ SM5 full-range array modules provide 5° nominal vertical coverage with included

field-changeable waveguides offering choice of 70° or 100° horizontal coverage and optional accessory 55° waveguides.

Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power

amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output up to 145 dB.

Key Features

• DeltaQ™ technology

– defines the next-generation in loudspeaker array design with selectable coverage patterns that more

precisely direct sound to audience areas for improved sound quality and vocal clarity with fewer boxes versus line arrays.

• Replaceable waveguides

– ships with 70° waveguides installed with 100° panels included to allow coverage change.

Largest-in-class size provides better coverage and vocal clarity. Change single panel for asymmetrical patterns. Optional

55° waveguides for SM5.

• Compact, portable enclosure

– Versatile design allows both fixed install and portable applications, from small clubs and

houses of worship to the largest performing arts centers and AV productions.

• Tour-sound output level

– 4x Bose EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium

high-power woofers allow peak array output up to 145 dB SPL.

• 3-point “quick pin” rigging

– Fast, easy setup with up to 24 full-range modules and 10:1 design factor.

• Removable side guards

–

provide rigging guard and hand holds for portable applications. Easily removed for permanent

installs to reduce width and improve sight lines.

• Rigging overlap angle adjustment

–

only on SM5 modules, coverage overlap or “splay” can be adjusted from 0 to 5°, in 1°

increments, to provide long throw distance and high SPL.

PROFESS

IONA

L

Technical Specifications

SINGLE MODULE PERFORMANCE

Frequency Response (+ / -3 dB)

(1)

69 – 16,000 Hz

Frequency Range (-10 dB)

59 – 18,000 Hz

Recommended High-Pass Protection Filter

70 Hz with minimum 12-dB / octave filter

Nominal Coverage Pattern

70° H x 5° V (includes waveguides for 100° H x 5° V)

Recommended Crossover

750 Hz (acoustic; requires active, 2-way crossover in DSP)

Bose extended-lifecycle test

(4)

AES transducer test

(5)

Low Frequency

High Frequency

Low Frequency

High Frequency

Power Handling, long-term continuous

450 W

100 W

600 W

125 W

Power Handling, peak

1800 W

400 W

2400 W

500 W

Sensitivity (SPL/ 1W @ 1 m)

(2)

94 dB

107 dB

94 dB

107 dB

Calculated Maximum SPL @ 1 m

(3)

121 dB

127 dB

122 dB

128 dB

Calculated Maximum SPL @ 1 m, peak

127 dB

133 dB

128 dB

134 dB

TRANSDUCERS

Low Frequency

2 x Bose SM8 neodymium 8-inch woofers (3-inch voice coil)

High Frequency

4 x Bose EMB2S extended-HF neodymium compression driver (2-inch voice coil)

Nominal Impedance

8 ohms + 6 ohms (LF/HF)

PHYSICAL

Enclosure Material

Baltic birch plywood

Finish

Two-part spray polyurethane coating, black

Grill

16-gauge (1.5 mm) perforated steel, powder-coated finish, black

Environmental

IPx4

Connectors

2 x Neutrik® NL4 wired parallel

Suspension / Mounting

integrated 3-point quick-pin rigging

Dimensions (H x W x D)

10.6” x31.2” x18.4” (270 x 793 x 467 mm) / W: 29.8” (757 mm) side guards removed

Net Weight

67.5 lbs (30.6 kg)

Shipping Weight

75 lbs (34.0 kg)

Accessories

rigging frames, pullback bar, waveguides, ground stack bracket, short quick pins



TECHNICAL DATA

ShowMatch™ SM20

DeltaQ™ array loudspeaker

Product Overview

Bose Professional ShowMatch™ DeltaQ™ SM20 full-range array modules provide 20° nominal vertical coverage with included

field-changeable waveguides offering choice of 70° or 100° horizontal coverage and optional accessory 120° waveguides.

Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power

amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output up to 145 dB.

Key Features

• DeltaQ™ technology

– defines the next-generation in loudspeaker array design with selectable coverage patterns that more

precisely direct sound to audience areas for improved sound quality and vocal clarity with fewer boxes versus line arrays.

• Replaceable waveguides

– ships with 100° waveguides installed with 70° panels included to allow coverage change.

Largest-in-class size provides better coverage and vocal clarity. Change single panel for asymmetrical patterns.

Optional 120° waveguides for SM20.

• Compact, portable enclosure

– Versatile design allows both fixed install and portable applications, from small clubs and

houses of worship to the largest performing arts centers and AV productions.

• Tour-sound output level

– 4x Bose EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium

high-power woofers allow peak array output up to 145 dB SPL.

• 3-point “quick pin” rigging

– Fast, easy setup with up to 24 full-range modules and 10:1 design factor.

• Removable side guards

–

provide rigging guard and hand holds for portable applications. Easily removed for permanent

installs to reduce width and improve sight lines .

PROFESS

IONA

L

Technical Specifications

SINGLE MODULE PERFORMANCE

Frequency Response (+ / -3 dB) (1)

69 – 16,000 Hz

Frequency Range (-10 dB)

59 – 18,000 Hz

Recommended High-Pass Protection Filter

70 Hz with minimum 12-dB / octave filter

Nominal Coverage Pattern

100° H x 20° V (includes waveguides for 70° H x 20° V)

Recommended Crossover

750 Hz (acoustic; requires active, 2-way crossover in DSP)

Bose extended-lifecycle test

(4)

AES transducer test

(5)

Low Frequency

High Frequency

Low Frequency

High Frequency

Power Handling, long-term continuous

450 W

100 W

600 W

125 W

Power Handling, peak

1800 W

400 W

2400 W

500 W

Sensitivity (SPL/ 1W @ 1 m) (2)

94 dB

105 dB

94 dB

105 dB

Calculated Maximum SPL @ 1 m (3)

121 dB

125 dB

122 dB

126 dB

Calculated Maximum SPL @ 1 m, peak

127 dB

131 dB

128 dB

132 dB

TRANSDUCERS

Low Frequency

2 x Bose SM8 neodymium 8-inch woofers (3-inch voice coil)

High Frequency

4 x Bose EMB2S extended-HF neodymium compression driver (2-inch voice coil)

Nominal Impedance

8 ohms + 6 ohms (LF/HF)

PHYSICAL

Enclosure Material

Baltic birch plywood

Finish

Two-part spray polyurethane coating, black

Grill

16-gauge (1.5 mm) perforated steel, powder-coated finish, black

Environmental

IPx4

Connectors

2 x Neutrik® NL4 wired parallel

Suspension / Mounting

integrated 3-point quick-pin rigging

Dimensions (H x W x D)

11.9” x31.2” x18.1” (303 x 793 x 461 mm) / W: 29.8” (757 mm) side guards removed

Net Weight

64.0 lbs (29.0 kg)

Shipping Weight

75 lbs (34.0 kg)

Accessories

rigging frames, pullback bar, waveguides, ground stack bracket, short quick pins



PowerMatch® PM8500 / PM8500N

configurable power amplifier

TECHNICAL DATA SHEET

Bose

Professional Systems Division

1

OF 7

pro.Bose.com

Product Overview

The Bose® PowerMatch PM8500 configurable professional

power amplifier provides concert-quality sound with a high

level of scalability and configurability. The PM8500 offers

multiple channel and power options, an integrated audio

DSP, front panel interface and USB connection. Ethernet-

equipped versions enable network configuration, control and

monitoring. An expansion slot supports inputs from optional

digital accessory cards. PowerMatch amplifiers utilize

numerous Bose technologies to deliver an unprecedented

combination of performance, efficiency, and ease of

installation—all in a reliable, proprietary design. Available

in two versions, the PM8500 provides USB connection for

single-unit setup and control using Bose ControlSpace® V3.0

or higher software. The PM8500N adds Ethernet connectivity

for network control and monitoring of multiple “N” version

amplifiers.

Applications

Designed for a wide range of applications, including:

•

Auditoriums

•

Performing arts venues

•

Theaters

•

Houses of worship

•

Arenas

•

Hospitality venues

Key Features

•

QuadBridge™ Technology –

Allows each 4-channel

loudspeaker block to be configured as Mono, V-Bridge, I-

Share or Quad modes, allowing the total available power

of the amplifier block to be allocated to one or more output

channels. The amplifier is capable of driving both low

impedance and 70/100V loudspeaker loads directly.

•

Bose® ControlSpace® Designer™ software –

PowerMatch

amplifiers can be fully configured using ControlSpace

Designer software via the onboard front panel USB

connection, or the rear panel Ethernet connection (network

models only). Using ControlSpace Designer software you

can access additional features including: Parametric EQ

stages, load sweep of each output channel and auto standby.

ControlSpace Designer software is also used to integrate

network model PowerMatch amplifiers into larger control and

monitoring systems comprised of Bose ESP processors and

CC control centers.

•

Auto-Standby/Auto-Wake function –

When enabled, this

function automatically enters/exits Standby Mode, allowing the

system to consume less power.

•

Dual voltage and current feedback loop –

Proprietary

design combines Class-D efficiency with a unique current

and voltage feedback loop circuit that continuously monitors

and controls both the current and voltage delivered to the

loudspeaker load. Independent of power level and load

impedance, the amplifier consistently delivers the widest

possible dynamic range, frequency response and lowest

possible distortion.

•

PeakBank™ power supply –

Regenerative 4-quadrant power

supply enables higher power density while allowing the re-

use of energy from reactive loads that is normally wasted in

conventional Class-D designs. This highly efficient amplifier

design delivers sustainable and repeatable low frequency

response.

•

Fast-tracking power factor correction (PFC) –

Efficiently

manages the current drawn from the AC mains, allowing the

amplifier to drive loudspeakers to maximum output longer

without power fluctuation. PFC provides superior transient

response and functions at peak burst power much longer

than conventional Class-D amplifier designs to satisfy the

requirements of even the most demanding program material.

PowerMatch® PM8500 / PM8500N

configurable power amplifier

TECHNICAL DATA SHEET

Bose

Professional Systems Division

Technical Specifications

Power Rating

THD for Power Rating

2 Ω

4 Ω

8 Ω

70 V

100 V

< 0.1 %

< 0.1 %

< 0.1 %

1 %

1 %

Mono Mode

450 W

500 W

300 W

See footnote 3

See footnote 3

V-Bridge Mode

450 W

2

1000 W

1000 W

800 W

1000 W

I-Share Mode

1000 W

500 W

2

300 W

2

Not available

Not available

Quad Mode

1000 W

2

2000 W

1000 W

2

1600 W

2000 W

Maximum Rated Power

4000 W (500 W x 8 channels at 4 ohms)

Peak Output Voltage

71 / 142 V (Mono / V-Bridge, I-Share, and Quad modes)

Voltage Gain

3

6

/

42

/ 3

6

/

42

dB (Mono / V-Bridge / I-Share / Quad modes)

Audio Performance Specifications

Frequency Response

20 Hz - 20 kHz (at 1 W and +/- 0.5 dB)

Signal-to-Noise Ratio, Analog Input

> 102 dB (1 dB below rated power, A-weighted)

THD

< 0.4 % (at 1 W, 20 Hz to 20 kHz)

Intermod Distortion - SMPTE

< 0.4 % (60 Hz, 7 kHz)

Channel Separation (Crosstalk)

> 65 dB (adjacent channels, at 1 kHz)

Damping Factor

> 1000 (10-1000 Hz, 4 ohms, at amplifier output)

Integrated DSP

A/D and D/A Converters

48 kHz / 24-bit

Total Latency (Analog In - Amp Out)

< 0.95 ms

Input to Output Signal Routing

8 x 8 matrix

Loudspeaker Presets

Bose Professional

Input EQ

5-band PEQ (+/- 20 dB), notch, shelving, high pass, low pass

Bandpass Filters (Crossover)

Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave

Loudspeaker EQ

9-band PEQ (+/- 20 dB), shelving, high pass, low pass, 2-band RoomMatch® array EQ

Maximum Output Delay

3 s

Output Limiter

Peak and RMS voltage

Audio Inputs

Input Channels

Analog

Digital (Optional Card)

8 (balanced line level)

8

Input Impedance

> 100 kΩ

N/A

Sensitivity

0, +4, +12, +24 dBu, selectable

Digital: 0, -12, -20, -24 dBFS, selectable

Maximum Input Level

+24 dBu (at 24 dBu sensitivity setting)

N/A

Connectors, Input

3-pin Phoenix Contact® (green color; part # 1776168)

Card Dependent

Audio Outputs

Output Channels

2 to 8 (configurable)

Connectors, Output

8-pin Phoenix Contact® connectors (part # 1778120), supports 10-24 A

WG wire

Indicators and Controls

LED Status Indicators

Signal, limit, clip, fault

User Interface Controls

Mute, input sensitivity, output configuration, output attenuation, EQ on/off, preset select. 240 x 64 LCD. Additional controls available w/

ControlSpace® Designer™ software

Electrical Specifications

Mains Voltage

100-240 V (50/60 Hz)

Mains Circuit Recommendation

20A (120 V) or 16A (230 V)

Mains Connector

IEC 60320-C20 (Inlet)

Minimum AC Line Voltage

80 V (reduced output power)

Maximum Inrush Current

15.4 A (230 VAC, 50 Hz)

Maximum RMS Current Draw

15 A

Efficiency, 1/3 Rated Power

> 75 % (pink noise input signal)

Output Stage Topology

Class-D

Overload Protection

High temperature, DC, HF, short, voltage limiter, current limiter, inrush current, mains circuit breaker protection

Physical

Dimensions

3.5" H x 19" W x 20.7" D (88 mm x 483 mm x 525 mm) - 2 rack space

Net Weight

28.4 lb (12.9 kg)

Shipping Weight: 34.5 lb (15.7 kg)

Mounting Depth

21" (533 mm)

Operating Temperature

32 °F - 104 °F (0 °C - 40 °C)

Cooling System

Microprocessor-controlled, variable-speed fans, front to rear airflow



Spune-ţi opinia

Numele tău:
Opinia ta: Notă: Codul HTML este citit ca şi text!

Nota: Rău           Bun

Introduceţi codul din imagine:
