USED d&b Audiotechnik Q1-Q-Sub-D12 PA SET

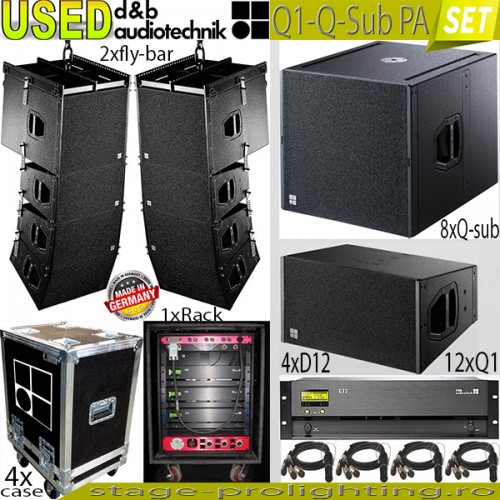

db-Audiotechnik-Q1-Q-Sub-D12 se compune din: 12 x d&b  Q1 +   8 x d&b  Q-Sub (inclusiv placile de protectie) + 1 x Rack PA care include 4 x  d&b D12 power amplifiers, 4 x Hard case (depoziteaza cate 3 Q1), 1 x Hard case care depoziteaza toate cablurile EP5 si sistemele de prindere a topurilor).

d&b  Q-System bestehend aus:

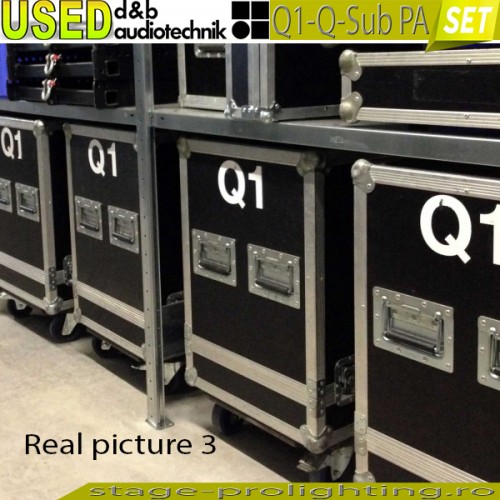

12 x d&b  Q1  ( immer 3 Stück im Case)

  8 x d&b  Q-Sub mit Schutzdeckel

   4 x d&b  D12 im Singlecase

   1 x Case mit Flugrahmen und EP5 Kabel

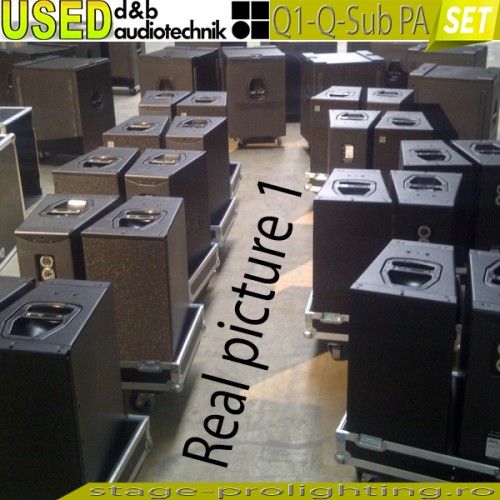

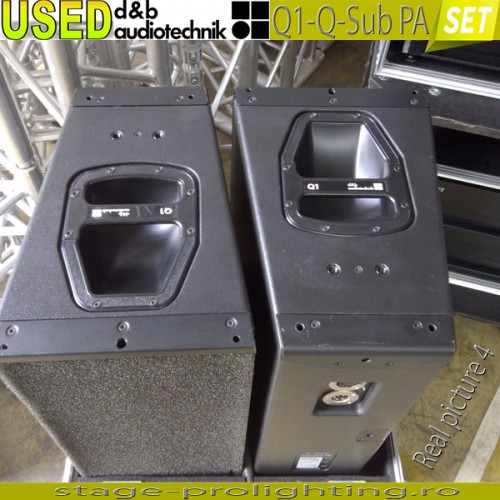

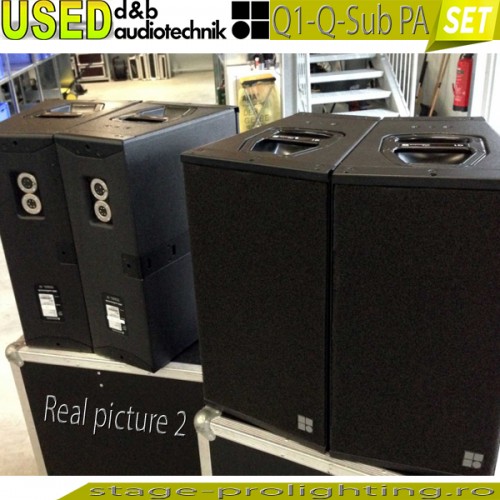

Sistemul este in stare tehnica excelenta, foarte bine intretinut (v. pozele reale ale sistemului), iar oferta partenerului german este mai mult decat rezonabila (sub 50% din valoarea lui de nou). Sistemul a fost folosit doar ca demo in diverse expozitii, astfel incat din punct de vedere estetic este de asemenea ireprosabil, aratand ca nou. Oferta este limitata la un singur sistem, astfel incat primul venit va fi primul servit. Recomandam rezervarea lui de catre clientul interesat. Se aduce numai cu pre-comanda ferma, plata integral anticipat garantata cu bilet la ordin, iar pretul exprimat este pentru intreg sistemul si contine TVA si taxele de transport Germania-Romania. In cazul in care exista doi clienti care prefera sa ia cate o jumatate, cantitatea poate fi splitata, atata timp cat comenzile sunt simultane. Este o achizitie fara gres, acest sistem fiind extrem de performant, puternic, cu un sunet clar si placut. Se ofera garantie. Aceasta va fi re-negociata cu furnizorul. Sub raportul calitate/pret, apreciem ca este una din cele mai bune achizitii ale momentului in materie de instalatie completa de sonorizare, "la cheie". Produse de top, recomandate de stage-prolighting, care ofera gratuit la acest sistem si asistenta tehnica, precum si pregatirea specifica a tehnicienilor care il vor deservi. Sistemul poate fi oricand upgradat, sau folosite parti din el pentru evenimente mai mici.

Detalii tehnice de baza:

Q1. The Q1 is a passive 2-way speaker. The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wave front. Q1 cabinets can be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to twenty cabinets with a fully user and venue defined vertical profile.
Comes with the D&B Z5300 J flying frame with all the accessories.

Q1 and Qi1 loudspeakers The Q1 and Qi1 are line array loudspeakers for use in vertical columns. The Qi1 is the installation version of the Q1 loudspeaker, it differs only in cabinet construction and mounting hardware. The Q1 and Qi1 cabinets are passive 2-way designs housing two 10” LF drivers and a 1.3” HF compression driver with a toroidal waveshaping device to achieve a 75° horizontal dispersion characteristic. The two 10” neodymium LF drivers are positioned in a dipolar arrangement providing an exceptional dispersion control even at lower frequencies, with the 75° nominal dispersion angle being maintained down to 400 Hz. Q1 and Qi1 cabinets can be combined with the respective Q and Qi subwoofer systems: in mixed line array setups, as a separate subwoofer column or in ground stacked applications. For further extension of bandwidth and headroom ground stacked J-INFRA subwoofers can be used. The Q1 and Qi1 cabinets are constructed from marine plywood and have an impact resistant paint finish. The front of the loudspeaker cabinets are covered with a replaceable acoustically transparent foam and protected by a rigid metal grill. Four M10 threaded inserts on each side panel of the Qi1 cabinet enclosure are provided for attaching installation hardware whilst the Q1 cabinet incorporates a pair of handles and has integrated line array rigging hardware.
System data Frequency response (–5 dB standard) ..................60 Hz - 17 kHz Frequency response (–5 dB CUT mode) .............100 Hz - 17 kHz Max. sound pressure (1 m, free field)1 ............................................ with D6 ..................................................................................135 dB with D12 ...............................................................................139 dB with D80 ...............................................................................139 dB Input level (100 dB SPL/1 m) ............................................–18 dBu
Loudspeaker data Nominal impedance ..............................................................8 ohms Power handling capacity (RMS/peak 10 msec) .....400/1600 W Nominal dispersion angle (h) ....................................................75° Components .....................2 x 10” driver/1.3” compression driver .................................................................passive crossover network Connections Q1 ........................................................2 x NLT4 F/M ............................................................optional 2 x EP5 or 2 x NL4 Connections Qi1..................................................................2 x NL4 Weight Q1/Qi1 ............................................22/21 kg (49/46 lb)



Q-Sub. The Q-SUB is an actively driven low compression bass-reflex speaker fitted with a high excursion 18″ driver. The Q-SUB is mechanically compatible with the Q1 and Q7. Ten sockets in the front grill and side panels for Q-Series rigging components permit use in various combinations, either flown or ground stacked.

The Q-SUB and Qi-SUB are the dedicated subwoofers for the Q and Qi loudspeakers respectively and can be used to supplement the top cabinets in various combinations, either flown or ground stacked. The Qi-SUB is the installation version of the Q-SUB, differing only in cabinet construction and mounting hardware. The Q and Qi subwoofers are actively driven bass reflex designs, housing a long excursion 18” driver. The subwoofers can be combined with the respective Q and Qi loadspeakers in line arrays, as a separate column or in ground stacked applications where the subwoofers also mechanically support the top loudspeakers. The Q and Qi subwoofer cabinets are constructed from marine plywood and have an impact resistant paint finish. The Qi-SUB is also available in Special Colour (SC) and Weather Resistant (WR) options. The front of the subwoofer cabinets are covered with a replaceable acoustically transparent foam and protected by a rigid metal grill. Installation hardware is attached to the Qi-SUB enclosure through four M10 threaded inserts on each side panel. The Q-SUB incorporates a pair of handles, a M20 threaded flange in the top panel and integrated line array rigging hardware.
System data Frequency response (–5 dB standard) ..................40 Hz - 130 Hz Frequency response (–5 dB 100 Hz mode) .........40 Hz - 100 Hz Max. sound pressure (1 m, free field)1 ............................................ with D6 ..................................................................................129 dB with D12 ...............................................................................133 dB with D80 ...............................................................................133 dB
Loudspeaker data Nominal impedance ..............................................................8 ohms Power handling capacity (RMS/peak 10 msec) .....400/1600 W Components ......................................................................18” driver Connections ...............................................................2 x NLT4 F/M ............................................................optional 2 x EP5 or 2 x NL4 Weight ......................................................................42 kg (92.6 lb

D12. The D&B D12 amplifier is a dual channel amplifier incorporating digital signal processors (DSP) to provide loudspeaker specific configurations and functions. It is designed for use with all d&b loudspeakers, has both digital and analog signal inputs as well as link outputs, remote control and monitoring capabilities and sophisticated protection circuits.

Alte detalii tehnice pot fi downloadate din pagina producatorului.
