Descriere

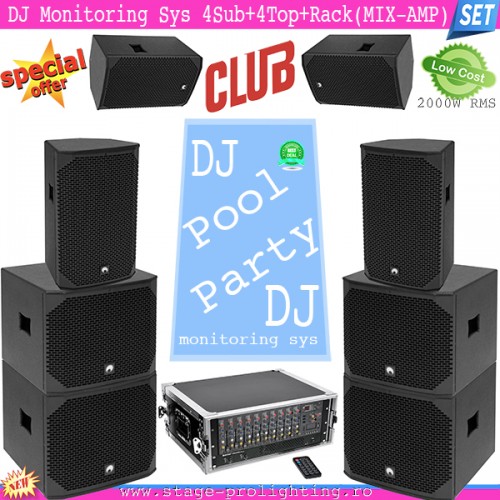

DJ Pool Party Monitoring System 2000W SET
2x AZX-212 2-Way Top 200W including 2x AZX-115 PA Subwoofer 400W
OMNITRONIC AZX-212 2-Way Top 200W
Passive speaker with 12" woofer, 1.35" driver and 200 W RMS
- 2-way bass-reflex system with 30 cm woofer and 3.5 cm titan driver
- Speaker connections
- Stable MDF housing with protective grille and handles
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M10 threaded inserts for suspended installation
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
OMNITRONIC AZX-115 PA Subwoofer 400W
15" bassreflex subwoofer with 400 W RMS, 8 ohms
- 38 cm (15") bass speaker with 63 mm voice coil
- Parallel Speaker connectors
- M20 metal flange for mounting top speakers
- Carrying handles
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Impact-resistant steel grille with acoustic foam
|
Weight: |
84,20 kg |
|
OMNITRONIC AZX-212 2-Way Top 200W |
|
|
Rated power: |
200 W RMS |
|
Program power: |
400 W |
|
Frequency range: |
55 - 18000 Hz |
|
Sensitivity: |
94 dB (1W/1m) |
|
Impedance: |
8 ohms |
|
Attachment system: |
Bead Ø 35mm variable tilt |
|
Connections: |
Input: 2 x speakers via speaker built-in socket (f) |
|
Speakers: |
1 x woofer (12") approx 30 cm with ferrit magnet |
|
Type of speaker: |
Compact cabinet speaker |
|
Material: |
MDF (Medium-density fibreboard) |
|
Dimensions: |
Width: 43 cm |
|
Weight: |
18,00 kg |
|
OMNITRONIC AZX-115 PA Subwoofer 400W |
|
|
Rated power: |
400 W RMS |
|
Program power: |
800 W |
|
Frequency range: |
40 - 250 Hz |
|
Sensitivity: |
94 dB (1W/1m) |
|
Impedance: |
8 ohms |
|
Attachment system: |
M20 thread |
|
Connections: |
Input: 2 x speakers via speaker built-in socket (f) |
|
Speakers: |
1 x woofer (15") approx 38 cm |
|
Type of speaker: |
Subwoofer |
|
Type: |
Vented |
|
Material: |
MDF (Medium-density fibreboard) |
|
Dimensions: |
Width: 58 cm |
|
Weight: |
24,10 kg |
OMNITRONIC RM-1422FXA USB Rack Power Mixer
19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player
19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player
- Audio mixer and digital amplifier in a 19" housing
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 24 bit DSP FX unit with 16 different effects, e.g. reverb, echo and flanger
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 aux send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- MP3 player with Bluetooth, SD card slot, USB input, LCD and IR remote control
- Digital signal processor
- Controlling by IR remote control; Bluetooth
- (19") 48.3 cm rack installation 3 U
19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player
- Audio mixer and digital amplifier in a 19" housing
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 24 bit DSP FX unit with 16 different effects, e.g. reverb, echo and flanger
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 aux send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- MP3 player with Bluetooth, SD card slot, USB input, LCD and IR remote control
- Digital signal processor
- Controlling by IR remote control; Bluetooth
- (19") 48.3 cm rack installation 3 U
OMNITRONIC XDA-2402 Class D Amplifier
Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms
Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms
- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Speaker switch-on delay and auto limiters
- 2 level controls
- LEDs for activated protective circuit, limiter, signal, and power
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
- Ground lift switch against humming
- Electronically balanced inputs via XLR mounting jacks with feed-through output
- Speaker outputs via lockable speaker jacks
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 1 U
|
Power supply: |
100-240 V AC, 50/60 Hz |
|
Power consumption: |
465 W 1/8 power |
|
Output power: |
2 x 880 W RMS (8 ohms) |
|
Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
|
Frequency range: |
30 - 20000 Hz |
|
S/N ratio: |
>100 dB |
|
THD: |
<0,02 % at 1 kHz |
|
Cooling: |
Cooling fan |
|
Impedance: |
Input 20 kOhm , bal. |
|
Circuitry: |
Class D |
|
Control elements: |
Power switch, level control per channel, groundlift selector |
|
Controls: |
Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter |
|
Status LED: |
Power, signal, limit, protect |
|
Connections: |
Input: 2 x line via 3-pin XLR |
|
Input sensitivity: |
1,25 V |
|
Housing design: |
(19") 48.3 cm rack installation 1 U |
|
Dimensions: |
Width: 48,3 cm |
|
Weight: 6,4Kg |
