Descriere

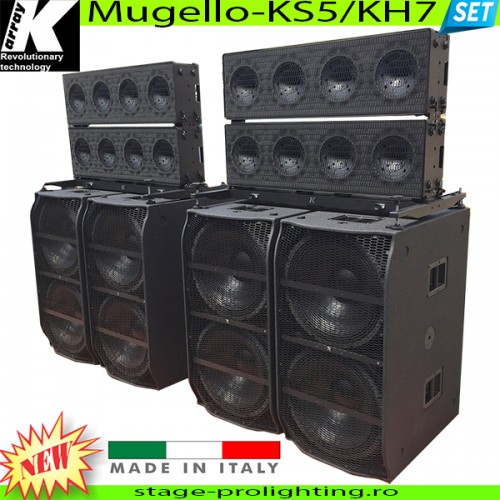

De la producatorul italian K-array, va propunem acest sistem compus din 4 subwoofere exceptionale 2 x 21” si 4 top-uri array 3 x 12”, toate autoamplificate si DSP incorporat.
Pentru cotatia de pret, va rugam, sunati la magazin.
Sistemul se preteaza atat pentru sonorizari indoor, cat si outdoor, putand fi marit ca numar de componente in functie de cerintele aplicatiei. O astfel de configuratie va fi supersuficienta pentru un eveniment cu pana la 2500 de persoane.
Produsele se importa numai cu pre-comanda, plata integral anticipat garantata cu Bilet la Ordin.
Detalii tehnice:
Concert Series
Mugello-KS5
Large format, self-powered subwoofer element
Mugello-KS5
DATASHEET
DATASHEET
DESCRIPTION
The K-array KS5 is a self-powered subwoofer. It is best suited for high-power extended bass response applications in arenas, theatres, stadiums, concert halls, houses of worship and outdoor events. The 21” loudspeakers feature neodymium magnets with 6” voice coils driven by powerful Class D amplifiers.
The large ports are designed to be fully symmetrical to the speakers, which means the back loading on the drivers is consistent and even with no port air turbulence. The triangle port construction also provides excellent structural integrity and strength, effectively eliminating any box resonance.
The rear panel provides inputs for a balanced line signal, a balanced microphone signal with phantom power, and digital signals in AES/EBU protocol. An integrated touch screen provides intuitive managing and editing of powerful DSP controlling: Input
and output levels, internally generated test signal, In/Out routing, Speakon output delay
(up to 12 ms), subwoofer delay (up to 12 ms), overall system delay (up to 330 ms). All DSP functions, including EQ can be controlled with remote managing software via USB or RS485, again conveniently on a standard XLR. There are different DSP presets, specifically made by K-array to optimize the system performance of the variety of device configuration available. In addition the user
can also create, save, and store his/her own
personal presets on the KS5 module.
All KS5 components are designed by the K-array R&D department and custom-made under the K-array quality control system.
FEATURES
SUGGESTED ACCESSORIES
K-DANTE
K-USB
K-POLE1
K-WHEELB
K-COVERS5
K-WHEEL
FREQUENT APPLICATIONS
TOURING, FESTIVALS, CONCERTS & LIVE
THEATERS & CONCERT HALLS
LARGE CONGREGATIONS
EVENT
PRODUCTIONS
NIGHTCLUBS
THEME PARKS
STADIUMS & SPORT VENUES
CINEMAS
COLORS & PREMIUM FINISHES AVAILABLE
Black
White
Custom
On-Board
Touch Screen
Weather Resistent
Compatible
DATASHEET
DATASHEET
45,7in 1162mm 24,2in 614mm 23,2in 590mm 33,5in 851,5mm
TECHNICAL SPECIFICATIONS
ACOUSTICS
Connectors
1 male + 1 female XLR parallel /
Power handling 2 x 2500 W
AMPLIFIER Max Power 8000 W
(1)
Type 1 module class D - DSP controlled
Impedance 2 x 2 Ω
Nominal Power Output 2 X 3500 W @ 2 Ω
1% THD + NOISE
(5)
Frequency range (-10 dB) 25 Hz – 120 kHz
(2)
Protections
Over Temp.(Power Limiting – Thermal Shut down),
Short Circuit/Overload Output Protection, Power
Limiting, Clip Limiter/Permanent Signal Limiter,
High Frequency Protection SPL 1W/1mt 99.5 dB
(3)
Frequency response
20 Hz – 20 kHz (+0 -1 dB) for 1 W @ 8 Ω
Maximum SPL
138 dB (cont.) – 141 dB (peak)
(4)
Damping factor @ 100 Hz >10000
COVERAGE THD+N 1kHz,1 W 0.2%
K-array KH7 speaker is a compact, self-powered, weather resistant, mid-high line array element, complying with the highest standards, both in sound quality and SPL.
The KH7 features four 12” coaxial neodymium magnet woofers, providing multiple setups, included both vertical and horizontal use, with an exceptional peak
output of 141 dB SPL.
An integrated class D amplifier deliver 4 x 2000 W at 4 Ω
with a max THD of 1 % (EIAJ test at 1 kHz, single channel driven).
The APPLICATIONS
•
Large scale events
•
Touring sound reinforcement
•
Theatres, Stadiums, Concert halls, Arenas
•
Houses of worship
•
Portable and installed AV systems
ACCESSORIES
KH7-BASE, KH7-FLYH, KH7-FLY V, KH7-SIGIN,
K-H7LINKH8
COLORS AVAILABLE
FEATURES
•
Unique performance-to-size ratio
•
Self powered
•
Mechanically variable vertical coverage
•
Mechanically variable horizontal coverage
•
Integrated DSP with multiple analog and
digital inputs
•
Digital acoustic steering system
•
Straight hanging
•
RS485 connectivity for remote control4 discrete amplifier channels are controlled via integrated DSP providing an hyper detailed beam steering ability to meet any demanding setup requirement and control sound spillover. All DSP functions are fully remote controlled
via software over Ethernet.All KH7’s components are designed by the
K-array R&D department and custom-made
under the K-array quality.
