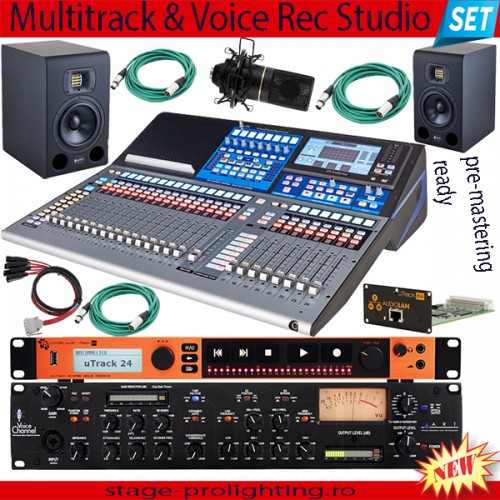

Multitrack & Voice Rec Studio SET

Producător: Presonus
Cod produs: Multitrack & Voice Rec Studio SET
Disponibilitate: In Stoc

22.416,00 RON TVA inclus

Pret: 4.393,54€
VAT Incl.

Descriere
Opinii (0)

Descriere

S-a cautat o solutie eficienta pentru crearea sequence in format multitrack in studio incluzand si eventualele backing vocal tracks, care apoi sa poata fi folosita cu maxima usurinta in aplicatiile LIVE atat de band-urile mici, cat si de cele standard. Studioul astfel configurat indeplineste cu brio toate aceste cerinte, avand in plus si functionalitatea pre-mastering ready.

Cuplajul Presonus StudioLive 24 Series III - Cymatic Audio uTrack24 nu este deloc intamplator, cele 24 de track-uri ale mixerului putand foarte usor fi inregistrate de cele doua unitati (chiar simultan) prin intermediul expanderului AudioLAN conceput special pentru uTrack 24, iar legatura intre cele doua unitati este facuta printr-un banal cablu UTP, iar pentru remixarea in real time in aplicatiile LIVE a sequencerului wave multitrack se vor folosi cablurile 25pin to 8xXLR dedicate, lasand astfel libere AUX ale mixerului digital gratie audioLAN. 8, 16, sau pana in 24 de canale pentru playback ramane doar o chestie de optiune pantru redarea in formatul multitrack, avand insa si posibilitatea premixarii si playerea in stereo in functie de situatie. In plus, folosind cele doua optiuni remote software atat pentru utrack, cat si pentru mixer, controlul in aplicatiile LIVE devine extrem de facil de pe o singura tableta (recomandam folosirea iPad pro). Monitoarele HEDD type07 sunt de asemenea excelente ca liniaritate, asigurandu-va ca multitrack-ul va raspunde in acelasi registru si pe PA, nu numai in studio.

Pentru inregistrarea vocilor va propunem MXL 770 combinat cu ART Voice Channel, fiind una din cele mai eficiente low-cost/HQ solutii de mic/preamp. Sub raportul calitate/pret –eficienta, in opinia noastra, acest sistem este imbatabil la momentul actual.

Detalii tehnice componente:

ART Voice Channel

Tube Channel Strip

Class A tube preamp
Compressor / expander / de-eater / gate
4-band semiparametric EQ with cut / boost thomann switching pre or post compressor switchable
Frequency response: 12 - 100000 Hz analog
Sampler data: 44.1 - 192 kHz
Digital Connections: ADAT
S / PDIF optical / coaxial
AES / EBU and USB
Word Clock I / O
Analog Connections: MIC / Line / Instrument-Input XLR-combo
Insert: 6.3 mm jack
Balanced output XLR and 6.3 mm jack
Mic-Preamp thomann Out 6.3 mm jack
VU meter
Format: 19"/ 2U
Dimensions (H x W x D): 88.9 x 483 x 233 mm
Weight: 4.7 kg

24-Channel Expansion Card for uTrack24

Supports AES67 / Ravenna audio networks
Routing of 24 channels from network to the uTrack24
Playback thomann of 24 tracks of the uTrack24 at any network node
RJ45 connector
Remote controllable via uRemote Control App

Cable DB25 - XLRM

8x XLR/M to Sub-D 25
Length: 1.2 m

MXL 770

Large diaphragm condenser microphone

Cardioid polar pattern
With switchable 10 dB attenuator and impact sound filter
Frequency range: 30 Hz-20 kHz
Sensitivity: thomann 15mV / Pa
Impedance: 150 Ohm
S/N ratio: 74 dB (Ref. 1 Pa A-weighted)
Equivalent Noise Level: 20 dB (A weighted IEC 268-4)
Max SPL for 0.5% THD: 137 dB
High Pass Filter 6dB / octave, 150Hz
Phantom Power 48V ± 4V required
Size: 60 mm × 154 mm
Including microphone suspension and transport case

Cordial CTM 5 FM-GN

Professional high quality microphone cable, green

Length: 5 m
Cable: Cordial CMK 222
Conductor area: 2 x 28 x 0.10 mm thomann = 0.22 mm per sqr
Screen: Spiral wound copper wire screen
Diameter: 6.4 +- 0.2 mm.
Capacity (cond./cond.): approx. 70 pF/m
Conductor resistance: 85 Ohm/km
Connectors: Neutrik NC 3 FX (female) + NC 3 MX (male)
XLR fe-/male

HEDD Type 07

Active Studio Monitor

7" Midrange driver - Power: 100W
2" Tweeter - Power: 100W
XLR / RCA input
Empty slot for an thomann optional input card
Input gain: -30 dB +6 dB
Frequency range: 38 - 50,000 Hz
SPL: 107 dB
Dimensions (H x W x D): 370 x 220 x 300 mm
Weight: 10 kg

Cymatic Audio uTrack24

Recorder, Player and USB Audio Interface

Recording / Playback of 24 tracks
24 Bit / 96 kHz with USB storage thomann device
4 Devices can be synchronised for 96 tracks
24 x 24 USB audio interface (44.1/48kHz ; 8x8 88.2/96kHz)
Internal mixer with Mute, Solo, Pan and volume per track
24 Balanced inputs and outputs (3 x D-Sub 25)
MIDI I/O and playback
Adjustable control room and headphone outputs
Clear level meters, large LCD display
Playlist editor
Expansion thomann slot
BNC Word clock in / out
RJ-45 Network port for remote control
For iOS, Mac and PC
External power supply
Dimensions (W x H x D): 485 x 44 x 200 mm
Format: 19" / 1 U
Weight: 1.5 kg
Including: AC / DC power adapter, USB cable and quick start guide in English

System thomann requirements (when used as interface):

Min. 512 mB RAM (1GB or more recommended)
One free USB 2.0 compatible port
PC: Windows 7 / 8 / 8.1 / 10 (32/64-bit) - requires Internet connection for driver download
Mac: Class Compliant - no drivers needed - Compatible with OSX 10.8 and higher
iPad: iOS thomann 7 or later with Apple Lightning or 30-pin Camera Connection kit (not included)

Presonus StudioLive 24 Series III

Digital Mixer

Digital Mixer with Integrated 38 x 38 USB Recording Interface

55 x 55 AVB recording interface
Integrated SD thomann card recorder for 16-track recording and virtual soundcheck without computer
25 Touch-sensitive motor faders
Freely programmable fader assignment
24 Programmable filter DCA groups of assignable channel types
24 High-resolution digital label fields with pan pot display
12 Microphone inputs (XLR), plus 12 mic / line inputs (combo XLR / jack, balanced)
2 Stereo AUX thomann inputs (jack, balanced)
Stereo RCA input (L/R)
Talkback mic input (XLR)
24 Programmable XMAX class A microphone preamp
Individually switchable 48 V phantom power
Double assignable fat channel with 7" colour touch screen
8 LCD displays
8 Buttons
8 Encoders
A / B button for alternative sounds and comparisons
Freely programmable user assignment
Fat channel button: Source selection, gain, thomann 48 V, phase switch, panpot, AUX sends, routing
Fat channel signal processing: High-pass filter
Noise gate / expander with sidechain function and key filter
Limiter
Compressor with sidechain function and key filter
Alternative vintage presets for EQ and compressor
Library with professional fat channel presets for drums, bass, guitars, vocals, etc.
99 Fat channel memory thomann with save / load / copy
4 Internal digital effect processors (2x delay, 2x reverb), incl. vintage presets
Programmable delay on all inputs and outputs
Parametric 6-band EQ on all outputs
Integrated real-time analyser with signal generator
8 Programmable 31-band graphic EQs
100 Complete scenes can be saved, edited, and played back
8 Programmable mute thomann groups and 8 quick scene memories
16 FlexMix outputs (8x XLR, 8x jack, balanced)
Configurable as AUX, subgroup or matrix
Trimmable main stereo output (XLR L/R), plus trimmable main mono output (XLR)
Monitor output (jack L / R, balanced)
Stereo RCA output (L / R)
Headphone output (stereo jack)
AES / EBU stereo digital output thomann (XLR)
Ethernet control port
Ethercon AVB audio network port
Dimensions (W x D x H): 560 x 584 x 179 mm
Weight: 13.6 kg
Download licence included for Studio One Artist (DAW) and Capture (recording software)
