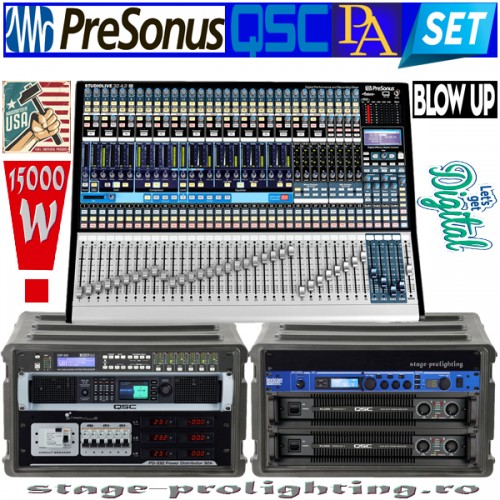

Presonus Digital-QSC PA SET

Presonus Digital-QSC PA SET se compune din:

Component	Nr Buc	Descriere de baza
Presonus StudioLive 32.4.2 AI	1	Digital Mixer, 32-channel digital mixer with high-voltage Class A XMAX preamps, Dual Fat Channel signal processing on all 32 input channels and all buses, with 4-band parametric EQ, compressor, sophisticated gate with Key Listen and Key Filter (with side chain), limiter with variable threshold, and more lets you A/B two complete Fat Channel settings-like having two different Fat Channel settings at once on every channel and bus! Active Integration software suite included.
Dynacord DSP 600	1	DSP Controller 2 in 6 Analog and AES / EBU Inputs Full IRIS-Net control and configuration Ethernet and USB data Interface EQ and delay 60 presets and 30 user presets 19" / RU
QSC PLD 4.5	1	4-Channel Amplifier with Onboard DSP Power: 4x 1250 W per channel at 4 ohm, 2x 2250 W per channel at 8 ohm, 1x 4200 W per channel at 4 ohm
QSC PL 380	2	Power amp, 19"/2HE, 2x 2500W/4 Ohm, 2x 1500W/8 Ohm, 2x 4000W/2 Ohm, sym. XLR Inputs, Speakon and Binding-Post Outputs
Lexicon MX 300	1	Lexicon MX 300 Multi-FX - 16 legendary Lexicon reverbs, delays & modulation effects, dbx compression and de-esser, quad-processor design, 5x effect routing options, 99 factory/99 user programs (stereo mode), Presets and parameters on VST plug-in controllable, MX-Edit editor/library software, one S/PDIF digital I/O, 24bit, 48kHz/44.1kHz sample rates, large front panel LCD display, MIDI in and thru, XLR in/outputs
Stairville PD-332 Power Distributor 32A	1	Stairville PD-332 Power Distributor 32A CEE, Tri-Phase Power Distributor. Professional made with digital, Volt- & Amp-Meter. Power Input:  1x 32A CEE, Power Output: 6x 16A EU socket, 1x 32A CEE socket, Protection circuit breaker on each phase, Additional circuit breaker for residual current Fi 32A 4 pole 0.03A,, Digital Voltage Meter and Amp-Meter for each phase on the front side. Made for 19" rack installations
SKB R6U Roto Rack	2	SKB R6U Roto Rack, 19" 6 U plastic rack with internal shockmount on all corners, rack depth 44,70 cm, two recessed handles, 8x Recessed latches, heavy duty black plastic housing, external dimensions: 609 x 569 x 335 mmm.
Accessories	set	(cables XLR-Patch 0,5m) included

Acasta configuratie de sistem PA poate fi folosita in combinatie cu foarte multe genuri de speakere, rezultand un sistem de amplificare cu 15000 W RMS si 30000 W in program, deci suficienta forta pentru evenimente cu pana la 600-800 de persoane. Speakerele pasive detinute trebuie astfel legate incat sa puteti obtine maximum de randament de la sistemul propus. Un exemplu standard ar cuprinde 4 subwoofere 2 x 18" fiecare avand 2000W RMS @4 Ohm care sa fie deservite 2 cate doua de cele doua puteri QSC PL380, si 4 speakere de banda larga de cate minim 1000W RMS@4 Ohm (sau 8 line-array passive 500-700W RMS@8Ohm fiecare) care sa fie deservite cate doua in paralel de cele 4 canale ale QSC PLD 4.5. Din mixerul digital Presonus StudioLive 32.4.2 AI (linkuit prin insertie cu Lexiconul care are si o superba functie De-Esser), semnalul in 2 cai pleaca catre procesorul de sistem Dynacord DSP 600 a carui 6 iesiri se distribuie astfel: 1 si 2 la QSC PLD 4.5, 3 si 4 la primul amp QSC PL 380, iar 5 si 6 la al doilea amp QSC PL 380. O solutie interesanta ar fi folosirea a doua suburi 2 x18" la primul QSC PL 380 si suburi 2x12" la al doilea QSC PL 380 pentru un "punch" mai prezent, avand grija ca din Dynacord DSP 600 crossoverarea sa se faca mai sus (@110-250Hz) pe canalele5,6, astfel incat mediile joase sa fie mai mult sustinute, lasand joasele curate in sarcina suburilo2 x18" profitand de avantajul celor 6 out ale Dynacord DSP 600 care va face si reglajul delay-ului intre acestea.

Toate produsele sunt importate din Germania si SUA, beneficiind individual de 3 ani garantie!!!

Detalii tehnice:

QSC PL 380, Power amp, 19"/2HE, 2x 2500W/4 Ohm, 2x 1500W/8 Ohm, 2x 4000W/2 Ohm, sym. XLR Inputs, Speakon and Binding-Post Outputs, Gnd-lift, Protections, fan, 11 kg, 35,6cm depth (from front mounting rails)

QSC PLD 4.5

4-Channel Amplifier with Onboard DSP

• Power: 4x 1250 W per channel at 4 ohm, 2x 2250 W per channel at 8 ohm, 1x 4200 W per channel at 4 ohm
• USB Port
• FAST Technology
• Input: XLR (f/m)
• Output: 6x NL4 Speak-On
• Format: 19" / 2 HE
• Weight: 11,8 kg

Presonus StudioLive 32.4.2 AI, Digital Mixer, 32-channel digital mixer with high-voltage Class A XMAX preamps, Dual Fat Channel signal processing on all 32 input channels and all buses, with 4-band parametric EQ, compressor, sophisticated gate with Key Listen and Key Filter (with side chain), limiter with variable threshold, and more lets you A/B two complete Fat Channel settings-like having two different Fat Channel settings at once on every channel and bus! Active Integration software suite includes Capture 2 with Virtual Soundcheck mode and remote StudioLive scene store/recall, Studio One Artist 2 with native Fat Channel plug-in and StudioLive scene compatibility, and Virtual StudioLive-AI with Smaart System Check Wizards and Spectra analysis on every channel and bus. StudioLive Remote-AI iPad control app and QMix-AI iPhone/iPod touch aux mix app (free on the Apple App Store) directly control the StudioLive AI mixer over your wireless network - optional WiFi-Router, 20 dedicated mix outputs for easy configuration: 4 subgroups, 14 analog auxiliary buses, and stereo main mix with mono sum. 4 stereo 32-bit digital effects processors with dedicated aux buses (two reverbs, two delays), 32 channel discrete XMAX mic preamps, line inputs, analog inserts, and direct outputs for flexible connectivity. High-end Burr-Brown DA/AD converters with 118 dB dynamic range, sixteen 31-band graphic EQs (insertable on main and aux outputs), 48-in/34-out FireWire s800 recording interface (24-bit, 44.1 and 48 kHz), compatible with Core Audio and ASIO (Mac/Windows). Dedicated Ethernet port and USB 2.0 port for included Wi-Fi LAN adapter for wired or wireless connection to an optional wireless router, 6 mute groups with All On/All Off and 6 user-assignable Quick Scene buttons. Optional Thunderbolt, Dante, and AVB connectivity. Dimensions (WDH): 80,21 x 54,13 x 17,82 cm, weight: 22,68 kg

Dynacord DSP 600

DSP Controller

• 2 in 6
• Analog and AES / EBU Inputs
• Full IRIS-Net control and configuration
• Ethernet and USB data Interface
• EQ and delay
• 60 presets and 30 user presets
• 19" / RU

Lexicon MX 300

Lexicon MX 300 Multi-FX - 16 legendary Lexicon reverbs, delays & modulation effects, dbx compression and de-esser, quad-processor design, 5x effect routing options, 99 factory/99 user programs (stereo mode), Presets and parameters on VST plug-in controllable, MX-Edit editor/library software, one S/PDIF digital I/O, 24bit, 48kHz/44.1kHz sample rates, large front panel LCD display, MIDI in and thru, XLR in/outputs. Dimensions: 19" x 1U. Weight: 2.6kg

SKB R6U Roto Rack

SKB R6U Roto Rack, 19" 6 U plastic rack with internal shockmount on all corners, rack depth 44,70 cm, two recessed handles, 8x Recessed latches, heavy duty black plastic housing, external dimensions: 609 x 569 x 335 mmm, weight 8,35 Kg,

Stairville PD-332 Power Distributor 32A

Stairville PD-332 Power Distributor 32A CEE, Tri-Phase Power Distributor. Professional made with digital, Volt- & Amp-Meter. Power Input:  1x 32A CEE, Power Output: 6x 16A EU socket, 1x 32A CEE socket, Protection circuit breaker on each phase, Additional circuit breaker for residual current Fi 32A 4 pole 0.03A,, Digital Voltage Meter and Amp-Meter for each phase on the front side. Made for 19" rack installations., Dimensions: 482 x 134 x 257 mm (LxHxW), Weight: 8,2 kg

Accessories (cables XLR-Patch) included.
