Club-Sound/Lighting-low cost-Solution

Pentru un club, sau discoteca cu dimensiuni moderate (aproximativ 150-200 persoane) va propunem o solutie low-cost, dar foarte eficienta atat din punct de vedere al sunetului obtinut, cat si al randamentului Fx-UV de lumina, imbinand atat discretia (ambientalul), cat si agresivitatea (jocul dinamic de lumini si efect-laser) necesare in serile de top atmosfera si totul perfect reglabil DMX-Wi-Fi, sau pre-programat. Prin achizitia acestui echipament complet, cu costuri reduse, prin intermediul magazinului stage-prolighting veti beneficia totodata de asistenta la instalare si programarea DMX oferita de tehnicienii nostri in functie de preferintele si locatia dvs. Tot ce lipseste e un DJ/MC bun, profesionist cu propria masa de mixaj care se cupleaza la sistemul activ de sunet pre-link-uit sub-uri-top-uri. Lighting-ul poate fi controlat, sau sincronizat atat prin modul sound, auto, DMX, partial si IR, iar UV-ul va creea ambianta si discretia atat de necesara unui club select, urmand ca ringul de dans sa fie apoi "strivit" de lumina Fx. De remarcat nu numai eficienta unui astfel de setup, dar si costurile reduse (minime) legate de consumul de curent gratie tehnologiei LED. Solutia propusa este cu atat mai atractiva cu cat nici puterea instalata nu este mai prejos. Cei 10000 W RMS, pot atinge fara probleme 20000W in program, fara ca speakerele made in Germany sa aiba de suferit. Fiabilitatea sistemului este excelenta. Acest sistem va functiona perfect zeci de ani, cunoscuta fiind si fiabilitatea tehnologiei LED. Practic, sub pragul de 10000 EU, ca investitie, este greu cateodata sa configurezi fie si numai setupul celor 10kW de sunet minim necesari pentru un club de marime medie. Iata ca solutia propusa de stage-prolighting gratie unui studiu de piata amanuntit vine in intampinarea clientilor fideli cu solutia completa :Sunet+Lumini!!!, cu o atentie deosebita directionata catre raportul calitate/pret - eficienta. Toate produsele sunt importate din Germania si beneficiaza individual de o garantie de 3 ani!!!

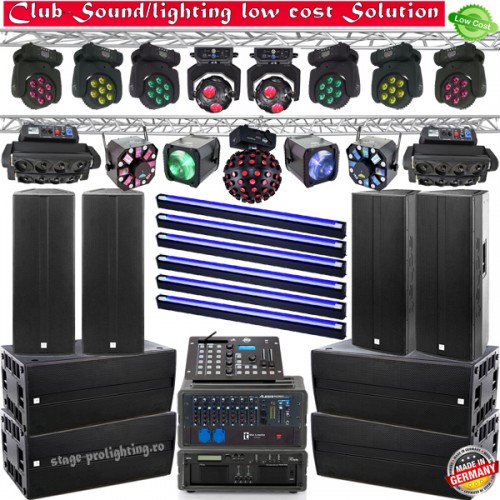

Setul dvs va contine:

Component	Nr Buc	Descriere sumara
the box pro TP218/1600	4	Professional Active Subwoofer - 2x 18" speakers, 4500 Watt Amplifier, 100dB SPL (136dB max)
the box pro Achat 215	4	passive 2x 15" woofer + 1.4" neodymium HF compression driver, 700W RMS @ 4 Ohms, 50Hz-16kHz, 132dB max SPL
ADJ Stinger II	2	High Output 3 FX in 1: Moonflower, Strobe and Laser effect with 6 x 5W (RGBAWP) HEX LED’s + 8 x 3W UV LED’s + Red & Green Lasers technology
Alesis Multimix 10 Wireless	1	19" Rack mixer with Bluetooth, 10 ch
The ADJ Starburst	1	LED sphere effect, 5x 15W (RGBAW+UV) HEX LEDs
Showtec LED Blacklight 120cm	6	120cm incl TL Unit, Voltage: AC 230V-50Hz, Power Consumption: 14W, LED: 410nm UV SMD LED
ADJ WiFly NE1, WiFly NE1	1	432 channel DMX Controller with ADJ’s WiFLY Transceiver Wireless DMX on-board. Control up to12 individual fixtures, 12 Memories via 2 Banks
ADJ Revo 4 IR	2	Produces unique and exciting LED patterns that may be projected on a wall, ceiling or dance floor - great with or without fog, 256 total 5mm LEDs : 64 Red, 64 Green, 64 blue and 64 White, 2 DMX Channel Modes
Spider laser moving bars	2	8 moving lasers in one, RGB
Balled moving Head	2	Sphere moving head LED RGBA, strobo incl, DMX
Accesories	1	set: DMX cables SET+XLR- cables SET
MS-101 Wash moving heads	6	7 x 18W RGBAW-UV LED Wash moving heads
the box pro Achat Amprack M	1	Rack PA configurat cu the t.amp TSA 4-700 Power Amplifier - 4x 810W / 4Ohm si the t.racks DS 2/4 - digital speaker management system, rack 3U inclus



the box pro TP218/1600 A Professional Active Subwoofer - 2x 18" speakers, 4500 Watt Amplifier, 100dB SPL (136dB max), Crossover Frequence variable, birch plywood enclosure, optional 100mm blue wheels available, 12x handles, 3-year warranty. Dimensions: 1200 x 550 x 680mm. Weight: 82kg. Colour: Black.

the box pro Achat 215 - 2x 15" woofer + 1.4" neodymium HF compression driver, 700W RMS @ 4 Ohms, 50Hz-16kHz, 132dB max SPL, 60° x 40° dispersion, Speakon connectors. Dimensions: 435 x 1200 x 450mm. Weight: 48.5kg, Engineered in Germany

Alesis Multimix 10 Wireless, 19" Rack mixer with Bluetooth, Convenient front panel jacks add versatility, Space-saving 3U rack mount  design is perfect for venues and mobile rigs, Bluetooth input-streaming with simple single-button pairing, Articulating Bluetooth antenna for optimum reception, 4 high-gain mic/line preamps with inserts, 2-band high and low shelving EQ on every channel, Pre-fader and post-fader aux sends; stereo aux return, incl. power supply, dimensions: 19" 3U

the t.racks 19"/2U rack power supply - front power switch, 6 rear sockets, 2 front safety sockets. depth: 8cm,Weight 2,75 Kg

Thon 6U economy double door rack - 4x locks, 45cm deep. Weight: 8kg.

Spiderlaser, 8 unit RGB lasers moving bars

the box pro Achat Amprack M contains: 1x the t.amp TSA 4-700 Power Amplifier 1x the t.racks Achat DSP 24 1x Thon 3U Case 1x 8-Way Powerstrip 1x Patchbay

the t.amp TSA 4-700 Power Amplifier - 4x 810W / 4Ohm, 4x 490 W / 8Ohm, 4x 930W /2Ohm,  2x 1600W / 8 Ohms, 2x 1800 W/ 4 Ohms bridged mode, XLR input and output, Speakon output. Dimensions: 19"/2U. Depth: 488 x 370 x 97 mm. Weight: 10,7 kg

the t.racks DS 2/4 - digital speaker management system, 2x input, 4x output (2x2-way, 3-way, 4-way, 2-way sub), 3x 24bit 48kHz DSP, frequency range 20-20,000Hz, 5 band parametric EQ, adjustable Q factor, alignment delay up to 7 ms / 2,404m, output gain and phase, RS232 connection, includes PC software, limiter per channel with adjustable attack, hold, decay and threshold, high pass and low pass per channel (6/12/18/24/48dB), XLR in/out, 19" 1U.

ADJ Stinger II, High Output 3 FX in 1: Moonflower, Strobe and Laser effect with 6 x 5W (RGBAWP) HEX LED’s + 8 x 3W UV LED’s + Red & Green Lasers technology produces color-changing beams of light, Dozens of razor sharp beams fill a dance floor, ceiling or wall, Using a 1.8 Degree Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music, 10 DMX Channels, 3 Operation modes: Sound Active, Master/Slave or DMX Controllable, Exciting built-in programs (Sound Active & Master/Slave modes), Produces 15 Preset Colors, Linkable via 3-pin XLR cable, 4-button DMX display on rear panel, Strobe & Pulse LED Effect, DMX-512 Protocol, Electronic Dimming: 0 - 100%, Runs extremely cool! - NO Duty Cycles! - Run all night!, IEC AC IN/OUT on rear to daisy chain power, Safety Loop on rear panel, Power Draw: 70W Max (Full On), Multi Voltage: 100V~240V, 50/60Hz, Long life LEDs (Rated at approximately 50,000 hours), Light Source: 6 x 5W RGBAWP (Red, Green, Blue, Amber, White & Pink) LEDs + 8 x 3W UV LED’s + Red & Green Laser, Dimensions (L x W x H): 304x230x98mm, Weight: 5kg,

The ADJ Starburst is a LED sphere effect that rotates to your music while shooting out super-sharp, multi-color beam effects. With a light source consisting of 5x 15W (RGBAW+UV) HEX LEDs, the Starburst provides access to a wider pallet of colors than previously possible, giving you the flexibility and creative scope to entrance your audience with unique hues and attention-grabbing effects. Specifications: Six Color Sphere LED effect light with very sharp and intense beams of light that bounce and rotate to the music. The 5 HEX-LEDs gives you a wide pallet of colors never possible before. 5x 15W RGBAW+UV (red, green, blue, amber, white and UV) HEX-LEDs, 3 Pin In/Out, Standalone or Master/Slave Setup, 3 Operational Modes: Auto Run, Sound Active, DMX control, Auto sound active mode; color, rotation, speed control via DMX, Strobe effect, Built-in microphone with sensitivity control, Power consumption : 55W, Dimensions (LxWxH): 12.5" x 12.5" x 16.25" / 318 x 318 x 412.5mm, Weight: 8 lbs. / 3,65 kg

Showtec LED Blacklight 120cm incl TL Unit, Voltage: AC 230V-50Hz, Power Consumption: 14W, LED: 410nm UV SMD LED, Max. ambient temp. ta: 25°C, Max. housing temp. tc: 55°C, Min. distance from flammable surfaces: 0.5m, Dimensions: 1222 x 99 x 45mm, Weight: 1,005 kg,

ADJ WiFly NE1, WiFly NE1. 432 channel DMX Controller with ADJ’s WiFLY Transceiver Wireless DMX on-board. (Can also be hard wired via 3 pin DMX cables), Designed for Inno Series and RGB, RGBW, RGBA, RGBWA and RGBWA+UV LED’s but can control most DMX products that consist of 36 channels or less, Built-in effects generator for moving lights and LED’s, Control up to12 individual fixtures, 12 Memories via 2 Banks, 4 Rotary Encoders for Channel & Function Control, Master Dimmer Fader Control, Strobe Rate Fader Control, 6 Mode buttons (Fixture, Color, Gobo, Effect, Show, & Pause), 12 Multi-Function buttons, Blackout button, Universal USB Port (USB Stick Included), Tech Specs: DMX output connector: 3-pin XLR, Power In: 9-12V DC min 300mA UL approved power supply (Included), Power consumption: 2.7 Watts, Size: 325 x 185 x 68.7mm, Weight: 2 kg,

ADJ Revo 4 IR, now includes wireless control options compatible with the UC-IR and Airsteam IR remotes (sold separately). The Revo 4 IR produces a matrix grid of 256 LEDs that creates dozens of different patterns as the red, green, blue and white LEDs are turned on and off and kick up the excitement for any type of party with or without the use of fog. The rear panel features a 4-button LED menu display, 3-pin DMX in/Out to link units together and IEC power In/Out to daisy chain the power from one fixture to another. LED DMX-512 Moonflower from the popular REVO Series with 256 razor sharp Red, Green, Blue & White Beams, Produces unique and exciting LED patterns that may be projected on a wall, ceiling or dance floor - great with or without fog, 256 total 5mm LEDs : 64 Red, 64 Green, 64 blue and 64 White, 2 DMX Channel Modes (4 Channel mode or 256 Channel mode), 4-Button LED DMX Display, Linkable via XLR connections, Wide beam spread covers a large area, 3 operation modes: DMX, Sound Active & Master/Slave, Sound active from built-in programs, Strobe function, Beam angle: 35 degrees, Runs extremely cool! - NO Duty Cycles! - Run all night! Includes hanging bracket & safety loop, Power Consumption: 34W maximum, Extreme long lifetime of the LEDs (50,000 hr. rating), Compatible with ADJ UC IR Remote and Airstream IR (sold Separately), IEC AC IN/OUT on rear to daisy chain power (up to 12 fixture’s @ 120V and 21 fixture’s @ 230V ), Multi-voltage Operation: AC 100-240V, 50/60Hz, Dimensions (LxWxH): 312 x 306 x 334 mm, Weight: 4.9 kg,
