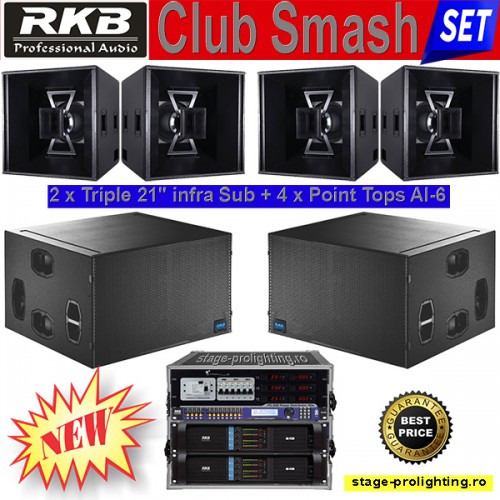

RBK Club Smah Set

RBK Club Smah Set este o solutie de sonorizare pentru cluburi medii. Cu o putere instalata de 20 kW poate fi o adevarata "baza de tratament" a celor care-si doresc un sunet cu adevarat tare si joase care sa te patrunda, gratie celor doua subwoofere Infra, fiecare avand cate 3 difuzoare de 21" care pot urca pana la 144 dB!! Pentru proprietarii de cluburi care doresc sa-si impresioneze clientii prin forta sunetului si in registrul medii-inalte, recomandam pe lanaga cele 4 top-uri point source AI-6 (varianta pasiva) si achizitia a catorva V-36, sau LA-212 care vor completa tabloul. Ce va mai trebuie?: o locatie fara geamuri, categoric se vor sparge! Garantie oferita echipamentului: 2 ani!! Produsele se importa numai cu plata integral anticipat. Asistenta la configurare si montaj. Pretul exprimat este doar pentru configuratia din imagine, incluzand si rack-ul cu amplificatoare si procesorul de sistem.

Detalii tehnice:

Model	INF-21
Components	2 x 21" front + 1 x 21" rear (VC: 152.4 mm ; Mag: 330.25 mm)
Frequency Response	27Hz - 90Hz(±3dB)
Sensitivity(1W/1M)	106dB
Maximum Peak SPL	144dB(Front); 141 dB(Rear)
Rated Power(RMS)	2400W(Front); 1200W (Rear)
Peak Power(PEAK)	9600W(Front); 4800W (Rear)
Impedance(Ohm)	4 ohm(Front); 8 ohm (Rear)
Connectors	1xNL4 Speakon
Enclosure Material	High-strength Plywood
Cabinet Finish	Germany Water Paint
Dimensions (W*D*H)	685 x 1180 x 1040 mm
Net. W.	150 kg



The Triple 21" passive subwoofer speaker challenging design comprises three 6 inch voice coil 21" transducers . A combined power handling of 3600 watts RMS and very high sensitivity result in foundation-cracking sub frequencies all the way down to 27Hz. Designed to work in conjunction, The Triple 21" passive subwoofer speaker has been tuned with all forms of dance music in mind. Lightning quick impulse response with low group delay and an 'in your face' style of presentation combine to make it an unforgettable experience.

It’s a total connection with the fundamental frequencies that give dance music its pulse – a connection only obtainable by entire submersion in the purest form of reproduction. The 18mm  plywood enclosure is equipped with one rear-mounted speakon NL4 connectors.

Features:



• Triple 21" passive subwoofer speaker, front: 2400W RATED/9600W PEAK POWER, Rear: 1200W RATED/ 4800W PEAK POWER.
• Voice Coil of the 21” driver is 6 inches. PHT voice coil wire inside and outside rounding and BAF voice coil bobbin, can endure high temperature.
• The cone papers and spiders are imported from UKM.
• Cardioid dispersion pattern avoids unwanted energy behind the system
• Greatly reduces the reverberant field at low frequencies, providing highest accuracy in low frequency reproduction
•  Selecting Hypercardioid mode in the amplifier optimizes the tuning of front and rear channels for a maximum rejection at the left and right sides behind the cabinet
• Wooden lid for front grill is provided, as well as wheels at the rear side is included.

AI-6 (passive variant Point source)

• 1.Components: 12"MF+3"HF
  2.Frequency Response(±3dB):55Hz-19kHz
  3.Sensitivity(SPL1W/1M):101dB
  4.Nominal Impedance:8Ω
  5.(AES):400W/
• 6.Peak Power:800W
  7.MAX SPL@1m:130dB
  8.Connector:2×Speakon NL4( +1/-1)
  9.Enclosure Material:High-strength plywood
  10. Cabinet finish Color:Germany water paint
  11.Dimensionns(W×D×H):580mm×620mm×580mm
  12.Weight:50Kg

Rack amplificatoare: 1xRKB FP 10000Q (4x1300)+ 1x RKB FP14000Q + DX48 + distribuitor sarcina Stairville PD-332, cabluri 4x 2,5 NL4 160m incluse.
