Descriere

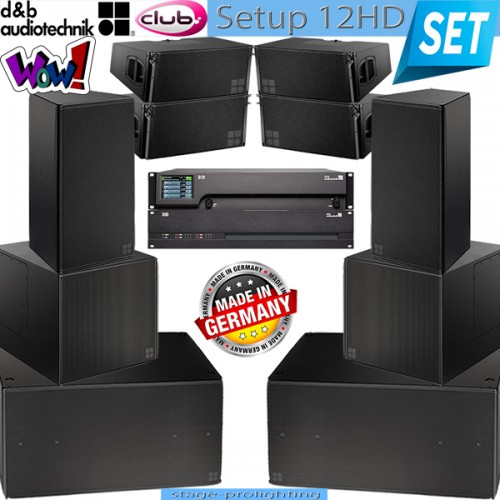

d&b Club Setup 12HD SET reprezinta o solutie totala de sonorizare a unui club cu pretentii, avand o putere configurabila @10 kW, dar nu asta este definitoriu pentru acest sistem, cat remarcabila calitate a sunetului care nu lasa loc niciunui compromis. O combinatie exclusivista de la 21" + 15” + 12” la subwooferee, plus 2 x 12”, 2 x 10”, 8” si driverele excelente ”orchestrate” de cele doua puteri cu DSP gata prefigurat D20 si D30, alaturi de reputatia producatorului, sunt tot atatea argumente ca nu se da gres cu un astfel de setup care acopera lejer o sonorizare indoor de pana la 1000 de persoane. Sistemul se importa numai cu pre-comanda. Pentru informatii legate de pret, modalitatea de livrare si detalii tehnice suplimentare va rugam sunati la magazin. Garantia oferita de stage-prolighting este de 3 ani, alaturi de asistenta tehnica la configurare si montaj care se face strict si personalizat cu software dedicat pentru locatia dvs. Aplicabilitatea de baza este intalatie fixa, dar poate fi folosita si in aplicatii rental. Pentru cluburi de forta recomandam inca un set de subwoofere, sau G-sub.
Detalii tehnice:
2 x 24S-D loudspeaker
The 24S-D is a high performance full range 2-way passive loudspeaker housing two 12" drivers in a bass-reflex enclosure with a 1.4" exit compression driver mounted onto a large rotatable CD horn, intended for a wide range of permanently installed applications. The 24S-D is the wider horizontal dispersion option of the 24S loudspeaker. The dipolar arrangement of the 12" drivers results in directivity control down to approximately 500 Hz in the same plane as the dipole. The specially designed ports with optimized flow characteristics and a large cabinet volume provide a significant low frequency reproduction.
With a frequency response extending from 55 Hz to 18 kHz, the 24S-D can be used as a stand-alone, full range system, or supplemented with d&b subwoofers. It can be ground stacked or flown individually. The rotatable HF horn can be rotated by 90° to enable horizontal orientation.
The loudspeaker cabinet is constructed from marine plywood, and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill. The top, bottom and both side panels each incorporate a pair of M10 threaded inserts for attaching d&b rigging hardware. The loudspeakers are Ball Impact Resistant according to DIN 18032-3 for sports and multipurpose halls. The Weather Resistant option enables the operation of loudspeakers in changing ambient conditions, and features a fixed cable. The 24S-D can also be supplied in any RAL colour. This Special Colour option can be provided for rigging accessories.
Architectural specifications
The 2-way dipolar, passive loudspeaker shall consist of two 12" low frequency drivers with a neodymium magnet assembly and one 1.4" exit neodymium compression driver mounted to a rotatable CD horn and a passive crossover network.
The loudspeaker shall only be operated by a dedicated, compatible controller amplifier.
The cabinet enclosure shall be made from marine plywood with an impact resistant black paint finish.
Special colours according to RAL table and a weather resistant option shall be available upon request.
The drivers shall be protected by a rigid metal grill backed by an acoustically transparent foam.
The cabinet shall incorporate two M10 threaded inserts on the top, bottom, side and rear panels for the secure attachment of dedicated mounting brackets.
The connection panel on the back shall be recessed and fitted with one speakon NL4 M socket and a two pole screw terminal block. A cover plate for protection of the connection panel shall be included.
The HF horn shall have a nominal dispersion of 110° x 45° (h x v).
The power handling capacity shall be 500 W RMS and 2000 W peak (10 ms). The frequency response (–5 dB) measured on axis shall be 55 Hz to 18 kHz with a maximum sound pressure of at least 137 dB.
The dimensions (WxHxD) shall not exceed 410 x 800 x 420 mm (16" x 31.5" x 16.5") and shall weigh no more than 33 kg (73 lb).
The loudspeaker shall be the 24S-D by d&b audiotechnik GmbH.
Data
|
System data |
|
|---|---|
|
Frequency response (–5 dB standard) |
55 Hz - 18 kHz |
|
Frequency response (–5 dB CUT mode) |
90 Hz - 18 kHz |
|
Max. sound pressure (1m, free field)1 |
|
|
Cabinets per amplifier channel |
1 |
|
Loudspeaker data |
|
|
Configuration |
Installation specific high performance full range 2-way loudspeaker with wide dispersion |
|
Nominal impedance |
4 Ω |
|
Power handling capacity (RMS/peak 10 ms) |
500/2000 W |
|
Nominal dispersion angle (h x v) |
110° x 45° rotatable |
|
Components |
2 x 12“ driver with neodymium magnet |
|
Connections |
1 x NL4 |
|
Dimensions, weight |
|
|---|---|
|
Dimensions (H x W x D) |
800 x 410 x 420 mm |
|
Weight |
33 kg |
D20 amplifier
The 2 RU four channel D20 amplifier is ideally suited to mobile and installation applications which require low to medium Sound Pressure Level (SPL) capabilities. The D20 features the same Digital Signal Processing (DSP) platform as the latest generation of d&b amplifiers, containing configurations for all d&b loudspeakers except the J-Series and the M2 monitor, plus a linear mode.
The signal delay capability enables user definable settings of up to 10 s (= 3440 m/11286 ft), which can be applied independently to each channel. The same applies to the two 16-band equalizers, providing optional parametric, asymmetric, shelving or notch filtering.
The D20 incorporates a colour TFT touchscreen, offering quick access to the menu structure, while the rotary encoder can be used for fine adjustment. The front panel and the integrated touchscreen are tilted up for easy operation when the amplifier is below eye level.
The equal ratio of signal input to amplifier output channels increases application flexibility particularly for monitor, frontfill or effect channel use. The LoadMatch function integrated within the D20 amplifier electrically compensates for the properties of loudspeaker cable used.
The D20 incorporates Class D amplifiers utilizing a power supply with active Power Factor Correction (PFC) suitable for mains voltages 100 V - 240 V, 50 - 60 Hz and maintains a stable output when used with weak or unstable mains supplies. An NL8 provides all outputs on a single connector for loudspeaker multicores. Dual channel mode is driven through four individual NL4 connectors, while Mix TOP/SUB and 2-Way Active mode output configurations for applicable d&b loudspeakers are available via two central NL4 connectors. etherCON and RJ 45 connectors enable access to the d&b Remote network through OCA via Ethernet and through CAN-Bus respectively.
Data
|
Controls and indicators |
|
|---|---|
|
POWER |
Mains power switch |
|
SCROLL/EDIT |
Digital rotary encoder |
|
Display |
Colour TFT touchscreen, 3.5"/320 x 240 pixel |
|
ISP, GR, OVL A/B |
Colour TFT |
|
Digital Signal Processing |
|
|
Equalizer |
2 x 16-band PEQ/notch/shelving/asymmetric |
|
Latency analog and digital inputs |
0.3 msec. |
|
Delay setting |
0.3 - 10000 msec. |
|
Configurations |
current d&b loudspeakers (except J-Series and M2 monitor) and linear mode |
|
Function switches |
d&b loudspeaker specific circuits |
|
Frequency generator |
Pink noise or Sine wave |
|
Sampling rate |
96 kHz/27 Bit ADC/24 Bit DAC |
|
Connectors |
|
|---|---|
|
INPUT ANALOG (A1 - A4) |
3 pin XLR female |
|
ANALOG LINK (A1 - A4) |
3 pin XLR male |
|
INPUT DIGITAL (D1/2, D3/4) |
3 pin XLR female AES 3 |
|
DIGITAL LINK (Output) |
3 pin XLR male |
|
Sampling Digital AES/EBU |
48 kHz/96 kHz |
|
Speaker outputs A/B/C/D |
NL4 |
|
Mix TOP/SUB / 2-Way Active output A/B and C/D |
NL4 |
|
4 Channel output |
NL8 |
|
CAN |
2 x RJ 45 parallel |
|
ETHERNET |
2 x etherCON®, 10/100 Mbit Ethernet |
|
Mains connector |
powerCON® |
|
Data (linear setting with subsonic filter) |
|
|
Maximum output power per channel (THD + N < 0.5%, all channels driven) |
4 x 1000/800 W |
|
S/N ratio (unweighted, RMS) |
> 104 dBr |
|
Power supply |
|
|---|---|
|
Type |
Universal range switch mode power supply with active PFC |
|
Rated mains voltage |
100 - 240 V, 50 - 60 Hz |
|
Dimensions, weight |
|
|
Dimensions (H x W x D) |
2 RU x 19" x 460 mm/18.1" |
|
Weight |
10.8 kg/23.8 lb |
Architectural specifications
The amplifier shall be four channel incorporating digital signal processors (DSP) to provide loudspeaker specific configurations and functions and dedicated protection circuits. It shall be equipped with digital and analog signal inputs as well as link outputs, remote control and monitoring capabilities via CAN-Bus or Ethernet (OCA). User interface shall be via a TFT color touch screen in conjunction with a digital rotary encoder and via remote.
Four input and input link connector shall be provided while two of the connectors shall be configurable for analog or digital (AES3) audio signals.
Analog inputs shall be electronically balanced with an input impedance of 38 kOhm while the analog link output is linked in parallel to the analog input connector.
The digital inputs shall be transformer balanced with an input impedance of 110 ohm while the digital link output shall be electronically balanced providing analog signal buffering (refresh) and power fail relay (Bypass). Sampling shall be 48 / 96 kHz / 2 Ch/n and Word-Sync: PLL-locked to source (slave mode) synchronization.
Signal processing shall utilize 96 kHz sampling rate with 27 Bit ADC / 24 Bit DAC conversion while the latency shall not exceed 0.3 msec.
The output connector options shall be 4 x NL4 for dual channel mode and 2 x NL4 for mixed top/sub and/or 2-way active modes. A four channel out connector (NL8) shall be provided for loudspeaker multicore purposes.
Output configurations shall be selectable for dual channel, mixed top/sub and 2-way active modes.
It shall incorporate two user definable 16-band equalizers for independent application to each channel allowing parametric filters, notch, hi- and lo- shelve filters as well as asymmetric filters.
A signal delay capability of up to 10 sec. (3440 m / 11286 ft) shall be incorporated for independent application to each channel.
It shall contain a signal generator offering pink noise or sine wave program.
Load monitoring and System check functions shall be included to ascertain the status of the loudspeaker impedance. Load monitoring shall allow impedance monitoring to determine the status of an LF or HF driver in systems with multiple elements, even if these are crossed over passively.
Input monitoring shall be included to allow detection of incoming pilot signals.
Compensation for cable length shall be incorporated to improve impulse response.
A Fallback function shall be available to enable the definition of primary (Regular) and secondary (Fallback) signal paths for analog and digital input signals with two different modes (Manual or Auto). It shall ensure that any secondary or emergency signal fed to the Fallback inputs is transmitted when required.
The Override function shall be available to allow a dedicated analog input to be set as a major signal path with highest priority for general messages or emergency services.
An AutoStandby function shall automatically switch the amplifier to Standby mode after a predefined time when the incoming signal level at the individually specified inputs drops below a defined threshold. The function shall be independent of the mute status of the respective channels. An AutoWakeup function shall automatically repower the amplifier, when an input signal is present and exceeds a defined threshold.
A universal range switched mode power supply shall be incorporated and allow mains range of 100 to 240 V AC, 50 - 60 Hz mains power supply voltages. Mains voltage monitoring, mains inrush current limiter, self-resetting overtemperature, under- and overvoltage protection shall be incorporated.
Power factor compensation (PFC) shall be incorporated to provide a clean and efficient sinusoidal current draw.
It shall have temperature and signal controlled fans for cooling the internal assemblies.
The power amplifier channels shall have ground fault protection, output pop-noise suppression, DC offset protection, output HF voltage limitation, output current limitation/protection and self-resetting overtemperature protection.
The output power shall be 4 x 1000/800 W into 4/8 ohms at a crest factor (CF) of 6 dB, all channels driven.
Damping factor (20 Hz – 200 Hz into 4 ohms) shall be >80 while the S/N ratio (unweighted, RMS) shall be >104 dBr (analog input) and >106 dBr (digital input).
The dimensions (HxWxD) shall not exceed 2RU x 19" x 460 mm (2RU x 19" x 18.1") and shall weigh no more than 10.8 kg (23.8 lb).
The amplifier shall be the D20 by d&b audiotechnik GmbH.
2 x 27S subwoofer
The 27S-SUB is a compact high performance cardioid subwoofer powered by a single amplifier channel and is for use with the xS-Series and xA-Series loudspeakers. The cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear. It can be used stand-alone, stacked or individually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.
Data
|
System data |
|
|---|---|
|
Frequency response (–5 dB standard) |
40 - 140 Hz |
|
Frequency response (-5 dB 100 Hz mode) |
40 - 100 Hz |
|
Max. sound pressure (1m, free field)1 |
128 dB |
|
Cabinets per amplifier channel |
2 |
|
Loudspeaker data |
|
|
Configuration |
Installation specific cardioid subwoofer |
|
Nominal impedance |
6 Ω |
|
Power handling capacity (RMS/peak 10 ms) |
500/2000 W |
|
Components |
15" driver with neodymium magnet front |
|
Connections |
2 x NL4 |
|
Dimensions, weight |
|
|---|---|
|
Dimensions (H x W x D) |
490 x 580 x 700 mm |
|
Weight |
41 kg |
Architectural specifications
The loudspeaker shall be an integrated cardioid subwoofer consisting of a 15 driver in a bass-reflex design radiating to the front
and a 12 driver in a two chamber bandpass design radiating to the rear, with both drivers to be powered by a single amplifier channel.
The enclosure shall be made from marine plywood with an impact resistant black paint finish.
Special colours according to RAL table and a weather resistant option shall be available upon request.
The drivers shall be protected by a powder coated metal grill with an acoustically transparent foam.
The cabinet shall be Ball Impact Resistant for schools and sports halls.
The cabinet shall incorporate two M10 threaded inserts on each side panel for the secure attachment of brackets.
The connection panel on the back shall be recessed and fitted with two NL4 sockets and a two pole screw terminal block.
A cover plate for protection of the connection panel shall be included.
The loudspeaker shall only be operated by a dedicated, compatible controller amplifier.
The power handling capacity shall be 400 W RMS and 1600 W peak (10 ms).
The frequency response (-5 dB) measured on axis shall be 40 Hz to 140 Hz with a maximum sound pressure of at least 128 dB or 131 dB respectively
when operated with one of its dedicated controller amplifiers.
The dimensions shall not exceed 580 x 490 x 700 mm (WxHxD) and shall weigh no more than 41 kg (90 lb).
The loudspeaker shall be the 27S-SUB by d&b audiotechnik GmbH.
2 x 21S subwoofer
The 21S-SUB is a high performance subwoofer for use with the xS-Series and xA-Series loudspeakers and is intended for a wide range of permanently installed applications. The cabinet houses a single long excursion 21" driver in a bass-reflex design. The large, specially shaped reflex port enables the 21S-SUB to achieve high Sound Pressure Levels from a cabinet with a small footprint.
When operated in INFRA mode, the 21S-SUB can be used to complement other d&b subwoofers by extending the frequency response of the system down to 33Hz. The 21S-SUB can ground stacked or flown in either orientation. It can be flown individually or in a cluster of two cabinets.
The enclosure is constructed from marine plywood with an impact resistant black paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top, bottom and rear panels each incorporate a pair of M10 threaded inserts for attaching d&b rigging hardware. The Weather Resistant option enables the operation of loudspeakers in changing ambient conditions, and features a fixed cable. The 21S-SUB can also be supplied in any RAL colour. This Special Colour option can be provided for rigging accessories.
Data
|
System data |
|
|---|---|
|
Frequency response (–5 dB standard) |
35 - 105 Hz |
|
Frequency response (–5 dB INFRA mode) |
33 - 85 Hz |
|
Max. sound pressure (1m, free field)1 |
|
|
Cabinets per amplifier channel |
1 |
|
Loudspeaker data |
|
|
Configuration |
Installation specific high performance subwoofer with compact footprint |
|
Nominal impedance |
4 Ω |
|
Power handling capacity (RMS/peak 10 ms) |
650/2600 W |
|
Components |
21" driver with neodymium magnet |
|
Connections |
1 x NL4 |
|
Dimensions, weight |
|
|---|---|
|
Dimensions (H x W x D) |
1100 x 580 x 526 mm |
|
Weight |
54 kg |
30D amplifier
The 2 RU, four channel 30D amplifier is designed for permanent integration with applications that require medium to high Sound Pressure Level (SPL) capabilities. This device contains extended input management functionalities with separate Input Gain control for each input channel, General Purpose Inputs/Outputs (GPIO) and a General Fault connector. Enhanced system status monitoring functions such as Input and Load monitoring ensure suitability in an emergency situation.
The 30D shares the same Digital Signal Processing platform as the latest generation of d&b amplifiers, providing configurations for all d&b loudspeakers as well as a linear mode.
The DSP integrated within the 30D incorporates comprehensive loudspeaker management, switchable filtering functions as well as user definable equalization and delay capabilities. This includes two 16-band equalizers, providing optional parametric, asymmetric, shelving or notch filtering and up to 10 s (= 3440 m/11286 ft) signal delay, all of which can be applied independently to each channel.
The 30D is accessible via the d&b Remote network, either via Ethernet using the Open Control Architecture protocol (OCA) or CAN-Bus using RJ45 connectors. The 30D is controlled using the integrated web interface, which enables access via a browser, or using the d&b R1 Remote control software. The device itself contains LEDs to display power, input, data and mute status.
The LoadMatch function integrated within the 30D amplifier electrically compensates for the properties of loudspeaker cable used. The 30D incorporates Class D amplifiers utilizing a power supply with active Power Factor Correction (PFC) suitable for mains voltages 100 V/127 V, 50 – 60 Hz and 208 V/240 V, 50 - 60 Hz and maintains a stable output when used with weak or unstable mains supplies. Input and output connectors are all Euroblock sockets.
Data
|
Controls and indicators |
|
|---|---|
|
POWER |
Mains power switch (rear panel) |
|
ISP, GR, OVL A/B |
LED indicators |
|
Digital Signal Processing |
|
|
Equalizer |
2 x 16-band PEQ/notch/shelving/asymmetric |
|
Latency analog and digital inputs |
0.3 msec. |
|
Delay setting |
0.3 msec. - 10 sec. |
|
Configurations |
current d&b loudspeakers and linear mode |
|
Function switches |
d&b loudspeaker specific circuits |
|
Frequency generator |
Pink noise or Sine wave 10 Hz - 20 kHz |
|
SRC (Sample rate converter) |
Selectable for AES 1/2 and 3/4 |
|
Sampling rate |
96 kHz/27 Bit ADC/24 Bit DAC |
|
Connectors |
|
|---|---|
|
INPUT ANALOG (A1 - A4) |
3-pin Phoenix Euroblock male |
|
ANALOG LINK (A1 - A4) |
3-pin Phoenix Euroblock male |
|
INPUT DIGITAL (D1/2, D3/4) |
3-pin Phoenix Euroblock male, AES3 |
|
DIGITAL LINK (Output) |
3-pin Phoenix Euroblock male |
|
Sampling rate |
48/96 kHz / 2 Ch/n |
|
Sampling Digital AES/EBU |
48 kHz/96 kHz |
|
Speaker outputs A/B/C/D |
2 x 4-pin Phoenix Euroblock female |
|
Mix TOP/SUB / 2-Way Active output A/B and C/D |
2 x 4-pin Phoenix Euroblock female |
|
GPIO (General Purpose Input Output) |
1 x 6-pin Phoenix Euroblock male |
|
General Fault |
1 x 3-pin Phoenix Euroblock male |
|
CAN |
2 x RJ 45 parallel |
|
ETHERNET |
2 x RJ 45, 10/100 Mbit Ethernet |
|
Mains connector |
powerCON® |
|
Data (linear setting with subsonic filter) |
|
|
Maximum output power per channel (THD + N < 0.5%, all channels driven) |
4 x 1000/800 W |
|
S/N ratio (unweighted, RMS) |
> 104 dBr |
|
Power supply |
|
|---|---|
|
Type |
Universal range switched mode power supply with active power factor correction (PFC) |
|
Rated mains voltage |
100 to 240 V, 50 – 60 Hz |
|
Dimensions, weight |
|
|
Dimensions (H x W x D) |
2 RU x 19" x 435 mm/17.1" |
|
Weight |
10.6 kg / 23.4 lb |
4 x V12 loudspeaker
The V12 is a 3-way passive design housing 2 x 10" LF drivers, one hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 120° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in columns of purely V12 loudspeakers or combined with V8s and / or with V-SUBs. The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.
Data
|
System data |
|
|---|---|
|
Frequency response (–5 dB standard) |
67 Hz - 18 kHz |
|
Frequency response (–5 dB CUT mode) |
100 Hz - 18 kHz |
|
Max. sound pressure (1m, free field)1 |
139 dB |
|
Cabinets per amplifier channel |
2 |
|
Loudspeaker data |
|
|
Configuration |
High performance 3-way passive line array loudspeaker |
|
Nominal impedance |
8 Ω |
|
Power handling capacity (RMS/peak 10 ms) |
500/2000 W |
|
Nominal dispersion angle (horizontal) |
120° 13 |
|
Splay angle settings |
0° - 14° (1° increment) |
|
Components |
2 x 10" driver / 1 x 8" driver |
|
Connections |
2 x NLT4 F/M |
|
Dimensions, weight |
|
|---|---|
|
Dimensions (H x W x D) |
310 x 700 x 460 mm |
|
Weight |
34 kg |
Architectural specifications
The 3-way dipolar, passive loudspeaker shall consist of two 10" low frequency driver with a neodymium magnet assembly, one 8" mid range driver and two 1.4" exit neodymium compression drivers with 2.5" diaphragms mounted to a dedicated wave shaping device and a passive crossover network. The loudspeaker shall only be operated by a dedicated, compatible controller amplifier.
The cabinet enclosure shall be made from marine plywood with an impact and weather protected PCP (Polyurea Cabinet Protection) finish.The drivers shall be protected by a rigid metal grill backed by an acoustically transparent foam. The cabinet shall incorporate one handle in each side panel and two additional recessed grips at the rear bottom.The cabinet shall incorporate a three point rigging system for the assembly of vertical line source arrays of up to 24 cabinets in conjunction with a dedicated flying frame.
The connection panel on the back shall be recessed and fitted with speakon NLT4 F/M sockets (NL4 M or EP5 connectors as an option).
The loudspeaker shall have a nominal horizontal dispersion angle of 120°. The vertical dispersion angle of the assembled array shall be determined by the geometry of the splay angles between the cabinets, which shall be adjustable in a range of 0° to 14° in 1° increments.
The power handling capacity shall be 500 W RMS and 2000 W peak (10 ms). The frequency response (–5 dB) measured on axis shall be 67 Hz to 18 kHz with a maximum sound pressure of at least 139 dB.
The dimensions (WxHxD) shall not exceed 700 x 310 x 406 mm (27.5" x 12.2" x 18") and shall weigh no more than 34 kg (75 lb).
The loudspeaker shall be the V12 by d&b audiotechnik GmbH.
Opinii (0)
Spune-ţi opinia
Numele tău:Opinia ta: Notă: Codul HTML este citit ca şi text!
Nota: Rău Bun
Introduceţi codul din imagine:
