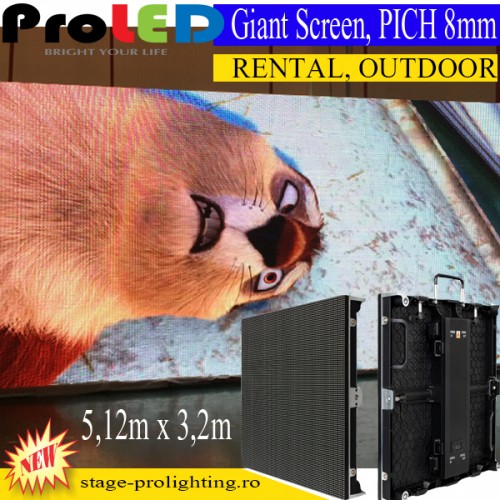

ProLED Outdoor Giant LED Screen, PICH 8mm, Rental

ProLED Outdoor Giant LED Screen, PICH 8mm, Rental

Producător: ProLED Optoelectronic
Cod produs: ProLED Outdoor Giant LED Screen, PICH 8mm, Rental
Disponibilitate: pre-comanda
141.120,00 RON TVA inclus
Pret: 27.659,52€
VAT Incl.

Descriere

ProLED Outdoor Giant LED Screen, PICH 8mm, Rental

Product Model

P8 outdoor rental panel



display size (m)

5.12 (w ) × 3.2 (H )= 16.384



display Resolution (pixels)

640(w ) × 400(H )= 368640



cabinet quantity (PCS)

8 (w ) × 5 (w ) × 40

Outdoor, Rental

Total LED display sq.m

16.384 ㎡



Configuratie:

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

17

18

19

20

21

22

23

24

32

31

30

29

28

27

26

25

33

34

35

36

37

38

39

40

Componente:

Cabinets

PICH 8mm

640mm x 640mm

brightness 7000nit

Control System

Novastar--Sending Card with box, 1 pcs

Novastar--Receiving Card , 40 pcs

Free Software included, videoprocesor

Hanging Bars, 8 pcs

Flight Cases, 5 pcs

Power distributor, 1 pcs

Videoprocessor LVP603

Extra Rx cards, 2 pcs

Spare parts , 1 set

Extra modules, 6 pcs

Extra Powersupply,1 pcs



Module

Dimensions (w x h) 320mmx160mm Resolution (w x h) 40x20

Pixel pitch 6.67mm Pixel Density 15625/㎡

LED type SMD Pixel Configuration 1R,1G,1B

LED Panel

Dimensions(w x h ) (mm) 640x640 Module Quantity 8

Physical Resolution

(w x h) 80x80 Physical Pixels (total) 6400

Weight/Panel (kgs) 13 Material Die-cast aluminum

Max PowerConsumption 600(W/m2) Avg PowerConsumption 190(W/m2)



Parameter



Brightness 7000cd/㎡

Viewing Angle Horizontal:130 deg. Vertical: 130deg.

Service Back

Brightness Control Auto/Programmable/Manual

Gray scale 16 bit

Refresh frequency 2000 Hertz

Driving mode Dynamic scan, constant current driving

Input power frequency 50 or 60 Hertz

Input Voltage 110 ~ 240 Volt

Lifetime at 50% brightness 100000 hours

Operating environment T e m p e r a ture: -20℃-50℃; Humidity: 10%-90%RH

Control distance CAT5 cable:<100 m; Single mode fiber:<10 km

Signal input format A V , S-Video, VGA, DVI, YPbPr, HDMI, SDI

Operating system Windows (2000/XP/Vista/windows 7)
