Descriere

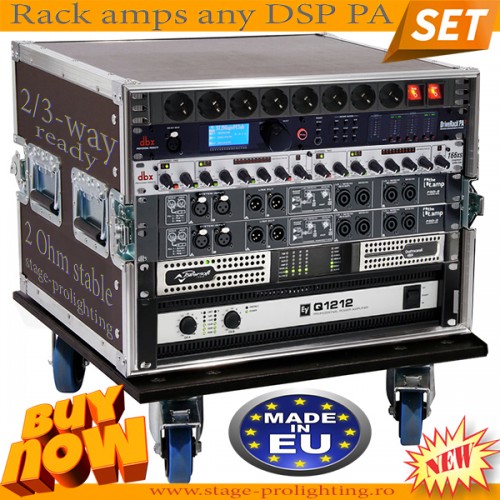

Rack Amps any DSP PA este un rack de amplificare universal gata configurat foarte flexibil, usor adaptabil oricarui sistem PA care are nevoie de DSP pe 2, sau 3 cai, compresie si limitare pe joase si o buna distributie a mediilor si inaltelor in top-urile pe care le detineti. Poate fi folosit cu succes atat la PA-urile standard, cat si la configurarile line-array. Distributia frecventelor se face din start pe 2, sau 3 cai (in functie de speakere-le detinute) din dbxPA2 folosind unul din preseturile dedicate (care pot fi apoi post-editate in functie de preferintele dvs si caracteristicile tehnice ale speakerelor si sub-uri, astfel incat daca se alege varianta pe 3 cai, cele doua iesiri low vor fi dedicate suburilor fiind trimise prin intemediul dbx 166XL catre EV1212, iar iesirile din dbxPA2 MID si HI (cu MID +1/-1, respectiv HI +2/-2) directionate catre Powersoft 4804. In panel 1, iesirile A,B,C,D vor fi cuplate cate doua in mufele speakon 4NLC (bi-amp) , iar intrarile link-uite, avand grija sa fie folosite mufele din fata (A+B, respectiv C+D), iar Powersoft 4804 va fi setat in bridge, astfel obtinandu-se cele 3 cai: una pentru subur (+1/-1 in panel 2) si bi-amp pentru top-uri (in care +1/-1 este rezervat MID, iar +2/-2 Hi). Daca sunt folosite sub-uri cardio se foloseste aceeasi reteta si pentru panel2 ca la panel 1.Pentru o mai buna compactizare a sunetului recomandam un delay in Powersoft 4804 de 14ms, iar senzitivitatea intrarii la -4dB. O compresie 2:1 cu thresold mic si o limitare de 25% va conferi sub-urilor un punch suplimentar si mai multa inteligibilitate.
Setul dvs se compune din:
Produs |
Nr buc |
Functie |
Adam Hall 874716 |
1 |
19" Power Strip |
DBX DriveRack PA2 |
1 |
Procesorul manageent de sistem |
DBX 166 XS |
1 |
Compresor Limitator dedicat joaselor |
the t.amp PSD-2 |
2 |
Connection Panel, primul dedicat top-urilor |
Powersoft 4804, 4 canale |
1 |
Amplificator dedicat top-urilor (modulelor) |
EV Q1212 |
1 |
Amplificator dedicat joaselor ( ptr subwoofere) |
Thon rack 8u |
1 |
Hard case |
XLR-XLR-Patch |
SET |
Cablaj intern XLR-XLR |
Intreg setul, gata configurat intern se importa din Germania in numai5 zile cu plata integral anticipat prin transfer bancar si are o garantie de 3 ani. Doritorii vor putea beneficia de suportul tehnic oferit de tehnicienii nostri pentru asistenta la setari-le dvs DSP specifice.
Detalii tehnice produse:
DBX 166 XS
Compressor / Gate / Limiter
- Variable attack and release times
- Excellent dynamic control
- Inputs and outputs: XLR and 6.3 mm
- Side chain insert (6.3 mm jack)
- Stereo or dual mono operation possible
- Built size: 19 " / 1U
- Informatii aditionale
Compressor |
Yes |
Gate |
Yes |
Peak Limiter |
Yes |
2-Channel Unit |
Yes |
Attack/Release Adjustable |
Yes |
Thon Rack Live 50 8U
19" Standard Case
- Made of 7mm birch plywood
- 8 Different heights
- 2 Lids
- 4 Medium sprung butterfly latches
- 4 Folding handles
- 25/25 mm Aluminium frames
- Infinitely adjustable aluminum rail with rubber insert
- Incl. screw set
- 4 Rubber feet
- Medium steel ball corners
- Usable depth: 50 cm
- Dimensions (WxHxD): approx. 550 x 416 x 634 mm
- Weight approx. 12.6 kg
- Made in Germany
- Colour: Phenol brown
Informatii aditionale
Formfactor |
19" |
Construction Type |
Double-Door |
Vertical Height Units |
8 U |
Usable Depth in mm |
500 mm |
Horizontal Height Units |
0 U |
with display stand |
No |
Rack rail at the back |
No |
Service flap |
No |
With Wheels |
No |
Trolley |
No |
Clasps |
Butterfly |
Material |
7mm Plywood |
Colour |
|
Adam Hall 874716 Power Strip 1 U 19"
19" Power Strip
- A total of 16 outlets, each with 8 outlets on the front and back
- With overvoltage protection
- Single on / off switch for front and back
- Operating voltage: 250 V
- Maximum current: 16 A
- Material: Aluminum
- Cable length: 2 m
- Dimensions (W x H x D): 485 x 44 x 126 mm
- Weight: 1.40 kg
- Colour: Black
Informatii aditionale
Input |
Power Link Cable |
Shockproof Sockets |
16 |
CEE16A Dosen |
0 |
CEE32A Sockets |
0 |
Other Connectors |
- |
Loadability |
16 A |
Circuit Breaker |
No |
Fuse(s) |
None |
Switch |
Yes |
Rack format |
Yes |
Mounting height |
1 U |
the t.amp PSD-2 Connection Panel
Connection panel
- 1U Panel
- 2x XLR input / output
- 4x Speaker twist outputs
- 4-Section cable system
- Connector cable length: approx. 50 cm
- 1.5 mm² Speaker cable
EV Q1212
Power Amp
- 2x 1200 W/ 4 Ohm
- 2x 750 W/ 8 Ohm
- 2x 1800 W/ 2 Ohm
- 1x 2400 W/ 8 Ohm bridge
- 2 Ohm compatible
- Connectors: symmetrical XLR in/ out, speaker twist out, ground lift
- Limiter
- LPN filter (low pass notch) protection
- Temperature switch-off
- DC protection
- Fan
- Weight: 17.7 kg
- Dimensions: 483 x 88.1 x 421.5 mm; 19", 2 RU
- 3-Year warranty
Informatii aditionale
Power (4 Ohms) per Channel |
1200 W |
Channels |
2 |
Rack Units |
2 U |
2 Ohm stable |
Yes |
DSP/Frequency |
No |
Convection cooling |
No |
DBX DriveRack PA2
Digital Loudspeaker Management System
- 31-Band graphic equalizer
- Parametric 8-band EQ input with auto EQ function limiter
- Crossover network
- Compressor
- Subharmonic synthesizer
- Output delay to 3.4 m/10 ms
- Input delay to 34 m/100 ms
- Feedback-oppressor with 12x notch filters 1/80 oktave
- Parametric 8 band output EQ for speaker tuning
- 3rd-Band real time analyser
- Pink noise generator
- Remote control via MAC/Windows/Android/iOS
- 2 Inputs XLR
- 1 Input XLR with 48 V phantom power for optional measuring microphone
- 6 Outputs XLR male
- Ethernet connection
- USB connection
- Format: 19" / RU
Informatii aditionale
EQ |
Yes |
Delay |
Yes |
Limiter |
Yes |
Number of inputs |
2 |
Number of outputs |
6 |
Computer Remote |
Yes |
RTA Connector |
Yes |
Number of Rack Units |
1
|
Powersoft Quattrocanali 4804 DSP+Dante Amplifier
The amplifier shall be a four-channel model with a switch mode power-supply with power factor
correction, smart rail management and bridgeable switch mode fixed frequency class D output
circuit topology. The amplifier shall operate from 100 V - 240 V, -10% / +10% 50/60 Hz, universal
AC input power with minimum voltage for power up at 90 V and shall draw 826,8W (5,02A @
230V) or 850 W (9,16A @ 115V) when driven with pink noise signal at 1/8 of rated power into
4-ohm loads. The power supply of the amplifier will integrate Power Factor Correction (PFC), in
order to minimise interference with the electrical grid.
The amplifier shall be provided with an IEC C20 main detachable connector and power cord set
with IEC C20 connector on amplifier side and Schuko plug for EU and 3 Pin American plug on
the other. The amplifier shall have internal heat sinks cooled by a continuously variable speed fan
with a Microprocessor Temperature Control. Air flow shall be from front to rear. The amplifier shall
be able to drive low impedance loads (2/4/8 Ohm) and 70V/1 00V distributed lines selectable per
channel by using dipswitch settings at the rear panel of the amplifier. Furthermore, it shall be able
to provide more than 32 different possible output configurations (lo-Z, hi-Z, bridge mode, parallel
mode, and combinations of these).
The amplifier shall have Energy save capabilities that can be activated for each channel pair. In
energy save mode, the Amplifier shall enter a low power consumption idle state when no signal
activity is detected for more than 4 seconds. Normal operation shall be resumed in a matter of
milliseconds when an incoming signal is detected on the channel pair. In energy safe mode, the
power consumption shall not exceed 21 W @ 230V or 20W @ 115V (0,57A @ 230V or 0,47A @
115V). In Idle mode, the amplifier shall not absorb more than 33,7 W @ 230V or 33,6 W @ 115V
(0,35 A @ 230V or 0,5A @ 115V). Thermal dissipation of the amplifier will not exceed 768,1 BTU/h
(@230 Volt) and 853,5 BTU/h (@110 Volt) when at 4 Ohm at 1/8 of maximum power.
The amplifier shall contain a DSP board for real-time audio processing not exceeding a 2.5 ms
fixed latency architecture. As part of the DSP the amplifier will offer a 4 x 4 matrix for all analogue
and digital inputs. Integrated in the DSP will be filters per channel offering raised-cosine, custom
FIR, parametric IIR, peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass filters and
a crossover linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR).
For time alignment the DSP in the amplifier will offer Delay 2 s (input) + 100 ms (output). The
limiters in the DSP will contain TruePower™, RMS voltage, RMS current and Peak limiters. Active
DampingControl™ and LiveImpedance™ measurement will be part of the DSP.
The internal memory of the amplifier will contain of predefined pre-sets with cross-over settings
and will allow for more than 200 users pre-sets and snapshots to be stored.
The amplifier will offer pilot tone sensing on all inputs and outputs, redundant input switch over, pilot
tone back up strategy with delay compensation, output load monitor and output load detection.
Network audio expansion shall be provided by the Dante protocol with a capacity of 4 input
channels.
Connectors shall be gigabit RJ45 utilizing CAT6 cable.
Remote control and monitoring of the status of the amplifiers shall be provided by an RJ45 port
separated from the Dante port.
The amplifier shall be equipped with remote On/off contacts and gain selection switches which
will allow the amplifier to operate with 26,29,32 and 35 dB gain applied to the input signal. The
amplifier shall implement HPF filter to either 35 Hz or 70 Hz configurable per channel.
The amplifier system shall implement triggering signals to broadcast alarms by providing a pair
of paralleled general purpose output connections per channel: one Normally Open (NO) and one
Normally Closed (NC). The GPO contacts will be used to report potentially dangerous faults or
generally unsafe operation conditions by toggling alarm switches relative in case of no AC mains,
thermal stress , short circuit in output wiring, amplifier is in Standby and any fault preventing the
normal operation of an output channel
The amplifier shall offer remote level adjustment for each output channel. For ease of work the
amplifier will offer a CH1 Master setting that will allow remote control channel one to control the
volume for all of the channels of the amplifier.
The amplifier shall have a synchronized off-on muting, acting for four seconds after turn-on and
within 500mS after turn-off or loss of AC power. Each channel shall have DC protection in order
to protect against infrasonic signals and very low frequencies at the output stage that could
damage loudspeakers. Each channel shall have VHF protection in order to protect loudspeakers
from strong, very high frequency signals. Each channel shall have circuitry to protect against short
circuits or other stressful output circuits events. Each channel shall an independent clip limiter in
order to prevent severely clipped waveforms from reaching the loudspeakers, whilst maintaining
full peak power. Each channel shall have long term limiters in order to protect loudspeakers
against non-musical signals such as sine waves, feedback signals etc.
The amplifier shall contain a module which shall connect the amplifier to 100Mbps Ethernet
networks, allowing it to be remotely controlled and monitored via proprietary software running
on an external PC
The amplifier front panel shall provide ON LED and STANDBY LED, Armonía ID push button,
Soft Reset push button, Hard Reset push button, Self-Check function, Status LED strip, LED
signal metering per channel, level potentiometer per channel, power push button and a UART
port reserved for servicing.
The amplifier rear panel shall provide AC mains connector, Phoenix output connectors, Phoenix
line input connector, Phoenix GPI connector, Phoenix GPO connector, Phoenix, RJ45 Ethernet
connector, RJ 45 Dante connector, System configuration dip switches and output configuration
