Renkus-Heinz Qube BRK- Qube RUT-Crest SET

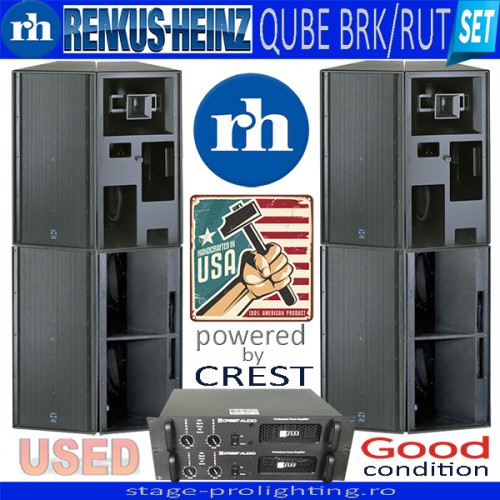

Renkus-Heinz Qube BRK- Qube RUT-Crest SET se compune din 4 top-uri, 4 sub-uri de mare performanta si doua rack-uri de amplificare Crest PA 360. Sistemul este folosit, dar in perfecta stare de functionare, fiind fabricat in USA si importat din Europa. Acest sistem la un SPL mazim de 137 dB are nu mai putin de 9000 W RMS, dar si la 18000W continuus rezista fara probleme fiind extrem de performant. Sunetul este clar, curat, patrunzator, gratie celor 8x15"+4x10"+4x2" din top-uri si celor 8x18"din sub-uri

In toata banda de frecvente, coborand pana la 32!!! de Hz, sunetul are profunzime si transparenta, fiind foarte bine echilibrat. Aceasta oferta de echipament se adreseaza cunoscatorilor, fiind prea putin cunoscuta in Europa. Sistemul se aduce in cateva zile cu plata integral anticipat, are o garantie de 48 de ore pentru verificari si reprezinta o achizitie excelenta pentru firmele de rental, sau pentru sonorizari cu pretentii in aplicatiile LIVE. In plus, beneficiaza si de o liza  pentru transportul facil al boxelor care nu sunt tocmai usoare.

Detalii Tehnice

Complete system with: 8 speakers + 2 amp racks + transport system.

The QUBE BRK by RENKUS HEINZ is a trapezoidal shaped full range horn loudspeaker enclosure equipped with doublet 15" (LF), 10" (MF) in a coaxial construction with a 2" (HF) driver. The 2"-driver is fed into a Renkus-Heinz® CBH2000-6 horn, which gives a well balanced frequency response throughout the field of (HxV - 60 x 40) coverage. Due to the coaxial design between the 10" and 2", the sound is produced from a one-point source within the vocal field of frequencies, which greatly adds to clarity and transparency of the sound and reduces problems with lobing and comb filtering effects. The extremely high sensibility (106 dB 1W/1m) enables high power handling and efficient amplifier utilization, and gives the loudspeaker capability of delivering sound pressure levels at 133 dB (RMS) and up to 137 dB (peak). The loudspeaker will in total handle 2760W (2x15" 2000W, 10" 600W, 2" 160W) of power. This touring specified enclosure is constructed in durable 13-layer birch plywood and heavily braced for extra stabilization. The cabinet comes as standard equipped with extra-reinforced flying hardware that runs from top to bottom as well as heavy-duty handles for easy rigging and stacking. The cabinet is painted in durable black paint. QUBE BKR is by sound and size carefully matched to the QUBE RUT doublet 18" subwoofer and due to the identical sizes of the cabinets, the handling and rigging for the loudspeaker system is extremely easy and well balanced.

The QUBE RUT by RENKUS HEINZ is just like the QUBE BRK a trapezoidal in shape and offers a horn-loaded subwoofer construction with doublet 18" that is capable of a solid sub frequency response from 32 to 150Hz. The horn construction is a 7th order band pass design and due to its excellent transient response able of delivering high definition sub frequencies with an extreme "tight" sound. The dual 18" woofers can handle 2800W (2 ohm) and will produce sound pressure levels up 132 dB continues and 137 dB peak. This touring specified enclosure is constructed in durable 13-layer birch plywood and heavily braced for extra stabilization and resonance cancelation. The cabinet is as standard equipped with heavy duty handles for easy rigging and stacking. The cabinet is painted in durable polyurethane black paint. The size and sound of the QUBE RUT is carefully matched with QUBE BRK in order to simplify handling and enhance over all capabilities for the system.

The PA 360 by Crest is a 1800W per channel power amplifier designed for all those applications where reliability and sound quality are for primary importance. It includes self-resetting protective circuitry to safe- guard against damage, with LEDs indicating the status of each channel. Other characteristics include a ground lift switch and selector for simple set- ting of stereo bridge mode. The PA 360 is ideal for the use with Qube QSA 210 LINE ARRAY Speaker, Qube QS 218 SUB, Qube BRK and Qube RUT. The versatility of the system allows the use of a controller module to process the signal, optimizing the overall performance of the speakers and protecting them at the same from possible damages.

Description

The QUBE BRK is a 3 way trapezoidal full range horn loaded loudspeaker enclosure. Equipped with two 15” (LF) woofers, and a coaxial 10” (MF) woofer with a conscentric 2” exit (HF) driver. The 2” HF driver with a 2.5” diaphram is coupled to a Renkus-Heinz® model - CBH2000-6 Horn, which provides a well balanced frequency response throughout the field of 60° H x 40°V dispersion. Due to the coaxial design of the 10” midrange woofer and the 2” HF horn, the audio is reproduced from a essentially one-point source,which greatly adds to clarity and transparency of the sound and alsoreduces problems with lobing and comb filtering effects. The extremely highsensitivity of (106 dB 1W/1m) enables high power handling and efficient amplifierutilization, and provides the BRK speaker system the capability of delivering sound pressure levels of 133 dB (RMS) and up to 137 dB (peak). The BRK speaker system handles 2760w - 2x15”: 2000w (LF), 10”: 600w (MF), 2”: 160w (HF) RMS.

This touring specified enclosure is constructed with durable 13-layer, 18mm (3/4”) Baltic birch plywood with a scratch & scuff resistant black paint finish. The BRK cabinet is heavily internally braced for extra stabilization to prevent undesired resonance at extreme sound pressure levels and is equipped with extra-reinforced flying hardware that runs from top to bottom for easy rigging. Ergonomically placed heavy-duty carrying handles assist in transporting and stacking. The QUBE BRK is by sound and size carefully matched to the QUBE RUT Double18” subwoofer. Due to the identical sizes of the cabinets, the handling and rigging for these loudspeaker systems is extremely easy and well balanced.
