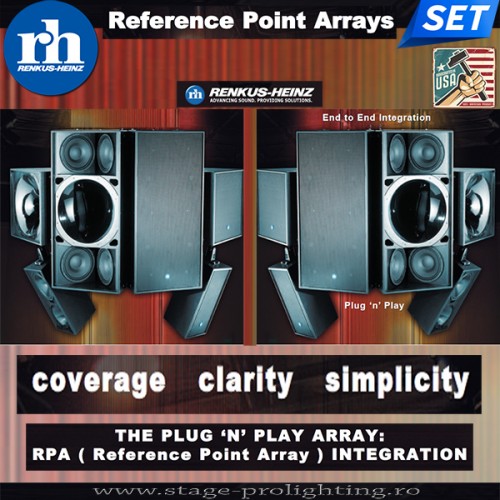

Renkus-Heinz Reference Point Arrays SET reprezinta un sistem de sonorizare configurabil la cererea clientului, folosind solutia tehnica optima oferita de inginerii americani ai redutabilei firme Renkus-Heinz. In imaginea prezentata, de exemplu, este aratat un set bazat pe modulele active line-array STX9, avand in completare side-fill-uri si down-fill-uri, pentru a acoperi intreaga sala a unui teatru relativ mare, sau o sala de evenimente mari. In curand, in speranta ca reprezentanta acestei prestigioase firme ne va fi oferita, veti putea achizitiona prin intermediul magazinului nostru, la cele mai bune preturi pe Europa, configuratia dorita care include de asemenea asistenta tehnica la montaj. Pretul intregului echipament se comunica numai telefonic, sunand la magazin si oferindu-ne in prealabil detaliile privind dimensiunile salii, genul de aplicatie dorit, etc.

Pentru o mai buna intelegere a performantelor extraordinare obtinute folosind aceste produse va oferim cateva detalii tehnice pentru modelul STX9, active Reference Point Arrays:

STX9

High-Power Quad 12-inch Three-Way Mid/High CoEntrant Complex Conic Loudspeaker System

Non-powered STX9 Series loudspeakers unite advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. Patented CoEntrant Mid/Hi transducers and unique innovations like our Complex Conic Horns combine to deliver natural sounding music and intelligible speech. Wherever audiences and operators demand superior performance and ease of use, ST/STX Series loudspeakers are an excellent choice for transparent, reference quality performance.

• Overview
• Specifications
• Applications
• Downloads
• Images
• Options

STX9

STX9 loudspeakers are non-powered, for use with external amplification.



Key Features

• Compact Three-way Design - Unparalleled Performance
Accurate, full-range 40 Hz to 18 kHz frequency response, high-level 142 dB peak SPL performance

• Flexible Input Configurations
Choose external bi-amplification.

• Quad-12 Doublet Low Frequency Design
Provides superior low frequency directionality in both horizontal and vertical planes.

• Exclusive Complex Conic Design
Provides constant beamwidth/directivity without the issues associated with conventional rectangular horns.

• Patented CoEntrant Topology
Integrates the acoustic output of a 10-inch cone and a 2-inch HF driver into a wideband, high-power true point source

• TRAP (True Array Principle) Design
ST9/44ASR and STX9/44AS Models are true 40° TRAP modules that com bine seamlessly to produce a phase aligned wave front virtually free of lobing. The /64 and /94 models can be turned into TRAP modules by rotating their horn 90 degrees.

• Choice of Coverage Patterns
Choose between tightly controlled 60° by 40°, 90° by 40° and asymmetrical 40° by 40° (+10°, -30°) coverage patterns.







Applications

Virtually any application where directional control and array-ability are critical issues and outstanding sonic performance is required.

• Distributed systems in sports arenas and stadiums.

• Multi-channel A/V playback systems, live sound and music systems in dance clubs (with optional subwoofers)

• Side fill in all types of sound reinforcement systems.

• Array modules for theatrical and concert sound systems, sound reinforcement systems in houses of worship.



Technical Information
Sensitivity:	STX9/44 STX9/46 STX9/64 STX9/94	Lows: 101 dB Mids: 104 dB Highs: 109 dB
Max SPL:	STX9/44 STX9/46 STX9/64 STX9/94	Lows: 139 dB Peak Mids: 137 dB Peak Highs: 134 dB Peak
Dispersion:	STX9/44	40° H x 40° V Asym. (+10°, -30°)
	STX9/46	60° H x 40° V
	STX9/94	90° H x 40° V
Freq. Response:	All Models	40 Hz to 18 kHz
Mid/High Driver:	All Models	CDT-2A; SSD3302-8A 2" HF (75 W RMS) & SSL10-5 10" MF (300 W RMS)
LF Drivers:	All Models	Four 12" model SSL12-10 woofers; 3" VC ; 400 W RMS (1600 W RMS total)
Crossover Points:	All Models	350 Hz & 1500 Hz
Power:	STX9/44 STX9/46 STX9/64 STX9/94	Lows: 1600 W RMS @ 4 Ohms Mid/Highs: 300 W RMS @ 8 Ohms
Enclosure:	All Models	Multi-ply hardwood, perforated metal grille
Connectors:	STX9/44 STX9/46 STX9/64 STX9/94	Neutrik 4-pin connectors or screw terminals
Finish:	All Models	Black, White or Natural (unfinished) paint Optional: Custom Color Weather Resistant TuffTex (black only)
Hardware:	All Models	12-point Universal Mounting Hardware Handles AeroQuip fly-track R-Hang hardware
Dimensions:	All Models	50" H x 24" W x 32 1/4" D (127 cm x 61 cm x 81.9 cm)
Weight:	STX9/44 STX9/46 STX9/64 STX9/94	232.5 Lbs (105.5 kg) Net
