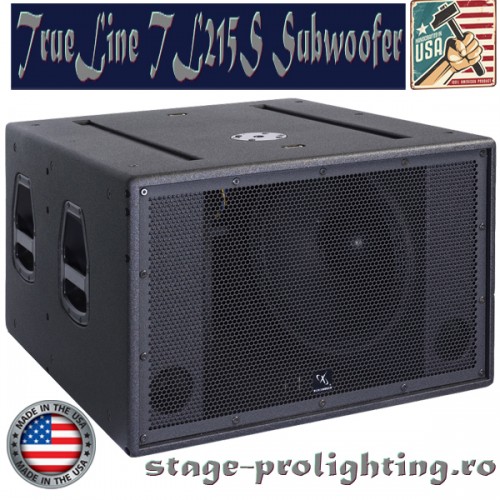

TrueLine TL215S passive subwoofer

Producător: Works Audio by Presonus
Cod produs: TrueLine TL215S passive subwoofer
Disponibilitate: pre-comanda

0,00 RON TVA inclus

Pret: 0,00€
VAT Incl.

Descriere
Opinii (0)

Descriere

TrueLine TL215S este un subwoofer pasiv cu doua difuzoare de 15", import SUA, 3 ani garantie!!! Produsul se aduce numai cu pre-comanda, pentru ultimele detalii privind pretul, modalitatea si termenul de livrare, va rugam sunati la magazin.

Detalii si specificatii Tehnice:

TrueLine TL215S

Dual 15" Hi Excursion Speakers

Compact Design
Durable Catalyzed Multi-layered
High Output
Removable Caster Plate
TrueAim Rigging

System Performance
Frequency Response (-3dB)¹	26 Hz – 150 Hz
Frequency Range (-10dB)	18 Hz – 150 Hz
Recommended High-Pass	20 Hz – with minimum 24 dB / octave (4th order) Butterworth slope
Nominal Dispersion @ -6dB	Omni
Recommended Crossover Frequency	90 Hz (acoustic, active, external DSP)
Long Term Power Handling²	Low Frequency 1700 W (6800W peak)
Nominal Impedance	LF: 4 ohms Powered LF: 4 ohms
Pressure Sensitivity @ 1Watt 1 Meter³	3 LF: 97 dB
Maximum SPL @ 1 Meter⁴	131 dB SPL (137 dB SPL peak)
Transducers
LF: 18” (457.2mm) x 1	4.5” (114.3) voice coil
Physical
Enclosure	Baltic birch plywood, engineered plastics, and aluminum frame
Finish	Two-part spray catalyzed Polyurea coating on plywood
Grill	14-gauge (1.0 mm) perforated steel, powder-coated finish, black
Environmental	Indoor use only (Outdoor coatings available for weatherization)
Connectors	Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
Power Amp Connectors	Neutrik® PowerCon (AC) XLR M/F (In/Out)
Suspension/Mounting	TrueAim® Tour side-plate rigging; optional array frame accessories
Dimensions	18.5” H x 28” W x 30.0” D (469.9 mm x 711.2 mm x 762 mm)
Net Weight	135 lb. (61.23 kg)
Shipping Weight	150 lb. (68.03 kg) - approximate with carton
Product Versions	TL118i, TL118i-P, TL118T, TL118T-P
Digital Power Amp	PXD-2500 2500W (x1) LF Digital (100) program processing, LCD readout XLR M/F Isolated I/O AC Power Con I/O

Footnotes

¹Frequency response and range measured on-axis with recommended active EQ in an anechoic environment.

²Power handling tested using pink noise filtered to meet IEC 268-5, 6 dB crest factor, 100 hours, with recommended EQ.

³Sensitivity measured in free field (no boundary-loading gain) with recommended active EQ, referenced to 1W/1m.

⁴Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression.

Description

The TrueLine TL.215S-P is designed to satisfy the need for an extreme high SPL sub bass loudspeaker system. Components have been selected solely for their performance. The TrueLine TL.215S-P utilizes dual direct radiating 15” 1200W cone drivers in a tuned enclosure, which provides maximum output with minimal distortion and smooth extended low frequency response.

The tour-tested 15 ply Baltic Birch highly braced enclosure and 18mm thick baffle board construction provide unsurpassed rigidity and strength. The enclosure is built to truck pack dimensions for efficient transportation of multiple units, and should be arrayed to increase performance in large or outdoor venues. The TrueLine TL.215S-P is designed to be used for low frequency sections in multi-way speaker systems, or as a sub bass section in any sound system requiring extend low frequency response and the highest quality audio reproduction. The TrueLine TL.215S-P comes with a multi-layered catalyzed polyurethane finish and is offered with black and white as color options. The TrueLine TL.215S-P delivers the transparent sonic quality and easy portability necessary for the demands of professional audio today.
