Turbosound PA sys I

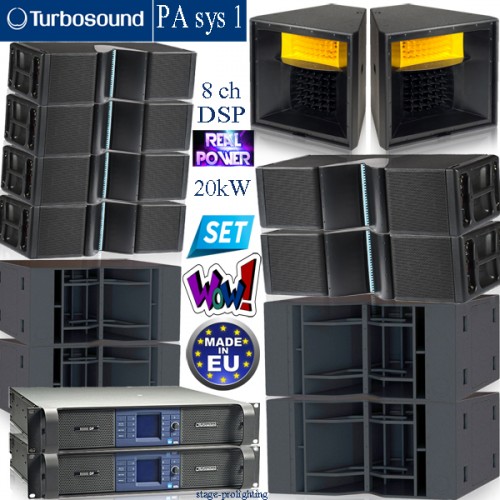

Un sistem PA de la Turbosound cu o putere incredibila de 20000 W, format din 6 elemente line-array Turbosound-FLASHLINE-TFS-900H, 4 subwoofere FLASHLINE TFS-900B, Dual 18" Horn Loaded Subwoofer for Touring Applications, doua TA-500HM Loudspeaker for Touring Applications si doua amplificatoare TAM 10000DP High Power Four Channel Powered Loudspeaker Management System. Calitatea componentelor acestui sistem este fara repros, iar sunetul obtinut depaseste orice asteptari. Ca setup de baza, cate doua subwoofere se pozitioneaza in lateralele scenei pe sol, iar elementele line-array (cate 3, link-uite doua cate doua pe fiecare canal DSP al TAM 10000DP) sunt suspendate lateral, iar matrixurile TA-500HM se suspenda in mijlocul scenei de trussing cu orientare spre exterior de 30-45 grd. In acest mod obtinem nu numai o distributie (plaja) perfecta a sunetului la unghiuri de peste 120 grd pe orizontala, dar si un confortabil AF. Cele 8 canale DSP sunt distribuite astfel: P1 (SUB): Ch 1: 1 x 900B 9, idem 2, 3, 4, iar P2 (top): Ch: 1,2,3 cate 2 x 900H (in link) si Ch: 4: 2 x TA-500HM (in link). Sistemul nu mai are nevoie de niciun alt procesor de sistem (Speaker management), fiind f bine echilibrat si crossoverat din DSP-urile TAM 10000DP, cu mentiunea reglajului de delay separat pentru TA-500HM si TFS-900H si bineinteles crossoverarile aferente, tinand cont si de faptul ca TFS-900H sunt pe 4 cai ( 2 x 12"(L) + 4 x 6,5"(M) + 2 x 6,5"(L-M) + (H) 3 x 1").

Sistemul se aduce numai cu pre-comanda, livrabil in 8 zile, plata anticipat, 3 ani garantie, fabricat integral in EU dupa design UK. Pentru informatii suplimentare privind pretul, modalitatea de livrare, alte specificatii tehnice, sunati va rugam la magazin.

Detalii Tehnice :

FLASHLINE TFS-900H

Dual 4 Way 12" Line Array Element with Combined Polyhorn and Dendritic Waveguide for Touring Applications



• 4 way line array element for touring applications
• Combined Polyhorn and Dendritic waveguide with 90° horizontal dispersion
• 160 Watts continuous, 640 Watts peak power
• Dual high excursion 12" neodymium motor low frequency drivers
• Four high output 6.5" neodymium motor low mid frequency drivers
• Dual high efficiency 6.5" neodymium motor mid range compression driver
• Triple aluminium dome 1" neodymium motor compression driver

• Integral steel rigging for flying up to 16 TFS-900H elements in a variable curvature array
• All components weather resistant to IP54 for outdoor use
• 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
• Powder coated perforated plated steel mesh grille with foam backing
• Neutrik speakON* NL4 connectors for reliable long life operation
• 3-Year Warranty Program*
• Designed and engineered in the U.K.

FLASHLINE TFS-900B

Dual 18" Horn Loaded Subwoofer for Touring Applications



• Horn loaded ground stack subwoofer for touring applications
• 1,600 Watts continuous, 6,400 Watts peak power
• Carbon fibre loaded 18" neodymium motor low frequency drivers with inside/outside wound coil
• Low distortion horn design for maximum sound pressure level
• All components weather resistant to IP54 for outdoor use

• 18 mm (3/4”) birch plywood enclosure with hard wearing semi matt black paint finish
• Powder coated perforated plated steel mesh grille with foam backing
• Neutrik speakON* NL4 connectors for reliable long life operation
• 3-Year Warranty Program*
• Designed and engineered in the U.K.
