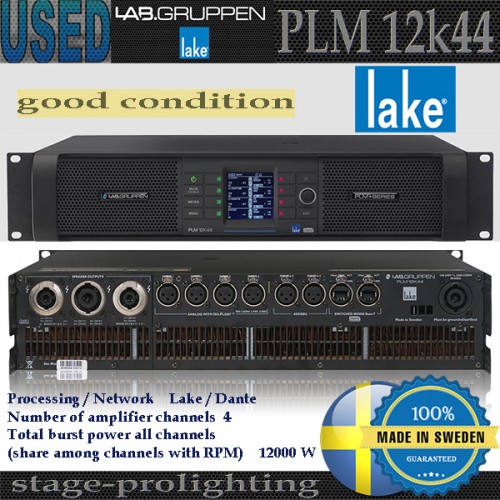

USED LabGruppen PLM 12k44

LabGruppen-Lake PLM 12k44 este un amplificator de mare performanta, avand 12000W, 4 canale, exceptional din toate punctele de vedere. Produs in Suedia, calitatea acestui produs depaseste orice asteptari, putand fi folosit in orice tip de aplicatii touring, rental, LIVE shows, sonorizari diverse atat cu echipamente line-array, cat si speakere normale pe masura lui. Starea acestui produs este: folosit, good condition (conditie buna), avand doar 1 an de functionare dupa prezentarea brokerului contractat. Pozele reale ale produsului sunt prezentate numai la cererea clientului, ocazie cu care se va comunica si ultima cotatie de pret si disponibilitatea. Din momentul confirmarii disponibilitatii si a ultimei cotatii de pret, produsul poate fi adus in 8-10 zile prin import intracomunitar avand TVA inclusa si nedeductibila, dar numai cu plata prin banca integral anticipat. Momentan acest produs nu se afla in stocul magazinului stage-prolighting, fiind insa rezervat de magazinul nostru online numai pentru clientii din Romania. Precizam inca o data ca factura fiscala va contine TVA inclusa si nedeductibila pentru firmele interesate. Produsul odata adus are o garantie oferita de 48 de ore din momentul livrarii pentru verificari, iar conditiile de returnare, sau dupa caz de inlocuire a produsului se poate face numai in acest interval de timp oferit, conform contractului de agreement in prealabil semnat intre client si magazin inainte de achizitie.

Prezentare si detalii tehnice:

The PLM 12K44 is the natural successor of the proven, road tested, and trusted Lab.gruppen touring foundation exemplified by the iconic PLM series, but with an additional new powerful feature set: the ability to rationalize power allocation between channels to optimize performance. Now packaged in an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 Lake Controller release, plus industry-standard Dante® networking, the PLM 12K44 sets the benchmark for Powered Loudspeaker Management Systems.

The PLM 12K44 combines four channels of extremely powerful amplification with unrivalled signal processing and audio management. At the core of the system concept is the total integration of all devices – including networking, audio I/O, signal processing, amplifiers, power supply and connected mains supply – allowing complete control and monitoring of the entire platform, resulting in unique operational benefits.

Rational Power Management (RPM)

On top of the outstanding performance users have come to expect from a PLM, the 12K44 also features Rational Power Management (RPM), a proprietary Lab.gruppen technology that provides designers and systems techs with unprecedented freedom to allocate the available output power of each amplifier channel for optimum performance with specific load conditions. For the first time, RPM provides true flexibility in allocating available power across the four output channels. Each channel of the PLM 12K44 may be tailored to meet the requirements of the connected load, and any power not used for that channel may be allocated for use on other channels.

RPM helps to avoid amplifier over-specification, or bridging of adjacent channels in order to meet minimum demands on one power-hungry load, which would otherwise result in a loss of channel count. RPM technology also enables the user to minimize equipment costs, reduce rack space and improve long-term energy efficiency – all achievable without compromising sonic performance. Rational Power Management incorporates features that safeguard the defined power output of one or more specified channels. From within the CAFÉ software, it allows the desired power demand to be calculated for the different loads in several different ways. RPM then analyses the desired power in relation to the channel and device constraints and guides the system designer towards the most effective way of powering the PA.

Rational Power Management results in real-world savings, both immediate and long-term. In many cases, fewer amplifiers – or lower cost models – may be specified while still fulfilling all power requirements. It also allows better mains management, avoiding over-specification of mains distribution, cooling, and UPS (where required). Finally, the overall gains in efficiency in larger systems will minimize current consumption and reduce operation costs – a “green bonus” for the system owner.

The Power of Lake Processing

The PLM 12K44 features the legendary power of exclusive Lake Processing algorithms, incorporating four full-featured Lake modules with four discrete channels of audio throughput input to output. Audio signals are selectable from four channels of analog (with Iso-Float ground isolation), four channels via AES3 digital inputs and eight dual redundant Dante networked digital inputs. Input signals are individually selectable for each channel, with programmable failover to a lower prioritized input.

The full-featured, on-board Lake Processor includes group control with Raised Cosine MESA EQ asymmetric filters to match the responses of any loudspeaker system. LimiterMax peak and RMS limiters set the industry standard for loudspeaker protection and sonic transparency.

The included Lake Controller software provides a unified interface for control of Lake functions and for comprehensive monitoring of both amplifier status and connected loudspeaker loads. Optimized for a wireless tablet PC, Lake Controller is easy and intuitive to operate, with the “feel” of real-time analog faders and controls. Lake Controller also features seamless integration with third party, real-time sound system measurement, optimization, and control software packages. Users can measure spectrum and transfer function and adjust system EQ at the same time, using the same user interface.

Lake Processing offers classical crossovers (selectable up to 48 dB per octave) as well as linear-phase crossovers capable of slopes exceeding 180 dB per octave for greater control to limit lobing and off-axis cancellation.

CAFÉ for Green Credentials

CAFÉ (Configuring Amplifiers For the Environment) is a software suite that allows the PLM 12K44 to be easily configured and monitored in the most efficient manner possible.

In addition to providing comprehensive system surveillance and configuration of RPM and other amplifier features such as ISVPL and Breaker Emulation Limiter (BEL), CAFÉ also includes valuable help to save the environment. In combination with the RPM configuration CAFÉ can accurately predict estimations of average mains current draw and generated heat, and utilizing the PLM+ Series’ innovative power supply technologies in combination with BEL the mains draw can be safeguarded to a predicted level. The end result is precise mains management and thermal control, which allows more accurate (rather than over-specified) provision of mains distribution, cabling and cooling. This technology suite reduces lifetime running costs and minimizes environmental impact. It also reduces demands on UPS systems.

General
Processing / Network	Lake / Dante
Number of amplifier channels	4
Total burst power all channels (share among channels with RPM)	12000 W
Max output power (all channels driven)1
2 ohms	3000 W
2.67 ohms	3000 W
4 ohms	3000 W
8 ohms	1900 W
16 ohms	950 W
Hi-Z 70 V	3000 W
Hi-Z 100 V	3000 W
Max output power single channel1
2 ohms	4400 W
2.67 ohms	5900 W
4 ohms	4600 W
8 ohms	2300 W
16 ohms	1150 W
Hi-Z 70 V	3300 W
Hi-Z 100 V	4700 W
Amplifier output modules (all models, all channels)
Peak output voltage	194 V
Max. output current	67 A
Rational Power Management (RPM)	Regardless of model, any channel has potential to deliver the max single channel output power
Default voltage limitation (can be lifted with RPM configuration)	175 V
Protection features	Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection
Audio Performance (Amplifier platform with digital input)
THD + N 20 Hz - 20 kHz for 1 W	< 0.05 %
THD + N at 1 kHz and 1 dB below clipping	< 0.04 %
Dynamic range	> 114 dB
Channel separation (Crosstalk) at 1 kHz	> 70 dB
Frequency response (1 W into 8 Ohm, 20 Hz - 20 kHz)	+/- 0.05 dB
Internal Sample Rate / Data path	48 / 96 kHz / 32 bit floating point
Product propagation delay AES 96 kHz / analog input	1.61 / 1.68 ms
Lake processing
Loudspeaker processing	Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ - peak and RMS limiters
System tuning	Group control with Raised Cosine™ MESA EG™ asymmetric filters
Input redundancy / Matrix	Automatic 4 level input redundancy / 4 input mixers
System integration	Comprehensive 3rd party protocol over UDP Ethernet
Measurement & Analysis
Pilot tone generation and analysis	Yes
Load impedance analysis	Yes
Real Time Analyzer (RTA), 3rd party integration	Yes
Dante Audio Network
Dante I/O	8 x 8
Network topology / redundancy	Flexible topology / Supports daisy-chained and Dual redundant networks
Sample Rates / Transport	48, 96 kHz / Uni + Multicast
Network latency	0.25, 0.5, 1.0, 2.0, 5.0 ms
Device presets
Local memory locations for the settings of the product	100
AES Inputs
Inputs	4 AES inputs
Supported sample rates / resolution	44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits
Sample rate conversion THD+N 20 Hz - 20 kHz unweighted	0.00003 %
Analog Inputs
Inputs	4 high quality inputs with Iso-Float ground isolation
Maximum input / digital reference	+26 dBu / +21 dBu
Sampling rate / Resolution	96 kHz / 24 bit
Input impedance balanced / unbalanced	20 / 10 kOhm
THD+N (typical at 1 kHz unweighted)	0.00022 %
THD+N (typical at 20 Hz and 20 kHz unweighted)	0.00033 %
Limiters
Adjustable Inter-Sample Voltage Peak Limiter (ISVPL)	17.8 - 194 V, step size 0.1 V
Current Peak Limiter < 300 ms	67 A peak
Current Average Limiter (CAL) > 300 ms	33 Arms
MaxRMS (rms voltage limiter)	Yes
MaxPeak (peak voltage limiter)	Yes
Gain
Amplifier gain	22 - 44 dB, step size 0.1 dB
Output attenuator	-Inf to 0 dB, step size 0.25 dB
Back panel Interface
Analog, 2-channel I/O (input + link)	4 x 3-pin XLR, electronically balanced
AES / EBU / I/O (input + link)	2 x 3-pin XLR
Output connectors	Neutrik speakON (1 x NLT8, 2 x NLT4) or 4 Binding Posts (pairs)
Auto 10/100, Auto Uplink	2 x RJ45 etherCON
Control and monitoring interface	Via Ethernet for Lake Controller software, or DLM (the 3rd party protocol)
Detachable mains cord	Neutrik PowerCon rated at 250V/32A
Cooling	Three fans, front-rear airflow, temperature controlled speed
Front-panel user interface
Display	2.5 inch, black / white, daylight readable LCD
Fault/Warning/Limit/Clip indicators	RGB LEDs and detailed fault description on display
Mute and soft function buttons	8 provided
Standby Power button	On/Standby
Mute Enable button	Enables muting of outputs and inputs via soft-button keypad
Meter button	Toggles through meter views
Menu button	Provides a menu driven interface for full function front panel control
Rotary Encoder	Yes
Exit Button	Provides a “back” function
Mains Power
Nominal voltage	100 - 240 Volt AC 45 - 66 Hz
Operating voltage	70-265 V AC
Mains wall plug	NEMA L5-30 "Twist lock" 125 V / 30 A, and CEE 7/7 "Schuko" 230 V / 16 A
Power supply features
Soft start / Inrush power	Yes/ Max 8 Ampere
Power Factor Correction (PFC)	0.98
Regulated switch mode power supply (R.SMPS)	Yes
Breaker Emulation Limiter (BEL)	Configurable current threshold and breaker profile
BEL max current threshold	25 A
Power Average Limiter (PAL)	Yes
Under Voltage Limiter (UVL)	Yes
Mains undervoltage and overvoltage protection and mains glitch tolerance	Yes
Dimensions
Rack rail to rear panel	W: 483 mm (19"), H: 88 mm (2 U), D: 424 mm (16")
Overall depth front-rear support	D: 498 mm (19.6")
Weight
Weight	16.5 kg (36 lbs)
Finish
Finish	Black painted steel chassis with black painted steel / aluminum front
