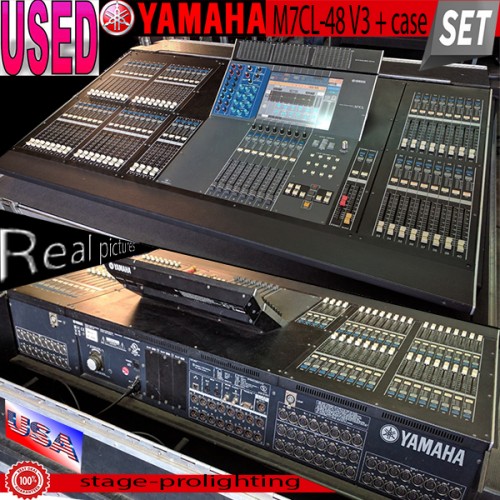

Yamaha M7CL-48V3 este un mixer digital cu 48 de canale, renumit pentru calitatile lui exceptionale, fiind folosit in special in aplicatiile LIVE. Produsul prezentat, avand pozele reale, este un produs second-hand, in stare perfecta de functionare, estetic arata 8 din 10, vine insotit de hard case-ul lui original si este importat din Germania. Nu se ofera garantie decat pentru testare, iar inainte de livrare va fi din nou verificat integral de tehnicienii nostri. Stocul ofertat de furnizor (o companie privata din Germania) este de doua bucati, iar pretul exprimat este per bucata. Cunoscatorii stiu care este pretul de nou al acestui mixer digital, iar prezentul produs este ofertat la 25% din pretul lui real, motiv pentru care aceste produse prezentate pot fi catalogate drept o veritabila ocazie!!!
Importul se face numai cu pre-comanda, plata integral anticipat si poate fi livrat in maximum 8 zile, testele finale fiind facute in prezenta clientului.
Prezentare si Detalii Tehnice:
Digital Live Sound Mixing with the Comfort and Efficiency of Analog
The M7CL series is a digital live-sound console that carries on the digital evolution from the acclaimed PM1DV2 and PM5D consoles. It includes an impressive array of advanced concepts such as the "Centralogic™" control interface that makes it as easy and intuitive to use as an analog console, and in-depth access management facilities that will be particularly appreciated in installations.
The M7CL is familiar and comfortable to use, offering a level of convenience that overturns the preconception that "digital is difficult". A surprising range of functions that you would normally have to supply in the form of peripheral equipment is built in, and all of this is provided in a space that is dramatically less than an analog console of similar scope.
The M7CL is the ideal digital mixing console for medium size live sound applications that have previously been handled by analog gear.
|
Outline |
M7CL-48ES |
M7CL-48 |
M7CL-32 |
|
|
Mixing capability |
Mixing channels |
48 Mono + 4 Stereo |
48 Mono + 4 Stereo |
32 Mono + 4 Stereo |
|
GROUP |
16 MIX (Group/AUX) busses |
16 MIX (Group/AUX) busses |
16 MIX (Group/AUX) busses |
|
|
AUX |
16 MIX (Group/AUX) busses |
16 MIX (Group/AUX) busses |
16 MIX (Group/AUX) busses |
|
|
MAIN |
Stereo, Mono |
Stereo, Mono |
Stereo, Mono |
|
|
MATRIX |
8 (Can be used as AUX by "Input to Matrix" function) |
8 (Can be used as AUX by "Input to Matrix" function) |
8 (Can be used as AUX by "Input to Matrix" function) |
|
|
DCA/VCA |
8 |
8 |
8 |
|
|
Input channel functions |
HPF, Attenuator, 4-band PEQ, 2x Dynamics, Pan (LR or LCR with CSR) |
HPF, Attenuator, 4-band PEQ, 2x Dynamics, Pan (LR or LCR with CSR) |
HPF, Attenuator, 4-band PEQ, 2x Dynamics, Pan (LR or LCR with CSR) |
|
|
Output channel functions |
Attenuator, 4-band PEQ, Dynamics |
Attenuator, 4-band PEQ, Dynamics |
Attenuator, 4-band PEQ, Dynamics |
|
|
On-board processors |
4x GEQ, 4x GEQ/SPX (GEQ: 31-band or 2x Flex15), 68x Output port delay |
4x GEQ, 4x GEQ/SPX (GEQ: 31-band or 2x Flex15), 68x Output port delay |
4x GEQ, 4x GEQ/SPX (GEQ: 31-band or 2x Flex15), 68x Output port delay |
|
|
I/O |
Mic inputs |
0 (Use SB168-ES for physical I/O) |
48 (Recallable) |
32 (Recallable) |
|
Line inputs |
4x Stereo (Compliant with mic input) |
4x Stereo (Compliant with mic input) |
4x Stereo (Compliant with mic input) |
|
|
AD converter |
24-bit; 128-time over sampling |
24-bit; 128-time over sampling |
24-bit; 128-time over sampling |
|
|
Line outputs |
8 Omni output |
16 Omni output |
16 Omni output |
|
|
DA converter |
24-bit; 128-time over sampling |
24-bit; 128-time over sampling |
24-bit; 128-time over sampling |
|
|
Digital I/O |
3x EtherSound, 2tr out |
2tr out |
2tr out |
|
|
Expansion slots |
3x Mini-YGDAI (16-in/16-out) |
3x Mini-YGDAI (16-in/16-out) |
3x Mini-YGDAI (16-in/16-out) |
|
|
Control and others |
Ethernet, MIDI, Remote (HA remote), USB (Storage/Key), Word clock I/O, 2x Lamp (12V) |
Ethernet, MIDI, Remote (HA remote), USB (Storage/Key), Word clock I/O, 2x Lamp (12V) |
Ethernet, MIDI, Remote (HA remote), USB (Storage/Key), Word clock I/O, Lamp (12V) |
|
|
Phantom power |
- |
+48V DC; ON/OFF per channel |
+48V DC; ON/OFF per channel |
|
|
General specifications |
M7CL-48ES |
M7CL-48 |
M7CL-32 |
|
|
Internal processing |
32bit, Accumulator: 58bit |
32bit, Accumulator: 58bit |
32bit, Accumulator: 58bit |
|
|
Sampling frequency rate |
Internal |
44.1kHz, 48kHz |
44.1kHz, 48kHz |
44.1kHz, 48kHz |
|
External |
44.1 kHz (-2.5%) to 48 kHz (+2.5%) |
44.1 kHz (-10%) to 48 kHz (+6%) |
44.1 kHz (-10%) to 48 kHz (+6%) |
|
|
Signal delay |
Less than 2.5 ms (@48kHz) |
Less than 2.5 ms (@48kHz) |
Less than 2.5 ms (@48kHz) |
|
|
Total harmonic distortion |
Less than 0.05% (20Hz-20kHz) |
Less than 0.05% (20Hz-20kHz) |
Less than 0.05% (20Hz-20kHz) |
|
|
Frequency response |
0, +0.5, -1.5dB 20Hz-20kHz |
0, +0.5, -1.5dB 20Hz-20kHz |
0, +0.5, -1.5dB 20Hz-20kHz |
|
|
Dynamic range |
DA: 110dB; AD+DA: 108dB |
DA: 110dB; AD+DA: 108dB |
DA: 110dB; AD+DA: 108dB |
|
|
Hum & noise level |
Equivalent input noise |
-128dBu |
-128dBu |
-128dBu |
|
Residual output noise |
-86dBu |
-86dBu |
-86dBu |
|
|
Crosstalk |
-80 dB Adjacent Input Channels, Input to Output |
-80 dB Adjacent Input Channels, Input to Output |
-80 dB Adjacent Input Channels, Input to Output |
|
|
Power requirements |
AC100-240V 50/60Hz, and/or Use PW800W |
AC100-240V 50/60Hz, and/or Use PW800W |
AC100-240V 50/60Hz, and/or Use PW800W |
|
|
Power consumption |
150W, 190W (When use with PW800W) |
300W, 375W (When use with PW800W) |
250W, 310W (When use with PW800W) |
|
|
Dimensions |
W |
1274mm; 50-3/16in |
1274mm; 50-3/16in |
1060mm; 41-3/4in |
|
H |
286mm; 11-1/4in |
286mm; 11-1/4in |
286mm; 11-1/4in |
|
|
D |
701mm; 27-5/8in |
701mm; 27-5/8in |
701mm; 27-5/8in |
|
|
Net weight |
46kg; 101.4lbs |
50kg; 110.3lbs |
42kg; 92.6lbs |
|
|
Accessories |
Owner’s Manual, AC power cord, Dust cover |
Owner’s Manual, AC power cord, Dust cover |
Owner’s Manual, AC power cord, Dust cover |
|
Analog input characteristics
|
Analog input characteristics |
||||||||
|
Input terminals |
GAIN |
Actual load impedance |
For use with nominal |
Input level |
Connector |
|
||
|
Sensitivity*¹ |
Nominal |
Max. before clip |
|
|||||
|
INPUT 1-48 (M7CL-48) |
-62dB |
3kΩ |
50-600Ω Mics & 600Ω Lines |
-82dBu |
-62dBu |
-42dBu |
XLR3-31 type*² |
|
|
-10dBu |
+10dBu |
+30dBu |
|
|||||
|
ST IN 1-4 [L,R] (M7CL-32/48) |
-62dB |
3kΩ |
50-600Ω Mics & 600Ω Lines |
-82dBu |
-62dBu |
-42dBu |
XLR3-31 type*² |
|
|
-10dBu |
+10dBu |
+30dBu |
|
|||||
|
TALKBACK |
-60dB |
3kΩ |
50-600Ω Mics & |
-70dBu |
-60dBu |
-40dBu |
XLR3-31 type*² |
|
*¹ Sensitivity is the lowest level that will produce an output of +4 dBu (1.23 V) or the nominal output level when the unit is set to maximum gain. (all faders and level controls are maximum position.)
*² XLR-3-31 type connectors with latch are balanced. (1=GND, 2=HOT, 3=COLD)
* In these specifications, 0 dBu = 0.775 Vrms.
* All input AD converters are 24bit linear, 128 times oversampling.
* +48V DC (phantom power) is supplied to INPUT (1-48 or 1-32), ST IN 1L-4R, OMNI IN 1-8 and TALKBACK XLR type connectors via each individual software controlled switches.
Analog output characteristics
|
Analog output characteristics |
|||||||
|
Output terminal |
Actual source impedance |
For use with nominal |
GAIN SW*³ |
Output level |
Connector |
|
|
|
Nominal |
Max. before clip |
|
|||||
|
OMNI OUT 1-16 (M7CL-32/48) |
75Ω |
600Ω Lines |
+24dB |
+4dBu |
+24dBu |
XLR-3-32 type*¹ |
|
|
+18dB |
-2dBu |
+18dBu |
|
||||
|
PHONES |
15Ω |
8Ω Phones |
- |
75mW* |
150mW |
ST Phone jack*² |
|
|
40Ω Phones |
65mW* |
150mW |
|
||||
*¹ XLR-3-32 type connectors are balanced. (1=GND, 2=HOT, 3=COLD)
*² PHONES stereo phone jack is unbalanced. (Tip=LEFT, Ring=RIGHT, Sleeve=GND)
*³ There are switches inside the body to preset the maximum output level.
* The position of the level control is 10 dB lowered from Max.
* In these specifications, 0 dBu = 0.775 Vrms.
* All output DA converters are 24 bit, 128 times oversampling.
Digital I/O characteristics
|
Digital I/O characteristics |
||||||
|
Terminal |
Format |
Data length |
Level |
Audio |
Connector |
|
|
2TR OUT DIGITAL*¹ |
AES/EBU |
AES/EBU Professional Use*¹ |
24bit |
RS422 |
- |
XLR3-32 type (Balanced)*² |
|
EtherSound (M7CL-48ES) |
EtherSound |
24bit |
100Base-TX |
48ch Input/24ch Output @48kHz |
etherCON CAT5*³ |
|
*¹ The channel status of 2TR OUT DIGITAL is described on page 294.
*² XLR-3-32 type connectors are balanced. (1=GND, 2=HOT, 3=COLD)
*³ IN, OUT
Control I/O characteristics
|
Control I/O characteristics |
||||
|
Terminal |
Format |
Level |
Connector |
|
|
NETWORK |
IEEE802.3 |
- |
RJ-45 |
|
|
3rd Port (M7CL-48ES) |
||||
|
MIDI |
IN |
MIDI |
- |
DIN-5pin |
|
OUT |
MIDI |
- |
DIN-5pin |
|
|
WORD CLOCK |
IN |
- |
TTL/75Ω |
BNC |
|
OUT |
- |
TTL/75Ω |
BNC |
|
|
REMOTE (M7CL-32/48) |
- |
RS422 |
D-sub 9pin(male) |
|
|
LAMP 1(32ch), 2(48ch) |
- |
0V-12V |
XLR-4-31 type*¹ |
|
|
USB HOST |
USB1.1 |
- |
A type USB Connector |
|
