Void Arcline 15 line array module
Cod produs: Void Arcline 15 line array module
Disponibilitate: disponibil in 8-10 zile
VAT Incl.
Descriere

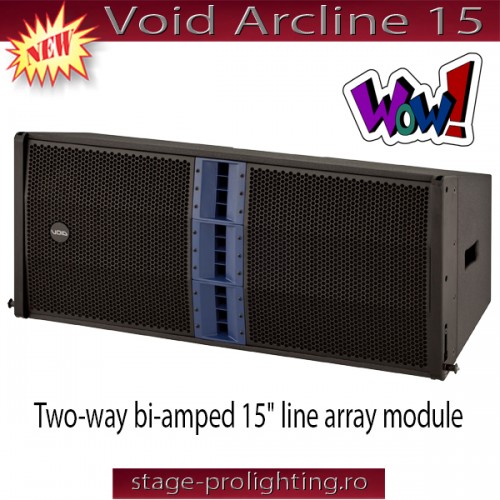

Arcline 15
Two-way bi-amped 15" line array module
Key Features
- Virtual Arc 120° horizontal dispersion
- True cylindrical wavefront
- Neodymium drive units throughout
- 2 x 15" neodymium low frequency drivers
- 3 x 1" neodymium high frequency compression drivers
- Proprietary 3-point flying system
- Optional touring bumper bar
- 15mm birch plywood construction
- Textured polyurethane finish
Applications
- Overview
- Specifications
- Image Gallery
- Documents
Specifications
|
Frequency Response |
60Hz - 21kHz ±3dB |
|
Efficiency |
LF: 101dB 1w/1m, HF: 106dB 1w/1m |
|
Crossover Point |
1.2kHz active |
|
Impedance |
LF: 4 ohms, HF: 5.3 ohms |
|
Power Handling |
LF: 1400 Watts RMS, HF: 240 Watts RMS |
|
Maximum Output |
131dB cont, 136dB peak |
|
Driver Configuration |
2 x 15" neodymium LF, 3 x 1" neodymium HF compression driver |
|
Dispersion |
120°H x 25°V |
|
Connectors |
2 x 4-pole speakON™ NL4 |
|
Height |
448mm (17.6") |
|
Width |
988mm (39.3") |
|
Depth |
350mm (13.8") |
|
Weight |
45.5kg (100.3lbs) |
|
Enclosure |
15mm multi-laminate plywood |
|
Rigging |
3 point proprietary flying system |
|
Finish |
Textured polyurethane |
|
Grille |
Perforated steel with foam filter |
