CVR Sistem PA & Lexicon 300 Fx

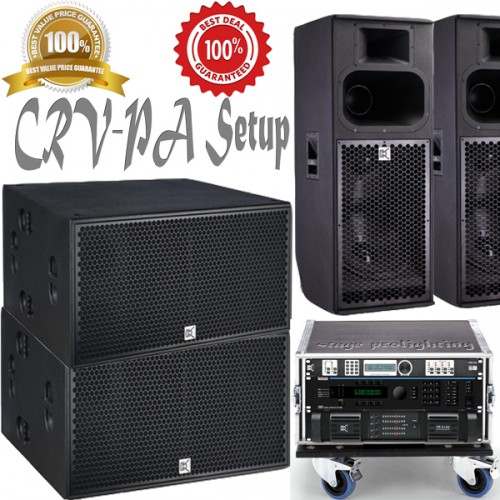

Sistem PA de la CVR-proAudio format din doua subwoofere 2 x 18" 2 x 2000 W RMS, doua Top-uri pe 3 cai original design 2 x 15" + 1 x 8＂wave horn loading neodymium driver si 1 x 3＂titanium compression driver 2 x 1600 W RMS, rack de sistem format din procesor de sistem, putere 4 x 2200 W @ 4 Ohm si Multiprocesor Lexicon 300, totul gandit sa acopere o banda de frecvente 30-20000 Hz, la impresionanta dinamica de 139 dB in sinus, beneficiind si de superbele efecte de la Lexicon.

Sistemul dvs va contine:

Component	Nr Buc	Descriere sumara
CVR CV-3	2	Top, 3 way, 1600 W RMS, 135dB, 45-20000Hz
CVR CV-28	2	Subwoofer 2 x 18", 2000 W RMS, 139dB, 30-500 Hz
CVR-PRO-240	1	Procesor de sistem
Lexicon 300	1	Multiprocesor * Optional Lexicon MX400-XL
Rack PA	1	Hard case pe role

Importat din HK, intreg sistemul beneficiaza de o garantie de 1 an, iar Lexicon importat din Germania are o garantie de 3 ani!!!, poate fi adus numai cu pre-comanda si livrat in 30 de zile de la confirmarea platii.

Pretul exprimat este informativ si pot surveni modificari +/- in functie de cursul valutar, data comenzii si compania de transport. Pentru actualizarea lui la data comenzii va rugam contactati magazinul stage-prolighting.

Detalii tehnice:

The ultra-compact CV-3 is a unique, innovative three-way, full range system. CV-3 is equipped with two 15＂ wave horn loading woofers,one 8＂wave horn loading neodymium driver and one 3＂titanium compression driver optimally splayed for smooth, powerful, mid-long throw wide coverage. Extremely versatile CV-3 blends pleasing aesthetics, uncompromising technical excellence with ease of installation to provide a high quality loudspeaker system to suit installed sound requirements of varied sizes venues such as bars, night clubs, conference centers, stadiums, arenas, etc.

Model	CV-3
Type	Tree-way full range system
Frequency Response	45Hz-18kHz±3dB
Power handling	1600W(RMS)3200W(PEAK)
Sensitivity	105dB(1W@1M)
Max@S.P.L	135dB(PEAK/1M)
LF section	15"(380mm) woofer 100mm (4in)coil
MF section	8"(200mm) neodymium MF 65mm(2.75in)coil
HF section	3"compression driver with 75mm titanium diaphragm
Nominal impedance	4 ohm
Output section	3-channel
Dispersion pattern	60°H×40°V
Surface finish	Black paint
Speaker cables	1(+)1(-)
Input connectors	2×NL4MP speakon
Dimensions	490×1210×540mm(W×H×D)
Package dimensions	560×1280×610mm/0.43cbm
Enclosure	Plywood
Net weight	71kg
Gross weight	76kg



The subwoofer CV-28 is a high performance sub-bass system designed for large scale venues including touring and fixed installations. It features with two 1000 watt 18"(460mm) driver units with magnet structure and suspension engineered for maximum linear excursion. Its two woofers are housed in bandpass box with bass horn loading to deliver ultra powerful bass energy. The CV-28 extends low-bass response and high efficiency, which make it an ideal partner for W-series line array systems wherever high power, extended bass is required. It can be ground stacked W-9/W-8 and possesses high output capability with low frequency extension.In addition, CV-28 is ideal for fixed sound installations such as discos, nightclubs, halls, conference centers and commercial events.

Model	CV-28
Type	Dual-drivers sub-bass system
Frequency Response	30Hz-500Hz±3dB
Power handling	2000W(RMS)4000W(PEAK)
Sensitivity	107dB(1W@1M)
Max@S.P.L	139dB(PEAK/1M)
LF section	2×18"(460mm) woofer 100mm(4in)coil
Nominal impedance	4 ohm
Surface finish	Black paint
Speaker cables	1(+)1(-)
Input connectors	2×NL4MP speakon
Dimensions	1130×580×907mm(W×H×D)
Package dimensions	1200×650×980mm/0.7cbm
Enclosure	Birch Plywood
Net weight	99.5kg
Gross weight	105.5kg

PRO-240 ,24-bit,48kHz sampling rate,∑-△ AD / DA convertor,32 bits DSP chip.
    Input processing includes Gain, Mute, Noise gate, high-cut, low-cut, 8 parameter EQ, Phase, Delay and so on (PRO-480 without Hi-cut Low-cut And PEQ)
    Output processing includes crossover , 5 parameter EQ,Gain, Mute, compressor/Limiter, Phase, Delay and so on
    Every input and output can do matrix assign flexibly
    Adjustable PEQ frequency, Gain and bandwidth; we can choose style: PEAK、H-SHELVE、L-SHELVE
    We can choose the style of all High-cut , Low-cut filter and Distributor unit: Butterworth、Linkwitz-Riley、Bessel;Choice slope is from -6dB/Oct to -48dB/Oct
    Adjustable compressor / limiter threshold, ratio, attached time and release time
    Adjustable threshold, attached time, release time of all noise gate
    All delay module's delay time can reach over 682ms
    Parameter setting of every channel can copy freely
    Interput signal tester,output can choose pink noise,white noise , 20Hz-20kHz adjustable sine wave and adjustable signal range
    2×20   word   LCD ,  light  and  key-press  incorporate design, unique one key-press process method, bring the users with convenient and rapid operating
    32 user preset; status and every preset can save and adjust separately, with code protecting function
    With PC , we can do remote control by USB and RS232 connector
    256 units linkable by RS485, and do remote link controlling by center-control equipment

Model	PRO-240	PRO-360	PRO-480
Configuration	2 in 4 out	3 in 6 out	4 in 8 out
Power Supply	AC 110V/220V 50Hz/60Hz	AC 110V/220V 50Hz/60Hz	AC 110V/220V 50Hz/60Hz
Product Dimension	482×232×44mm(HxWxD)	482×232×44mm(HxWxD)	482×232×44mm(HxWxD)
Shipping Dimension	605×310×110mm  (HxWxD)	605×310×110mm  (HxWxD)	605×310×110mm  (HxWxD)
Net Weight	4.1kg	4.1kg	4.1kg
Gross Weight	5kg	5kg	5kg



The Lexicon 300 not only contains the finest sounds, as you’ve come to expect from Lexicon, it incorporates new functions that satisfy the needs of today’s audio production.

Analog and Digital Audio Interfacing
For both analog and digital use the Lexicon 300 takes full advantage of recent advances in converter technology and combines them with flexible digital interfacing.

The A/D and D/A converters use oversampling techniques to minimize low-level distortion and provide linear phase characteristics. 64x oversampling Delta/Sigma conversion is used in the A/Ds; 8x oversampling is used in the D/As. The result is sonic transparency without the artifacts normally encountered in conversion.

The digital I/O simplifies interfacing with both the AES/EBU professional and the EIAJ consumer format. XLR, RCA and Optical connectors are provided for both input and output. The digital inputs of the Lexicon 300 will automatically accept and lock to any AES/EBU/SPDIF format; the Lexicon 300’s digital output format is user-selectable for feeding either professional or consumer equipment. This allows for format conversion as well as using the high quality A/D converters to feed digital recorders. Control of additional Channel Status information is provided as well.

Dual DSP Architecture
The Lexicon 300 utilizes two proprietary high performance DSP engines. The configu- ration of these engines can be determined by the end-user to suit a particular audio application. The Single Setup configuration unites both DSP engines. Two “split” configurations: Dual Mono and Cascade, allow each DSP engine to run a special program especially designed for “Split “ applications. The Single algorithms include: Random Hall, Random Ambience, Rich Plate, Stereo Pitch Shift, and Stereo Adjust. The “split” algorithms include: Dual Delays, Chamber, Mono Pitch Shift, Compressor, a special mastering dither program called PONS (Psychoacoustically Optimized Noise Shaping), and a small version of Stereo Adjust.

Comprehensive Effects Automation
The 300 makes effects automation available in three different ways. If you use time code, the 300’s Event List and Time Code Reader add a new twist to effects processing. Each entry in the 50-item list contains a time code value and a 300 effect preset/register number, allowing incoming time code to trigger setup and effect changes, as well as setup and effect parameter glides. For changing effects in music or changing rooms and environments for film and video, the Lexicon 300’s time code capability opens new avenues to all time code users.

Dynamic MIDI is included for real-time performance control and effects automation. All parameters in the Lexicon 300 can be patched to most MIDI controllers, allowing full control from remote devices. For full MIDI automation all parameter changes can be recorded on any sequencer. For additional control, complete System Exclusive information is available.

Lexicon Sound
Even with the best functions and features, the heart of any signal processor is its sound. The 300 contains the very best of the Lexicon Sound – with new refinements such as dynamic size parameters in the Reverb and Ambience algorithms. We have also included stereo and mono pitch shifting, delay effects, a mastering algorithm with precision level/balance controls and equalization. These sounds, combined with analog and digital audio I/O, time code based effect change, an internal LFO, and full MIDI automation result in a system that provides new creative options each time you use it.

*optional (in loc de Lexicon 300)

Lexicon MX400 XL Multi FX - 17 legendary Lexicon reverbs, delays & modulation effects. DBX compression and de-essing. Quad processor design, 7x effect routing options, 99x factory/99x user programs for stereo mode, 99x factory/99x user programs for dual-stereo mode, 25x factory/25x user surround programs, Presets and parameters on VST plug-in controllable, MX-Edit editor/library software. Dual S/PDIF digital I/O, 24bit, 48kHz/44.1kHz sample rates. Large front panel LCD display, MIDI In and Thru, XLR I/O. Dimensions: 19" x 1U. Weight: 2.6kg.

PA-4130 -4 ch power amplifier

OVERVIEW
PA-Series are a new range of 4 channel, high output power amplifiers, which deliver powerful pure sonic performance.It is a multi-functional item. Every channel can change output voltage independently. Kinds of sensitivities are for your choices. It can also be bridged into bigger power 2 channels amplifier. 2U height and 13kg make it especially suitable for line array system. It adopts a full range of onsemi (formerly Motorola) power output transistors. Reliable, durable performance can match all kinds of loudspeaker systems.
PA-Series offer smooth and responsive handling with massive power output, benefit from the latest advance in SMPS technology, resulting in high power, lightweight units. PA-Series are suitable for professional installations,  theatre and live sound applications.

APPLICATIONS
Club installations
Live performances
Theater installations

FEATURE
Light weight
High efficiency
SmaIl size , 2 U height
Best performance in LF
Clear and attractive sound



Model	PA-4130
8Ω Stereo Power	4×1300W
4Ω Stereo Power	4×2200W
8Ω Bridged Mono	2×4400W
4Ω Bridged Mono	2×5000W
Frequency response	20Hz-25kHz ±0.5dB
THD+N(Rated Power,4Ω/KHz)%	0.1%
Signal Noise Ration(dB)	110dB
Input Sensitivity	20K Ohm Balanced/10K Ohm Unbalanced
Output Connectors	Speakon Connectors(NEUTRIK)
Power Requirement	200-240V/50-60Hz
Input Sensitivity	1V/1.5V
Airframe Dimension	483×377×88mm
Package dimensions	575×565×145mm
Net Weight	14.5kg
Gross weight	16.5kg

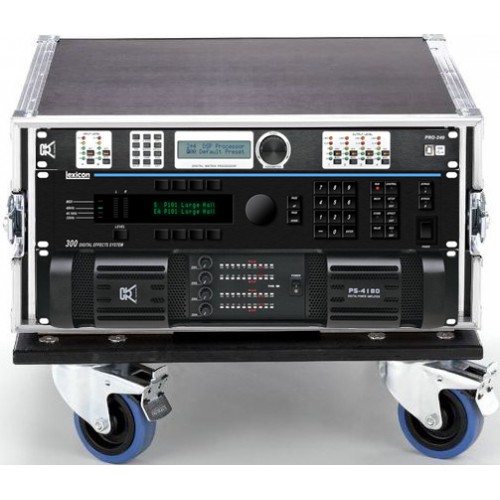

 Rack sistem- ROTO Rack 6U.
