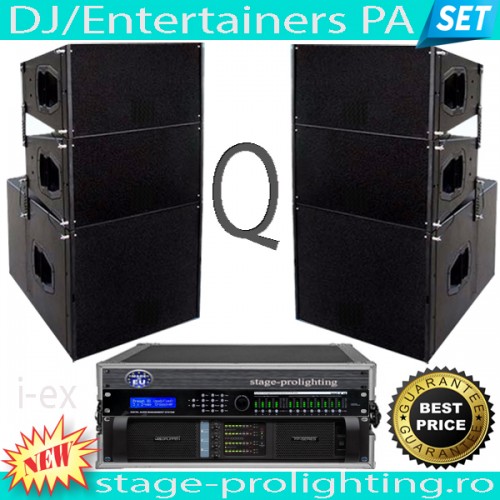

DJ-Entertainers PA SET

DJ-Entertainers PA SET se compune din:

Nr Crt	Produs	Nr Buc	Descriere sumara
1	Q1 (clones d&b )	4	Module line-array
2	Q-sub (clones d&b)	2	Subwoofere line-array
3	FP10000Q (clone LabGruppen)	1	Amplificator multichannel- 4 ch
4	Speaker management 4080 DSP	1	Speaker management processor
5	SET Cabluri speakon	1 SET	Cabluri speakon
6	Hard case amp+management speakers	1	Hard Case dedicat 4u



Sistemul astfel configurat se aduce la comanada beneficiarului prin import extra-comunitar si pate fi livrat in 8-10 zile de la efectuarea platii integrale in avans. Absolut nou, sigilat, garantia oferita de producator fiind de 2 ani!!

Sistemul este foarte bine echilibrat, avand forta, claritate in toata banda de frecvente. Ideal pentru aplicatii DJ, sau LIVE, sistemul PA is gaseste utilitatea in multe aplicatii de tip rental, sau instalatii fixe in teatre, hoteluri, restaurante, baruri, cluburi mai mici, etc.

Sub raportul calitate/pret reprezinta o alegere excelenta.

Detalii tehnice:



Basic Info

• Model NO.: Q1
• Hi-Fi: Hi-Fi
• Operation Mode: Wire / Remote Control
• Speaker Material: Plywood
• Certification: CE, RoHS, CCC, FCC, SGS
• THD: <0.03%
•  Speaker Type: Dual 10" 2 Way Passive Speaker
•  Sensitivity (1W):  126dB/M(1W/1m)
•  Nominal Coverage:  75° X 15 ° (H X V)
•  Hf Driver:  75mm Vc 1.5" Throat X 2    8ohm
•  Hipower:  120W X 8ohm(16ohm)
• Transport Package: Carton or Flight Case
• Origin: China

• Noise: <95dB
• Activity: Passive
• Speaker System: Line Array
• Application: Commercial
• Monitor: No LED
• Model No.: Q1
•  Frequency Response: 95Hz - 18k Hz
•  Rated/Peak Power:  650W/2000W
•  Low/MID Woofer:  10" 65mm Vc X 2     8ohm(16ohm) X2
•  Low/MID Woofer Power:  200W X 4ohm
• Trademark: V.
• Specification:   308mm x 580mm x 410mm
• HS Code: 8518220000

Product Description

Q1 double 10inch 2-way line array speaker for PA system


Q1 line array SPECIFICATION

Model No.	Q1 line array
Speaker Type	Dual 10" 2 way passive speaker
Frequency Response	95Hz - 18k Hz
Sensitivity (1W)	126dB/m(1W/1m)
Nominal Impedance	8ohm x 2     16ohm x 2
Rated Power	650W
Peak Power	2000W
Nominal Coverage	75° x 15 ° (H x V)
Crossover	NC
Low/Mid Woofer	10" 65mm vc x 2     8ohm(16ohm) x2
HF Driver	75mm vc 1.5" throat x 2    8ohm
Low/Mid Woofer Power	200W x 4ohm
HIPOWER	120W x 8ohm(16ohm)
SPL	138dB (144dB peak)
Recommended AMP	800W - 1600W
Input Connector	2 x NL4R, SPEKON, link+1-1
Cabinet Construction	15mm layer plywood
Dimension (WxHxD)	308mm x 580mm x 410mm
Weight	27kg

Q1 line array DESCRIPTION
The Q1 is a passive 2-way loudspeaker housing two 10" LF drivers positioned in a
dipolar arrangement and a 1.3" HF compression driver fitted to a toroidal waveshap-
ing device. The 75° constant directivity horizontal dispersion pattern is maintai-
ned down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be
used to construct vertical columns that produce a curved coherent wavefront.
The mechanical and acoustical design of the cabinet enables vertical splay angles
to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical
configurations starting from two cabinets with a 15° to 30° dispersion, up to
20 cabinets with a fully user and venue defined vertical profile. The Q1 cabinet
is constructed from marine plywood, incorporates a pair of handles and has an
impact resistant paint finish. The front of the loudspeaker is protected by a rigid
metal grill covered with replaceable acoustically transparent foam, and two EP5 or
NL4 connectors wired in parallel are mounted on the rear panel.



Q1 line array FEATURES
1. Two-way line array, 2 x 10" neodymium woofers and 1 x 3" neodymium tweeter.
2. Dispersion pattern produce a curved coherent wave front.
3. A rigid metal grille in the front, protecting the cabinet.
4. Vertical configurations allows 2-20 piece suspending together.
5. 18 mm plywood, metal handles.
6. The combination makes the sound quality excellent.
7. Applied in indoor and outdoor live shows.


Q1 line array APPLICATIONS
1. Business clubs sound system
2. Nightclubs reinforcement
3. Bars/High-class KTV rooms speaker system
4. High-class hotels/ Theaters speaker box
5. Electronic classrooms /Multi-functional halls
6. Permanent sound system installation

7. Entertainers/DJ applications

• Model NO.: Q-SUB
• Hi-Fi: Hi-Fi
• Operation Mode: Wire / Remote Control
• Speaker Material: Plywood
• Certification: CE, RoHS, CCC, FCC, SGS
• THD: <0.03%
•  Speaker Type:  Single 18" 1 Way Subwoofer
• Frequency Response(Hz): 30Hz-200Hz
• RMS Power RMS(W): 800W RMS
• Maximum Spl(dB): 129 dB
• Coverage Angle: 90° * 50°
• Transport Package: Carton or Flight Case
• Origin: China

• Noise: <95dB
• Activity: Passive
• Speaker System: Subwoofer
• Application: Commercial
• Monitor: No LED
• Model No.: Q-Sub
• Lf Driver: 1*18" One-Way
• Impedance(Ohms): 8Ω
• Peak Power(W): 1600W
•  Sensitivity (1W): 112 dB
• Trademark: V.
• Specification: 488 x 588 x 689mm
• HS Code: 8518220000

Product Description

Q-SUB single 18inch pro subwoofer used as dj speaker system


Q-SUB SPECIFICATION

Model No.	Q-SUB Subwoofer Speaker
Speaker Type	Single 18" 1 way subwoofer
LF driver	1*18" one-way
Frequency response(Hz)	30Hz-200Hz
Impedance(ohms)	8Ω
Rms power RMS(W)	800W RMS
Peak power(W)	1600W
Maximum SPL(dB)	129 dB
Sensitivity (1W)	112 dB
Coverage angle	90° * 50°
Structure	clipboard
Cabinet Construction	15mm Birch plywood
Finish	lutescens  light paint
Connector	SPEAKON*2
Grille	perforated metal
Dimension size (H*W*D)	488 x 588 x 689mm
Net weight(KG)	39 kg

Q-SUB subwoofer speaker SPECIFICATION
Q-SUB is a 18 inch 800W powerful subwoofer, with 220mm magnet, 4" voice coil driver.
Has strong and powerful sound, ong transmission distance.
Perfectly match with Q1, a dual 10" line array speaker to be a sound system.
Suitable for outdoor touring shows and fixed intallation.


Q-SUB APPLICATIONS
Stadiums, Theater, Hall room, Touring, Portable application.


Q-SUB FEATURES
With an operating range of 40Hz-300Hz, Q-SUB houses a long throw high precision 18"
LF driver. It achieves the ultimate in sub woofer performance and delivers very high
output levels and superb transient performance with minimal distortion.

• Model NO.: DP4080
• Hi-Fi: Not Hi-Fi
• Operation Mode: Wire / Remote Control
• Speaker Material: Plywood
• Certification: CE, RoHS, CCC, FCC, SGS
• THD: <0.03%
• Type: 4in8out Processor
• Weight (Kg): 2.8 Kg
• Transport Package: Carton or Flycase
• Origin: China

• Noise: <95dB
• Activity: Passive & Active
• Speaker System: Subwoofer
• Application: Commercial
• Monitor: No LED
• Model No.: DC36
• Nominal Impedance (Ohms): <500Ω/Mono
• Trademark: Vedian
• Specification: 482*205*44MM
• HS Code: 8518220000

Product Description

_{DP4080, hot sale digital Processor, 2.8kg light product weight, very stable quality, suitable to drive big speaker, subwoofer, line array system.}

• Model NO.: FP-10000Q
• Hi-Fi: Not Hi-Fi
• Operation Mode: Wire / Remote Control
• Speaker Material: Plywood
• Certification: CE, RoHS, CCC, FCC, SGS
• THD: <0.03%
• Rated Power (W): 4*1350W
• Weight (Kg): 13.5 Kg
• Transport Package: Carton or Flycase
• Origin: China

• Noise: <95dB
• Activity: Passive & Active
• Speaker System: Subwoofer
• Application: Commercial
• Monitor: No LED
• Model No.: Fp-10000q
• Nominal Impedance (Ohms): 8 Ohms
• Trademark: Vedian
• Specification: 180mmX560mm× 500mm
• HS Code: 8518220000

Product Description

_{FP10000Q, hot sale digital amplifier, outlook is same as original, main function same as original too, Also have internet input port,but it can't work,just same design with Original. 4 channel multi-channel amplifier, 1350W big power, swithc mode power supply, 13.5kg light product weight, very stable quality, suitable to drive big speaker, subwoofer, line array system.}
