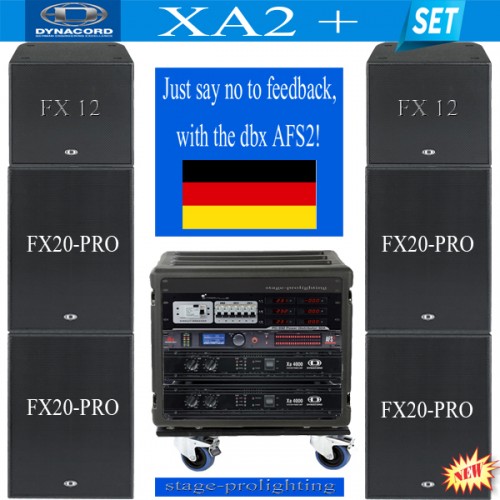

Dynacord XA2 +  este fabricat integral in Germania, are 3 ani garantie si se compune din:

Component	Buc	Specificatii tehnice de baza
Dynacord FX20-PRO	4	Passive subwoofer, planar waveguide bass horn Nominal impedance 8 Ω, Rated power RMS 600 W Program power 1200 W SPL 1 W/1 m 101 dB Maximum SPL (1 meter), 132 dB Frequency range (-10 dB), measured with Xa 4000 30–150 Hz Recommended active crossover frequency 140 Hz, 18 dB/oct
DYNACORD FX 12	2	Signal Processing: Passive (Inches): 12 Size of Tweeter (Inches): 3 Power Output in W(RMS) @8Ohm: 700 Impedance (Ohm): 8 max. Peak SPL (dB): 137
Dynacord XA 4000	2	power amplifier, Number of Channels: 2 RMS Output in Watt @ 4Ohm: 2x1000 Weight (kg): 8.25 Cooling: Air Cooled Outputs: Speakon Inputs: XLR Limiter: Yes 2ohms steady: Yes Amplifier Class: Class H
Stairville  32	1	Power Distributor, 32A to 220V
dbx AFS2	1	Advanced Feedback Suppression Processor
Case 10U	1	Hard case 10U

The Dynacord FX20-PRO is a Planar Waveguide Basshorn, equipped with the high-power Electro-Voice EVX 180B 18" transducer.
Frequency response is 30Hz - 150Hz (-10dB), so the crossover frequency to Mid-Hi cabinets can be chosen strictly application-oriented between 80Hz and 140Hz. The cabinet is equipped with an electronic circuit called voice coil tracking protection. This circuit senses the terminal voltage of the transducer and simulates the thermal behaviour of the woofer´s voice coil. In case of potential thermal overload the power applied to the speaker is reduced to a safe level. Power amps up to 1200W/8Ohms can be used in order to have maximum dynamic range without the danger of thermal overload in non-controlled situations. The voice coil tracking protection exhibits “soft” switching characteristics, so no annoying clicks or pops are audible. The circuitry automatically resets after the voice coil temperature has reached a safe value. The FX20-PRO cabinet is made of 15mm birch plywood. All corner joints and braces are grooved and glued. The cabinet has a heavy-duty structured lacquer surface and a solid-steel front grille matching the latest Dynacord enclosure design. The connector panel uses two 4-pole Speakon connectors (IN/OUT) for a safe connection and easy daisy-chaining to other cabinets. The pin assignment is 1+/1-. Pins 2+ and 2- are also connected between the respective two Speakon connectors. When using Dynacord power amp racks or system amplifiers, the whole system can be wired with 4-pole Speakon cables without any danger of accidental wiring mistakes. The cabinet is equipped with eight large rubber feet that allow easy stacking. Six handles and four heavy-duty castors on the rear side guarantee easy and safe transport.

Description

Passive subwoofer, planar waveguide bass horn

Nominal impedance

8 Ω

Rated power RMS

600 W

Program power

1200 W

SPL 1 W/1 m

101 dB

Maximum SPL (1 meter)

132 dB

Frequency range (-10 dB), measured with Xa 4000

30–150 Hz

Recommended active crossover frequency

140 Hz, 18 dB/oct. Butterworth

Voice coil tracking protection

Yes

Transducer

EVX 180B

Audio Socket Models

2 x NEUTRIK speakON NL4MPR

Audio Socket Contacts

1+/1-

Enclosure material

Birch plywood, 15 mm

Enclosure finish

Heavy-duty structured lacquer

Color

Black (RAL 9005, jet black)

Grille

Powder coated steel with acoustic foam

Handles

6

Castors

4

Product dimensions (WxHxD)

610 x 905 x 814 mm

Net weight

54.3 kg

Shipping weight

60.5 kg

DYNACORD FX 12

Die DYNACORD FX 12 ist als Medium-Long-Throw Mittel-Hochtonkabinett in koaxialer Anordnung konzipiert. Sie kann auch ohne Basskabinette in hochwertigen Sprach-Beschallungsanlagen eingesetzt werden, wenn größere Reichweiten gefordert sind. Die empfohlene aktive Übergangsfrequenz zu Sub Kabinetten ist 140 Hz mit 18dB/Oktave Butterworth Charakteristik. Im Lo-Mid Bereich zwischen 100Hz und 1kHz kommt ein Electro-Voice ND 12 A Lautsprecher an einem konischen Horn zum Einsatz. Das von einem Electro- Voice ND 6 Neodym 1.4"-Treiber angetriebene 80° x 40° Constant Directivity Horn überträgt den Frequenzbereich oberhalb 1kHz. Die FX 12 selbst ist mit einer passiven Frequenzweiche für die Trennung zwischen Mittel- und Hochtontreiber ausgestattet (1kHz, 18 dB /Oktave) . Der Mitteltonlautsprecher ND 12 A und der ND 6 Hochtontreiber sind beide durch die vollelektronische VOICE COIL TRACKING PROTECTION gegen thermische Überlastung präzise geschützt.

Features: passiver Mittel-/Hochtonlautsprecher, coaxial conical horn Nominal impedance: 8 ? Leistung RMS: 350 W Leistung Programm: 700 W Maximum SPL: 134 dB Frequenzspektrum (-10 dB): 120–19000 Hz Abstrahlwinkel nominal, 1 kHz, -6 dB H 80° x V 40° Crossover-Frequenz: 1000 Hz Empfohlene Übergangsfrequenz zu Subwoofern: 140 Hz, 18 dB/oct. Butterworth Voice coil tracking protection Separate Kreise für lo-mid and high Hochton-Transducer:: ND 6-8/CDH 8040-14 Low-Mid-Transducer: ND 12A Anschlüsse: 2 x NEUTRIK speakON NL4MPR Audio-Kontaktbelegung “normal”: 1+/1- Audio-Kontaktbelegung "system": 2+/2- Material Birke Multiplex, 15 mm Farbe: schwarz, Strukturlack Abmessungen (BxHxT): 600 x 610 x 814 mm Gewicht: 49.5 kg

Features:

• Manufacturer: Dynacord
• Typ: Head
• Size of Woofer
• Signal Processing: Passive
• (Inches): 12
• Size of Tweeter (Inches): 3
• Power Output in W(RMS) @8Ohm: 700
• Impedance (Ohm): 8
• max. Peak SPL (dB): 137
• Weight (kg): 49.5
• Housing Material: Wood
• Airworthy: Yes
• Beam angle: 80°
• Frequency Response from (Hz): 120
• Frequency Response to (Hz): 19,000
• Crossover Network: Yes
• Link: Yes
• Input: Speakon
• Output: Speakon
• Wheels included: Yes
• Height (mm): 601
• Width (mm): 594
• Depth (mm): 808

Dynacord XA 4000

Die Xa 4000 ist eine universell einsetzbare Aktiv 2-Weg Endstufe in Class H Technologie mit Schaltnetzteil.

Features:

• Manufacturer: Dynacord
• Number of Channels: 2
• RMS Output in Watt @ 4Ohm: 2x1000
• Weight (kg): 8.25
• Cooling: Air Cooled
• Outputs: Speakon
• Inputs: XLR
• Limiter: Yes
• 2ohms steady: Yes
• Amplifier Class: Class H
• Installation Height (HE): 2
• Installation Depth (cm): 38.4

dbx AFS2 Advanced Feedback Suppression Processor

Fights Feedback Automatically

Put the dbx AFS2 advanced feedback suppressor in your live sound rig to eliminate feedback without lifting a finger. It sets up fast in any room thanks to the Wizard Setup function, and 24 programmable filters per channel are ready to kill feedback transparently. Live sound engineers at Sweetwater know that even if you're an expert at tuning your sound system, cramped stage conditions or careless performers always have the potential of introducing feedback. Putting the dbx AFS2 feedback suppressor in your system is like getting sonic insurance for your live sound.

dbx AFS2 Advanced Feedback Suppression Processor at a Glance:

• Transparent, precise performance from updated algorithms
• Eliminates feedback, not your sonic integrity
• Protect individual mics, groups, or even your full mix

Transparent, precise performance from updated algorithms

The dbx AFS2 feedback suppressor boasts dbx's updated Advanced Feedback Suppression algorithm. The AFS2 listens to the incoming signal and can anticipate problem frequencies before feedback even begins. You won't hear it working, and you won't notice any sonic difference with it in your signal chain.

Eliminates feedback, not your sonic integrity

With 24 filters per channel the dbx AFS2 feedback suppressor is agile enough to fight horrendous feedback in a busy mix, without degrading your overall sound. Each filter can have a bandwidth as narrow as 1/80 of an octave, which means problem frequencies get zapped with incredible precision. Handy presets for Speech, Speech/Music, and Music make it even easier for the AFS2 to anticipate your program material and do its job transparently.

Protect individual mics, groups, or even your full mix

It's easy to integrate the dbx AFS2 into any live sound rig, whether you want to protect a couple troublesome channels or your entire mix. Connect the AFS2 to individual channel inserts to guarantee those mics won't feed back. Put it on group inserts to protect an entire instrument section. Or connect the AFS2 to your main mix inserts or between your mixer and amplifiers to fight feedback across the entire stage. Whether you're mixing monitors or FOH, you'll be glad you have the dbx AFS2 in your rig.

dbx AFS2 Advanced Feedback Suppression Processor Features:

• Two-channel feedback suppressor
• Advanced AFS algorithms respond faster and with more transparency than previous generations
• Sets up fast and easy in any room thanks to the Wizard Setup mode
• Easy to manage thanks to its clear front panel display and metering
• Preset modes for Speech, Speech/Music, and Music for optimized performance in any application

Just say no to feedback, with the dbx AFS2!

Stairville 32 Power distributor

Case 10U
